2010 BMW MOTORRAD G 650 GS ESP

nical data". The figures in thegraphic correspond to the fusenumbers.
Close the fuse cover.
The latch engages with anaudible click.
Installing seat (39).

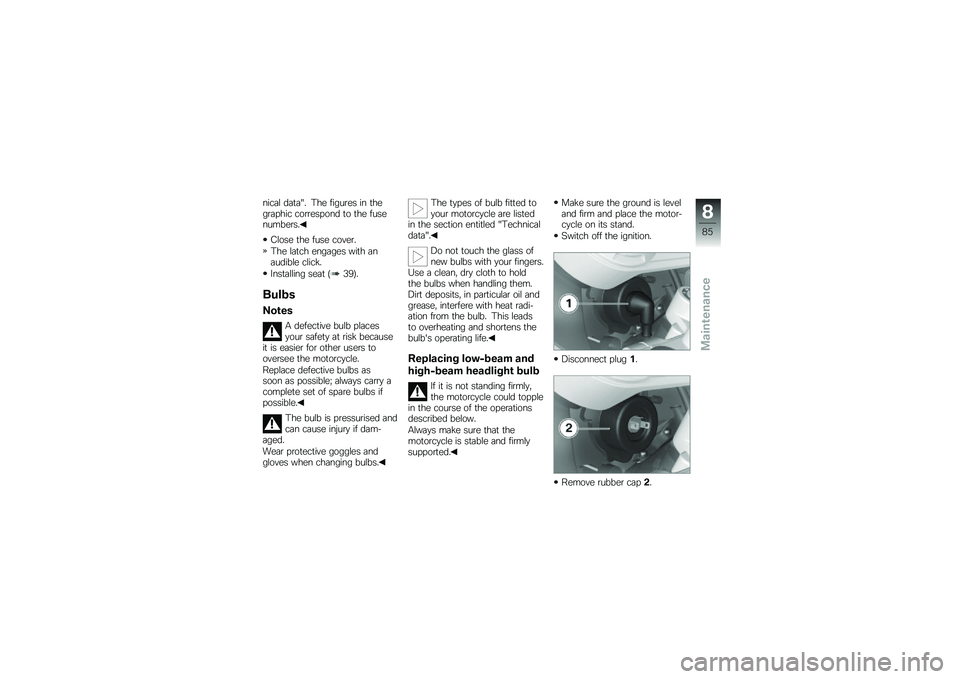

Bulbs
Notes
A defective bulb placesyour safety at risk becauseit is easier for other users tooversee the motorcycle.
Replace defective bulbs assoon as possible; always carry acomplete set of spare bulbs ifpossible.
The bulb is pressurised andcan cause injury if dam-aged.
Wear protective goggles andgloves when changing bulbs.
The types of bulb fitted toyour motorcycle are listedin the section entitled "Technicaldata".
Do not touch the glass ofnew bulbs with your fingers.Use a clean, dry cloth to holdthe bulbs when handling them.Dirt deposits, in particular oil andgrease, interfere with heat radi-ation from the bulb. This leadsto overheating and shortens thebulb's operating life.
Replacing low-beam and
high-beam headlight bulb
If it is not standing firmly,the motorcycle could topplein the course of the operationsdescribed below.
Always make sure that themotorcycle is stable and firmlysupported.
Make sure the ground is leveland firm and place the motor-cycle on its stand.
Switch off the ignition.
Disconnect plug1.
Remove rubber cap2.
8
85
zMaintenance

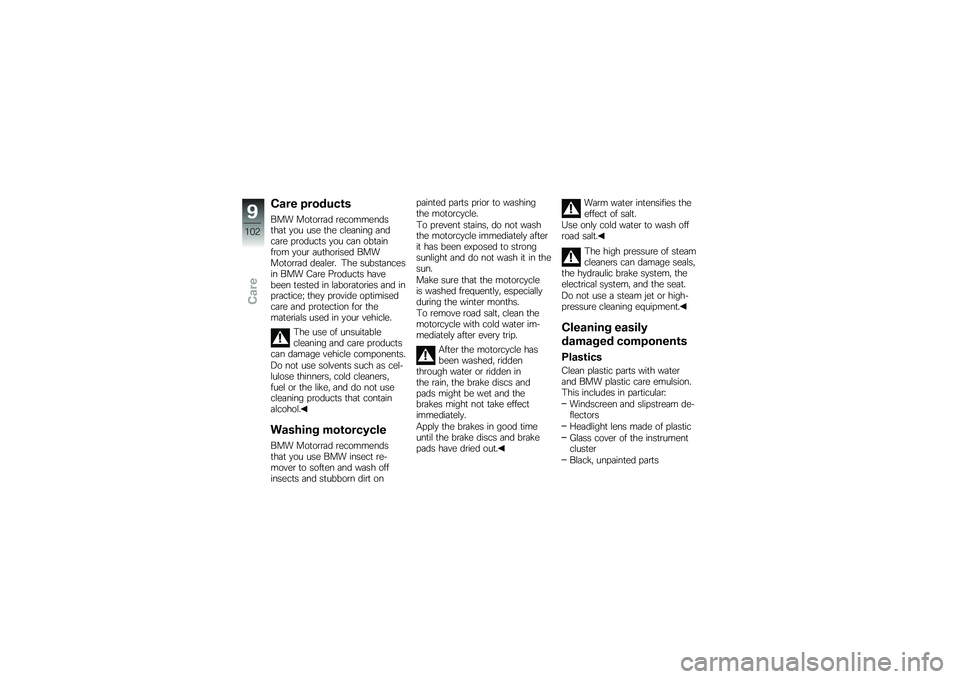

Care products
BMW Motorrad recommendsthat you use the cleaning andcare products you can obtainfrom your authorised BMWMotorrad dealer. The substancesin BMW Care Products havebeen tested in laboratories and inpractice; they provide optimisedcare and protection for thematerials used in your vehicle.
The use of unsuitablecleaning and care productscan damage vehicle components.
Do not use solvents such as cel-lulose thinners, cold cleaners,fuel or the like, and do not usecleaning products that containalcohol.
Washing motorcycle
BMW Motorrad recommendsthat you use BMW insect re-mover to soften and wash offinsects and stubborn dirt on
painted parts prior to washingthe motorcycle.
To prevent stains, do not washthe motorcycle immediately afterit has been exposed to strongsunlight and do not wash it in thesun.
Make sure that the motorcycleis washed frequently, especiallyduring the winter months.
To remove road salt, clean themotorcycle with cold water im-mediately after every trip.
After the motorcycle hasbeen washed, riddenthrough water or ridden inthe rain, the brake discs andpads might be wet and thebrakes might not take effectimmediately.
Apply the brakes in good timeuntil the brake discs and brakepads have dried out.
Warm water intensifies theeffect of salt.
Use only cold water to wash offroad salt.
The high pressure of steamcleaners can damage seals,the hydraulic brake system, theelectrical system, and the seat.
Do not use a steam jet or high-pressure cleaning equipment.
Cleaning easily
damaged components
Plastics
Clean plastic parts with waterand BMW plastic care emulsion.This includes in particular:
Windscreen and slipstream de-flectors
Headlight lens made of plastic
Glass cover of the instrumentcluster
Black, unpainted parts
9
102
zCare

If plastic parts are cleanedusing unsuitable cleaningagents, the surfaces can be dam-aged.
Do not use cleaning agents thatcontain alcohol, solvents or ab-rasives to clean plastic parts.
Even fly-remover pads or clean-ing pads with hard surfaces canproduce scratches.
Soften stubborn dirt andinsects by covering the af-fected areas with a wet cloth.
Chrome
Use plenty of water and BMWshampoo to clean chrome, par-ticularly if it has been exposed toroad salt. Use chrome polish foradditional treatment.
Radiator
Clean the radiator regularly toprevent overheating of the en-gine due to inadequate cooling.
For example, use a garden hosewith low water pressure.
Cooling fins can be benteasily.
Take care not to bend the finswhen cleaning the radiator.
Rubber
Treat rubber components withwater or BMW rubber-careproducts.
Using silicone sprays forthe care of rubber seals cancause damage.
Do not use silicone sprays orother care products that containsilicon.
Paint care
Washing the motorcycle regularlywill help counteract the long-termeffects of substances that dam-age the paint, especially if yourmotorcycle is ridden in areaswith high air pollution or naturalsources of dirt, for example treeresin or pollen.
Remove particularly aggressivesubstances immediately, how-ever, as otherwise the paint canbe affected or become discol-oured. Substances of this natureinclude spilt fuel, oil, grease,brake fluid and bird droppings.We recommend BMW vehiclepolish or BMW paint cleaner forthis purpose.
Marks on the paintwork are par-ticularly easy to see after themotorcycle has been washed.Remove stains of this kind im-mediately, using cleaning-gradebenzene or petroleum spirit on aclean cloth or ball of cotton wool.
9
103
zCare

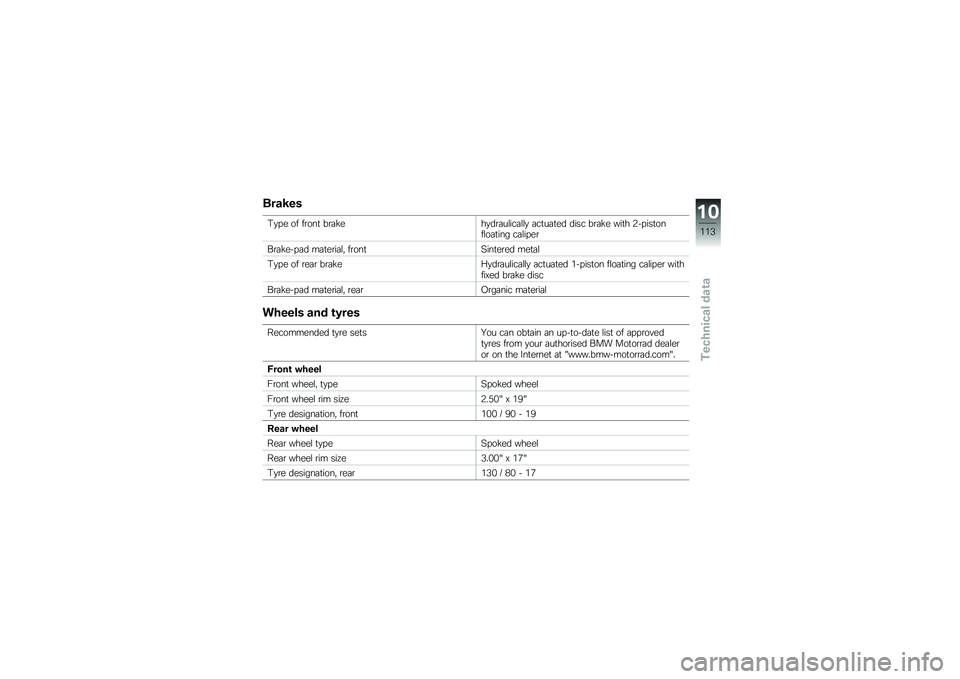

Brakes
Type of front brakehydraulically actuated disc brake with 2-pistonfloating caliper
Brake-pad material, frontSintered metal
Type of rear brakeHydraulically actuated 1-piston floating caliper withfixed brake disc
Brake-pad material, rearOrganic material
Wheels and tyres
Recommended tyre setsYou can obtain an up-to-date list of approvedtyres from your authorised BMW Motorrad dealeror on the Internet at "www.bmw-motorrad.com".
Front wheel
Front wheel, typeSpoked wheel
Front wheel rim size2.50" x 19"
Tyre designation, front100 / 90 - 19
Rear wheel
Rear wheel typeSpoked wheel
Rear wheel rim size3.00" x 17"
Tyre designation, rear130 / 80 - 17
10
113
zTechnical data
