2010 AUDI S6 technical data

& WARNING
Changing the vehicle's susp ension including use of unapproved
tire -rim combination s can change Advan ced Airbag performance
and increase the risk of serious personal injury in a crash .
• Never install suspension component s that do not have the
same performance characteristics as the components originally
installed on your vehicle.
• Ne ver use tire-rim combinations that have not been approved
by Audi.
& WARNING
Items stored between the safety belt buckle and the center
console can cause the sensors in the buckle to send the wrong
information to the electronic control module and prevent the
Advanced Airbag System from working properly.
• Always make sure that nothing can interfere with the safety
belt buckles and that they a re not obstructed .
<£> For the sake of the environment
Undeployed airbag modu les and pretensioners might be class ified as
P erch lorate Materi al - sp eci al ha ndl ing m ay a pply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate. When the vehicle or
parts of t he re st ra int s ystem includ in g air bag modu les and safe ty
belts with pretensioners are scrapped, all applicable laws and regula­
tions m ust be o bserve d. Your authorized Audi dea le r is familiar with
t hese requirements and we recommend that you have yo ur dealer
per form th is service for you. •
Safety first Vehicle OP-eration
Airbag system
Side airbags
Description of side airbags
The airb ag sys tem can pro vide su pplemen ta l pro tection
t o pr operly restr ained occ upants .
Fig. 18 5 S ide air bag
loca tion in the d river's
seat
T he side airbags are located in t he sides of t he front seat backrests
~ fig. 185 and the rear backrest * facing the doors. They are ide nti ­
fie d by th e word "AIRBAG" .
The side airbag system basically consists of :
• the ele ctron ic cont rol mod ule and extern al side imp act se nsors
• the two side airbags located in t he sides of the front backrests
• two rear side airbags (as an o rde red
o p tion)
• the airbag wa rni ng light in the instr ument cluster .
Th e air bag sys tem is monitore d ele ct ronically to m ake ce rtain that it
is funct io ning properly at all times. Each t ime you turn on the igni­
tion , the airb ag system indica tor light w ill come on fo r a few seconds
(self d iagnostics).
Th e side airbag sy stem sup plements the safety belts and can he lp to
re du ce the risk of inju ry to the dr ive r's, fron t and rear* passenger 's
upper torso on the side of the ve hicle that is struck in a side coll is ion.
The airbag d eploys o nly in s ide impac ts an d only when the ve hicl e
acce leration reg istered by the contro l un it is high enough. If this rate
~
Vehicle care Do-it-yourselt service iTechnical data

Airbag system Ill
----------------=--=---

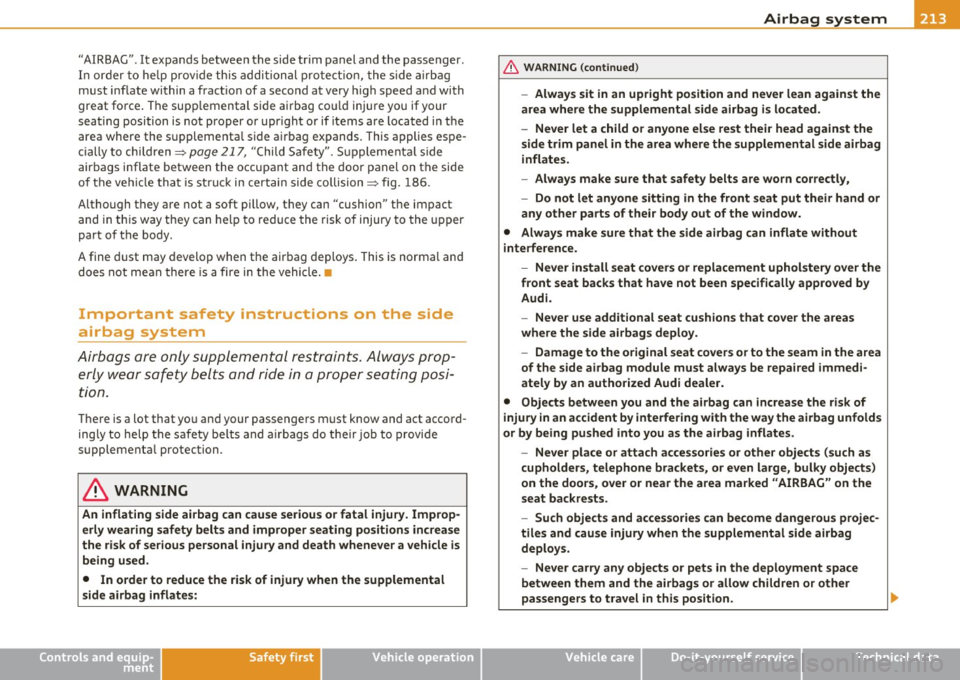

"AIRBAG". It expands between the side tr im panel and the passenger.
I n order to he lp prov ide th is addi tion al pro te ct ion, the s ide a irbag
must inflate within a fract ion of a second at very high speed a nd with
great force . The supp lementa l sid e airbag co uld inju re you if your
seat ing position is not proper or upr ight or if items are located in the
area where the s upplementa l s ide a irbag expands . This applies espe­
c ially to children=>
page 217, "Child Safety". S upplementa l side
airbags inflate between the occupant and the door panel on the side
o f the ve hicl e that is st ru ck in ce rtai n side co llision=> fig. 186 .
Although they are not a soft pillow, they can "cush ion" the impact
and in th is way they can help to reduce the risk of injury to the upper
part of the body.
A fine dust may develop when the airbag deploys. This is normal and
does not mean there is a fire in the vehicle. •
Important safety instructions on the side
airbag system
Airbags are only supplemental restrain ts. Always pr op­
erly wear safe ty belts and ride in a proper seating posi­
tion .
There is a lot that yo u and your passengers must know and act accord­
ing ly to help the safety be lts and a irbags do the ir job to provide
supplementa l protection .
& WARNING
An inflating side ai rbag can cau se serious or fatal injury. Improp­
e rl y wearing safety belts and improper seating pos itions increase
the risk of se rious pe rsonal injury a nd death whenever a vehicle is
being used .
• In order to reduce the ri sk of injury when the supplemental
s ide airbag inflates:
Controls and equip­
ment Safety first Vehicle operation
& WA
RNING (continued )
-Alway s sit in an upr ight po sition and never lean again st the
area where the supplem ental side airbag is locat ed .
- Ne ver let a child or an yone el se rest their head against the
s ide trim panel in the area wh ere the supplemental side airbag
inflates.
- Alw ays make sure th at s afet y belts are worn correctly,
- Do not let anyone sitting in the front seat put their hand or
a ny other parts of their body out of the window.
• Alway s make sure that the side airbag can inflate without
interfe rence .
- N ever in stall seat covers or replac ement uphol stery over the
front seat back s that have not been specifically approved by
Audi.
- Never use additional seat cu shion s that co ve r the area s
wher e the side airbags deploy.
- Damage to the original seat co ver s or to the seam in the area
of the side airbag mod ule must a lway s be repaired immedi­
ately by an authorized Audi dealer.
• Obje ct s between you and the airbag can in crea se the risk of
injur y in an accident by inte rfer ing with the wa y the airbag unfold s
or by being pushed int o you as the a irbag inflates .
- Ne ver pla ce or attach a cce sso ries or other object s (such a s
c upholders, t elephon e brack ets, or even larg e, bulky objects )
on t he d oor s, over or near the area marked "AIRBAG " on the
s e at ba ckrests .
- Su ch obje ct s and a cc es sories can be come dangerou s proj ec­
tiles and cause injury when th e supplemental side airbag
deplo ys.
- Nev er ca rry any objects or pets in the d eployment space
between them and the airbag s or allow childr en or other
pas seng ers to tra vel in this position .
Vehicle care Do-it-yourself service Technical data

Aside from their norma l safety function, safety be lts work to he lp
kee p th e dr iver or fron t p asse n ger in posi tion in t he even t of a c olli­
sion so that the side cu rtain a irbags can provide protection.
T he a irbag system is not a substitute for your safety belt . Rathe r, it is
par t of the ove rall o ccu pan t res traint syste m in your vehicle . A lw ay s
remember t hat the airba g system can on ly help to protect you if you
a re we ari ng your safety bel t and wearing it prop erly. Thi s is ano ther
reaso n why you s hou ld always wea r your safety be lts, not just because
th e law requi re s you to do so=>
page 185, "G ene ral no tes".
It is i mpo rtant to re m ember that while the s ide curta in airbag system
is des igned to help re duce the likelih ood of serious injuries, ot her
i n jur ies, fo r exa mple, sw elling, br uising, a nd m inor ab rasions can
also be assoc iated wit h these airbags upo n dep loyment . Remembe r
t o o , these a irbags w ill d eploy only on ce an d on ly in ce rt ain kinds of
acc idents -yo ur safety belts are always there to offer protection.
The side curtain airbag system basically consists of:
• Th e electronic co ntro l mo dule an d external side impact sensors
• The side c urtai n airbags above the fro nt an d rear s ide windows
• Th e airba g indic ator ligh t in the ins trumen t panel
Th e a irbag system is monitored elec tron ically to make certai n it i s
functioning prope rly at a ll times . Each time yo u turn on the ignition,
t h e airbag sys tem indicator ligh t w ill com e on for a few seconds (s elf
diagnostics) .
The side curtain airbag is not activated:
• if the ignition is turned off,
• in side co llisions when the accelerati on measured by the sens or is
t o o low,
• in front-end col lisions,
• in re ar -end co llisions,
• in rollovers.
Safety first Vehicle OP-eration
Airbag system
& WARNING
• Safety belts and the airbag system will only provide protection
when occupants are in the proper seating position =>
page 75,
"General recommendations ".
• If the airbag indicator light comes on when the vehicle is being
used, have the system inspected immediately by your authorized
Audi dealer. The side curtain airbag may not work properly even
when the vehicle acceleration in a side collision is high enough to activate the airbag.~
How side curtain airbags work
Side cu rtain ai rbags c an wo rk to gethe r w it h sid e airba gs
to h elp r ed uce the risk of h ead and upp er tors o inju rie s f or
o cc u pan ts who are pr operly restr ained.
Fig . 188 Illu str ation
of principle: Inflated
side curt ain airbag s on
the left side
Th e side curtain airbags in flate between the oc cupan t and t he
w indows on the side of the vehicle t hat is struck in a sid e co llision
=> fig. 188.
Wh en the sys tem is tr igg ered, the side curta in airbag is filled w ith
pro pell ant gas and breaks th rough a seam above the front and rear
s ide w indow s iden tifi ed b y the AIRBAG label. In or der to help pro vid e
this additional protection, the side c urta in airbag must inflate with in
th e bl ink of an eye at very hi gh speed and wi th gre at force. The side ._
Vehicle care Do-it-yourselt service iTechnical data

___________________________________________ C_ h_il _d _ S_a _f _e _t =c,. y __ lffll

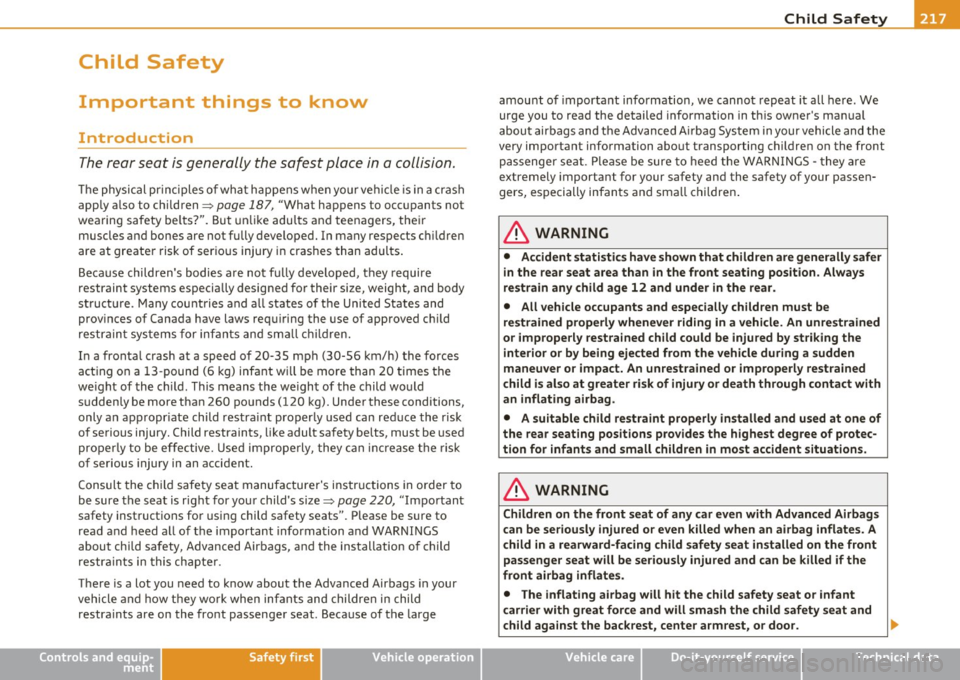

Child Safety
Important things to know
Introduction
The rear seat is generally the safest place in a collision.
Th e physical pr in ci ples o f wha t happens w hen yo ur vehicl e is in a crash
app ly a lso to children=>
page 187, "What happens to occupants not
wearing safety be lts?". But unlik e adu lts and teenagers, the ir
muscles and bones are not fully developed. In many respects c hildren
are at greate r risk of ser io us injury in cras hes than adults .
Because children 's bodies a re not f ully deve loped, they require
restraint systems especially designed fo r their size, weight, and body
st ruct ure. Many cou ntries and all states of t he Unite d States and
prov inces of Canada have laws req uiring the use of approved ch ild
restrain t sys tems for infan ts an d sm all ch ild ren .
I n a fronta l crash at a speed of 20 -35 mph (30-56 km/h) the forces
act ing o n a 13- pound (6 kg) infant w ill be more than 20 times the
we ight of the ch ild . This means the we ight of the child wo uld
suddenly be more than 260 po unds (120 kg). Unde r these conditions,
only a n app ropr iat e child restra int proper ly used can red uce the risk
of serious injury. Child restraints, like adult sa fety be lts, must be used
pro perl y to be effective. Use d imprope rly, they can i ncrease t he ris k
of serious injury in an accident.
C onsult the ch ild safety seat manufacturer's instr uctions in order to
be sure the seat is r ight for you r child's size=>
page 220, "Important
safety instructions fo r using child safety seats". P lease be s ure to
read and heed a ll of the important informa tion and WAR NINGS
about chi ld safety, Advanced Airbags, an d the installation of child
restra in ts in this chapte r.
There is a lot you need to know about the Advanced Airbags in your
vehicle and how t hey wo rk when inf ants and childre n in child
restra ints are on the front passenger seat. Beca use of t he large
Controls and equip­
ment Safety first Vehicle operation
amou
nt of importa nt info rmation, we cannot repeat i t all he re. We
urge you to read the detailed information in th is owne r's man ua l
abou t airbags and t he Advanced A irbag Syste m in your vehicle and the
very important information abo ut transporting c hildren on the front
p assenger se at. P lea se be sure to heed the WARNIN GS - they a re
extremely important for your safety and the safety of your passe n­
gers, especially infan ts and small ch il dre n.
& WARNING
• Accid ent statisti cs have shown that children are generally safer
in the rear seat area than in the front seating position. Always
re strain any child age 12 and under in the rear.
• All vehicle occupants and especially children must be
restrained properly when ever riding in a vehicle. An unre strained
or improperly restrained child could be injured by striking the
interior or by being ejected from the vehicle during a sudden
maneuver or impact. An unrestrained or improperly rest rained
child is also at greater risk of injury or death through contact with
an inflat ing airbag .
• A suitable child restraint properly installed and used at one of
the rear seating pos itions provides the highest degree of protec­
tion for infants and small children in most accident situations.
& WARNING
Children on the front seat of any car even with Advanced Airbags
can be seriously injured or even killed when an airbag inflates. A
c hild in a rearward -facing child safety seat in stalled on the front
passenger seat will be seriously injured and can be killed if the
front airbag inflate s.
• The inflating airbag will hit the child safety seat or infant
c arrier with great force and will sma sh the child safety seat and
child aga inst the backrest, center armrest , or door . •
Vehicle care Do-it-yourself service Technical data

-----------------------------------------~C~ h~il ~d ~ S~a _!fe ~ t !;YL __
and for the different models of the same kind of child restraint
offered by child restraint manufacturers.
The weight ranges for the individual types, makes and models of ch ild
restraints that the NHTSA has specified in the Safety Standard
together with the weight ranges of typical infants and typical 1 year­
old child have been stored in the control unit of the Advanced Airbag
System. When a child restraint is being used on the front passenger
seat with a typical 1 year-old chi ld, the Advanced Airbag System
compares the weight meas ured by the weight sensing mat with the
information stored in the electronic control unit .
The electronic contro l unit a lso registers the tension on the front
passenger safety belt. The tension on the safety belt for the front
passenger seat will be different for an adult who is properly using the
safety belt as compared to the tension on the belt when it is used to
attach a child restraint to the seat . The sensor below the latch for the
safety belt for the front seat passenger measures the tension on the
belt. The input from this sensor is then used with the weight to
"decide", whether there is a child restraint with a typical 1 year-old
child on the front passenger seat and whether or not the airbag must
be turned off .•
Child restraints and Advanced Airbags
Regardless of the child restraint that you use, ma ke sure that it has
been certified to meet United States Federal Motor Vehicle Safety
Standards and has been ce rtified by its manufacturer for use with an
airbag . Always be sure that the child restraint is properly installed at
one of the rear seating positions. If in exceptional circumstances you
must use it on the front passenger seat, carefully read all of the infor­
mation on ch ild safety and Advanced Airbags and heed all of the
app licab le WARNINGS. Make certain that the child restra int is
correctly recognized by the weight-sensing mat inside the front
passenger seat, that the front passenger airbag is turned off and that
the airbag status is always correctly signaled by the
PASSENGER AIR
BAG OFF
light.
Controls and equip­ ment Safety first Vehicle operation
Many types and models of child restra
ints have been available over
t he years, new models are introduced reg ularly incorpo rating new
and improved designs and older models are taken out of product ion.
Chi ld restraints are not standardized. Child restraints of the same
type typ ically have d ifferent weights and sizes and differe nt 'foot­
prints,' the size and shape of the bottom of the child restraint that
sits on the seat, when they are installed on a vehicle seat . These
differences make it virtually impossib le to certify compliance with
t he requirements for advanced airbags with each and every chil d
restra int that has ever been sold in the past or will be sold over the
course of the useful life of your vehicle.
For this reason, the United States Nationa l Highway Traffic Safety
Administration has published a list of specific type, makes and
mode ls of child restra ints that must be used to cert ify compliance of
the Advanced Airbag System in yo ur vehicle with the suppression
requirements of Federal Motor Veh icle Safety Standard 208. These
child restraints are:
A. Car beds, manufactured on or after September 1,
2004:
• Cosco Dream Ride 02-719
B. Rear facing child restraint systems,
manufactured on or after September 1, 2004:
(When the restraint system comes equipped with a removable base,
compliance has to be cert ified with or without the base) .
• Britax Handle with Care 191
• Century Assura 4553
• Century Smart Fit 4543
• Cosco Arriva 02727
• Evenflo Discovery Adjust Right 212
• Evenflo First Choice 204
• Graco Infant 8457
Vehicle care Do-it-yourself service Technical data

_____________________________________________ C _h_i_ld _ S_ a_ f_ e_ t__. y'--- _IJII

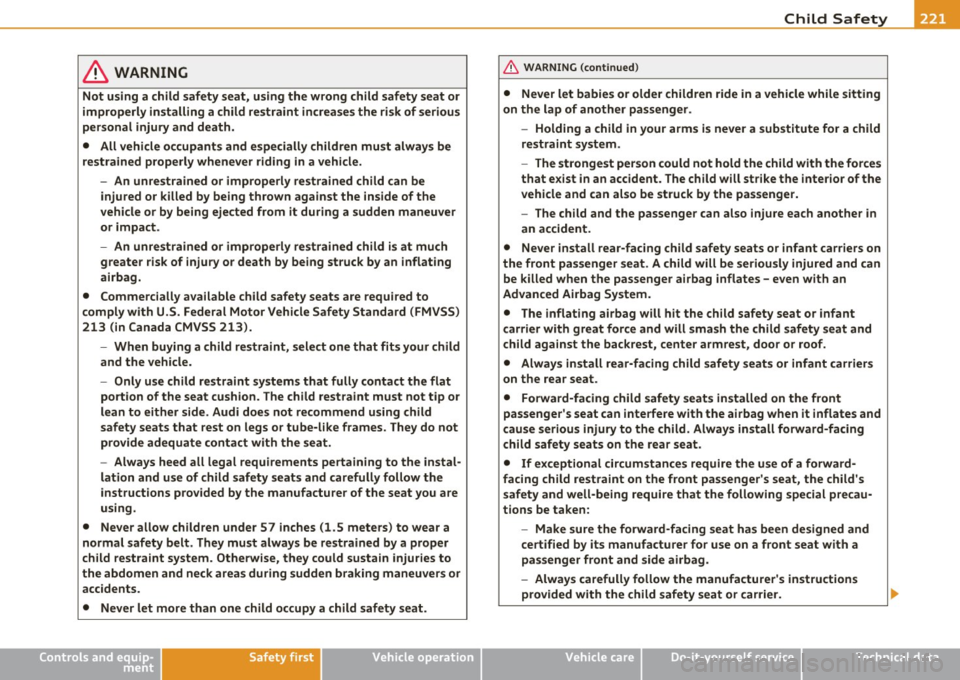

& WARNING
Not using a child safety seat, using the wrong child safety seat or
improperly installing a child restraint increases the risk of serious
personal injury and death.
• All vehicle occupants and especially children must always be
restrained properly whenever riding in a vehicle.
- An unrestrained or improperly restrained child can be injured or killed by being thrown against the inside of the
vehicle or by being ejected from it during a sudden maneuver or impact.
- An unrestrained or improperly restrained child is at much greater risk of injury or death by being struck by an inflating
airbag.
• Commercially available child safety seats are required to
comply with U.S. Federal Motor Vehicle Safety Standard (FMVSS)
213 (in Canada CMVSS 213).
- When buying a child restraint, select one that fits your child and the vehicle.
- Only use child restraint systems that fully contact the flat portion of the seat cushion. The child restraint must not tip or
lean to either side. Audi does not recommend using child
safety seats that rest on legs or tube-like frames. They do not
provide adequate contact with the seat.
- Always heed all legal requirements pertaining to the instal­
lation and use of child safety seats and carefully follow the
instructions provided by the manufacturer of the seat you are
using.
• Never allow children under S7 inches (1.5 meters) to wear a
normal safety belt. They must always be restrained by a proper
child restraint system. Otherwise, they could sustain injuries to
the abdomen and neck areas during sudden braking maneuvers or
accidents.
• Never let more than one child occupy a child safety seat.
Controls and equip­ ment Safety first Vehicle operation
& WARNING
(continued)
• Never let babies or older children ride in a vehicle while sitting
on the lap of another passenger.
-Holding a child in your arms is never a substitute for a child
restraint system.
- The strongest person could not hold the child with the forces
that exist in an accident. The child will strike the interior of the
vehicle and can also be struck by the passenger.
- The child and the passenger can also injure each another in
an accident.
• Never install rear-facing child safety seats or infant carriers on
the front passenger seat . A child will be seriously injured and can
be killed when the passenger airbag inflates - even with an
Advanced Airbag System.
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center armrest, door or roof.
• Always install rear-facing child safety seats or infant carriers
on the rear seat.
• Forward-facing child safety seats installed on the front
passenger's seat can interfere with the airbag when it inflates and
cause serious injury to the child. Always install forward-facing
child safety seats on the rear seat.
• If exceptional circumstances require the use of a forward­
facing child restraint on the front passenger's seat, the child's
safety and well -being require that the following special precau­
tions be taken:
- Make sure the forward-facing seat has been designed and certified by its manufacturer for use on a front seat with a
passenger front and side airbag.
- Always carefully follow the manufacturer's instructions
provided with the child safety seat or carrier.
Vehicle care Do-it-yourself service Technical data

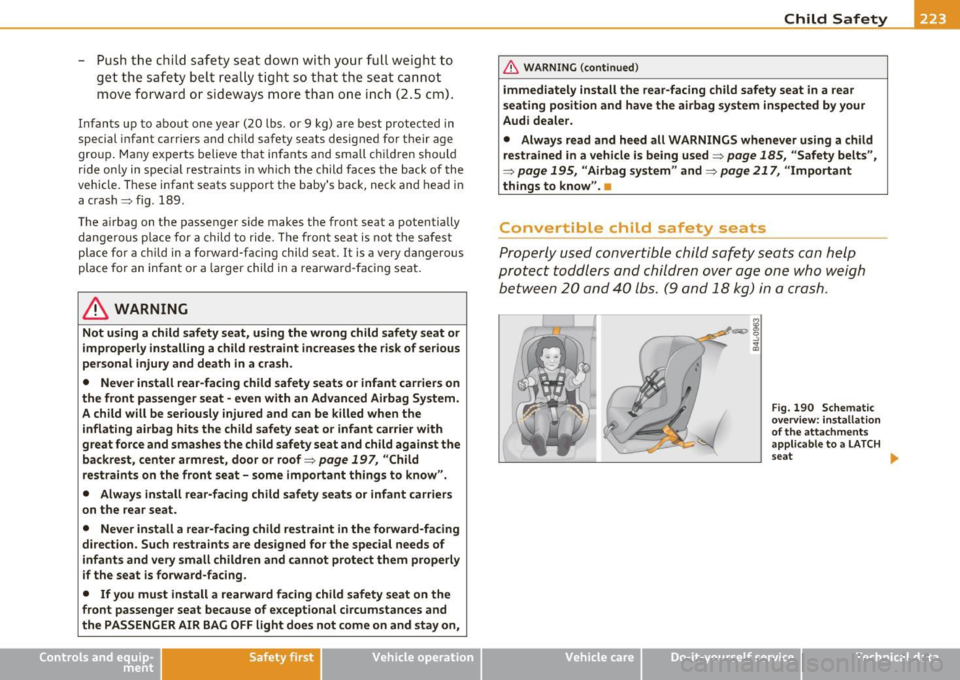

-Push the child safety seat down with your full weight to
get the safety belt really tight so that the seat cannot
move forward or sideways more than one inch (2.5 cm).
Infants up to about one year (20 lbs. or 9 kg) are best protected in
special infant carriers and chi ld safety seats designed for t heir age
group. Many experts believe that infants and small childr en should
r ide only in spec ia l restra ints in w hich the child faces the back of the
vehicle. These infant seats support the baby's back, neck and head in
a crash=> fig. 189.
The airbag on the passenger side makes the front seat a potentially
dangerous place for a child to ride. The front seat is not the safest
place for a ch ild in a forward-facing child seat.
It is a very dangerous
place for an infant or a large r child in a rear ward-fac ing seat.
& WARNING
Not using a child safety seat, using the wrong child safety seat or
improperly installing a child restraint increases the risk of serious
personal injury and death in a crash.
• Never install rear-facing child safety seats or infant carriers on
the front passenger seat· even with an Advanced Airbag System.
A child will be seriously injured and can be killed when the
inflating airbag hits the child safety seat or infant carrier with
great force and smashes the child safety seat and child against the
backrest, center armrest, door or roof=>
page 197, "Child
restraints on the front seat -some important things to know".
• Always install rear-facing child safety seats or infant carriers
on the rear seat.
• Never install a rear-facing child rest raint in the forward-facing
direction. Such restraints are designed for the special needs of
infants and very small children and cannot protect them properly
if the seat is forward-facing.
• If you must install a rearward facing child safety seat on the
front passenger seat because of exceptional circumstances and
the PASSENGER AIR BAG
OFF light does not come on and stay on,
Safety
first Vehicle OP-eration
Child Safety
& WARNING (continued)
immediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
Audi dealer.
• Always read and heed all WARNINGS whenever using a child
restrained in a vehicle is being used=>
page 185, "Safety belts",
=>
page 195, "Airbag system" and=> page 217, "Important
things to know ".•
Convertible child safety seat:s
Properly used convertible child safety seats can help
protect toddlers and children over age one who weigh
b etween 20 and 40 lbs. (9 and 18 kg) in a crash.
Vehicle care
Fig . 190 Schematic
overview: installation
of the attachments
applicable to a LATCH
seat
ti,
Do-it-yourselt service iTechnical data

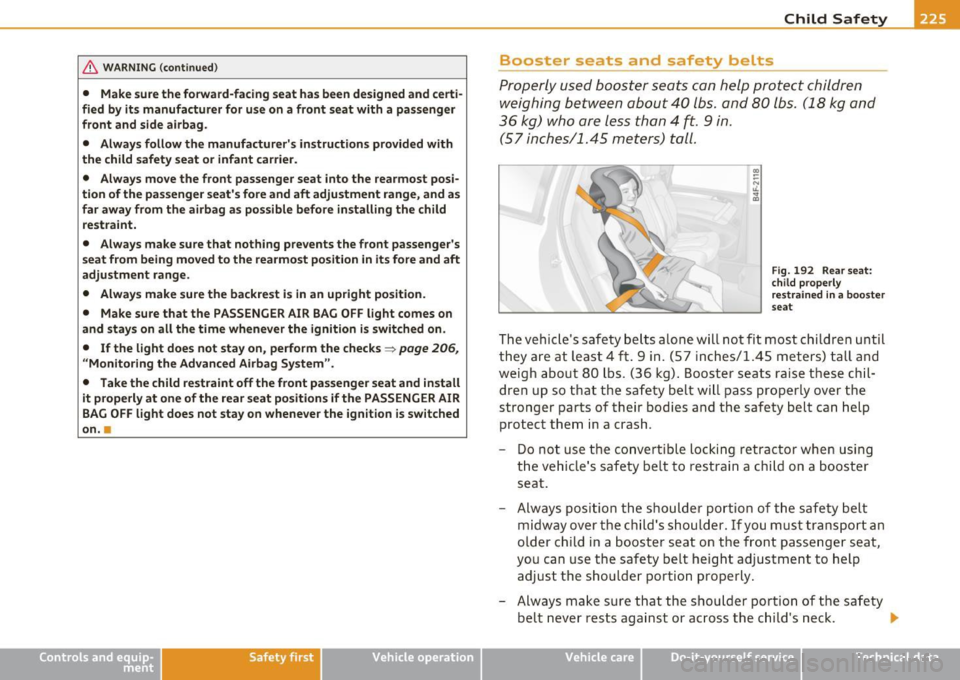

& WARNING (continued)
• Make sure the forward-facing seat has been designed and certi·
fied by its manufacturer for use
on a front seat with a passenger
front and side airbag.
• Always follow the manufacturer's instructions provided with
the child safety seat or infant carrier.
• Always move the front passenger seat into the rearmost posi­
tion of the passenger seat's fore and aft adjustment range, and as
far away from the airbag as possible before installing the child
restraint.
• Always make sure that nothing prevents the front passenger's
seat from being moved to the rearmost position in its fore and aft
adjustment range.
• Always make sure the backrest is in an
upright position.
• Make sure that the PASSENGER AIR BAG
OFF light comes on
and stays on all the time whenever the ignition is switched
on.
• If the light does not stay on, perform the checks => page 206,
"Monitoring the Advanced Airbag System".
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG
OFF light does not stay on whenever the ignition is switched
on. a
Safety first Vehicle OP-eration
Child Safety
Booster seats and safety belts
Properly used booster seats can help protect children
weighing between about 40 lbs. and 80 lbs. (18 kg and
36 kg) who are less than 4 ft.
9 in.
(57 inches/1.45 meters) tall .
Fig. 192 Rear seat:
child properly
restrained in a booster
seat
The vehicle's safety belts alone will not fit most children until
they are at least 4 ft. 9 in. (57 inches/1.45 meters) tall and
weigh about 80 lbs. (36 kg). Booster seats raise these chil­
dren up so that the safety belt will pass properly over the
stronger parts of their bodies and the safety belt can help
protect them in a crash.
- Do not use the convertible locking retractor when using
the vehicle's safety belt to restrain a child on a booster
seat.
- Always position the shoulder portion of the safety belt
midway over the child's shoulder. If you must transport an
older child in a booster seat on the front passenger seat,
you can use the safety belt height adjustment to help
adjust the shoulder portion properly.
- Always make sure that the shoulder portion of the safety
belt never rests against or across the child's neck.
9'>
Vehicle care Do-it-yourselt service iTechnical data
