• Driving off road
------------------------------------------------------'
vary. It is the driver's responsibility to decide whether a vehicle can
overcome a specific situation
=> &-
Gradient angle
The number of meters in altitude gained over a distance of 109 .4
yards or 100 meters (grade) are given as a percentage or degrees.
Information about the gradient the vehicle can climb under its own
power (depends in part on the road surface and engine power).
Maximum permitted grade: 31
°
Lateral angle (slope of vehicle)
Indicates the angle up to which the vehicl e can be driven diagonally
or across the fall line on a slope without the vehicle tipping over s ide­
ways (depends on center of gravity). Maximum permitted late ral
angle: 35°
Breakover angle
Indicates the angle up to which the vehicle can dr ive over a ramp at
low speed without the underside of the vehicle hitting the edge of the
ramp.
• Vehicles without air springs: maximum breakove r angle: 21, 1 °
• Vehicles with adaptive air suspension*: maximum breakover
ang le: 19.1 ° (at normal leve l), 23.8° (at high level 2)
Approach /departure angle
Transition from the horizontal plane to a gradient or from a grade
back to level ground. Indicates the angle up to which the vehicle can
drive onto or off a slope at low speed without striking the bumper or
the underbody.
• Vehicles without air springs: maximum approach/departure
ang le: 21.9° (front), 23.4° (rear)
• Vehicles with adaptive air suspension*: maximum
approach/departure angle at normal level 20° (front), 21.9° (rear).
Maximum approach/departure angle at high level 2 (front) 24°,
(rea r) 25.4°
Controls and equip­
ment Safety first Vehicle operation
Ground clearance
Th
e distance between the road surface and the lowest point of the
vehicle underbody.
• Vehicles without air springs: Ground clearance 8.1 in
(204 .8 mm)
• Vehicles with adaptive air suspension*: minimum ground clear­
ance 7.1 in (179.8 mm) at normal level, maximum ground clearance
9.4 in (239.8 mm) at high level 2
_& WARNING
Exceeding the stated maximum figures can result in severe inju­
ries or vehicle damage .
• All the information was gathered on level, firm and non-slip­
pery road surfaces, and under dry weather conditions.
• Ideal conditions do not prevail offroad. Never utilize the
maximum readings to their fullest, always leave a safety
reserve. •
Driving tips
On poor road and off road, there is always only one
motto: Plan ahead and drive slowly!
Please observe the follow ing when driving away from paved
roads:
- Drive only on roads and offroad sections which match the
design of your veh icle and your abilities as a driver. Never
ta ke ris ks!
- Drive slowly and plan ahead!
- Take into consideration the
ground clearance of you r
vehicle.
Vehicle care Do-it-yourself service Technical data

Driving off road
- Activate the ESP offroad mode=> page 252 as needed .
- Use the
hill descent control => page 253 when driving
down steep sections on hills.
Unpaved roads and offroad
Drive slowly on unfamiliar roads and unknown offroad sections, and
loo k out for unexpected obstacles (e .g. potho les, rocks, t ree st umps,
etc.).
T o prevent the vehicle from bo ttoming and avoid dam age to the
underbody, you should drive straight across severe bumps in the
gro und with on ly one s ide of the vehicle so tha t on ly two of your
wheels cross the bumps.
Drive brisk ly throug h sandy or marshy offroad sections and do not
stop, if at all poss ible.
Driving through water
Your vehicle ca n drive at maximum wal king speed thro ugh stand ing
water if the gro und is firm enough . The
maximum water depth is
1 9. 7 in o r 500 mm (ve hicles w it h out air spr ings) or 2 1.1 in or
535 mm (vehicles with Adaptive Air Suspension*, at high level 2).
Driving on a slope
If you ever find yourself not able to climb a slope, do not try to t urn
around, drive bac k dow n in
rever se . Ot herw ise, you run t he ris k of
tipping over .
If the vehicle threaten s to tip over when driving a cross a slope , you
must immediately steer downh ill in the direction of the slope .
Do not park your vehicle on steep slopes or gra des .
T o red uce the risk of tipp ing ove r, d rive on s lopes in t he di re ct io n of
the downward slope (fall line) -
not crosswise .
Driving on snow-covered ground
T he standard tires fitted to your vehicle are not snow ti res. So you
should mo unt wheels with snow t ires in good t ime where winter road
conditions prevail. Before driving on unp lowed stretches o f deep snow, install tire chains
. For tech nica l reasons, t ire chains may only
be ins talle d on the re a r wheels - never on the front whee ls.
& WARNING
After driving through water , mud, slush, etc. , the brake s may be
slow to take effect because of wet brake rotors and pads.
Dry the
brake s first by braking carefully to re store the full braking effe ct.
0 Note
Vehicle components such as the engine, trans mission, s uspension or
electrical system can be severely damaged by dr iv ing through water.
W Tips
• Check the dept h of the water before dr iv in g through it.
• Do not stop the vehicle, dr ive in reverse or sw itch the e ngine off
when driving through water .
• Keep in m ind th at on coming vehicles m ay cre ate w aves t hat ra ise
the water level and make it too deep for your vehicle to drive through
safe ly .
• Avoid dr iving through sa lt water because it ca n cause corrosion .•

Trailer towing
~-----------------------------------------
& WARNING (cont inued)
• The Gro ss Vehicle Weight Rating for your Audi Q7 vehicle,
found on the safety compliance label on the driver's side B-pillar, must never be exceeded under any circumstances . Exceeding the
Gross Vehicle Weight Rating of your vehicle is likely to damage
your vehicle, and such damage will not be covered by your Limited
New Vehicle Warranty. Exceeding the Gross Vehicle Weight
Rating will also change the performance and handling character­
istics of your vehicle, whi ch could cause a crash resulting in serious
injury or death.
• The Gro ss Vehicle Weight Rating for your Audi Q7 would be
exceeded if your vehicle is simultaneously equipped with
Panoramic sliding sunroof; third-row seating ; trailer towing
equipment (factory or dealer-installed ), and running boards
(dealer-installed) . UNDER NO CIRCUMSTANCES MAY ALL SUCH
ITEMS BE INSTALLED ON THE SAME VEHICLE .•
Operating instructions
M AX 6 .9"
MA X
175mm
Trailer towing weights
Fig. 221 Permitted
ball position of the
tra iler hit ch
With a factory -installed tra ile r hi tch, the maximum pe rmissib le
t ra iler weig ht is 6,615 lbs (3,000 kg). The maximum pe rmissib le
unbraked trailer we igh t is 1,650 lbs (750 kg) . With an
aftermarket
trail er hi tch, the m axi mum permissibl e traile r weig ht i s 5,5 12 lbs (2,500
kg) . These specifications app ly when driv ing on roads havi ng
an in cline o f less t han 12%.
Permissible tongue load
For best ve hicle handl ing un der t hese ch ange d co ndition s, adju st the
tra ile r l oad so that the tongue load is at the maxim um a llowab le or
sligh tly lower. You can get an app roxim atio n of the tongue load w it h
a bat hroom scale or you ca n measure the load at a t ruc king company
or we ighing st ation.
W it h a
factory-installed trailer h itch, the max imum pe rmissible load
on t he ba ll hitc h may not exceed 662 lbs (300 kg). W it h an
after­
market
tra ile r hi tc h, t he ma ximum pe rm issi ble loa d on the b all hi tch
may not exceed 551 lbs (250 kg). It is recommended to use the
maxim um permi ssible loa d.
Trailer load distribution
Be su re the load in t he tra ile r i s held se curely in p lace to p revent it
from shi fting forward, backwa rd or sideways.
Never allow a passenger to ride in a trailer=> & in "Dr ivin g in struc­
t ions" on
page 2 71.
Ball mount
The tra ile r hitch may on ly be used w ith suitable ball mount and ball
=> fi g. 221. I nstallat ion of the hi tch b all mus t be c arrie d out in acco r­
dance with the manufacturer's instructions . At the height d imension
of 1. 5 in (38 .5 mm) a toler ance of+/- 0.5 in ( 12. 7 mm ) is per miss ible
Engine cooling system
Towing a trailer makes t he eng ine work harder. It is impo rtant that
t he cooling system 's performan ce is up to the addi tional loa d. Mak e
sure that the coo ling system has enough fluid .
Tire pressure
When towing a trailer, inf late the tires ofyourvehicle to the cold tire
pre ssure listed unde r "Full lo ad" on t he tire pre ssu re lab el. Th e tire ...

pressure label is located o n the dr iver's side B-pillar. Inflate trailer
t ires to tra ile r and t ire ma nufacturers' spec ifications.
Lights
T he headl ight settings shou ld be chec ked with the tr ailer attached
before driving off. Check to make sure both vehicle and trailer lights
are wo rking properly.
Safety chains
Be sure tra ile r safety cha ins are p roperly connected from the t rai ler
to the hitch on the vehicle. Leave enough slack in the chains to perm it
tu rning corners . When you install sa fe ty ch ains, ma ke sure they will
not drag on the road when you are driving.
T he chains should cross under the trai ler tongue to prevent it from
dropping in case of separation from the h itch .
0 Note
If you are goi ng to tow a trai ler , you must activate the trai ler opera­
tion mode =>
page 180, "Towing a trailer". •
Driving instructior,s
Driving with a trailer always requires e xtra care and
consideration.
To obtain the best possib le handling of ve hicle a nd trailer ,
please note the following :
- Do not tow a loaded trailer when your car itself is not
loaded.
- Be especia lly careful when pass ing other vehicles .
- Observe speed limi ts.
- Do not drive at the maximum pe rmissible speed.
Controls and equip­
ment Safety first Vehicle operation
- Always apply brakes early.
- Mo
nitor the temperature gauge.
Weight distri but ion
T owing a loaded trailer with an empty car results in a highly unstable
distribution of we ight . If t his cannot be avoided , drive at very low
speeds only to avoid the risk of losing steering control.
A "balanced" rig is easier to operate and control. This means that the
tow veh icle shou ld be loaded to the extent poss ible and permissib le,
wh ile keeping the tra ile r as lig ht as poss ible unde r the ci rc u mstances.
Whe never possible, transfer some cargo to the luggage compart ­
me nt o f the tow vehicle while observing tongue load requirements
and vehicle loading considerations.
Speed
The higher the speed, the more d ifficult it becomes for the driver to
control the r ig . Do not dr ive at the maxim um permiss ible speed .
Reduce your speed eve n more if load, weather or w ind conditions are
unfavorable -particular ly when going downhill.
Reduce vehicle speed
immed iately if the tra ile r shows the slightest
sign of swaying.
Do not tr y to stop the s wayi ng by a ccele rating .
Observe speed lim its. In some areas, speeds for veh icles towing
trailers are lowe r than for regular veh icles .
Always apply brakes early. When driving downhi ll, shift into a lower
gear to use the engine brak ing effect to slow t he ve hicle . Use of the
brakes alone can cause them to overheat and fa il.
Coolant temperatur e
The coo lant temperature gauge=> page 10 must be observed care­
fu lly. If the needle moves close to the upper end of the sca le, reduce
speed immediately and/or turn off the air conditioner.
If the coo lant temperature warning light in the instrument clus ter
starts flash ing
- F- , pull off the road, stop and let the engine idle for
about two m inutes to prevent hea t buil d-up.
Vehicle care Do-it-yourself service Technical data

Trailer towing
"---------------------------------------------------
in. WARNING
Anyone not properly restrained in a moving vehicle is at a much
greater risk in an a ccident . Never let an yone ride in y our car who i s
not prop erly wearing the re straints provided by Audi. •
Trailer towing tips
Important to know
Your vehicle handles differe ntly when tow ing a tra iler because of the
additiona l weight and different we ight distribution. Safety, perfor­
man ce and economy w ill greatly depend on how ca refu lly yo u load
your trailer and operate your rig.
Be fore you actua lly tow your tra ile r, prac tice turning, stopp ing and
back ing u p in a n area away from traffic. Keep pract ic in g until you have
become completely familiar with the way your vehicle -trailer combi­
nation behaves and responds .
Backing up is diff icult and requ ires pract ice. Backing up w ith a trailer
gene rally requires s teer ing a ction opposi te to th at when ba cki ng up
your vehicle witho ut a trailer.
Maintain a greate r d istance between your ve hicl e and the one in front
of yo u. You will need more room to stop . T o compensate fo r the
trai ler, you will need a larger than normal turning radius .
W hen p assing, remember that you c annot acceler ate as fast as yo u
normally wou ld because of the added load. Make sure yo u have
enoug h room to pass. After passi ng, allow plen ty of room fo r yo ur
tra iler before changing lanes again .
Avoid jerky starts, sharp turns or rapid lane changes .
[ i ] Tips
• Do not tow a trai ler d uring the brea k-in perio d of your vehicle. •
If you tow a tra iler, your Aud i may require more frequent mai nte­
n an ce due to the ex tra load:::::>
page 366. •
Parking on a slope
Do not park on a slope with a trailer. If it cannot be
av oided, do so only after doing the following:
When parking:
- Apply the foot brak e.
- Have someone p lac e chocks un der bo th the vehicle and t he
traile r w he els .
- With c hoc ks i n place, slowly release the brakes u ntil the
wheel c hoc ks absorb t he load.
- Turn the w hee ls towards t he curb .
- A pply the parking brake.
- M ove th e selector le v er to
P.
When restarting after parking:
- A pply the foot brake .
- Start the engine .
- Mov e th e s elector lever to
D .
- Release the par king brake a nd s low ly pull o ut and away
fro m the w heel chocks.
- Stop a nd have someone retr ieve the w heel chocks .
(I) Tips
If you move the se lector lever of the a utomat ic t ransmiss ion to P
befo re applying t he par king br ake an d befo re blo cking the w heels, II-

-~_C_ le_ a_n_ i_ n_ g=- a_ n_d___. p_ ro_ t_e _c_ t_ i_o _n ___________________________________________ _

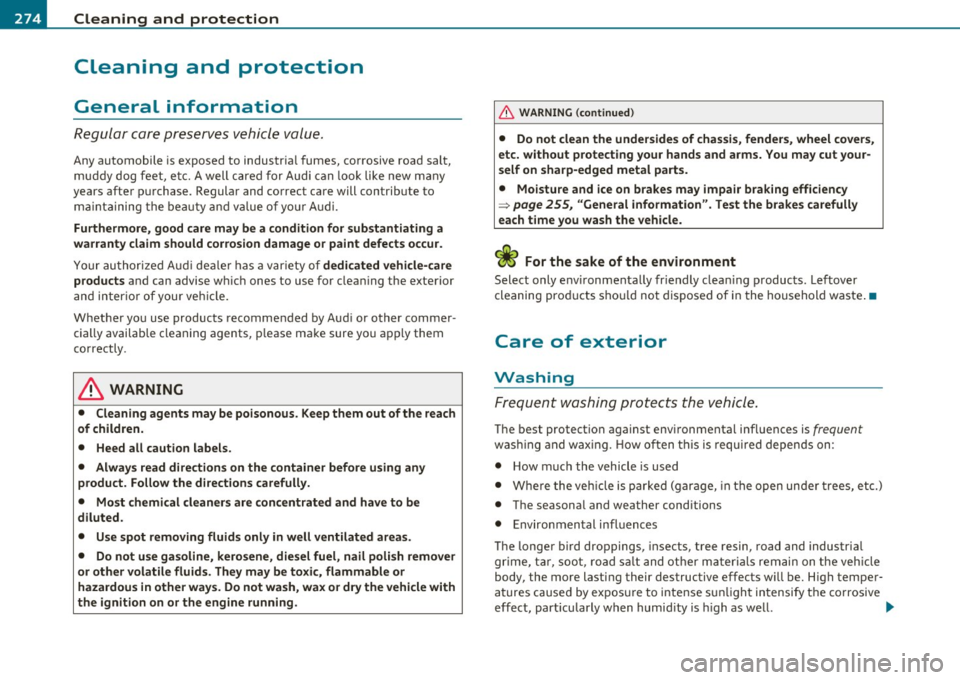

Cleaning and protection
General information
Regular care preserves vehicl e val ue.
Any automobile is exposed to industria l fumes, co rrosive road salt,
m ud dy dog fee t, e tc. A well c ared for Audi can look like new many
years after p urchase . Regular and correct care will contribute to
m aint aining the bea uty and val ue of your Audi.
Furthermore, good care may be a condition for substantiating a
warranty claim should corrosion damage or paint defects occur.
Y ou r au thor ized Audi d eale r h as a var iety of dedicated vehicle-care
products
and can advise w hich ones to use for clea ning the exterior
a n d inter io r of your ve hicle.
W het her you use products recommended by Aud i or o ther comme r­
cia lly availab le cleaning agents , please ma ke sure yo u appl y them
co rrectly .
& WARNING
• Cleaning agents may be poisonous . Keep them out of the reach
of children.
• Heed all caution labels .
• Always read directions on the container before using any
product. Follow the directions carefully.
• Most chemical cleaners are concentrated and have to be
diluted .
• Use spot removing fluids only in well ventilated areas.
• Do not use gasoline, kero sene , diesel fuel , nail polish remover
or other volatile fluids . They may be toxic, flammable or
hazardous in other ways. Do not wash, wax or dry the vehicle with
the ignition on or the engine running.
& WARNING (co ntinued)
• Do not clean the under sides of chassi s, fenders , wheel covers,
etc. without protecting your hands and arms. You may cut your­
self on sharp-edged metal parts.
• Moisture and ice on brakes may impair braking efficiency
~ page 255, "General information ". Test the brakes carefully
each time you wash the vehicle .
'£> For the sake of the environment
Select only envir onmenta lly fr iendly clea ning produc ts . Leftover
cleaning pro ducts sho uld not dis posed of i n the household waste .•
Care of exterior
Washing
F re qu ent w ashin g protec ts th e vehicl e.
T he best protection aga inst env ironmental influences is frequent
w ashi ng and w ax ing. How o ften t his is requ ired depen ds on:
• How m uch the vehicle is use d
• Whe re the ve hicle is parke d (gar age, in the o pen un der tr ees, e tc.)
• The seasona l and weather conditions
• E nviron mental influences
T he longer bi rd droppings , insects , tree resin, road and industria l
gr ime, t ar, soo t, road sa lt and o ther ma ter ia ls remain on the veh icle
body, the more lasti ng their destructive effects w ill be. H igh temper­
atu res cause d by ex pos ure to intense s unlight int ensify the co rrosive
effect, part icu larly when humid ity is high as we ll.
~

-~_C_ le_ a_n_ i_ n_ g=- a_ n_d__. p_ ro_ t_e _c_ t_ i_o _n ___________________________________________ _
Use a separate sponge for cleaning the w heels, door sills and ot her
reg ions exposed to road dirt. I n th is way, yo u w ill not scr atch the
paint w ith coarse part icles imbedded in the sponge the next t ime you
wash the car.
& WARNING
• Do not clean the under side of the chass is, fende rs, wheel
co ve rs, or other hard to reach parts without p rotecting your hands
and arm s. You m ay cut yourself on sharp -edged metal part s.
• Always read and heed all WARNINGS and other information
=;, page
274.
0 Note
• Never try to remove dirt, mud o r dust if the s urface of the vehicle
is dry . Never use a dry cloth or sponge, s ince this could scratch your
vehicle's paint or windows .
• Never was h your car in bright sunlight. Drops of water act as
m agnifying lenses and may dam age your p aint.
• When you wash yo ur car in the winter: if you rinse your vehicle w ith
a hose, be c are ful no t to aim the s tream of w ate r d ir ect ly at locks, or
at door or hatch openings - they can freeze shut.
• Never use s ponges des igned to remove inse cts, o r any ki tchen
sco uring sponges or similar prod ucts. They can damage your paint
fi ni sh .
• You shou ld remove debris (s uch as insects) from the head light
lenses o n a regu lar bas is, for examp le w hen refue ling your veh icle.
Never use a dry cloth or sponge to clean the headlights. On ly use wet
clot hs or sponges to preven t scr atches.
It is be st to use so apy water.
'00' For the sake of the environment
In the in terest of t he env ironme nt, the ve hicl e shoul d onl y be wa shed
in special wash bays. •
Washing your vehicle with a power washer
Cleaning the ex terior of your c ar with a high-pressure
po wer washer is safe as long as y ou obser ve a few sim ple
rules.
- Before using the power washer, make su re you have read
and unders tood the WA RNINGS=>
& in "General info r­
ma tion" on
page 2 74.
- Always fo llow t he operat ing inst ructions fo r the powe r
washer.
- Make sure t hat the jet o n the spray hose produces a "fa n
shaped spray".
- Do
not hold the spr ay nozz le too close t o soft ma ter ials .
When cle ani ng the vehicle wi th a p owe r w ashe r always follow the
operat ing instruct ions . T his applies part icu larly to the
operating
pressure
and the spraying distance. M ain tain a suffic ien t distan ce to
so ft mater ia ls such as rubber hoses and sound/vibration deaden ing
materials (particularly on the unde rside o f the engine hood). Do no t
use a jet wh ic h sprays water in a
direct stream or o ne that has a
rotating jet.
W ate r temperatu re s hou ld not ex ceed 140
°F (6 0 °().
& WARNING
Never wash tires with a jet that sprays water in a direct stream .
This could cause invisible damage to the tires and weaken them ,
even if the spray i s from a relatively long distance and for a short
time . Damaged and weakened tires can fail and c ause accidents
and personal injury .
~

-~_C_ le_ a_n_ i_ n_ g=- a_ n_d___. p_ ro_ t_e _c_ t_ i_o _n ___________________________________________ _
Engine compartment
Be especially careful when cleaning the engine compa rt­
men t.
Always switch off the ignition before cleaning the engine=:>& .
Plenum panel
Remove leaves from the plenum panel in front of the win dshi eld
unde r th e eng ine hood . T hi s prevents the water d rain holes from
becoming b locked, and it prevents debris from entering the vehicle
inter io r th rough the heat ing and vent ilation ducts .
Corrosion protection
The eng ine compartment and transmission have been cor rosion­
protected at the factory.
Good ant i-cor rosion treatment is very impo rtant , pa rtic ular ly in the
w inter . If the vehicle is frequently driven on sa lt treated roads, the
en tire eng ine compar tment and plenum p anel sho uld be thoroug hly
cleaned at the end of winter and retreated to prevent salt damage. At
t he same t ime, the underside of the vehi cle should be washed as well.
If the e ng ine compartment is clea ned at any t ime with grease
removing so lutions
2l , or i f you have the engine washed , the anti ­
co rros io n treatment is a lmost a lways removed as w ell.
It is t herefore
essential to have a long-last ing corrosion p rotect ion reapplied to all
surfa ces, seams, jo ints and compo nents in the engi ne co mpa rt ment .
& WARNING
Be aware: The engine compartment of any motor vehicle is a
potentially hazardous area .
• Before working in the engine compartment, be sur e to read the
information =:>
page 286.
2
l Use on ly th e co rr ect clean ing so lut ions. Never use gaso line or diese l fuel.
& WARNING (c on tinued )
• Before reaching into the front plenum panel , alway s remove
the ignition key. Otherwise, the windshield wiper system could unintentionally be switched on , possibly causing personal injury
from the moving wiper linkage.
• Never reach into the area around or touch the radiator fan. The
auxiliary fan is temperature controlled and can switch on suddenly
· ev en when the ignition is off.
• Do not wash, wax or dry the engine with th e engine running.
Moving or hot pa rts could injure you.
• Do not clean the underside of the chass is, fenders, wheel
covers, or other hard to reach part s without protecting your hands
and arm s. You may cut yourself on sharp-edged metal parts.
• Always read and heed all WARNINGS and other information
=:> page 274. •
