10. Install oil pump(s) chain guid e, Install and torque tighten
Torx screws (x2).
11. Install crankshaft timing sensor, install and torque
tighten bolt.
12. Install oil sump (refer to Workshop Manual procedure
03.02.CN Pan - Oil Sump - Remove and Reseal With
Engine Removed).
Oil Sump Pan - Remove and Reseal (with
Engine Removed
)
Removal
1. Remove oil pump(s) drive chain (refer to Workshop Manual procedure 03.02.BJ Chain - Oil Pump - Renew
With Engine Removed).
2. Disconnect multiplug from oi l pressure sensor (refer to
Figure 1). 3. Disconnect multiplug from
engine electric coolant
temperature sensor (refer to Figure 2).
4. Disconnect multiplug from crankshaft timing sensor
(refer to Figure 3).
Repair Operation Time (ROT)
A030216
Figure 2
Figure 3
A030216A
A030206

Lubrication System (03.02)
Engine (03.00)3-2-18 Workshop Manual Issue 5, Janauary 2010

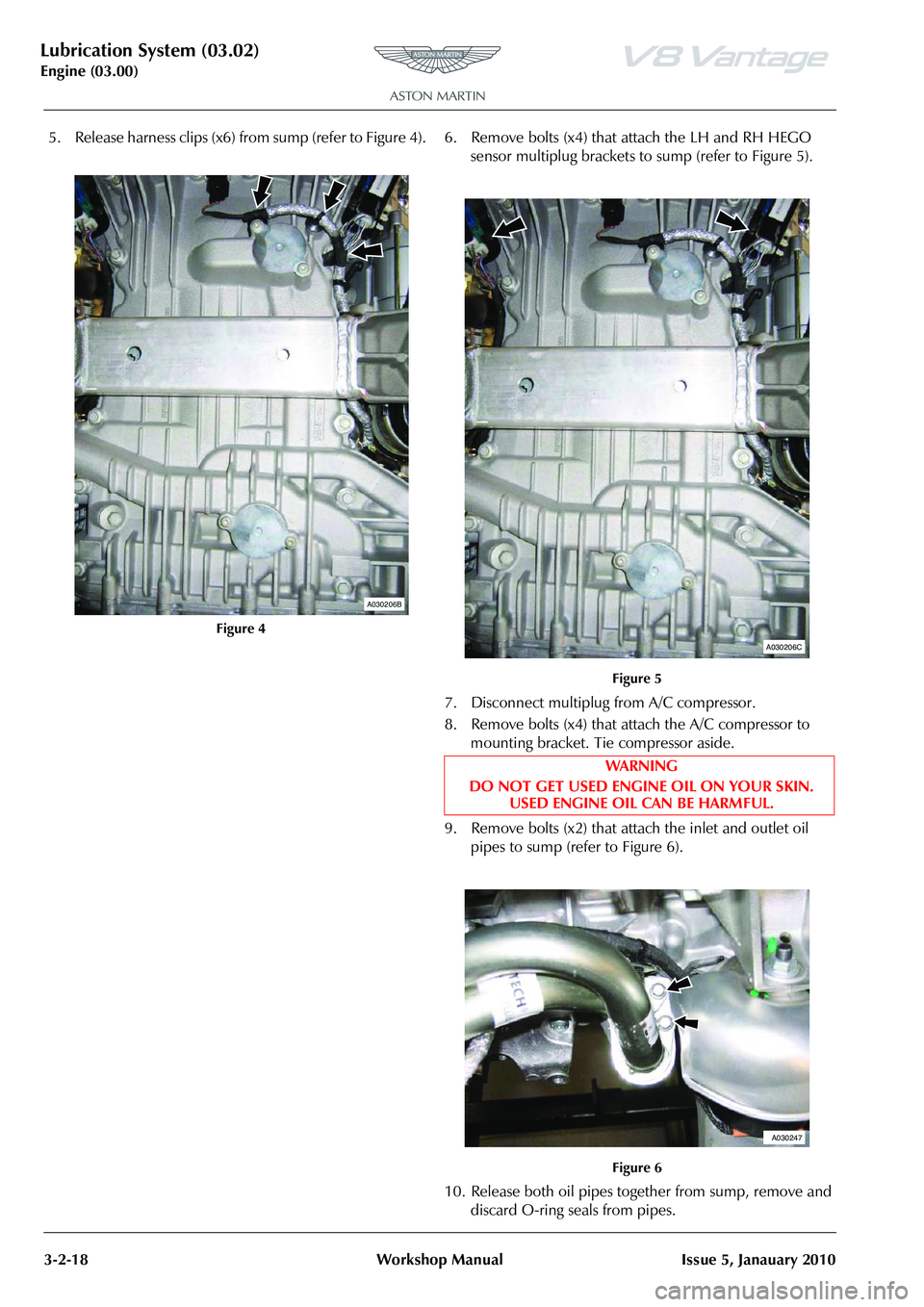

5. Release harness clips (x6) from sump (refer to Figure 4). 6. Remove bolts (x4) that attach the LH and RH HEGO
sensor multiplug brackets to sump (refer to Figure 5).
7. Disconnect multiplug from A/C compressor.
8. Remove bolts (x4) that attach the A/C compressor to mounting bracket. Tie compressor aside.
9. Remove bolts (x2) that attach the inlet and outlet oil pipes to sump (refer to Figure 6).
10. Release both oil pipes together from sump, remove and discard O-ring seals from pipes.
Figure 4
A030206B
Figure 5
WAR NI NG
DO NOT GET USED ENGINE OIL ON YOUR SKIN. USED ENGINE OIL CAN BE HARMFUL.
Figure 6
A030206C
A030247

Lubrication System (03.02)
Engine (03.00)
Issue 5, Janauary 2010 Workshop Manual 3-2-19

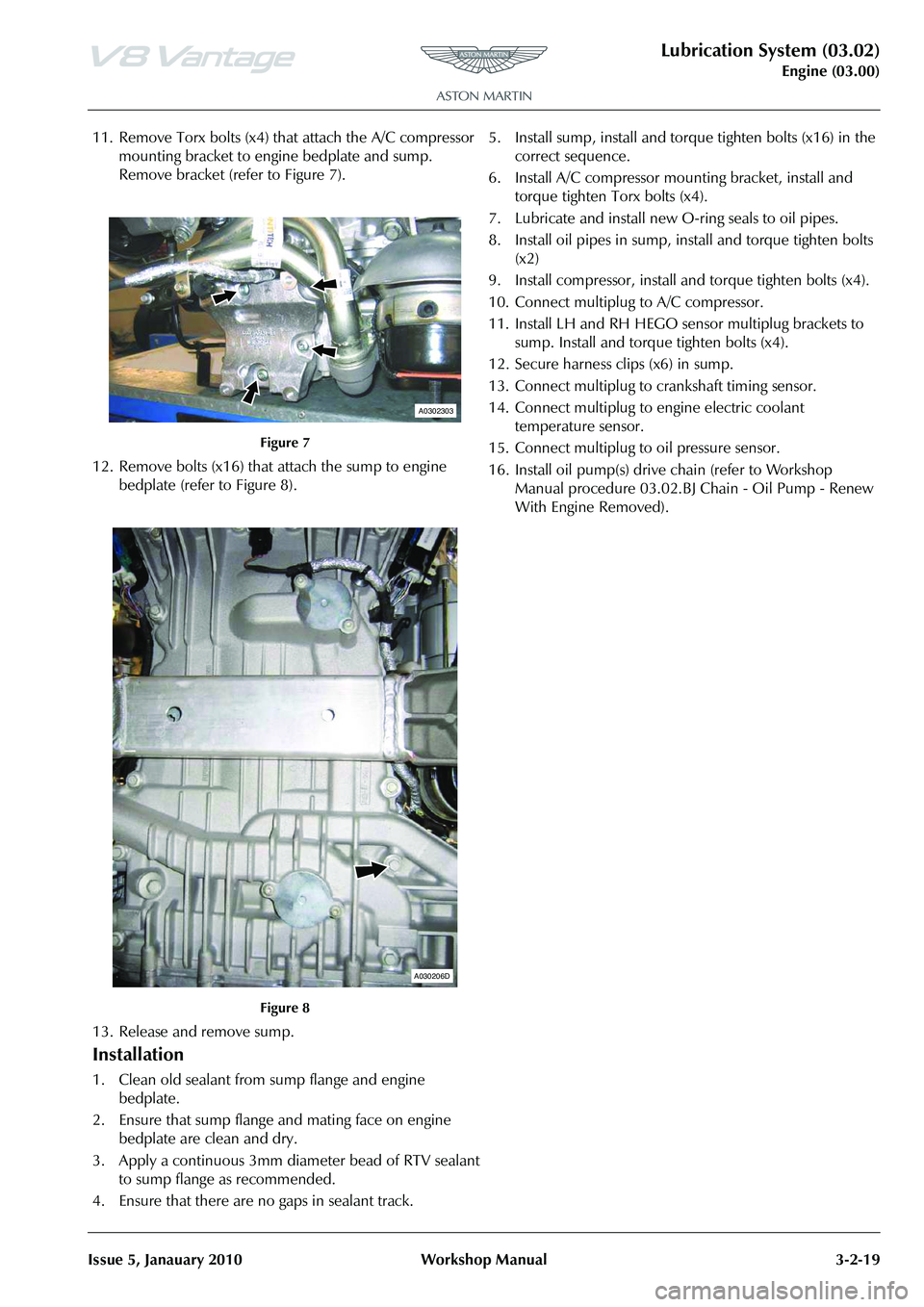

11. Remove Torx bolts (x4) that attach the A/C compressor mounting bracket to engine bedplate and sump.
Remove bracket (refer to Figure 7).
12. Remove bolts (x16) that attach the sump to engine bedplate (refer to Figure 8).
13. Release and remove sump.
Installation
1. Clean old sealant from sump flange and engine bedplate.
2. Ensure that sump flange and mating face on engine bedplate are clean and dry.
3. Apply a continuous 3mm diameter bead of RTV sealant to sump flange as recommended.
4. Ensure that there are no gaps in sealant track. 5. Install sump, install and torque tighten bolts (x16) in the
correct sequence.
6. Install A/C compressor mounting bracket, install and torque tighten Torx bolts (x4).
7. Lubricate and install new O-ring seals to oil pipes.
8. Install oil pipes in sump, install and torque tighten bolts (x2)
9. Install compressor, install and torque tighten bolts (x4).
10. Connect multiplug to A/C compressor.
11. Install LH and RH HEGO se nsor multiplug brackets to
sump. Install and torque tighten bolts (x4).
12. Secure harness clips (x6) in sump.
13. Connect multiplug to crankshaft timing sensor.
14. Connect multiplug to engine electric coolant temperature sensor.
15. Connect multiplug to oil pressure sensor.
16. Install oil pump(s) drive chain (refer to Workshop Manual procedure 03.02.BJ Chain - Oil Pump - Renew
With Engine Removed).
Figure 7
Figure 8
A0302303
A030206D

Cooling System (03.03)
Engine (03.00)3-3-10 Workshop Manual Issue 5, Janauary 2010
12. Remove coolant manifold (bolts x4) (refer to Figure 9).
Figure 9
13. Remove old seals.
14. Remove bracket breather (bolt x1, nut x2).
Installation
1. Install bracket breather (bolt x1, nuts x2) (torque).
2. Clean gasket faces.
3. Install new seals.
4. Install coolant manifold (bolts x4) (torque).
5. Install 4th bolt of vacuum tank bracket fixing (torque).
6. Install harness clips (x2).
7. Connect coolant temp multiplug.
8. Connect separator hose (clip x1).
9. Connect breather hose (quickfit).
10. Connect heater return hose (clip x1).
11. Connect heater feed hose (clip x1).
12. Connect expansion tank feed hose (quickfit).
13. Disconnect top hose (clip x1).
14. Connect bottom hose (clip x1).
15. Install reservoir bracket asse mbly - vacuum system (refer
to Workshop Manual procedu re 03.08.AE Reservoir and
Bracket Assembly - Vacuum System - Renew).
Engine Electric Co olant Temperature
Sensor - Renew
Removal
1. Drain Cooling system (refer to Workshop Manual procedure 03.03.AD Coolant - Drain and Refill).
2. Disconnect breather pipe qu ickfits (x2) from air cleaner
duct.
3. Remove throttle body duct for access. (clips x3). 4. Remove pump pulley bolts (x3) (refer to Figure 1).
Figure 1
5. Release tensioner and slip belt from idler (refer to Figure
2).
Figure 2
6. Remove pump pulley.
7. Disconnect throttle body coolant hose (refer to Figure 3).
Figure 3
Repair Operation Time (ROT)
A030368A030350
A030553
A030364

Cooling System (03.03)
Engine (03.00)
Issue 5, Janauary 2010 Workshop Manual 3-3-11
8. Remove sensor attachment clip (refer to Figure 4).
Figure 4
9. Remove sensor from housing with multiplug, then disconnect (refer to Figure 5)
.
Figure 5
Installation
1. Clean seal area.
2. Install sensor, with multiplug connected.
3. Install sensor attachment clip.
4. Connect throttle body coolant hose.
5. Fit pulley to pump with bolts.
6. Release tensioner and slip belt on idler.
7. Torque pulley bolts (bolt x3).
8. Install throttle body duct.
9. Connect breather pipe quickf its (x2) to air cleaner duct.
10. Refill cooling system (refer to Workshop Manual procedure 03.03.AD Coolant - Drain and Refill).
Thermostat Cover - Renew
Removal
1. Drain Coolant (refer to Workshop Manual procedure 03.03.AD Coolant - Drain and Refill).
2. Release breather valve (bolt x1) and tie aside.
3. Disconnect breather pipe qu ickfits (x2) from air cleaner
duct.
4. Remove throttle body duct for access. (clips x3).
5. Unclip engine harness for access (x4).
6. Remove one end of engine breather hoses for access (x3).
7. Remove breather valve bracket for access (nuts x2 bolt x1).
8. Remove thermostat housing from manifold (bolt x3).
9. Remove thermostat and sealing ring.
Installation
1. Install thermostat and sealing ring .
2. Install thermostat housing (torque).
3. Install breather valve bracket.
4. Install breather hoses (x3) and clip.
5. Clip engine harness.
6. Install breather valve.
7. Install throttle body duct.
8. Connect breather pipe quickf its (x2) to air cleaner duct.
9. Refill coolant (refer to Workshop Manual procedure 03.03.AD Coolant - Drain and Refill).
A030389
A030390
Repair Operation Time (ROT)

Fuel Charging System (03.04)
Engine (03.00)3-4-2 Workshop Manual May 2007
Maintenance
Fuel Rails - Renew
Removal
1. Depressurise fuel rail (see Workshop Manual procedure
10.01.EK Fuel System - Depressurise).
2. Coolant drain (see Workshop Manual procedure 03.03.AD Coolant - Drain and Refill).
3. Remove cross brace (bolts x4).
Removal RH Side
4. Remove coil cover.
5. Disconnect breather hose (quick fit) move aside.
6. Release harness fir tree clips (x3) from cylinder head and move aside.
7. Remove fuse box bracket fixings (bolt and nut) (allows movement).
8. Remove ECM (see Workshop Manual procedure 03.14.BB Engine Control Module - RH Renew).
9. Remove battery lead (1x nu t and rubber cover) from
fuse box (2x leads).
10. Remove multiplugs (x10) from fusebox.
11. Remove earth terminal (1x nut and rubber cover) from fusebox.
12. Remove fuse box from bracket (bolt x2).
13. Release harness fir tree clips (x3) from engine bracket.
14. Feed harness from inner wing and over engine to gain access to cam cover.
15. Remove purge pipe P-clip (bolt x1) and move pipe
aside.
16. Remove harness bracket from engine (bolts x2, nut x1).
17. Release fuel feed hose from rail (clip x1) and move aside.
18. Disconnect heater hose from pipe (quick fit).
19. Release heater hose (clips x2) and EGR vacuum line (clips x2) from bracket.
20. Release harness from coolant pipe bracket (fir tree x3).
21. Disconnect EGR (x1), fuel rail pressure sensor (x1) and injector multiplugs (x4), move harness aside.
22. Remove coolant pipe bracket (nuts x2 and bolts x2).
23. Disconnect EGR vac pipe from sensor and manifold, move aside.
Removal LH Side
24. Remove corner cross brace.
25. Remove coil cover.
26. Disconnect breather hoses from cam cover (x2) for access.
27. Disconnect purge line from manifold (quickfit) and support clip for access. 28. Disconnect heater hose
from pipe (quick fit).
29. Release heater hose (x2) and throttle body hose (x2) from support bracket.
30. Remove booster hose from manifold and support clip.
31. Remove harness support bracket (bolt x1, nut x2) release harness clips (fir tree x3).
32. Release pipe support bracket (nuts x2, bolts x2) move aside.
33. Disconnect injector multiplugs (x4).
34. Unclip injector harness from cam cover (x2).
35. Disconnect IAT multiplug.
36. Disconnect breather hose from manifold (quickfit).
Removal - Manifold From Vehicle
37. Disconnect manifold heating hoses (x2).
38. Disconnect throttle body multiplug and harness clip.
39. Disconnect breather pipe qu ickfits (x2) from air cleaner
duct.
40. Disconnect air cleaner duct (clip x1).
41. Disconnect EGR vacuum hose.
42. Disconnect EGR pipe union and tie aside.
43. Remove manifold bolts (x 10).
44. Remove bolts (x2) bracket to manifold (rear).
45. Move manifold (2x people) forward, remove bolt for purge line T-clip, remove manifold.
46. Remove gaskets and clean mating faces.
Removal - Manifold Parts
47. Remove Injector to rail clips (x8) (see Figure 1).
Figure 1
48. Remove fuel rail (bolts x4).
Installation
1. Install clips and new O-rings to injectors.
2. Install fuel rail (bolts x4).
Repair Operation Time (ROT)
WAR NI NG
THE INTAKE MANIFOLD IS HEAVY. TO AVOID
PERSONAL INJURY OR DAMAGE TO THE INTAKE MANIFOLD, INTAKE MANIFOLD REMOVAL /
ISTALLATION IS A TWO PERSON OPERATION.
A030113

Fuel Charging System (03.04)
Engine (03.00)
May 2007 Workshop Manual 3-4-3
Installation Manifold to Vehicle
3. Install new gaskets to cylinder block (glue in place).
4. Install manifold (allowing access to install bolt for purge
line P-clip).
5. Install manifold bolts (x10) (torque and tightening sequence).
6. Install bolts (x2) bracket to manifold (rear).
7. Connect EGR pipe union.
8. Connect EGR vacuum hose.
9. Connect air cleaner duct (clip x1).
10. Connect breather pipe quickf its (x2) to air cleaner duct.
11. Connect throttle body multiplug and harness clip.
12. Connect manifold heating hoses (x2).
Installation RH Side
13. Connect EGR vac pipe to sensor and manifold.
14. Install coolant pipe bracket (bolt x2, nut x2).
15. Connect EGR (x1), fuel rail pressure sensor (x1) and
injector multiplugs (x4).
16. Refit harness to coolant pipe bracket (fir tree x3).
17. Connect heater hose to pipe (quick fit).
18. Refit heater hose (clipx2) and EGR vacuum lines (clips x2) to bracket.
19. Install fuel feed pipe.
20. Install purge pipe P-clip.
21. Install harness bracket to engine.
22. Feed harness into inner wing area.
23. Install fusebox to bracket.
24. Install earth lead to fusebox.
25. Install battery lead to fusebox (1x nut and rubber cover).
26. Install multiplugs to fuse box.
27. Install fusebox bracket fixings.
28. Refit harness fir tree clips to cylinder head.
29. Refit engine breather hose.
30. Install VVT solenoid multip lug, position coil and CMP
harness (1x edge clip).
31. Install ECM (see Workshop Manual procedure 03.14.BB XREF: 319 Engine Control Module - RH Renew
32. Install coil cover.
Installation LH Side
33. Connect breather hose to manifold (quickfit).
34. Connect IAT multiplug.
35. Unclip injector harness from cam cover (x2).
36. Connect injector multiplugs (x4).
37. Install pipe support bracket (nuts x2, bolts x2).
38. Install harness support bracket (bolt x1, nut x2) release harness clips (fir tree x3).
39. Connect booster hose to manifold and support clip. 40. Connect heater hose from pipe (quick fit).
41. Install heater hose (x2) and throttle body hose (x2) from
support bracket.
42. Connect purge line to manifold and into support clip.
43. Connect breather hoses (x2) to cam cover.
44. Install coil cover.
45. Install corner cross brace (t orque bolts with vehicle on
level ground).
46. Refill coolant (see Workshop Manual procedure 03.03.AD Coolant - Drain and Refill).
47. Install cross brace (torque bolts with vehicle on level
ground).
Fuel Injection Pressure Sensor - Renew
Removal
1. Depressurise fuel rail (see Workshop Manual procedure 10.01.EK Fuel System - Depressurise).
2. Disconnect vacuum hose.
3. Remove sensor from fuel rail (bolts x2).
4. Disconnect multiplug.
Installation
1. Install sensor to fuel rail (bolts x2) (torque).
2. Connect multiplug.
3. Connect vacuum hose.
Fuel Temperature Sensor - Renew
Removal
1. Depressurise fuel rail (see Workshop Manual procedure 10.01.EK Fuel System - Depressurise).
2. Disconnect vacuum hose.
3. Remove sensor from fuel rail (bolts x2).
4. Disconnect multiplug.
Installation
1. Install sensor to fuel rail (bolts x2) (torque).
2. Connect multiplug.
3. Connect vacuum hose.
WA R N I N G
THE INTAKE MANIFOLD IS HEAVY. TO AVOID
PERSONAL INJURY OR DAMAGE TO THE INTAKE MANIFOLD, INTAKE MANIFOLD REMOVAL /
ISTALLATION IS A TWO PERSON OPERATION.
Installation Not Handed
Repair Operation Time (ROT)
Repair Operation Time (ROT)

Fuel Charging System (03.04)
Engine (03.00)3-4-4 Workshop Manual May 2007
Fuel Injector Engine Set - Renew
Removal
1. Remove LH injectors (see Workshop Manual procedure
03.04.GH Injector - Fuel - LH Bank - Engine Set -
Renew).
2. Remove coils (see Work shop Manual procedure
03.07.HC Coil Assembly - Engine Set - RH - Renew).
3. Disconnect breather hose (quick fit) move aside.
4. Release harness fir tree clips (x3) from cylinder head and move aside.
5. Remove fuse box bracket fixings (bolt and nut) (allows movement).
6. Remove ECM (see Workshop Manual procedure 03.14.BB Engine Control Module - RH Renew).
7. Remove battery lead (1x nu t and rubber cover) from
fuse box (2x leads).
8. Remove multiplugs (x10) from fusebox.
9. Remove earth terminal (1x nut and rubber cover) from
fusebox.
10. Remove fuse box from bracket (bolt x2).
11. Release harness fir tree clips (x3) from engine bracket.
12. Feed harness from inner wing and over engine to gain access to cam cover.
13. Remove purge pipe P-clip (bolt x1) and move pipe
aside.
14. Remove harness bracket from engine (bolts x2, nut x1).
15. Release fuel feed hose from rail (clip x1) and move aside.
16. Disconnect heater hose from pipe (quick fit).
17. Release heater hose (clips x2) and EGR vacuum line (clips x2) from bracket.
18. Release harness from coolant pipe bracket (fir tree x3).
19. Disconnect EGR (x1), fuel rail pressure sensor (x1) and injector multiplugs (x4), move harness aside.
20. Remove coolant pipe bracket (nuts x2 and bolts x2).
21. Disconnect EGR vac pipe from sensor and manifold, move aside. 22. Remove Injector to rail clips (see Figure 1).
Figure 1
23. Remove fuel rail bolts (x2) and lift rail (tie aside) (see
Figure 2).
Figure 2
24. Remove injectors from manifold.
Installation
1. Install clips on to new injectors then fit injectors into manifold.
2. Install rail onto injectors (taking care each injector is aligned correctly and the clip seats properly) and fit bolts
(x2) (torque).
3. Connect EGR vac pipe to sensor and manifold.
4. Install coolant pipe bracket (bolt x2, nut x2).
5. Connect EGR (x1), fuel rail pressure sensor (x1) and
injector multiplugs (x4).
6. Refit harness to coolant pipe bracket (fir tree x3).
7. Connect heater hose to pipe (quick fit).
8. Refit heater hose (clipx2) and EGR vac lines (clips x2) to bracket.
9. Install fuel feed pipe.
10. Install purge pipe P-clip.
11. Install harness bracket to engine.
12. Feed harness into inner wing area.
13. Install fusebox to bracket.
14. Install earth lead to fusebox.
15. Install battery lead to fusebox (1x nut and rubber cover).
16. Install multiplugs to fuse box.
Repair Operation Time (ROT)
A030452
A030113A
