001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 5

GETTING TO KNOW YOUR CAR61
1REARVIEW MIRRORS
INTERNAL MIRROR
Operate lever A-fig. 27 to adjust the mirror into two different po-
sitions: normal or antiglare.
Some versions are equipped with an electro-chrome mirror with an
ON/OFF fig. 27a switch to activate/deactivate the electro-chrome
function. Engaging reverse gear automatically sets the mirror for
daylight use.
It is absolutely forbidden to carry out any after-
market operation involving steering system or
steering column modifications (e.g.: installation of
anti-theft device). This could badly affect performance and
safety, invalidate the warranty and also result in the non-
compliance of the car with approval requirements.
fig. 27aA0J0336mfig. 27A0J0108m
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 61

70GETTING TO KNOW YOUR CAR

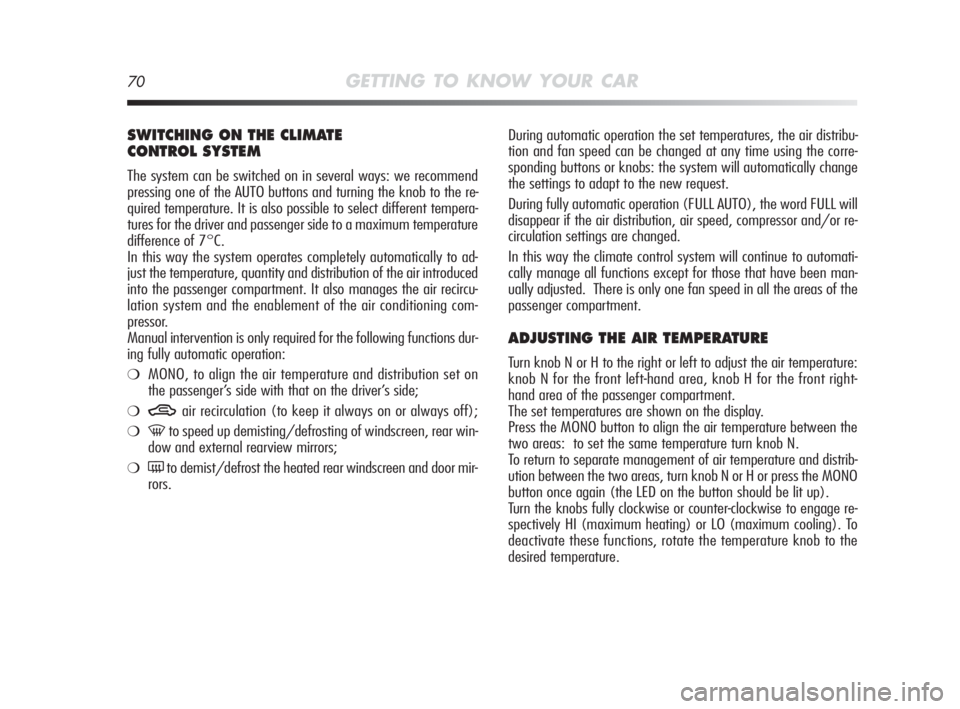

During automatic operation the set temperatures, the air distribu-
tion and fan speed can be changed at any time using the corre-
sponding buttons or knobs: the system will automatically change
the settings to adapt to the new request.
During fully automatic operation (FULL AUTO), the word FULL will
disappear if the air distribution, air speed, compressor and/or re-
circulation settings are changed.
In this way the climate control system will continue to automati-
cally manage all functions except for those that have been man-
ually adjusted. There is only one fan speed in all the areas of the
passenger compartment.
ADJUSTING THE AIR TEMPERATURE
Turn knob N or H to the right or left to adjust the air temperature:
knob N for the front left-hand area, knob H for the front right-
hand area of the passenger compartment.
The set temperatures are shown on the display.
Press the MONO button to align the air temperature between the
two areas: to set the same temperature turn knob N.
To return to separate management of air temperature and distrib-
ution between the two areas, turn knob N or H or press the MONO
button once again (the LED on the button should be lit up).
Turn the knobs fully clockwise or counter-clockwise to engage re-
spectively HI (maximum heating) or LO (maximum cooling). To
deactivate these functions, rotate the temperature knob to the
desired temperature.
SWITCHING ON THE CLIMATE
CONTROL SYSTEM
The system can be switched on in several ways: we recommend
pressing one of the AUTO buttons and turning the knob to the re-
quired temperature. It is also possible to select different tempera-
tures for the driver and passenger side to a maximum temperature
difference of 7°C.
In this way the system operates completely automatically to ad-
just the temperature, quantity and distribution of the air introduced
into the passenger compartment. It also manages the air recircu-
lation system and the enablement of the air conditioning com-
pressor.
Manual intervention is only required for the following functions dur-
ing fully automatic operation:
❍MONO, to align the air temperature and distribution set on
the passenger’s side with that on the driver’s side;
❍Tair recirculation (to keep it always on or always off);
❍-to speed up demisting/defrosting of windscreen, rear win-
dow and external rearview mirrors;
❍(to demist/defrost the heated rear windscreen and door mir-
rors.
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 70

GETTING TO KNOW YOUR CAR91
1
ASHTRAY fig. 50
(for versions/markets, where provided)
The ashtray is a removable plastic box with spring loaded open-
ing that can be fitted into the glass/can holder on the central con-
sole.
IMPORTANT Do not use the ashtray as a paper bin: paper may catch
fire upon contact with cigarette butts.
SUN VISORS fig. 51
These are located at the sides of the internal rearview mirror. They
may be oriented frontally and to the side.
A courtesy mirror can be applied to the back of the passenger-
side sun visor: to use it, open sliding flap A.
fig. 50A0J0070m
FIRE EXTINGUISHER fig. 52
(for versions/markets, where provided)
This is located on the right-hand side of the luggage compartment.
fig. 51A0J0071m
fig. 52A0J0190m
001-130 Alfa MiTo GB 2ed 23-12-2009 12:36 Pagina 91

SAFETY133
2
IMPORTANT The backrest is correctly secured when the “red band”
B-fig. 3 on the backrest lowering levers A disappears. This red band
indicates that the backrest is not secured.
IMPORTANT After putting the seats back in their travel position,
restore the seat belt position to make them ready for use.S.B.R. SYSTEM
(Seat Belt Reminder)
This system comprises of a buzzer, which in conjunction with the
the driver and front passenger if their seat belts have not been
fastened.
On some versions there is also a panel (provided as an alterna-
tive to the warning lights on the instrument panel) located above
the rear view mirror (fig. 4), which warns front and back seat
passengers through acoustic and visual signals if their seat belts
have not been fastened.
Contact an Alfa Romeo Authorised Service Provider to deactivate
this system permanently. The S.B.R. system can only be reactivated
via the display Set Up Menu (see chapter “1”).
Make sure the backrest is properly secured on both
sides (red bands B-fig. 3 not visible) to prevent it
from moving forward in the event of sharp brak-
ing, which may cause injuries to passengers.
fig. 4A0J0339mfig. 3A0J0182m
131-152 Alfa MiTo GB 2ed:131-152 Alfa MiTo GB 23-12-2009 12:37 Pagina 133

160STARTING UP AND DRIVING
Acceleration
Sudden acceleration has a very negative effect on fuel consump-
tion and emissions: accelerate gradually and do not go over the
maximum torque ratio.
CONDITIONS OF USE
Cold starting
Short distances and frequent cold start-ups will prevent the en-
gine from reaching optimal running temperature. Consequently,
both fuel consumption (from +15 to +30% on an urban cycle )
and emissions will increase.
Traffic and road conditions
Rather high fuel consumption is caused by heavy traffic, for instance
when travelling in a queue with frequent use of low gears or in
cities with many traffic lights. Mountain and rough roads also have
a negative effect on fuel consumption.
Traffic hold-ups
During prolonged hold-ups (level crossings) the engine should be
switched off.
TOWING TRAILERS
IMPORTANT NOTES
The vehicle must be provided with a type-approved tow hook and
adequate electrical system to tow caravans or trailers. Installation
must be carried out by a specialist.
Install any specific and/or additional rear-view mirrors as specified
by law.
Remember that when towing a trailer, steep hills are harder to
climb, braking distances increase and overtaking takes longer de-
pending on the overall weight.
Engage a low gear when driving downhill, rather than constantly
using the brake.
The weight of the trailer reduces the load capacity of the vehicle
by the same amount. Consider the weight of the fully-laden vehi-
cle weight, including accessories and luggage, to make sure you
do not exceed the maximum towable weight (shown on the reg-
istration certificate).
Respect the speed limits specific to each country for vehicles tow-
ing trailers. In any event do not exceed 100 km/h.
153-162 Alfa MiTo GB 2ed:153-162 23-12-2009 12:37 Pagina 160

F38
F43
F47
F48
F4915
20
20
20
543
43
43
43
43
194IN AN EMERGENCY
CONSUMERSFUSEAMPEREFIGURE
Door lock motor on door,
Safe Lock motor on doors,
Tailgate unlocking motor
Windscreen / rearscreen washer pump
Electric window motor complete with
control unit (driver-side door)
Electric window motor complete with
control unit (passenger-side door)
Parking sensors control unit, Tyre pressure
detection control unit, Rain/dusk sensor
on rear-view mirror, Electro-chrome sensor
on rear-view mirror, Seat belts fastened
warning light display on rear-view mirror,
Control panel illumination (Central control
panel, Driver-side control panel, Steering wheel
control panel, Blue&Me
TMcontrol panel),
Front seat heating pad activation switch,
Alarm system volume-sensing sensors control unit,
Electric sunroof control unit,
PND socket on dashboard
163-200 Alfa MiTo GB 2ed:163-200 Alfa MiTo GB 23-12-2009 12:39 Pagina 194

INDEX253
7
Lane Change” function ................ 77
Load limiters ............................... 135
Luggage compartment
– closing ................................. 100
– extending the luggage
compartment ........................ 101
– opening ................................ 99
Main beam headlights
– activation ............................. 77
– bulb replacement ................... 180
Maintenance
– demanding use of the car ........ 207
– periodic checks ...................... 207
– scheduled maintenance ........... 202
– scheduled servicing plan .......... 203
Menu ........................................ 32
Menu options ............................. 32
MSR (system) ............................ 110
Multifunctional display .................. 26
Navigation system (wiring) ......... 121
Number plate lights
– bulb replacement ................... 183
Oddment compartment ............... 89
Oil engine .................................. 214
S.B.R. system ............................ 133
Safe lock (device) ....................... 51
Safety ....................................... 131
Saving fuel ................................. 158
Seat belts
– pretensioners........................ 135
– S.B.R. system ....................... 133
– seat belt maintenance ............ 137
– using the seat belts ................ 132
Seats
– adjustment ....................... 56-57
– cleaning ............................... 225
– Easy Entry ............................ 58
– seat warming ........................ 58
Sensors
– automatic headlights.............. 76
– rain ..................................... 80
– parking ................................ 123
Service Plan ............................... 203
– regular checks....................... 207
Setting off and driving .................. 153
Side bags ................................... 149
Sidelights/daytime lights
– activation ............................. 76
– bulb replacement ...............180-182
Snow chains ............................... 162Paint ........................................ 223
Parking ...................................... 156
– handbrake ............................ 156
Performance ............................... 241
Power windows ........................... 96
Pretensioners .............................. 135
Protecting the environment ........... 130
Puddle lights
– bulb replacement ................... 187
Radio transmitters and
cellular phones .......................... 123
Radio wiring system ..................... 121
Rear fog lights
– activation . ............................ 87
– bulb replacement ................... 183
Rear screen wiper
– activation ............................. 79
– brushes ................................ 220
– sprays .................................. 221
Rear view mirrors ........................ 61
Reconfigurable
multifunctional display ................ 27
Reversing light
– bulb replacement ................... 183
Roof rack/ski rack ....................... 104
251-260 Alfa MiTo GB 3ed:251-260 Alfa Mito GB 9-02-2010 11:28 Pagina 253
