SPEEDOMETER (SPEED INDICATOR)
This shows the speed of the car.
REV COUNTER
This indicates the engine rpm.
FUEL LEVEL GAUGE
This shows the amount of fuel left in the fuel tank.
0 - tank empty.
1 - tank full
The warning light in the gauge lights up when there are only 8 to
10 litres of fuel remaining in the tank; refuel at the earliest op-
portunity.
ENGINE COOLANT TEMPERATURE INDICATOR
This gauge indicates the temperature of the engine coolant. The
warning light on the indicator lights up to indicate an increase in
coolant temperature; in the event of this happening, switch off the
engine and contact an Alfa Romeo Authorised Service Provider.
INSTRUMENT PANEL WARNING LIGHTS
General warnings
The warning lights come on in conjunction with a dedicated mes-
sage and/or a buzzer where appropriate. These indications are
brief and precautionary and as such must not be considered as
exhaustive and/or alternative to the information contained in the
Owner’s Handbook, which you are recommended to read careful-
ly in all cases. Always refer to the information in this chapter in the
event of a failure signal.
Low brake fluid level (red)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds.
The warning light (or symbol on the display) comes on
when the level of the brake fluid in the reservoir falls below the
minimum level due to possible leaks in the circuit.
A specific message will be shown on the display.
Handbrake on (red)
When the ignition key is turned to MAR, the warning light turns
on but should go off after a few seconds. The warning light (or
symbol on the display) comes on when the handbrake is on. If
the car is moving a buzzer is also triggered.
IMPORTANT If the warning light comes on with the vehicle in mo-
tion, check that the handbrake is not engaged.
x
001-130 Alfa Giulietta EN 5ed 26-07-2010 16:32 Pagina 6

17
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

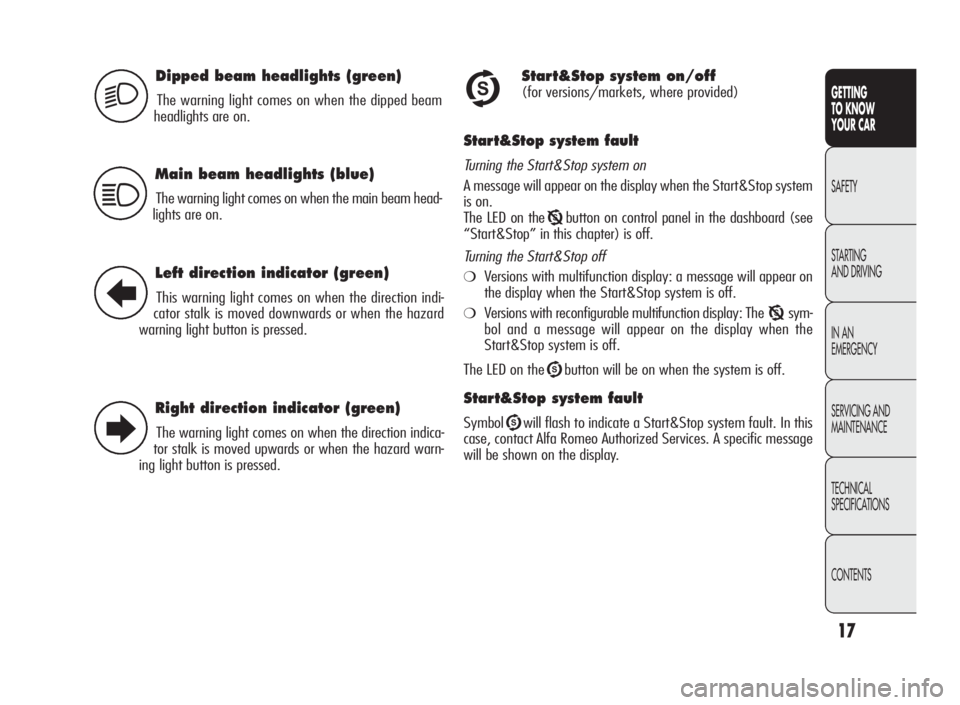

Dipped beam headlights (green)
The warning light comes on when the dipped beam
headlights are on.2U
Main beam headlights (blue)
The warning light comes on when the main beam head-
lights are on.1
Left direction indicator (green)
This warning light comes on when the direction indi-
cator stalk is moved downwards or when the hazard
warning light button is pressed.
Right direction indicator (green)
The warning light comes on when the direction indica-
tor stalk is moved upwards or when the hazard warn-
ing light button is pressed.
R
E
Start&Stop system on/off
(for versions/markets, where provided)
Start&Stop system fault
Turning the Start&Stop system on
A message will appear on the display when the Start&Stop system
is on.
The LED on the
Tbutton on control panel in the dashboard (see
“Start&Stop” in this chapter) is off.
Turning the Start&Stop off
❍Versions with multifunction display: a message will appear on
the display when the Start&Stop system is off.
❍Versions with reconfigurable multifunction display: TheTsym-
bol and a message will appear on the display when the
Start&Stop system is off.
The LED on the
Ubutton will be on when the system is off.
Start&Stop system fault
SymbolUwill flash to indicate a Start&Stop system fault. In this
case, contact Alfa Romeo Authorized Services. A specific message
will be shown on the display.
001-130 Alfa Giulietta EN 5ed 26-07-2010 16:33 Pagina 17

47
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
ALARM(for versions/markets, where provided)
OPERATION OF THE ALARM
The alarm intervenes in the following instances:
❍unauthorised opening of doors/bonnet/boot (perimeter pro-
tection);
❍unauthorised operation of ignition system (ignition key rotat-
ed to MAR);
❍the battery cables cutting;
❍when someone is moving inside the passenger compartment
(volumetric protection);
❍anomalous lifting/tilting of the vehicle (for versions/markets,
where provided).
Operation of the alarm is indicated by an acoustic and visual sig-
nal (flashing of the direction indicators for several seconds). The
alarm triggering modes may vary according to the markets. There
is a maximum number of acoustic/visual cycles. When this is
reached the system returns to normal operation.
IMPORTANT The engine locking function is guaranteed by the Alfa
Romeo CODE, which is automatically activated when the ignition
key is extracted from the ignition switch.
IMPORTANT The alarm is configured to comply with the regulations
existing in different countries.
SWITCHING ON THE ALARM
With the doors and bonnet closed and the ignition key either turned
to STOP or removed, direct the key with the remote control to-
wards the car, then press and release
Ábutton. Except specific
markets, the system produces a visual and acoustic signal and
enables door locking.
A self-diagnostic stage precedes the turning on of the alarm: In case
of faults the system will generate a further acoustic and/or visu-
al signal using the LED on the dashboard.
If after the alarm is switched on, a second acoustic signal is emit-
ted and/or the LED on the dashboard flashes, wait about 4 sec-
onds and switch off the alarm by pressing
Ëbutton, check that the
doors, bonnet and boot are closed correctly and then reactivate the
system by pressing
Ábutton.
If the alarm produces an acoustic signal even when the doors, bon-
net and boot are correctly closed, a fault has occurred in system
operation: in this case, go to Alfa Romeo Authorized Services.
001-130 Alfa Giulietta EN 5ed 26-07-2010 16:33 Pagina 47

177
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
CHANGING AN EXTERIOR BULB
FRONT LIGHT CLUSTERS fig. 131
These contain the bulbs for the side lights/day lights (DRL), dipped
beams, main beams and direction indicators. The bulbs are arranged
as follows:
A.Side lights/day lights and main beam headlights;
B.Dipped beam headlights;
C.Direction indicators.
SIDE LIGHTS/DAY LIGHTS (DRL)
These are LEDs. Contact Alfa Romeo Authorized Services to replace
these lights.
MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❍remove cover A-fig. 131;
❍remove the connector A-fig. 132 and then open the tabs B to-
wards;
❍extract the bulb C and replace it;
❍refit the new lamp, making sure that it is locked correctly, and
secure the tabs B again and reconnect the connector A;
❍finally refit the cover A-fig. 131.
fig. 131A0K0201mfig. 132A0K0202m
161-198 Alfa Giulietta EN 4ed 5-05-2010 9:04 Pagina 177

178
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
DIPPED BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❍remove cover B-fig. 131;
❍remove the connector A-fig. 133, press the tab B forward and
then release by pushing it towards the inside the car;
❍extract the bulb C and replace it;
❍refit the new lamp, making sure that it is locked correctly, and
secure the tab B again and reconnect the connector A;
❍finally refit cover B-fig. 131.
DIRECTION INDICATORS
Front
To replace the bulb, turn the cover C-fig. 131 anticlockwise by ¼
of a turn and replace the bulb + bulb holder assembly A-fig. 134.
Side
These are LEDs. Contact Alfa Romeo Authorized Services to replace
these lights.
FRONT FOG LIGHTS
(for versions/markets, where provided)
Contact Alfa Romeo Authorized Services to replace these bulbs.
fig. 133A0K0203mfig. 134A0K0204m
161-198 Alfa Giulietta EN 4ed 5-05-2010 9:04 Pagina 178

179
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
REAR LIGHT CLUSTERS
These contain the taillights, brake lights, direction indicators (bulbs
in fixed light cluster), reverse light and rear fog light (bulb in light
cluster on boot hatch).
Removing the fixed light cluster
Proceed as follows:
❍open the boot and loosen the rear light cluster fastening screw
A-fig. 135;
❍extract the light cluster by removing it with both hands in the
direction of the arrow (see fig. 135);
❍connect the electrical connector and replace the bulb concerned.
TAILLIGHTS/BRAKE LIGHTS
These are LEDs. Contact Alfa Romeo Authorized Services to replace
these lights.
DIRECTION INDICATORS
With the light cluster removed, to replace the bulb undo the two
screws A-fig. 136, remove the bulb holder and replace bulb B.
fig. 135A0K0184mfig. 136A0K0205m
