2010 Alfa Romeo Brera/Spider overheating

155
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
PASSENGER’S
FRONT AIR BAGS
DEACTIVATED
(amber)
The warning light (set on the front ceil-
ing light panel) turns on when passen-
ger’s front air bags, passenger’s knees
air bag (for versions/markets, where
provided) and passenger’s front side bag
are deactivated through the relevant key
switch (for versions/markets, where
provided). With passenger’s front air
bags on, fitting the key into the ignition
device the warning light shall turn on
glowing steadily for about 4 seconds,
shall flash for other 4 seconds and then
it shall turn off.
F
–Car heavy duty (e.g.: towing trail-
er uphill or fully laden car): decrease
speed, if the warning light stays on, stop
the car. Wait for 2 or 3 minutes leaving
the engine on and slightly accelerated to
further activate the circulation of the
coolant fluid, then switch the engine off.
IMPORTANTUnder severe use of the
car, keep the engine on and slightly ac-
celerated for few minutes before switch-
ing it off.
Warning light Ffailure
is indicated by warning
light
¬. In addition, the air bag
system will deactivate auto-
matically the passenger's front
air bag (front and side). Before
restarting contact Alfa Romeo
Authorized Services immedi-
ately to have the system
checked.
WARNING
ENGINE COOLANT
HIGH TEMPERATURE
(red)
Fitting the key into the ignition device, the
warning light (set on engine coolant
gauge) turns on but it shall go off after a
few seconds. The warning light turns on
(with a dedicated message on the display)
to indicate engine overheating. If the warn-
ing light comes on, proceed as follows:
–Normal driving conditions: stop
the car, switch off the engine and check
whether the water level in the reservoir
is not below the MINmark. Otherwise
wait for few seconds to allow engine
cooling, then open slowly and carefully
the cap, top up coolant and check
whether its level is falling between MIN
andMAXmarks in the reservoir. Check
visually any leak. If when restarting the
warning light comes on again, contact
Alfa Romeo Authorized Services.
u
With engine hot, do not
remove the cap: risk of
burnt.
WARNING

168
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
TYRE PRESSURE
UNSUITABLE
FOR SPEED
(for versions/markets,
where provided)
Should it be required to journey at a
speed higher than 160 km/h, inflate
tyres at full load pressures (see paragraph
“Cold inflation pressures” in section "Tech-
nical Specifications").
On certain versions, if the T.P.M.S. sys-
tem detects that the pressure of one or
more tyres is unsuitable for the current
speed the display will show a message +
symbol (amber) that will stay on until the
car speed slow downs below the preset
threshold.
n
IMPORTANT In this case slow down
immediately since tyre overheating could
impair tyre performance and life beyond
repair, and even make the tyre to blow-
out.
IMPORTANT Should you have to jour-
ney anyway a speed higher than 160
km/h, stop the car when the display
shows the warning symbol to inflate tyres
to the proper pressure values (see para-
graph "Cold inflation pressures" in section
"Technical Specifications ").LOW TYRE
PRESSURE
(for versions/markets,
where provided)
On certain versions the display will show
a warning message + symbol (red) (and
buzzer will sound) when the pressure of
one or more tyres falls below the preset
threshold. In this way the T.P.M.S. sys-
tem warns the driver that tyre/s is/are
dangerously flat; possible puncture.
IMPORTANTStop immediately with
one or more tyres flat, avoid braking
sharply and abrupt turns. Replace im-
mediately the punctured tyre with the
space-saver spare wheel (for ver-
sions/markets, where provided) or re-
pair the puncture tyre using the proper kit
(see paragraph “If a tyre is punctured”
in section “In an emergency”) and then
contact Alfa Romeo Authorized Services
as soon as possible.n

178
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

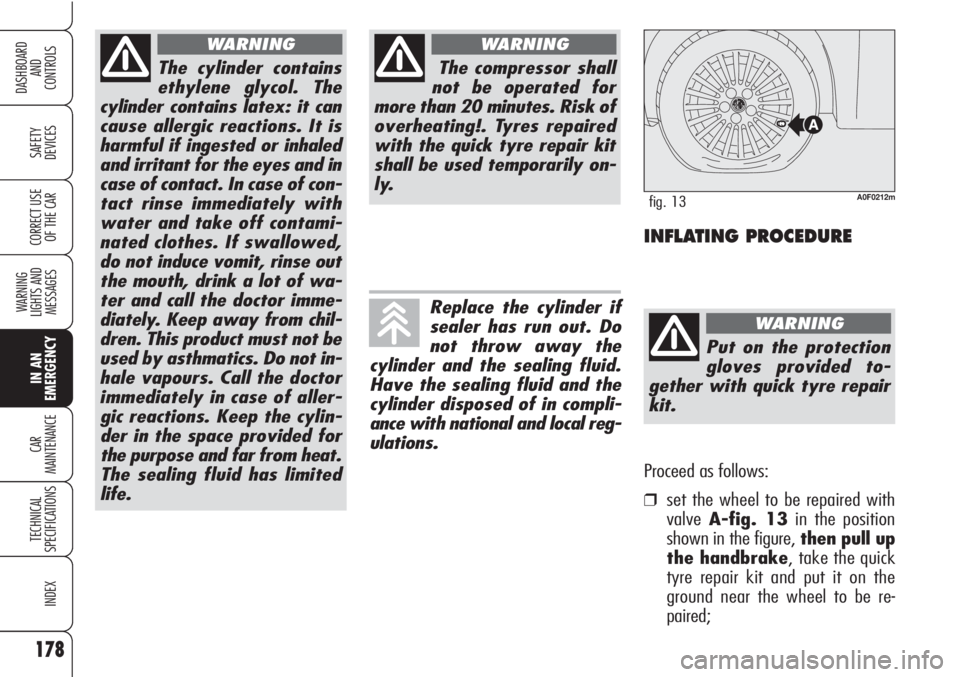

The cylinder contains
ethylene glycol. The
cylinder contains latex: it can
cause allergic reactions. It is
harmful if ingested or inhaled
and irritant for the eyes and in
case of contact. In case of con-
tact rinse immediately with
water and take off contami-
nated clothes. If swallowed,
do not induce vomit, rinse out
the mouth, drink a lot of wa-
ter and call the doctor imme-
diately. Keep away from chil-
dren. This product must not be
used by asthmatics. Do not in-
hale vapours. Call the doctor
immediately in case of aller-
gic reactions. Keep the cylin-
der in the space provided for
the purpose and far from heat.
The sealing fluid has limited
life.
WARNING
Proceed as follows:
❒set the wheel to be repaired with
valveA-fig. 13in the position
shown in the figure, then pull up
the handbrake, take the quick
tyre repair kit and put it on the
ground near the wheel to be re-
paired;
INFLATING PROCEDURE
A0F0212mfig. 13
Put on the protection
gloves provided to-
gether with quick tyre repair
kit.
WARNING
The compressor shall
not be operated for
more than 20 minutes. Risk of
overheating!. Tyres repaired
with the quick tyre repair kit
shall be used temporarily on-
ly.
WARNING
Replace the cylinder if
sealer has run out. Do
not throw away the
cylinder and the sealing fluid.
Have the sealing fluid and the
cylinder disposed of in compli-
ance with national and local reg-
ulations.

228
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
WINDSCREEN/
REARSCREEN
WIPERS
BLADES
Periodically clean the rubber part using
special products TUTELA PROFES-
SIONAL SC 35is recommended.
If the rubber blades are bent or worn
they should be replaced. In any case
they should be changed once a year.
RUBBER HOSES
As far as the brake system and fuel rub-
ber hoses are concerned, carefully fol-
low the Service schedule in this section.
Indeed ozone, high temperatures and
prolonged lack of fluid in the system
may cause hardening and cracking of
the hoses, with possible leaks. Careful
control is therefore necessary.
Driving with worn
wiper blades is a seri-
ous hazard, because visibility
is reduced in bad weather.
WARNING
A few simple notions can reduce the pos-
sibility of damage to the blades:
❒if the temperature falls below zero,
make sure that ice has not frozen
the rubber against glass. If neces-
sary, thaw using an antifreeze prod-
uct;
❒remove any snow from the glass:
in addition to protecting the blades,
this prevents effort on the motor and
overheating;
❒do not operate the windscreen
wipers on dry glass.
