2010 ACURA ZDX display

Changing the Artist Name of the
Original Playlist1. Select a desired playlist to change the user playlist artist name or a
desired album to change the
original playlist artist name. Refer
to the Music Search function on
page 321 for how to select a
playlist or an album. Push the
interface selector down to display
AUDIO MENU for a selected
playlist or album.
2. Turn the interface dial and select Edit Music Info., then press
ENTER on the interface selector.
3. Turn the interface dial to select Edit Artist Name, then press
ENTER on the interface selector in
Edit an artist name screen.
4. On the Edit an artist name screeninput the new artist name.
5. After inputting the name, push the interface selector down to select
OK.
6. The Select an edit option screen isdisplayed. Choose if you would
like to apply the new name to both
the album artist and/or the track
artist. Select edit option by turning
the dial, then press ENTER.
7. You will be returned to the Edit music Info. screen.
8. Push the CANCEL button or the AUDIO button. The screen returns
to the playlist.
Playing Hard Disc Drive (HDD) Audio (Models with navigation system)33009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Changing the Musical Genre1. Select a desired playlist to change the user playlist music genre, or a
desired album to change the
original playlist music genre. Refer
to the Music Search function on
page 321 for how to select a
playlist or an album. Push the
interface selector down to display
AUDIO MENU for a selected
playlist or album.
2. Turn the interface dial and selectEdit Music Info., then press
ENTER on the interface selector.
3. Turn the interface dial to select Edit Genre, then press ENTER on
the interface selector in Select a
genre screen.
4. On the Select a genre screen, turn the interface dial and select genre,
and then press ENTER on the
interface selector. 5. Turn the interface dial on the
Select a genre screen to select the
Original Playlist that you want to
change the genre and then press
ENTER on the interface selector.
You will be returned to the Edit
music Info. screen.
6. Push the CANCEL button or the AUDIO button. The screen returns
to the playlist.
CONTINUED
Playing Hard Disc Drive (HDD) Audio (Models with navigation system)
331
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Deleting a Track1. Select the track with the interface dial from the playback screen
while it is playing. Push the
interface selector down to display
AUDIO MENU.
2. Turn the interface dial and select Edit Music Info. then press
ENTER on the interface selector.
3. The Edit music Info. is displayed.Select Delete Track and press
ENTER on the interface selector.
4. Select OK to confirm you want to delete the track. You will be
returned to the Playback screen
for the Original Playlist or User
Playlist. NOTE:
●When you delete a track from the
Original Playlist, the track is also
deleted from the User Playlist in
which the deleted track was
stored.●Even if all the tracks are deleted
from the User Playlist, the data
folder for that playlist cannot be
deleted, and their names (playlist
and artist) are left. You can store
tracks again on that playlist.
Playing Hard Disc Drive (HDD) Audio (Models with navigation system)33209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Deleting an Album or Playlist1. On the HDD playback screen of the album in which you want to
delete, push the interface selector
down to display AUDIO MENU.
2. Turn the interface dial and select Edit Music Info., then press
ENTER on the interface selector.
3. On the Edit music Info. screen, turn the interface dial and select
Delete Album (or Delete Playlist),
then press ENTER on the interface
selector.
4. The Confirmation is displayed. Select OK and then press ENTER
on the interface selector. You will
be returned to the Playback screen
for the Original Playlist or User
Playlist. NOTE:
●When you delete the Original
Playlist, any tracks stored in a
User Playlist are also deleted.●Even if all the tracks are deleted
from the User Playlist, the data
folder for that playlist cannot be
deleted, and their names (playlist
and artist) are left. You can store
tracks again on that playlist.
Adding a Track to the User
Playlist
1. While playing back an Original
Playlist or User Playlist that you
want to add to a different User
Playlist, push the interface selector
down to display AUDIO MENU.
CONTINUED
Playing Hard Disc Drive (HDD) Audio (Models with navigation system)
333
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

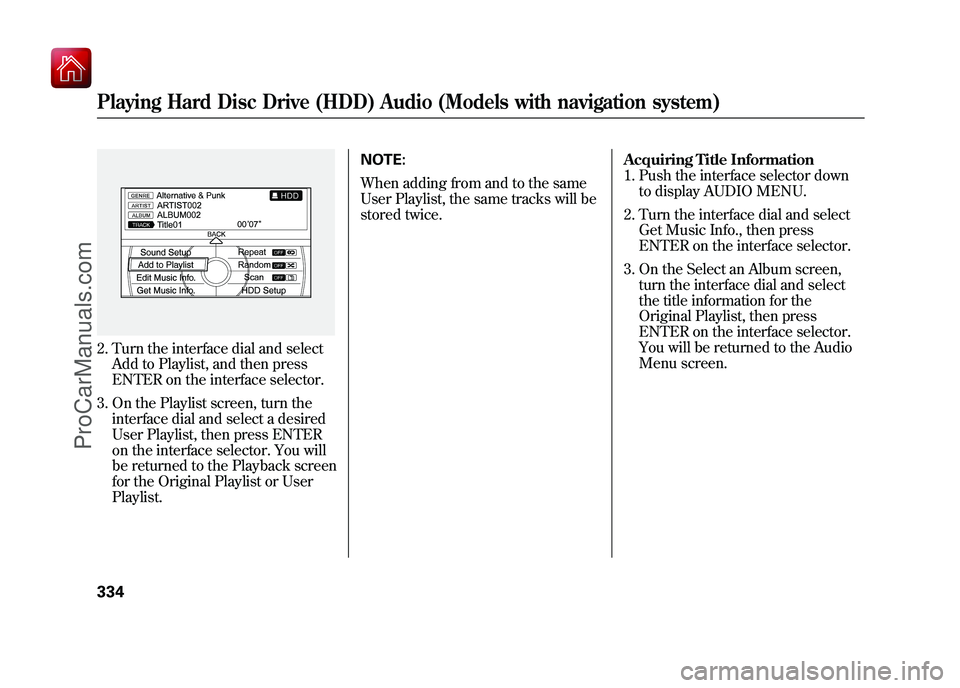

2. Turn the interface dial and selectAdd to Playlist, and then press
ENTER on the interface selector.
3. On the Playlist screen, turn the interface dial and select a desired
User Playlist, then press ENTER
on the interface selector. You will
be returned to the Playback screen
for the Original Playlist or User
Playlist. NOTE:
When adding from and to the same
User Playlist, the same tracks will be
stored twice.
Acquiring Title Information
1. Push the interface selector down
to display AUDIO MENU.
2. Turn the interface dial and select Get Music Info., then press
ENTER on the interface selector.
3. On the Select an Album screen, turn the interface dial and select
the title information for the
Original Playlist, then press
ENTER on the interface selector.
You will be returned to the Audio
Menu screen.Playing Hard Disc Drive (HDD) Audio (Models with navigation system)33409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

5. Turn the dial to select USB or Discon the Update Gracenote by
screen, then press ENTER on the
selector.
6. Turn the dial to select Yes on the confirmation screen, and the
update will start.
7. Turn the interface dial to select OK on the confirmation screen.
8. After updating is complete, press ENTER on the confirmation
screen.
NOTE:
Once you perform an update any
information you edited before will be
overwritten.
Clearing the HDDAny music, data, calendar entries,
etc. that have been stored on the
HDD can be deleted.
1. Press the INFO/PHONE button, rotate the interface dial to select
Setup, and press ENTER.
2. Move the interface selector to the right to navigate to the Setup
(Other) screen.
3. On the Setup (Other) tab, rotate
the interface dial to select Clear
Personal Data, and press
ENTER.
4. Select the item(s) you wish to delete.
The trash icon appears next to the
selected item(s).
5. When you are finished selecting the item(s), press the interface
selector down to select OK. 6. A pop-up screen verifying whether
the deletion is to be continued or
not will be displayed. Select Yes to
delete, or No to cancel.
7. A second confirmation will appear. Select Yes to delete, or No to
cancel.
8. When you are finished deleting the data, press the interface
selector down to select OK.
NOTE: If you select Music on HDD,
the system will automatically restart
after deletion.
Playing Hard Disc Drive (HDD) Audio (Models with navigation system)33609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Gracenote Music Recognition
Service (CDDB)
Music recognition technology and
related data are provided by
Gracenote
ꭂ. Gracenote is the
industry standard in music
recognition technology and related
content delivery. For more
information, please visit http://www.
gracenote.com/.
When music is recorded to the HDD
from a CD, information such as the
recording artist and track name are
retrieved from the Gracenote
Database and displayed (when
available). Gracenote may not
contain information for all albums. Gracenote is an internet-based music
recognition service that allows artist,
album, and track information from
CDs to display on the HDD.
Gracenote users are allowed 4 free
updates a year. More information
about Gracenote, its features, and
downloads are available at
www.
acura.com
(in U.S.) or
www.acura.ca
(in Canada).
CD and music-related data from
Gracenote, Inc., copyright
©2000 －
2009 Gracenote.
Gracenote Software, copyright
©2000
－ 2009 Gracenote. This product and
service may practice one or more of
the following U.S. Patents:
ꭨ 5,987,525; ꭨ6,061,680;
ꭨ 6,154,773, ꭨ6,161,132,
ꭨ 6,230,192, ꭨ6,230,207,
ꭨ 6,240,459, ꭨ6,330,593, and other
patents issued or pending. Some
services supplied under license from
Open Globe, Inc. for U.S. Patent:
ꭨ 6,304,523. Gracenote and CDDB are registered
trademarks of Gracenote. The
Gracenote logo and logotype, and the
‘‘
Powered by Gracenote ’’logo are
trademarks of Gracenote.
CONTINUED
Playing Hard Disc Drive (HDD) Audio (Models with navigation system)
337
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

VOL/ꂻ(VOLUME/POWER) KNOB
TUNE BAR
SKIP BAR
AUDIO BUTTON NAVIGATION SCREEN
DISPLAY
USB/AUX BUTTON
INTERFACE DIAL
CANCEL BUTTON
Playing an iPod
®(Models with navigation system)
34009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
