2010 Acura TSX engine

Press the clutch pedal, and shif t to
reverse.
With the clutch pedal still pressed,
start the engine. If you are still unable to shif t to
reverse, apply the parking brake,
andturntheignitionkeytothe
ACCESSORY (I) or LOCK (0)
position.
If you need to use this procedure to
shif t to reverse, your vehicle may be
developing a problem. Have it
checked by your dealer.
The manual transmission has
lockout so you cannot accidentally
shif t f rom any f orward gear to
reverse while the vehicle is moving
at a certain speed. If you cannot shif t
to reverse when the vehicle is
stopped, do the f ollowing:
With the clutch pedal pressed,
move the shift lever to the first/
second gear side of the neutral
gate, then shif t to reverse.
1. 2.
3.
4.
Manual T ransmission
Reverse Lockout
372
Move the shift lever in sequence.
2010 TSX

µµµ
µ
To shift from: PtoR
RtoP
NtoR DtoS
StoD
DtoN
NtoD RtoN Do this:
Press the brake pedal and
press the shift lever release
button.
Press the shift lever release
button.
Move the shift lever.
This position mechani-
cally locks the transmission. Use
Park whenever you are turning of f or
starting the engine. To shif t out of
Park, you must press on the brake
pedal and have your f oot of f the
accelerator pedal. Press the release
buttononthefrontof theshiftlever
to move it. If you have done all of the above and
still cannot move the lever out of
Park, see
on
page .
You must also press the release
button to shift into Park. To avoid
transmission damage, come to a
complete stop bef ore shif ting into
Park. The shif t lever must be in Park
bef ore you can remove the key f rom
the ignition switch.
Press the brake
pedal and the release button on the
frontoftheshiftlevertoshiftfrom
Park to reverse. To shif t f rom
reverse to neutral, come to a
completestop,andthenshift.Press
the release button bef ore shif ting
into reverse f rom neutral. Use neutral if you
need to restart a stalled engine, or if
it is necessary to stop brief ly with
the engine idling. Shif t to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from neutral to
another gear.
Use this position f or
your normal driving. The
transmission automatically selects a
suitable gear (1 through 5) f or your
speed and acceleration. You may
notice the transmission shif ting up at
higher engine speeds when the
engine is cold. This helps the engine
warm up f aster.
375
Park (P) Shif t L ock Release
Reverse (R) Neutral (N)
Drive (D)
Automatic Transmission
374
2010 TSX

µTo shift into the S
position, press the release button on
the front of the shift lever, and move
the lever to S. This position is similar
to D, except only gears f rom f irst to
f ourth are selected. The S position
keeps the transmission f rom cycling
between fourth and fifth gears in
stop-and-go driving.
With the shift lever in D or S, you
canalsousethepaddleshiftersto
shif t the transmission up or down.
With the paddle shifters, you can
operate the transmission much like a
manual transmission without a
clutch pedal. For more inf ormation
on driving with the paddle shif ters,
see page . If you exceed the maximum speed
f or the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may f eel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
rpm below the red zone.
This allows you to move the shif t
lever out of Park if the normal
method of pushing on the brake
pedal and pressing the release
button does not work.
Set the parking brake.
Remove the key from the ignition
switch.
1.
2.
377
CONT INUED
S Position (S) Engine Speed L imiter Shif t L ock Release
Automatic Transmission
Driving
375
2010 TSX

Insert the key in the shift lock
release slot. Put a cloth on the edge of the shif t
lock release slot cover to prevent
scratches. Use a small f lat-tip
screwdriver or metal f ingernail f ile
to caref ully pry up the edge of the
cover and remove it from the slot.Remove the key from the shift
lock release slot, then reinstall the
cover. Make sure the notch on the
cover is on the right side. Press
the brake pedal, and restart the
engine.
If you need to use the shif t lock
release, it means your vehicle is
developing a problem. Have it
checked by your dealer.
Push down on the key while you
pressthereleasebuttononthe
shif t lever and move the shif t lever
out of Park to neutral.
3.
4. 5.6.
Automatic Transmission
376
COVER
SHIFT LOCK RELEASE SLOT
2010 TSX

´
µ
´
µ
CONT INUED

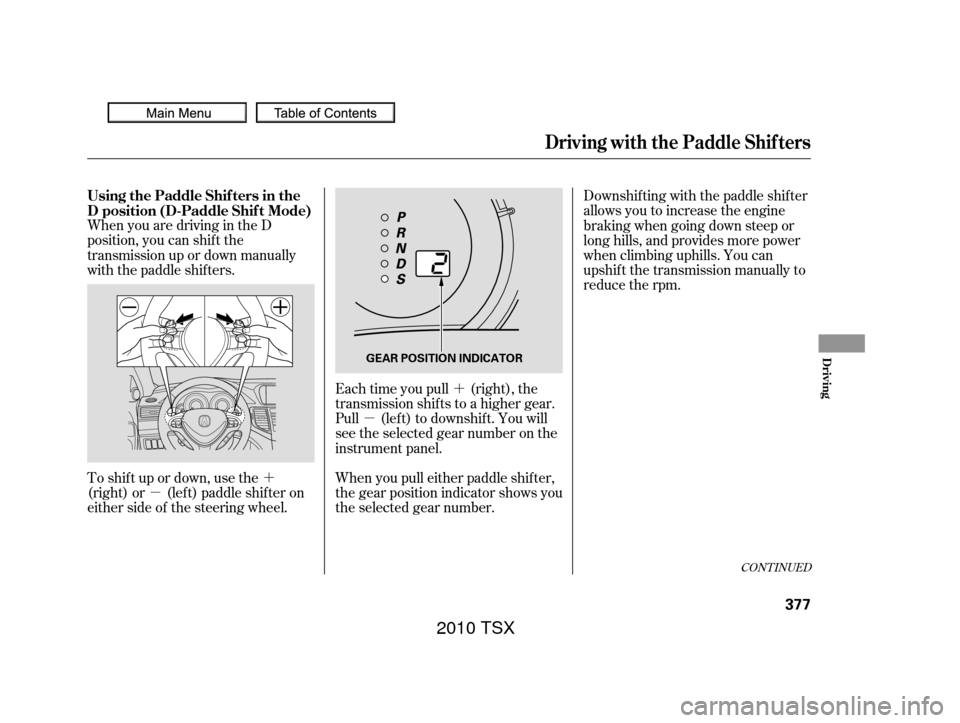

WhenyouaredrivingintheD
position, you can shif t the
transmission up or down manually
with the paddle shifters.
Each time you pull (right), the
transmission shif ts to a higher gear.
Pull (lef t) to downshif t. You will
see the selected gear number on the
instrument panel.
To shif t up or down, use the
(right) or (lef t) paddle shif ter on
either side of the steering wheel. Downshifting with the paddle shifter
allows you to increase the engine
brakingwhengoingdownsteepor
long hills, and provides more power
when climbing uphills. You can
upshif t the transmission manually to
reduce the rpm.
When you pull either paddle shif ter,
the gear position indicator shows you
the selected gear number.
Using the Paddle Shif ters in the
D position (D-Paddle Shif t Mode)
Driving with the Paddle Shif ters
Driving
377
GEAR POSITION INDICATOR
2010 TSX

´à
à
à
à
Î
Î
Î
Î
Î
Î
The transmission control system
monitors the accelerator pedal use
and your driving conditions. When
you press the accelerator pedal as in
normal driving, the system judges
that you are driving at a constant
cruising speed without using the
paddle shif ters. Under these
conditions, D-paddle shif t mode is
canceled, and the transmission
automatically returns to drive mode
(D). Here are the speed ranges f or
downshif ting.
Hold the paddle shifter for 2
seconds to return to drive mode (D). Speed range
under 118 mph (190 km/h)
under 130 mph (209 km/h)
under 87 mph (140 km/h)
under 84 mph (135 km/h)
under 55 mph (88 km/h)
under 24 mph (38 km/h)
To shift
from
54
43
32
21
If you try to do this, the gear
position indicator will f lash the
numberof thelowergearseveral
times, then return to a higher gear. You downshif t bef ore the engine
speed reaches the highest
threshold of the lower gear.
The automatic transmission will not
allow you to shif t up or down if : Each time you pull either paddle
shifter, the transmission shifts one
gear up or down. If you want to shif t
up or down more than two gears, pull
the paddle shif ter twice, pause, and
then pull it again. The transmission remains in the
selected gear if you do not accelerate. When the transmission returns to
drive mode (D), the displayed gear
number disappears.
6-cylinder models
1
2
1
2
1:
2:
4-cylinder models
6-cylinder models
Driving with the Paddle Shif ters
378
2010 TSX

´µ
CONT INUED
When you move the shif t lever f rom
‘‘D’’ to ‘‘S’’ position and pull either
paddle shif ter, the gear position
indicator displays ‘‘M’’ along with the
selected gear number.
To upshift, pull the (right) paddle
shif ter. To downshif t, pull the
(lef t) paddle shif ter.
With the shif t lever in the S position,
you can manually shif t up or down
with the paddle shifters. The
transmission goes into the sequential
shif t mode and holds the selected
gear.
To enter the sequential shif t mode,
pressthereleasebuttononthefront
of the shift lever, move the lever to
the S position, then pull either paddle
shif ter. To return to drive mode (D),
move the shift lever to the D position.
While you are driving in the
sequential shif t mode, the
transmission will not automatically
return to drive mode (D).
The transmission downshif ts to f irst
gear and returns to drive mode (D)
when the vehicle comes to a
complete stop or the vehicle speed is
about 6 mph (10 km/h).
If there is a problem in the
transmission while you are driving
with the paddle shifters, the D
indicator f lashes, the D-paddle shif t
mode is canceled, and the
transmission returns to drive mode
(D). You upshif t bef ore the engine
speed reaches the lowest
threshold of the higher gear.
You pull both paddle shif ters at
thesametime.
Driving with the Paddle Shif ters
Using the Paddle Shif ters in the S
position (Sequential Shif t Mode)
Driving
379
‘‘M’’ INDICATOR
GEAR POSITION INDICATOR
2010 TSX

The automatic transmission will not
allow you to shif t up or down if :If you try to do this, the gear
position indicator will f lash the
number of the lower gear several
times, then return to a higher gear.
If the vehicle speed decreases
below the redline of the selected
lowergearwhiletheindicatoris
f lashing, the transmission
downshif ts, and the indicator
displays the selected gear.
You pull both paddle shif ters at
thesametime.
Downshifting with the paddle shifter
allows you to increase the engine
braking when going down steep or
long hills, and provides more power
when climbing uphills. You can
upshif t the transmission manually to
reduce the rpm.
The transmission also shif ts
automatically as the vehicle comes to
a complete stop. It downshif ts to f irst
gear when the vehicle speed reaches
6mph(10km/h)orless.
When you accelerate f rom a stop,
the transmission starts in f irst gear,
and you must manually upshif t
between first and fifth gears. Make
sure you upshif t bef ore the engine
speed reaches the tachometer’s red
zone.
The transmission remains in the
selectedgear(5,4,3,2,or1).There
is no automatic downshif t when you
push the accelerator pedal to the
f loor.
When you are driving in 4th or 5th
gear, the transmission downshif ts to
the lower gear under the f ollowing
conditions:
The vehicle slows down to a
certain speed.
You press the brake pedal. You downshif t bef ore the engine
speed reaches the highest
threshold of the lower gear.
You upshif t bef ore the engine
speed reaches the lowest
threshold of the higher gear.
Driving with the Paddle Shif ters
380
2010 TSX
