2010 Acura TL navigation system

The disc packages or jackets should
have one of these marks.The disc player can also play MP3,
WMA, or AAC format that saved on
CD-R/RW or DVD-R/RW (see page
).
If a f ile on WMA or AAC disc is
protected by digital rights
management (DRM), the audio
system skips to the next f ile.
DVD-A discs not meeting DVD
verification standards may not be
playable.
Video CDs and DVD-V format discs
will not work in this unit.
Some CD-DA and CD-ROM mixed
discs are not playable.
Your vehicle’s audio system has an
in-dash disc player. To operate the
disc player, the power mode must be
in the ACCESSORY or ON.
Your vehicle has the engine start/
stop button instead of an ignition
switch. For more inf ormation on
selecting the power mode, see page
.
CD (CD-DA, CD-TEXT)
CD-R/CD-RW(MP3,WMA,AAC)
DVD-A
DVD-R/DVD-RW (MP3, WMA,
AAC)
The disc player can play these disc
formats:
178 301
Playing a Disc (Models with navigation system)
296
NOTE:
09/07/29 17:40:29 31TK4610_301
2010 TL

Ì
You cannot load and play 3-inch
(8-cm)discsinthissystem.
It is possible to select up to 999 f iles
f or inclusion in CD-Rs and CD-RWs,
and up to 3,500 f iles f or inclusion in
DVD-Rs and DVD-RWs.Manuf actured under license under
U.S. Patent ’s: 5,451,942; 5,956,674;
5,974,380; 5,978,762; 6,487,535 &
other U.S. and worldwide patents
issued & pending. DTS and DTS
Digital Surround are registered
trademarks and the DTS logos and
Symbol are trademarks of DTS, Inc.
1996-2008 DTS, Inc. All Rights
Reserved. Insert a disc about half way into the
disc slot. The drive will pull the disc
intherestof thewaytoplayit.You
operate the disc player with the
same controls used f or the radio.
The number of the current track is
showninthedisplay.Whenplayinga
disc in MP3, WMA or AAC, the
numbers of the current f older and
f ile are shown. The system will
continuously play a disc until you
change modes.
For inf ormation on how to handle
and protect compact discs, see page
.
364
To Load a Disc
Playing a Disc (Models with navigation system)
Features
297
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
09/07/29 17:40:38 31TK4610_302
2010 TL

Select the disc player by pressing the
DISC button. The system will begin
playing the last selected track in the
disc. You will see the current track
position highlighted.
Title inf ormation will be displayed by
a list when the inf ormation is f ound
in the Gracenote
Album Inf o
(Gracenote
Media Database) on the
built-inharddiskdrive.Whenyou
play a CD recorded with text data,
you will see the genre, artist name,
album and track name on the screen.
When you play MP3/WMA/AAC
discs, you will see the genre, artist
name, album name and track name
on the screen. If the disc was not
recorded with this inf ormation, it will
not be displayed. Each time you press the TITLE
button, the center display changes
f rom artist name to album name, to
track name and then to normal
display that shows the track number
and the elapsed time. When playing
a disc in MP3/WMA/AAC, the
display mode changes f rom f older
name,tofilename,toartisttag,to
album tag, to track tag, and then to
normal display.
Each time you press and release the
side of the skip bar, the player
skips forward to the beginning of the
next track. Press and release the side of the skip bar to skip
backward to the beginning of the
current track. Press the side
againtoskiptotheprevioustrack.
To move rapidly within a track, press
andholdeithersideof theskipbar.
When you insert a CD f or the f irst
time, the system automatically starts
recording to the hard disc. For
inf ormation on recording f rom music
CDs, see page . 310
To Play a Disc
To Change Tracks
Playing a Disc (Models with navigation system)
298
09/07/29 17:40:45 31TK4610_303
2010 TL

You can also choose a track directly
from a track list. If there are no track
names, you will see ‘‘No Title’’
displayed. Turn the interf ace dial to
select the desired track, then press
ENTER on the interf ace selector.To replay the current track
continuously, push the interf ace
selector down while playing a disc.
Turn the interf ace dial to select
Repeat on the AUDIO MENU, and
press ENTER on the interf ace
selector. Turn the interf ace dial to
select Repeat icon, and press
ENTER on the interf ace selector.To turn this feature off, turn the
interf ace dial to select OFF icon, and
press ENTER on the interf ace
selector.
To Choose a Track
Track Repeat
Playing a Disc (Models with navigation system)
Features
299

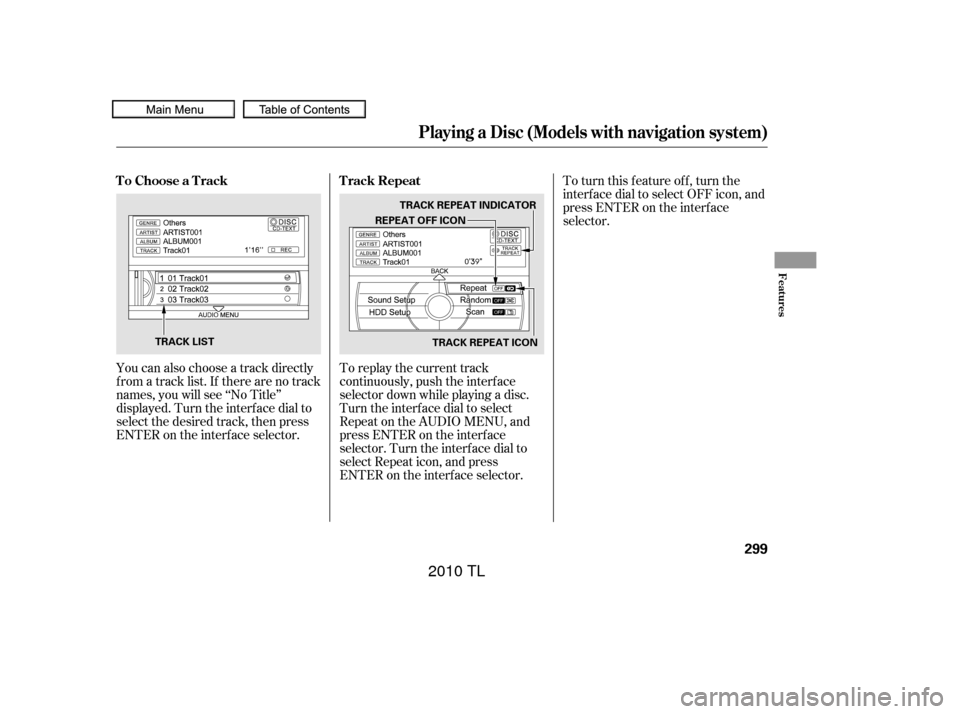

TRACK LIST TRACK REPEAT INDICATOR
REPEAT OFF ICON
TRACK REPEAT ICON
09/07/29 17:40:54 31TK4610_304
2010 TL

This f eature plays the tracks within a
disc in random order. When playing
MP3, WMA or AAC f ormat discs, all
the tracks within the disc are played
in random order, regardless of the
conf iguration of the f older.
Push the interf ace selector down
while playing a disc. Turn the
interf ace dial to select Random on
the AUDIO MENU, and press
ENTER on the interf ace selector.The scan f unction samples all tracks
on the disc in the order they are
recorded on the disc.
To activate scan, press the SCAN
side of the SCAN/A.SEL bar, or
push the interf ace selector down
while playing a disc. Turn the
interf ace dial to select Scan on the
AUDIO MENU, and press ENTER
on the interf ace selector.
To turn this feature off, turn the
interf ace dial to select OFF icon, and
press ENTER on the interf ace
selector. Turn the interface dial to select the
track random icon, and press
ENTER on the interf ace selector.
Random Play
Track Scan
Playing a Disc (Models with navigation system)
300
TRACK RANDOM INDICATOR
SCAN ICON
TRACK RANDOM ICON
RANDOM OFF ICON
09/07/29 17:41:06 31TK4610_305
2010 TL

ÎÎ
µ Î This audio system plays CD-ROM,
CD-R/RW, DVD-ROM, and
DVD-R/RW compressed in MP3,
WMA, or AAC formats. You can
select up to 255 f olders or tracks.
To take the system out of disc mode,
press the AM/FM button, the
button, or the HDD/AUX
button. To return to disc mode, press
the DISC button.
Turn the interface dial to select the
Scan icon, and press ENTER on the
interf ace selector. You will hear a 10-
second sampling of each track on the
disc. When you return to disc mode,
the disc will begin playing f rom
where it lef t of f .
The specif ications f or compatible
MP3 f iles are:Sampling f requency:
32/44.1/48 kHz (MPEG1)
16/22.05/24 kHz (MPEG2)
8/11.025/12 kHz (MPEG2.5)
To turn this feature off, press the
SCAN side of the SCAN/A.SEL bar
again, or turn the interf ace dial to
select the OFF icon, and press
ENTER on the interf ace selector.
The system begins to play the last
track sampled.
Your vehicle has the engine start/
stop button instead of an ignition
switch. For more inf ormation to turn
the power mode of f , see page . If you turn the system of f while a
disc is playing, either with the VOL/knob or the engine start/stop
button, the disc will stay in the drive.
When you turn the system back on,
the disc will begin playing where it
left off. You can also press the MODE
buttononthesteeringwheelto
change modes.
: Including Root f older
178
Maximum
folders 255
255 Maximum
layers
8
8
Maximum
Files
999
3500
CONT INUED
Playing an MP3/WMA /A A C Disc
To Stop Playing a Disc
Playing a Disc (Models with navigation system)
Features
301
Disc
CD-ROM
CD-R
CD-RW
DVD-ROM
DVD-R
DVD-RW
09/07/29 17:41:23 31TK4610_306
2010 TL

µ
µµ
µ
µ µ
µ
µ µ µ
µ
The specif ications f or compatible
WMA f iles are: Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
8/16/24/32/40/48/56/64/80/96/
112/128/144/160 kbps
(MPEG2.5)
Compatible with variable bitrate
and multi-session.
Maximum layers:
255 layers
Sampling f requency:
8/11.025/16/22.05/32/44.1/48
kHz
Bitrate:
5/6/8/10/12/16/20/22/32/48/
64/80/96/128/160/192/256/
320 kbps
Compatible with variable bitrate
and multi-session Maximum layers:
255 layers
The specif ications f or compatible
AAC files are:
Bitrate:
8/16/20/24/28/32/40/48/56/64/
80/96/112/128/160/192/224/
256/320 kbps
Compatible with multi-session.
Maximum layers:
255 layers Sampling f requency:
8/11.025/12/16/22.05/24/32/
44.1/48 kHz Combining a low sampling f requency
with a low bitrate may result in
extremely degraded sound quality.
To play an MP3/WMA/AAC disc,
use the disc controls previously
described, along with the f ollowing
inf ormation.
Playing a Disc (Models with navigation system)
302
NOTE:
09/07/29 17:41:34 31TK4610_307
2010 TL

Changing and Selecting the Folders/Files
Select a desired f older by turning the
interf ace dial, then press ENTER.
The display returns to normal play,
and the f irst track in the selected
f older begins to play.
To change a f ile, turn the interf ace
dial to select a desired f ile, then
press ENTER.
Using the interf ace selector, you can
see the list of all the f olders within a
disc. While playing an MP3/WMA/
AAC disc, push the interf ace selector
up. The f older list in the currently
playing disc will appear on the screen.
If the root f older has some additional
f olders in the lower layer, they will
belistedonthescreen.
While playing an MP3/WMA/AAC
disc, you can select a f older within
the disc by pressing either side of
the category bar. Each time you
press either side of the bar, the
f older title and its f irst f ile’s
inf ormation appear on the center
display and on the navigation screen
in hierarchical order of the f olders
which contain f iles within the disc.
Playing a Disc (Models with navigation system)
Changing the Folders
Features
303
FOLDER LIST
TRACK LIST
09/07/29 17:41:45 31TK4610_308
