6
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U005Abfig. 4
KEY WITH REMOTE CONTROL fig. 4
The metal insert A operates:
❒the ignition switch;
❒the door locks;
❒the fuel cap lock/release (for versions/markets where
provided);
Pressing button B opens/closes the metal insert.
All the keys and the CODE card must be
handed over to the new owner when
selling the car.
Button B should only be pressed when
the key is away from the body, in
particular from the eyes and from objects that
can be spoilt (e.g. clothes). Never leave the key
unattended and make sure it can never be
touched by others, especially children, who may
inadvertently press the button.
WARNING
Button Ëis used for unlocking the doors and the boot.
Button Áis used for locking the doors and the boot.
Button
Ris used to open the boot remotely.
When unlocking the doors, the passenger compartment
ceiling lights will come on for a preset time.
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 6

11
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 9F0U010Ab
If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by an Abarth Dealership as soon
as possible.
WARNING
When getting out of the car, always
remove the key to prevent someone
from accidentally activating the controls.
Remember to engage the handbrake. If the car
is parked on a slope uphill, engage the first
gear; if the car is facing downhill, engage the
reverse gear. Never leave children unattended
in the car.
WARNING
IGNITION
The key can be turned to 3 different positions fig. 9:
❒STOP: engine off, key can be extracted, steering
locked. Some electrical devices (e.g. sound system,
central door locking system, etc.) may work.
❒MAR: driving position. All electric devices can
operate.
❒AVV: engine starting (temporary position).
The ignition switch is fitted with an electronic safety
system that requires the ignition key to be turned back
to STOP if the engine will not start, before the starting
operation can be repeated.
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 11

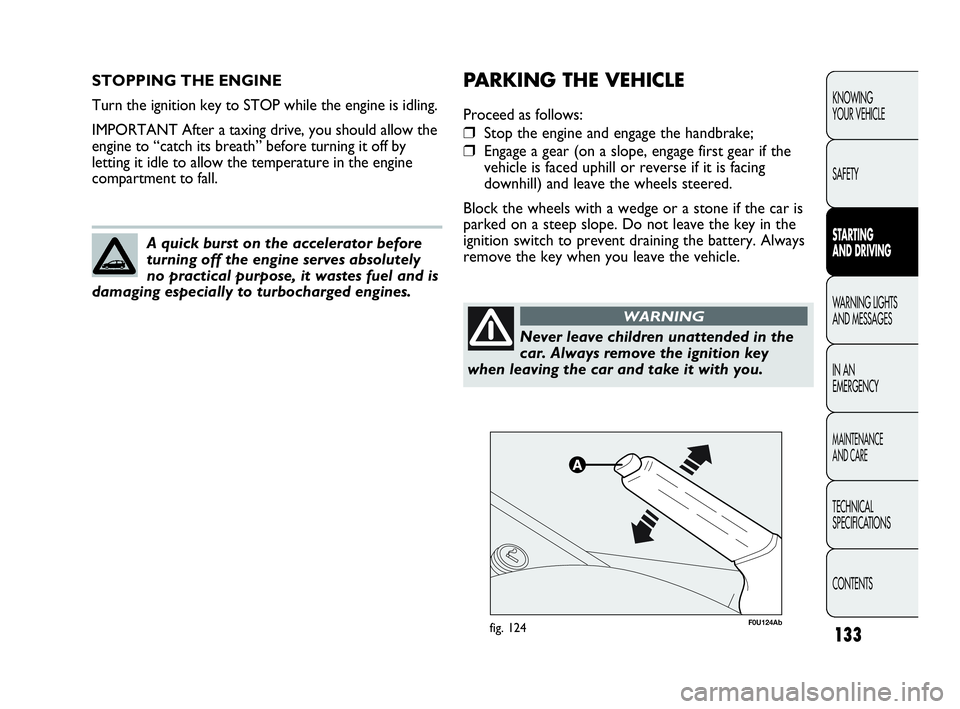

133
STOPPING THE ENGINE
Turn the ignition key to STOP while the engine is idling.
IMPORTANT After a taxing drive, you should allow the
engine to “catch its breath” before turning it off by
letting it idle to allow the temperature in the engine
compartment to fall.
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
A quick burst on the accelerator before
turning off the engine serves absolutely
no practical purpose, it wastes fuel and is
damaging especially to turbocharged engines.
F0U124Abfig. 124
PARKING THE VEHICLE
Proceed as follows:
❒Stop the engine and engage the handbrake;
❒Engage a gear (on a slope, engage first gear if the
vehicle is faced uphill or reverse if it is facing
downhill) and leave the wheels steered.
Block the wheels with a wedge or a stone if the car is
parked on a steep slope. Do not leave the key in the
ignition switch to prevent draining the battery. Always
remove the key when you leave the vehicle.
Never leave children unattended in the
car. Always remove the ignition key
when leaving the car and take it with you.
WARNING
131-140 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:01 Pagina 133

260
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Brakes
– brake fluid (type) .................... 218
– checking levels and
topping up .................................... 191
– handbrake ................................. 134
– technical specifications .......... 209
Bulbs
– bulb types ..........................159-160
– external bulb replacement .... 161
– general information
on replacement ........................... 158
– internal bulb replacement ..... 168
– replacement ............................. 158
Can holder .................................... 64
Capability for child seat ............... 115
Card holder ................................... 64
Carrying children safely ............... 115
– passenger seat compliance
with regulations on isofix
child seat use ............................... 122
– passenger seat compliance
with regulations on universal
child seat use ............................... 118– universal Isofix child seat
capability ...................................... 120
Carrying children safely ............... 115
– passenger seat compliance
with regulations on isofix
child seat use ............................... 122
– passenger seat compliance
with regulations on universal
child seat use ............................... 118
– universal Isofix child seat
capability ...................................... 120
Catalytic converter ...................... 108
CD Changer (capability) ............. 104
Central locking .............................. 59
Central locking .............................. 71
Chassis (marking) ......................... 206
Chassis marking ............................ 206
Checking levels ............................. 187
– brake fluid ................................ 191
– engine coolant ......................... 189
– engine oil .................................. 188
– windscreen/rear window
washer fluid ................................. 190Child seats ...................................... 115
– passenger seat compliance
with regulations on Isofix
child seat use ............................... 122
– passenger seat compliance
with regulations on universal
child seat use ............................... 118
– universal Isofix child seat
capability ...................................... 120
Cigarette lighter ............................ 64
Cleaning and maintenance
– bodywork ................................. 200
– engine compartment .............. 202
– front headlights ........................ 202
– interiors .................................... 202
– leather seats ............................. 203
– plastic parts .............................. 204
– seats and fabric parts ............. 203
– windows ................................... 202
Climate control vents .................. 38
Clutch
– technical specifications .......... 208
CO
2at exhaust ............................. 220
CO
2emissions .............................. 220
259-268 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:45 Pagina 260
