CAR INACTIVITY
If the car is to be left inactive for longer than a month,
the following precautions should be followed:
❒park the car in covered, dry and if possible well-
ventilated premises;
❒engage a gear;
❒check that the handbrake is not engaged;
❒disconnect the negative battery terminal and check
battery charge. Repeat this check once every three
months during storage. Recharge if the optical
indicator shows a dark colour without the central
green area;
❒clean and protect the painted parts using protective
wax;
❒clean and protect the shiny metal parts using special
compounds commercially available;
❒sprinkle talcum powder on the rubber windscreen
and rear window wiper blades and lift them off the
glass;
131-140 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:01 Pagina 140

150
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Strong radio-frequency interference
could inhibit the regular operation of
the TPMS system.
This condition will be indicated by a message.
The message will disappear automatically as
soon as the interference ceases to disturb the
system.
WARNINGWINDSCREEN WIPER AUTOMATIC
OPERATION NOT AVAILABLE
(amber)
The symbol is shown on the display when the
windscreen wiper automatic control, which adapts
operation speed to vehicle speed, is not available.
The display will show a dedicated message.
u
POSSIBLE PRESENCE OF ICE ON
THE ROAD
The outside temperature indicator starts
flashing when the outside temperature reaches or falls
below 3°C and the
❄symbol lights up on the display to
warn the driver of the possible presence of ice on the
road.
The display will show a dedicated message.
❄
SERVICE DUE
The display shows a dedicated message to indicate the
scheduled servicing deadline.
õ
ALTERNATOR (BATTERY)
FAILURE (red)
If the symbol is shown on the display, contact
an Abarth Dealership immediately.
The display shows the dedicated message.w
EXCEEDING SPEED LIMIT (red)
The symbol is shown on the display when the
car exceeds the set speed limit (see
“Reconfigurable Multifunction Display” in section
“Knowing your car”).
12 0
141-150 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:04 Pagina 150

STARTINGTHEENGINE
EMERGENCY STARTING
If the instrument panel warning light
Ystays on
permanently, contact an Abarth Dealership immediately.
IN AN EMERGENCY
In an emergency we recommend that you call the free-phone number found on the Warranty Booklet. You can
also find the Abarth Dealership nearest to you on the web site www.fiat.com.
This procedure must be performed by
expert personnel because incorrect
actions could cause electrical discharge of
considerable intensity. Furthermore, battery
fluid is poisonous and corrosive: avoid contact
with skin and eyes. Keep naked flames away
from the battery. No smoking. Do not cause
sparks.
WARNING
IMPORTANT For the jump starting procedure, refer to
“Knowing your car” section, paragraph “Start&Stop
system”.
fig. 126F0U187Ab
151
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
JUMP STARTING fig. 126
If the battery is flat, the engine may be started using an
auxiliary battery with the same capacity or a little higher
than the flat one. It is advisable to contact an Abarth
Dealership to check/replace the battery.
151-182 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:20 Pagina 151

172
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U162Abfig. 158
F0U163Abfig. 159
Engine compartment fusebox fig. 159
To access the fuse box located next to the battery,
remove the protective cover fig. 158 acting on the
points indicated by the arrow.
151-182 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:20 Pagina 172

174
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
7.5
7.5
5
5
10
5
20
20
20
20
5
5
7.5 1
8
13
2
5
11
4
6
14
7
12
3
10
FUSE SUMMARY TABLE
Dashboard fuse box fig. 157
USERSFUSE AMPERE
Right dipped headlamp
Left dipped beam headlight, headlight alignment corrector
INT/A supply for switch coils on engine fuse box
and relay switch coils on body computer control unit
Courtesy light, boot light, glove compartment light
Supply and battery for EOBD diagnosis, automatic climate
control unit, alarm, radio, Blue&Me™ control unit
INT supply for instrument panel, switch on brake pedal
(NO contact), third brake light
Door locking/unlocking motors, dead lock activation motors, boot
unlocking motor
Windscreen/rear window washer pump
Driver’s front electric window motor
Passenger side front electric window motor
INT supply for dashboard control lights, TMPS tyre pressure
measurement control unit, electric wing mirror movement, sunroof control
unit, my-port infotelematic system socket, electrochromic rear view mirror
Instrument panel
INT supply for brake pedal switch (NC contact), clutch
pedal switch, interior heating unit, Blue&Me™ control unit,
sound system wiring, voltage stabiliser control unit, reverse light on bumper,
brake servo sensor, relay switch coils on engine compartment fusebox
151-182 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:20 Pagina 174

175
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
09
10
14
19
20
21
30
85
86
87
8820
10
15
7.5
30
15
15
–
15
5
7.5 Engine compartment fusebox fig. 159
USERSFUSE AMPERE
Hi-Fi sound system with radio, control unit and subwoofer
Horn
Left main beam headlamp, right main beam headlamp
Air climate control compressor
Heated rear window
Fuel pump on tank
Left fog light, right fog light
Socket (set-up)
Passenger compartment socket, cigar lighter
Battery charge status sensor
Demister on driver-side door mirror, demister on passenger-side door
mirror
151-182 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:20 Pagina 175

177
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

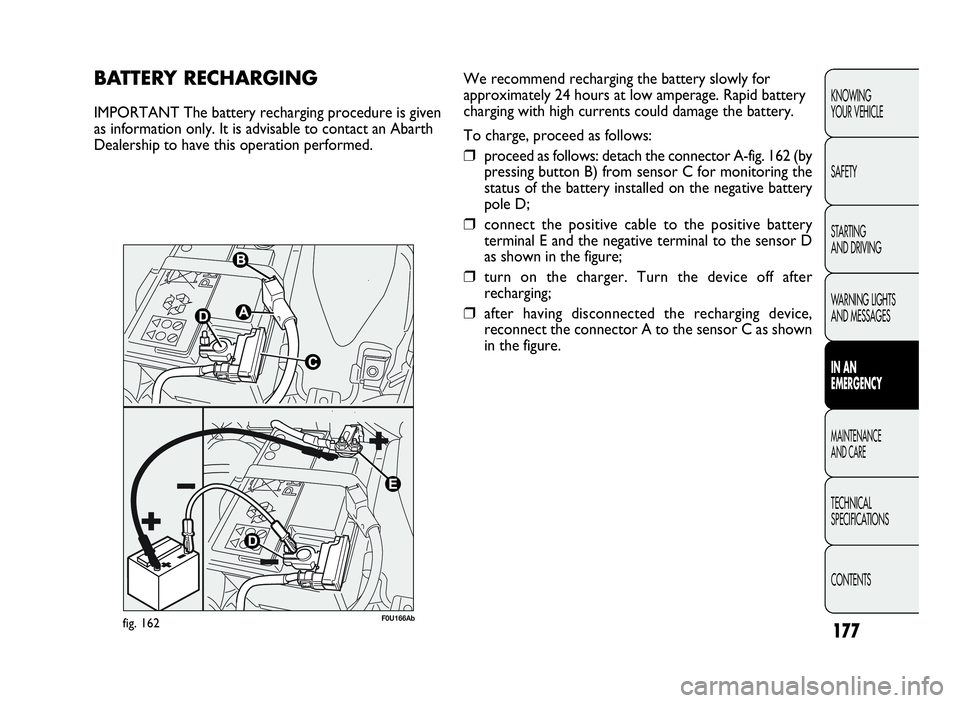

BAT TERY RECHARGING
