11
161
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4B...
5FS-0 5FX-H 5FT-F
PETROL ENGINES 1.6 litre VTi 16V 120 hp 1.6 litre THP 16V 150 hp 1.6 litre THP 16V 140 hp
Cubic capacity (cc) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 88 110 103
Max power engine speed (rpm) 6 000 5 800 6 000
Max torque: EU standard (Nm) 160 240
Max torque engine speed (rpm) 4 250 1 400
Fuel Unleaded Unleaded
Catalytic converter Yes Yes
GEARBOXES Manual
(5-speed) Manual
(6-speed) Automatic
(4-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 4.25 4.25 4.25
Page 180 of 280
11
162
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4B...
5FV-8 5FV-A 5FU-8
PETROL ENGINES 1.6 litre THP 16V 156 hp 1.6 litre THP 16V 200 hp
Cubic capacity (cc) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 115 147
Max power engine speed (rpm) 6 000 5 500
Max torque: EU standard (Nm) 240 275
Max torque engine speed (rpm) 1 400 1 700
Fuel Unleaded Unleaded
Catalytic converter Yes Yes
GEARBOXES Manual
(6-speed) Automatic
(6-speed) Manual
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 4.25 4.25 4.25
Page 181 of 280
11
165
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4B...
9HR-8 RHR-8 RHH-A
DIESEL ENGINES
1.6 litre Turbo HDI
110 hp
2 litre Turbo HDI
136 hp
2 litre Turbo HDI
163 hp
Cubic capacity (cc) 1 560 1 997 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88 85 x 88
Max power: EU standard (kW) 82 103 120
Max power engine speed (rpm) 3 500 4 000 4 000
Max torque: EU standard (Nm) 276 320 340
Max torque engine speed (rpm) 1 500 2 000 2 000
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
P a r t i c l e e m i s s i o n fi l t e r Yes Yes Yes
GEARBOXES Manual
(6-speed) Manual
(6-speed) Automatic
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 5.25 -
Page 182 of 280
11
163
TECHNICAL DATA

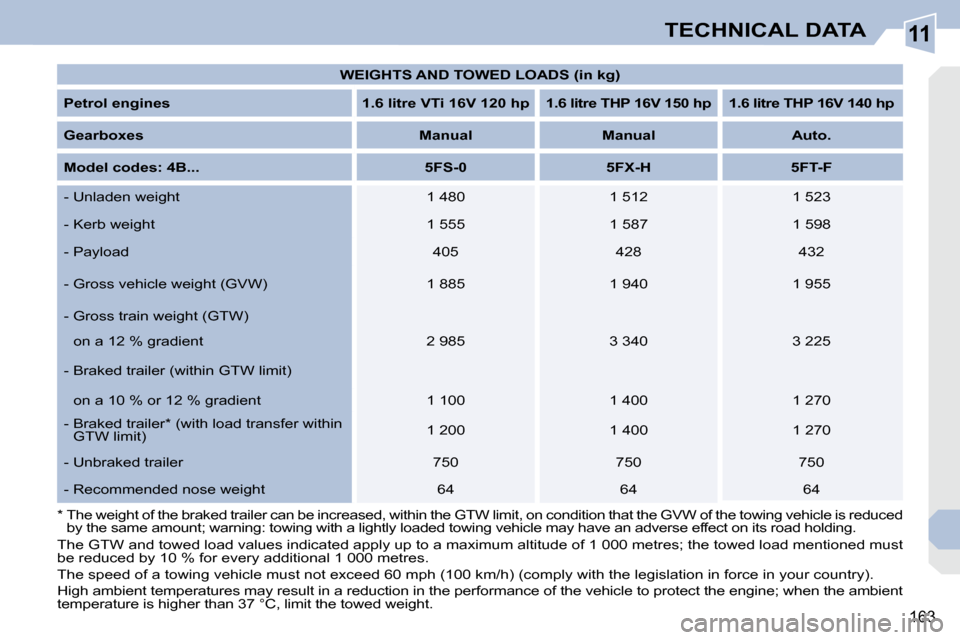

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines 1.6 litre VTi 16V 120 hp 1.6 litre THP 16V 150 hp 1.6 litre THP 16V 140 hp
Gearboxes
Manual Manual Auto.
Model codes: 4B... 5FS-0 5FX-H 5FT-F
- Unladen weight 1 480 1 512 1 523
- Kerb weight 1 555 1 587 1 598
- Payload 405 428 432
- Gross vehicle weight (GVW) 1 885 1 940 1 955
- Gross train weight (GTW)
on a 12 % gradient 2 985 3 340 3 225
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 400 1 270
- Braked trailer * (with load transfer within GTW limit) 1 200 1 400 1 270
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reductio n in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed w eight.
* The weight of the braked trailer can be incr
eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 183 of 280
11
164
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GV W of the towing vehicle is reduced by
the same amount; warning: towing with a lightly loa ded towing vehicle may have an adverse effect on it s road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reductio n in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed w eight.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP 16V 156 hp 1.6 litre THP 16V 200 hp
Gearboxes
Manual Automatic Manual
Model codes: 4B... 5FV-8 5FV-A 5FU-8
- Unladen weight 1 515 1 530 1 535
- Kerb weight 1 590 1 605 1 610
- Payload 425 440 449
- Gross vehicle weight (GVW) 1 940 1 970 1 984
- Gross train weight (GTW)
on a 12 % gradient 3 340 3 240 2 784
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 1 270 800
- Braked trailer * (with load transfer within GTW limit) 1 400 1 270 800
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
Page 184 of 280
11
166
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDI 110 hp
2 litre Turbo HDI 136 hp 2 litre Turbo HDI 163 hp
Gearboxes
Manual Manual Auto.
Model codes: 4B... 9HR-8 RHR-8 RHH-A
- Unladen weight 1 525 1 599 1 625
- Kerb weight 1 600 1 674 1 700
- Payload 400 421 425
- Gross vehicle weight (GVW) 1 925 2 020 2 050
- Gross train weight (GTW)
on a 12 % gradient 3 025 3 420 3 550
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 400 1 500
- Braked trailer * (with load transfer within GTW limit) 1 200 1 400 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reductio n in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed w eight.
Page 185 of 280
11
167
TECHNICAL DATA
DIMENSIONS (IN MM)
Page 186 of 280
11
!
i
168
TECHNICAL DATA
IDENTIFICATION MARKINGS
V a r i o u s v i s i b l e m a r k i n g s f o r t h e i d e n t i fi -
cation and tracking of your vehicle. W h e e l s w h i c h a r e fi t t e d w i t h 2 2 5 / 4 0
R 1 8 t y r e s c a n n o t b e fi t t e d w i t h
snow chains. For further informa-
tion, contact a PEUGEOT dealer.
I f t h e i n fl a t i o n p r e s s u r e s a r e t o o l o w ,
this increases fuel consumption.
T h e i n fl a t i o n p r e s s u r e s m u s t b e
checked when the tyres are cold,
at least once a month.
A. V e h i c l e i d e n t i fi c a t i o n n u m b e r ( V I N )
under the bonnet.
This number is engraved on the bodywork near the damper support.
For access to it, raise the plastic cover.
B. VIN on the windscreen lower cross-
member.
This number is indicated on a self- adhesive label which is visible
through the windscreen.
C. Manufacturer's label.
This number is indicated on a self- d e s t r o y i n g l a b e l a f fi x e d t o t h e d o o r
aperture, below the door striker, on
the right-hand side.
D. Tyre/paint label.
T h i s l a b e l i s a f fi x e d t o t h e d o o r a p e r - ture, on the driver's side.
It bears the following information:
- t h e t y r e i n fl a t i o n p r e s s u r e s , l a d e n and unladen,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e i n fl a t i o n p r e s s u r e o f t h e s p a r e wheel,
- the paint colour code.
