INSTRUMENTS and CONTROLS
Warning lamps
When the engine is running or the vehicle is being driven, the switching on of one of the following warning lamps indicates a
fault which requires action on the part of the driver.
Any fault resulting in the switching on of a warning lamp must be investigated further by reading the associated message on
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.
Warning lamp is on Cause Action/Observations
STOP fi x e d ,
associated
with another
warning lamp. It is associated with the
braking, the engine oil pressure
or the coolant temperature.
Stop as soon as it is safe to do so.
Park, switch off the ignition and call a
PEUGEOT dealer.
Braking fi x e d ,
associated
with the STOP warning lamp. T h e b r a k i n g s y s t e m fl u i d l e v e l
is too low. You must stop as soon as it is safe to do so.
T o p u p w i t h b r a k e fl u i d r e c o m m e n d e d b y
PEUGEOT.
If the problem persists, have the system
checked by a PEUGEOT dealer.
+
fi x e d , a s s o c i a t e d
with the STOP and
ABS warning lamp. The electronic brake force
distribution (EBFD) system has
a fault. You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer.
Anti-lock
Braking
System (ABS) fi x e d . The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact
a PEUGEOT dealer without delay.
Dynamic
stability control
(ESP/ASR) fl a s h i n g .
The ESP/ASR regulation is
active. The system optimises traction and improves
the directional stability of the vehicle.
fi x e d . Unless it has been deactivated
with the indicator lamp on
the button on, the ESP/ASR
system is faulty. Have it checked by a PEUGEOT dealer.
Page 17 of 119
INSTRUMENTS and CONTROLS
20

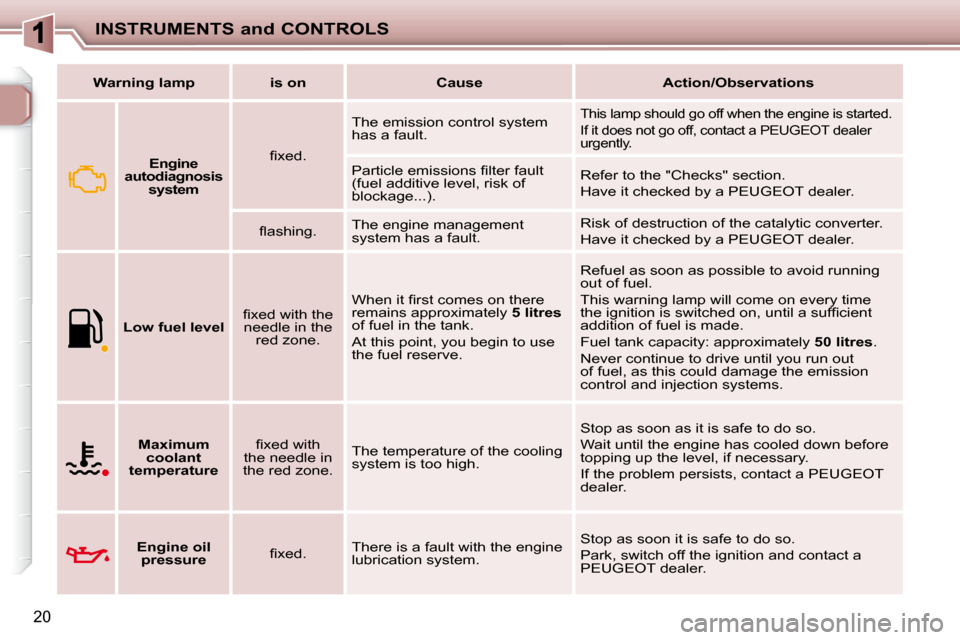

Warning lamp is on Cause Action/Observations
Engine
autodiagnosis system fi x e d . The emission control system
has a fault.
This lamp should go off when the engine is started
.
If it does not go off, contact a PEUGEOT dealer
urgently.
P a r t i c l e e m i s s i o n s fi l t e r f a u l t
(fuel additive level, risk of
blockage...). Refer to the "Checks" section.
Have it checked by a PEUGEOT dealer.
fl a s h i n g . The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer.
Low fuel level fi x e d w i t h t h e
needle in the red zone. W h e n i t fi r s t c o m e s o n t h e r e
remains approximately
5 litres
of fuel in the tank.
At this point, you begin to use
the fuel reserve. Refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time
t h e i g n i t i o n i s s w i t c h e d o n , u n t i l a s u f fi c i e n t
addition of fuel is made.
Fuel tank capacity: approximately
50 litres .
Never continue to drive until you run out
of fuel, as this could damage the emission
control and injection systems.
Maximum
coolant
temperature fi x e d w i t h
the needle in
the red zone. The temperature of the cooling
system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer.
Engine oil
pressure fi x e d . There is a fault with the engine
lubrication system. Stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer.
Page 18 of 119
INSTRUMENTS and CONTROLS
21
Warning lamp is on Cause Action/Observations
Battery
charge fi x e d . The battery charging circuit has
a fault (dirty or loose terminals,
slack or cut alternator belt, ...). The warning lamp should go off when the
engine is started.
If it does not switch off, contact a PEUGEOT
dealer.
Seat belt not
fastened/
unfastened fi x e d .
The driver has not fastened or
has unfastened their seat belt. Pull the strap then insert the tongue in the
buckle.
Airbags temporarily.
This lamp comes on for a few
seconds when you turn on the
ignition, then switches off.
This lamp should switch off when the engine is
started.
If it does not switch off, contact a PEUGEOT deale
r.
fi x e d . One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a PEUGEOT dealer.
Page 27 of 119
i
30
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.
In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:
If the interior temperature remains very high after the vehicle has been
p a r k e d i n t h e s u n f o r a c o n s i d e r a b l e t i m e , fi r s t v e n t i l a t e t h e p a s s e n g e r
compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e n e w a l
of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grille located on the bonnet, the vents and the a ir passages under
the front seats.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in good working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r .
T h a n k s t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not u se it and contact a PEUGEOT
dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning saves engine power and t herefore improves
towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.

Page 62 of 119
!
59
TRAJECTORY CONTROL
SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
Activation
These systems are activated automati-
cally each time the vehicle is started. They come into operation in
the event of a grip or trajectory
problem.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning lamp on the instru-
ment panel. Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground...), it may be ad-
visable to deactivate the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, located
on the left below the steering wheel.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on.
Press the "ESP OFF" button again
to reactivate them manually. If this warning lamp comes on in
the instrument panel and the in-
dicator lamp in the button comes
on, this indicates that the ASR and
ESP systems are deactivated. Operating fault
If this warning lamp comes on,
accompanied by an audible
signal and a message in the
multifunction screen, this in-
dicates a malfunction of these
systems.
Have the systems checked by a
PEUGEOT dealer.
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and opera-
tion procedures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
The anti-skid regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics.
Page 81 of 119
77
BONNET
Component which protects and provides
access to the components of the engine
for checking of the various levels.
- At the front, lift the safety catch and raise the bonnet. - Secure the stay to hold the bonnet
open.
Closing
- Put the stay back in its housing.
- Lower the bonnet and release it at the end of its travel.
- Check that the bonnet is locked.
RUNNING OUT OF FUEL
(DIESEL)
If you should run out of fuel, it is neces-
sary to prime the fuel system:
- fi l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i t r e s of diesel,
- squeeze and release the manual priming pump, located under the bon-
net under the protective cover, until
fuel appears in the transparent pipe,
- operate the starter until the engine starts.
Opening
- Pull the release lever located on the
left, below the dashboard.
When the engine is hot, handle the
safety catch and the bonnet stay with
care (risk of burns).
Page 83 of 119
!
79
CHECKING THE LEVELS Brake fluid level Used oil
Oil level
Check the level regularly
and top up between chang-
es. The maximum consump-
tion is 0.5 litre per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick. T h i s fl u i d m u s t a l w a y s b e a t t h e
maximum level.
T h e b r a k e fl u i d m u s t b e c h a n g e d
according to the manufacturer's
servicing schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e m a n u -
f a c t u r e r , w h i c h f u l fi l D O T 4 s t a n d a r d s .
Note : b r a k e fl u i d i s h a r m f u l t o h e a l t h
and very corrosive. Avoid all contact
with the skin.
Cooling system
Dipstick
There are two marks on the
dipstick:
A = maximum
N e v e r fi l l p a s t t h i s m a r k .
B = minimum
Power steering reservoir
Open the reservoir, with the engine at
ambient temperature. The level should
always be above the MIN. mark and
close to the MAX. mark.
Oil change
According to the information given in
the Warranty and Maintenance Record.
Viscosity selection
In all cases, the oil used must meet the
manufacturer's requirements. Windscreen wash level
Avoid used oil coming into prolonged
contact with the skin. Empty the
used oil into the containers intended
for this purpose in the PEUGEOT
network (France) or take it to an au-
thorised waste disposal site.
Do not dispose of used oil, brake
fl u i d o r c o o l a n t i n t o d r a i n s o r o n t o
the ground.
T h i s fl u i d m u s t a l w a y s b e a t t h e
maximum level (circular line).
U s e t h e fl u i d r e c o m m e n d e d b y
the manufacturer.
When the engine is warm, the tempera-
ture of the coolant is controlled by the
engine fan. As this fan can operate with
the ignition key removed and because
the cooling system is pressurised, wait
for at least one hour after the engine has
stopped before carrying out any work.
F o r v e h i c l e s fi t t e d w i t h a p a r t i c l e
e m i s s i o n s fi l t e r , t h e c o o l i n g f a n m a y
continue to run after stopping the ve-
h i c l e , e v e n w h e n t h e e n g i n e i s c o l d .
Also, as the cooling system operates
under pressure, wait at least one hour
after switching off the engine before do-
ing anything. For best quality cleaning and to
a v o i d f r e e z i n g , t h i s fl u i d m u s t
not be topped up or replaced
with plain water.
To maintain the reliability of engines
and emission control systems, the use
of additives in engine oil is prohibited. Slacken the cap by two turns to release
the pressure to prevent any risk of scald-
ing. When the pressure has dropped,
remove the cap and top up the level.
Note: the coolant does not need to be
changed.
Page 84 of 119
!
80
CHECKS
Check these components, or have them
checked by a PEUGEOT dealer, in ac-
cordance with the servicing booklet and
in relation to your engine.
Battery
Air filter and passenger compartment filter
Brake pads Parking brake
Brake disc/drum wear
Oil filter
Manual gearbox
Only use products recommend-
ed by PEUGEOT or products of
e q u i v a l e n t q u a l i t y a n d s p e c i fi c a -
tions.
At the start of winter, have
your battery checked by a
PEUGEOT dealer.
H a v e t h e fi l t e r e l e m e n t s r e -
placed regularly.
If you drive
i n d u s t y c o n d i t i o n s , c h a n g e
them twice as often.
Brake pad wear depends on
the style of driving, in particu-
lar for vehicles which are used
in town, over short distances.
It may be necessary to check the thick-
ness of the pads, even between ser-
vices. Where the parking brake travel
is too great or there is a re-
duction in the performance of
the system, the parking brake
should be adjusted, even be-
tween services.
Have the system checked by a
PEUGEOT dealer.
For any information relating to
checking the wear of the brake
discs and/or drums, contact a
PEUGEOT dealer.
C h a n g e t h e fi l t e r r e g u l a r l y , i n
accordance with the servicing
schedule.
This does not require an oil
change. Check the level in ac-
cordance with the manufactur-
er's servicing schedule.
* According to version.
Diesel fuel additive level (Diesel
with particle emission filter)
The low level of this additive is
indicated by the display of this
warning lamp, accompanied by
an audible signal and a mes-
sage in the screen * .
When it occurs with the engine running,
this indicates the start of saturation of
t h e p a r t i c l e e m i s s i o n s fi l t e r ( e x c e p t i o n -
ally extended urban driving: low speeds,
long jams...).
A s s o o n a s t h e t r a f fi c c o n d i t i o n s p e r m i t ,
r e g e n e r a t e t h e fi l t e r b y d r i v i n g a t a s p e e d
o f a t l e a s t 4 0 m p h ( 6 0 k m / h ) f o r a t l e a s t
fi v e m i n u t e s ( u n t i l t h e m e s s a g e d i s a p -
pears and the warning lamp goes off).
During regeneration of the particle emis- s i o n s fi l t e r , t h e n o i s e o f r e l a y s o p e r a t i n g
may be heard in the dashboard.
If the warning lamp stays on, contact a
PEUGEOT dealer.
