Page 17 of 97
1
20
INSTRUMENTS and CONTROLS
Deactivating
the
passenger's airbag fi x e d . The passenger's airbag
control is set to the
OFF
position.
The passenger's front
airbag is deactivated.
In this case you can
install a "rear facing"
child seat. Set the control to the
ON position to activate the
p a s s e n g e r ' s f r o n t a i r b a g . I n t h i s c a s e , d o n o t fi t a
child seat in the rear-facing position.
Battery
charge fi x e d . The battery charging
circuit has a fault (dirty or
loose terminals, slack or
cut alternator belt, ...). The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
o r a q u a l i fi e d w o r k s h o p .
Electric power
steering fi x e d . The electric power
steering has a fault. Drive carefully at reduced speed.
Have it checked by a PEUGEOT dealer or
q u a l i fi e d w o r k s h o p .
Driver's
seat belt not fastened
(according to version) fl a s h i n g , t h e n
above 9 mph (15 km/h),
accompanied
by an audible signal. The driver has not
fastened their seat belt.
Pull the strap then insert the tongue in the
buckle.
Emission
control
system fi x e d .
The emission control
system has a fault. This lamp should go off when the engine is started
.
If it does not go off, contact a PEUGEOT dealer
o r a q u a l i fi e d w o r k s h o p w i t h o u t d e l a y .
Warning lamp is on Cause Action/Observations
Page 18 of 97
1
21
INSTRUMENTS and CONTROLS
"2 Tronic"
gearbox fi x e d . The "2 Tronic" gearbox
has a fault. C o n t a c t a P E U G E O T d e a l e r o r a q u a l i fi e d
workshop without delay.
Warning lamp is on Cause Action/Observations
Page 19 of 97
1
22
INSTRUMENTS and CONTROLS
TOTAL/TRIP DISTANCE
RECORDER
Fuel gauge
This indicates the quantity of fuel
available:
- 1/1 and six bars, the fuel tank is
full.
- R a n d o n e b a r fl a s h i n g , t h e f u e l
tank is on the reserve.
Low fuel level
When the minimum level in the fuel tank is
r e a c h e d , t h e l a s t b a r fl a s h e s a c c o m p a n i e d b y
an audible signal.
In certain driving conditions and depending
on the engine, the distance which can be trav-
elled with the fuel remaining may be less than
30 miles (50 km).
You have approximately 5 litres remaining.
W h e n t h e f r e q u e n c y o f t h e fl a s h i n g i n c r e a s e s ,
you have approximately 3 litres remaining .
At least 5 litres must be added
after running out of fuel.
When the ignition is switched on,
the distance recorder selected when
the engine was switched off is dis-
played.
Press button 1 to alternate the dis-
tance display:
- total with "ODO" displayed,
- trip with "TRIP" displayed. To reset the trip recorder to zero,
when it is displayed, press and hold
button
1 .
Page 20 of 97
1
22
INSTRUMENTS and CONTROLS
TOTAL/TRIP DISTANCE
RECORDER
Fuel gauge
This indicates the quantity of fuel
available:
- 1/1 and six bars, the fuel tank is
full.
- R a n d o n e b a r fl a s h i n g , t h e f u e l
tank is on the reserve.
Low fuel level
When the minimum level in the fuel tank is
r e a c h e d , t h e l a s t b a r fl a s h e s a c c o m p a n i e d b y
an audible signal.
In certain driving conditions and depending
on the engine, the distance which can be trav-
elled with the fuel remaining may be less than
30 miles (50 km).
You have approximately 5 litres remaining.
W h e n t h e f r e q u e n c y o f t h e fl a s h i n g i n c r e a s e s ,
you have approximately 3 litres remaining .
At least 5 litres must be added
after running out of fuel.
When the ignition is switched on,
the distance recorder selected when
the engine was switched off is dis-
played.
Press button 1 to alternate the dis-
tance display:
- total with "ODO" displayed,
- trip with "TRIP" displayed. To reset the trip recorder to zero,
when it is displayed, press and hold
button
1 .
Page 21 of 97
1
23
INSTRUMENTS and CONTROLS

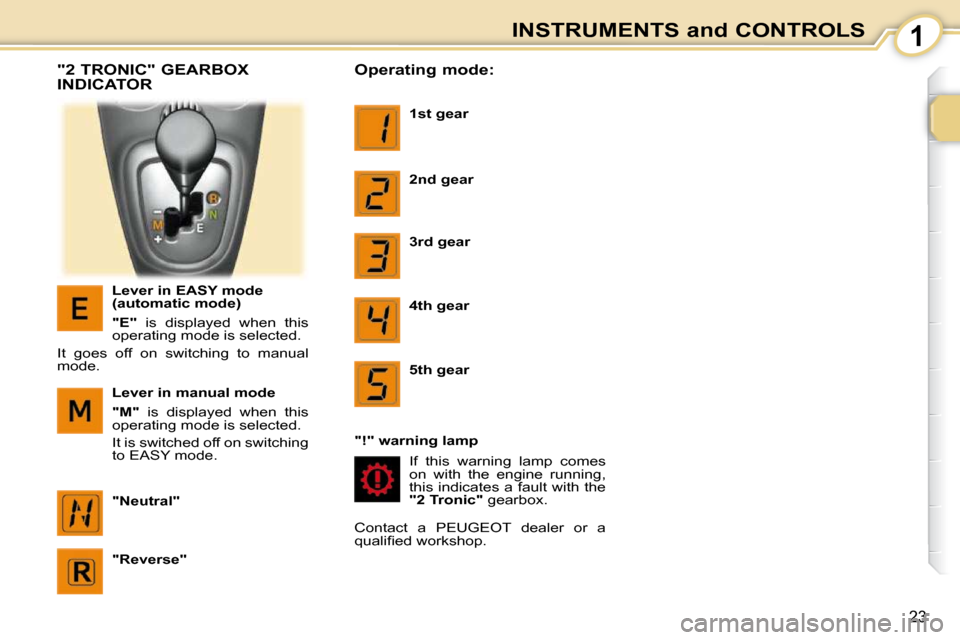

"2 TRONIC" GEARBOX
INDICATOR
Lever in EASY mode
(automatic mode)
"E" is displayed when this
operating mode is selected.
It goes off on switching to manual
mode.
Lever in manual mode
"M" is displayed when this
operating mode is selected.
It is switched off on switching
to EASY mode.
"Neutral"
"Reverse"
Operating mode:
1st
gear
2nd gear
3rd
gear
4th
gear
5th
gear
If this warning lamp comes
on with the engine running,
this indicates a fault with the
" 2 Tronic
" gearbox.
"!" warning lamp
Contact a PEUGEOT dealer or a
q u a l i fi e d w o r k s h o p .
Page 22 of 97
2
24
AUDIO EQUIPMENT
GENERAL FUNCTIONS
On/Off Selection of the source: auxiliary
(or CD or CD changer) Clock adjustment: press for more
than 2 seconds/Access to the audio settings
Volume adjustment Auxiliary socket for portable
equipment (MP3 player, ...) Hours adjustment/
Audio settings
Minutes adjustment/ Audio settings
24
Page 23 of 97
2
25
AUDIO EQUIPMENT
On/Off
With the ignition key
in the accessories
position or with the
ignition on, press this
button to switch the audio equipment
on or off.
After the engine has been switched
off, the audio equipment can only
operate for approximately 30 min-
utes, to prevent discharging of the
battery. Press the upper part
of this button several
times in succession to
increase the volume
of the audio equip-
ment or the lower part
of this button to de-
crease it.
Volume adjustment
Setting the clock Press this button sev-
eral times in succes-
sion to gain access
to the bass (BASS) ,
treble (TREB) , front/rear balance
(FAD) and left/right balance (BAL)
settings.
Audio settings
Press this button for
more than 2 seconds,
the clock display
fl a s h e s : Auxiliary socket
An auxiliary socket
"AUX" is provided for
the connection of por-
table equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these
two buttons.
You exit from this mode automati-
cally after a few seconds without any
action. In order to listen to it,
connect your equip-
ment then press this
button.
The audio equipment controls enable
you to adjust the volume and the au-
dio settings.
To exit from the AUX source, press
AM/FM .
When using an MP3 player: in-
crease the volume of the radio signif-
icantly (between 30 and 60) to obtain
a satisfactory playing volume.
- to adjust the hours, press this button,
-
to adjust the minutes,
press this button.
You exit from this mode automati-
cally after a few seconds without any
action.
Page 24 of 97
2
26
AUDIO EQUIPMENT Selection of the AM/FM
(FM1, FM2, FM3) wavebands Autostore: automatic storing of
6 stations on AM and FM3 T A f u n c t i o n o n / o f f : t r a f fi c
information priority
Automatic search for a higher frequency: double press/ Successive tuningin to the stations Selection of the type of radio
programme: News, Sports, Talk, Pop, Classics AF function on/off:
alternative frequency
Manual search for a higher frequency
Selection of the stored station/ Storing of a station: press for more than 2 seconds Manual search for a lower
frequency
RADIO
