2010.5 Citroen DS4 DAG Owner's Manual

147Fittings

230 V/50 Hz power socket
A 230 V/50 Hz socket (maximum power: 120 W) is fitted to the centre console. To use the socket :  lift the front armrest cover for access to its compar tment,  check that the warning lamp is on green,  connect your multimedia or other electrical
device (telephone charger, laptop computer, CD-DVD player, baby food warmer...). This socket works with the engine running, as well as in STOP mode on Stop & Star t.
In the event of a fault with the socket, the green warning lamp flashes. Have it checked by a CITROËN dealer or a qualified workshop.
Connect only one device at a time to the socket (no extension or multi-way connector).
Connect only devices with class II insulation (shown on the device). As a safety measure, when electrical
consumption is high and when required by the vehicle's electrical system (par ticular weather conditions, electrical overload...), the current supply to the socket will be cut off; the green warning lamp goes off.
12 V accessory
socket
 To connect a 12 V accessory (max power: 120 W), lift the cover and connect a suitable adaptor.

143Fittings

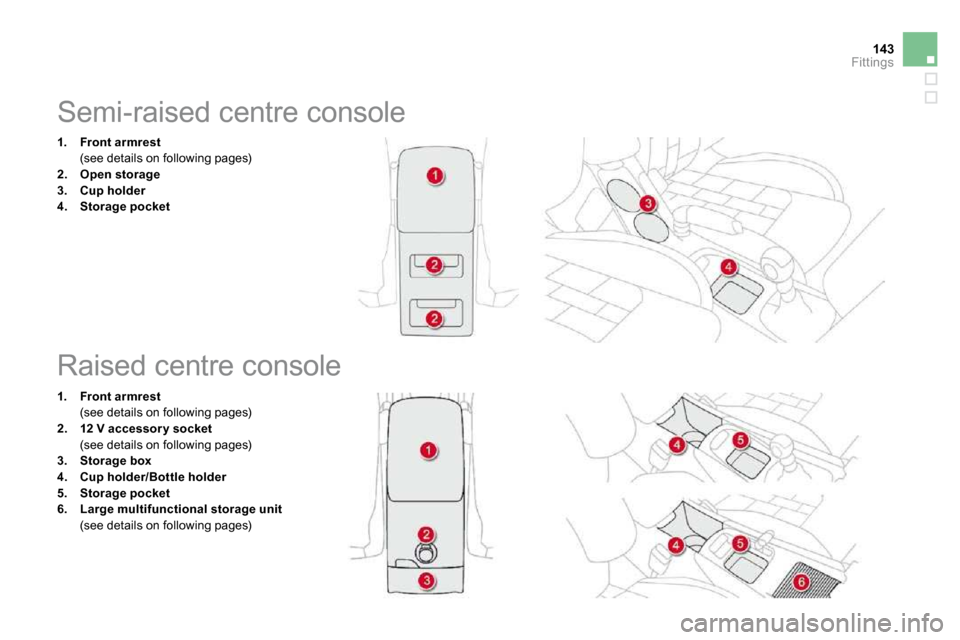

Semi-raised centre console
1. Front armrest (see details on following pages) 2. Open storage3. Cup holder4. Storage pocket
Raised centre console
1. Front armrest (see details on following pages) 2. 12 V accessor y socket
(see details on following pages) 3. Storage box
4. Cup holder/Bottle holder5. Storage pocket6. Large multifunctional storage unit (see details on following pages)

Large multifunctional
storage unit
This storage unit is closed by a sliding shutter. It contains: - the USB por t and 12 V/auxiliary sockets 1 , - a retractable suppor t 2 to receive your mobile phone or por table device, - a space ventilated by a closeable nozzle 3 , to keep food and drinks fresh if the air conditioning is operating.
It is illuminated only when the sliding shutter is fully open. The sliding shutter can be par tly closed up to the level of the retractable suppor t, so as to keep the storage unit cool.

Fittings

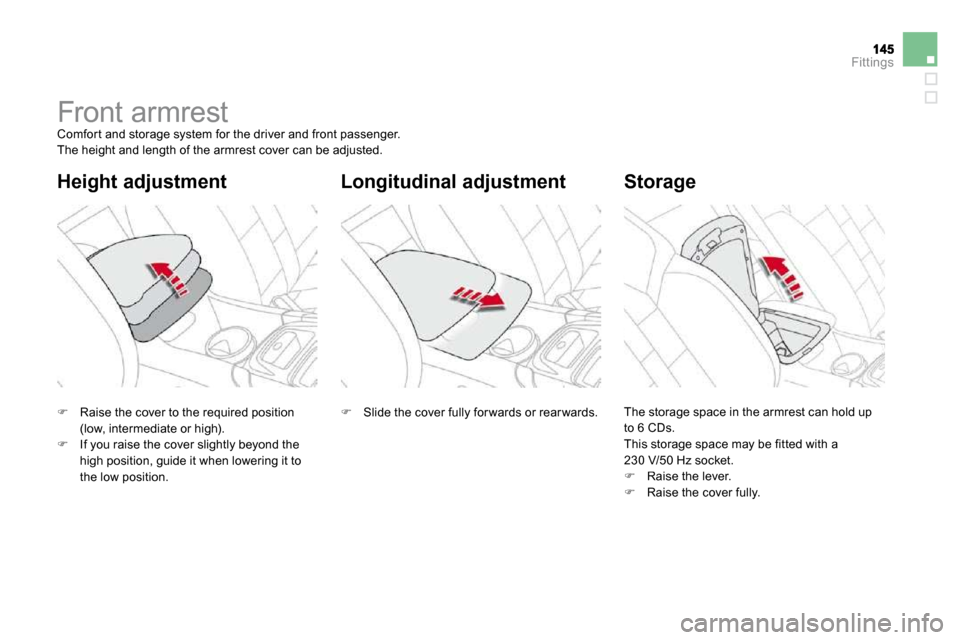

Front armrest
Comfor t and storage system for the driver and front pa ssenger. The height and length of the armrest cover can be adjusted.
Longitudinal adjustment Height adjustment Storage
 Raise the cover to the required position (low, intermediate or high).  If you raise the cover slightly beyond the high position, guide it when lowering it to the low position.
 Slide the cover fully for wards or rear wards. The storage space in the armrest can hold up to 6 CDs. This storage space may be fitted with a 230 V/50 Hz socket.
 Raise the lever.  Raise the cover fully.

Longitudinal adjustment
Front armrest Comfor t and storage device for the driver and front passenger. The length of the armrest cover can be adjusted.
The armrest's compar tment can hold up to 6 CDs.  Raise the cover fully.
Storage
 To move for wards, raise the lever. The armrest slides for wards to its stop.  To stow it, slide it fully back and press down to lock it.

Mats Removable carpet protection.
When fitting the mat for the first time, on the driver's side use only the fixings provided in the wallet attached. The other mats are simply placed on the carpet.
Fitting Removal
To remove the mat on the driver's side:  move the seat as far back as possible,
 unclip the fixings,  remove the mat.
Refitting
To refit the mat on the driver's side:  position the mat correctly,  refit the fixings by pressing,  check that the mat is secured correctly.
To avoid any risk of jamming of the pedals: - only use mats which are suited to the fixings already present in the vehicle; these fixings must be used, - never fit one mat on top of another. The use of mats not approved by
CITROËN may inter fere with access to the pedals and hinder the operation of the cruise control/speed limiter.

Fittings
 Raise the front of the drawer and pull it open.
Storage drawers Located under each front seat, except for the driver's seat on versions with electric seat.
Removal
Avoid removing the drawer completely, as refitting it is not easy.
 Open the drawer fully.  Pull the drawer upwards to disengage it.
Opening
Refitting
However, if it has been completely removed, to refit it:  use the torch to illuminate the area under the seat,  engage the drawer in its runners,  lift the retaining tongues and slide the drawer under these tongues,  at the end of its travel, press down on the drawer to engage it.
Do not place heavy objects in the drawer.

 Lower the rear armrest.  Pull the flap handle downwards.  Lower the flap.  Load the objects from inside the boot.

Ski fl ap Arrangement for storing and transpor ting long objects.
Opening
 Lower the rear armrest for a more comfor table position. This also gives access to the ski flap.
Rear armrest Comfor t system for the rear passengers.
