2010.5 Citroen C5 Owner's Manual

12
F A M I L I A R I S A T I O N
Electrochromatic rear view
mirror
 Release the steering wheel by push-
ing control A forwards.

 Adjust the height and the reach of
the steering wheel, then lock the po-
sition by pulling the lever upwards.
Steering wheel adjustment
Electric door mirrors

1. Selection of door mirror:
A. Left.
B. Right.
C. Fold/Unfold.

2. Adjustment control for mirror se-
lected .

 65 Automatic day/night model

1. Automatic detection of day/night
mode.

2. Mirror adjustment.

 66
 66
As a safety precaution, these opera-
tions must not be carried out while
moving.

13
F A M I L I A R I S A T I O N
V I S I B I L I T Y
Front wipers
Control stalk positions

2 Fast wipe.

1 Normal wipe.

I Intermittent wipe.

0 Off.
Lighting
Sidelamps. Dipped/main beam.
Lighting off.

 Pull the control stalk towards you
to change between dipped and main
beam.
Front and rear foglamps
on.
Front foglamps on.
Automatic illumination of head-
lamps. Rear wiper (Tourer)


Rotate control C to the desired position.
Off
Intermittent wipe
Screenwash
Ring A
Ring B

 87 Screenwash

 Pull the screen wipe control stalk to-
wards you.

 92-93
 92

One press downwards:
-
AUTO: Automatic rain sensitive wipers
activated.
- Single wipe.
If the ignition has been switched off for
around 1 minute, automatic wiping must
be selected again.

14
F A M I L I A R I S A T I O N
V E N T I L A T I O N
Dual-zone digital air conditioning Adjustment of air distribution on passenger’s side. Driver’s side automatic
operation.
Adjustment of temperature
on passenger’s side. Adjustment of air distribution
on driver’s side.
Rear screen and door mirrors demisting - defrosting. Air recirculation - entry of
air from outside.
Front demisting -
defrosting.
Passenger’s side
automatic operation.
Use of automatic mode is recommended by pressing the " Auto" button. Adjustment of temperature
on driver’s side.
Activation/deactivation of air conditioning.
Adjusting the air fl ow.

 52

15
F A M I L I A R I S A T I O N
M O N I T O R I N G
Instrument panel The hazard warning lamps
can also be used with the
ignition switched off.

A. Fuel gauge and low fuel warning lamp.

B. Cruise control/speed limiter information.

C. Coolant temperature.

D. Speedometer.

E. Instrument panel.

F. Mileage recorder.
G. Trip mileage recorder reset button.

H. Rev counter.

I. Engine oil temperature.

J. Display of automatic gearbox information.
- When the ignition is switched on, the orange and red warning lamps come on.
- When the engine is running, these warning lamps should go off .
- If any warning lamps remain on, refer to the "Monitoring" section.
Hazard warning lamps

 24

 113

16
F A M I L I A R I S A T I O N
M O N I T O R I N G

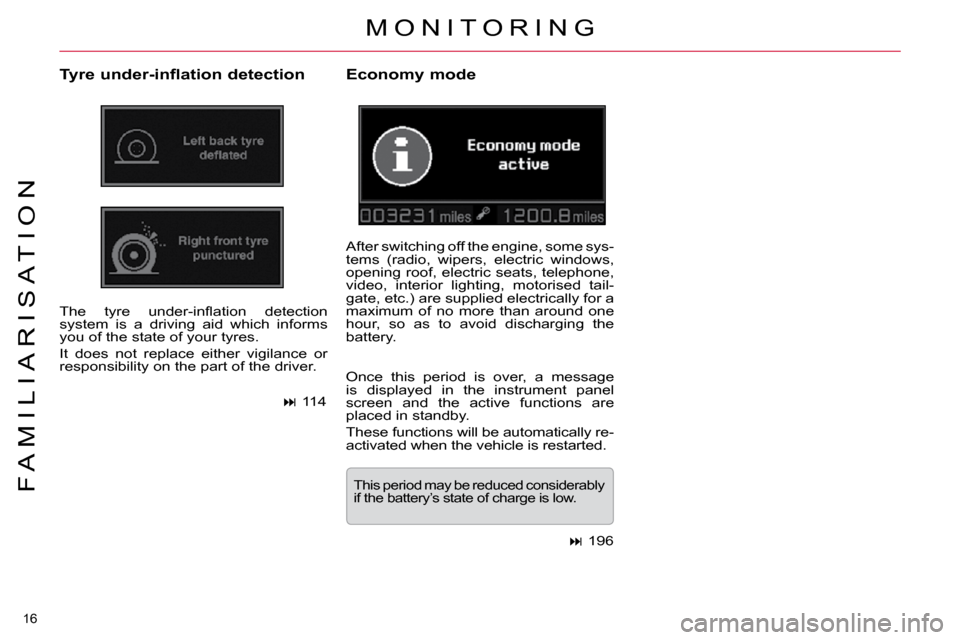

Tyre under-inflation detection
The tyre under-infl ation detection
system is a driving aid which informs
you of the state of your tyres.
It does not replace either vigilance or
responsibility on the part of the driver. Economy mode
After switching off the engine, some sys-
tems (radio, wipers, electric windows,
opening roof, electric seats, telephone,
video, interior lighting, motorised tail-
gate, etc.) are supplied electrically for a
maximum of no more than around one
hour, so as to avoid discharging the
battery.
This period may be reduced considerably
if the battery’s state of charge is low.
Once this period is over, a message
is displayed in the instrument panel
screen and the active functions are
placed in standby.
These functions will be automatically re-
activated when the vehicle is restarted.

 114

 196

17
F A M I L I A R I S A T I O N
P A S S E N G E R S A F E T Y
Front passenger’s airbag
deactivation Child safety
Seat belts and front
passenger’s airbag
The seat belt fastened/unfastened
status for each seat category is
indicated by the illumination or fl ashing
of the warning lamps for each position:

A. Not fastened/unfastened front and/
or rear seat belts warning lamp.

B. Front left-hand seat belt warning
lamp.

C. Front right-hand seat belt warning
lamp.

D. Rear right-hand seat belt warning
lamp.

E. Rear centre seat belt warning lamp.

F. Rear left-hand seat belt warning lamp.

G. Front passenger’s airbag deactiva-
tion warning lamp.

H. Front passenger’s airbag activation
warning lamp.

 33, 35-36 To use a rear facing child seat in the front
passenger’s seat position, the passen-
ger’s airbag must fi rst be deactivated.
To do this:

 With the ignition switched off, insert
the key into the switch I .

 Turn the key to the " OFF" position; the
passenger’s airbag is deactivated.
The front passenger’s airbag deactiva-
tion warning lamp G comes on when
the ignition is switched on.

 122 This deactivates the controls in the rear
of the vehicle, both for the rear windows
and for opening the rear doors from the
inside. The electric child safety device
is activated by pressing button
J .
The activation of the function is indicated
by a message on the instrument panel
screen and the lamp on button J .

 112

!!!
18
F A M I L I A R I S A T I O N
Electric parking brake Never leave a child alone inside
the vehicle with the ignition
on, as they could release the
parking brake. Hill start assist
Manual operation
The MANUAL application/release of
the parking brake is always possible by
pulling/pushing control B , keeping your
foot on the brake pedal.
Before leaving the
vehicle, check that
warning lamp A (!) (red)
on the instrument panel
is on fi xed (not fl ashing) and that warning
lamp P (red) on control B is on.
If you leave the vehicle with the
engine still running, apply the
parking brake manually. Do not leave the vehicle while
it is being held in the temporary
immobilisation hill start assist
phase.
To aid starting on a gradient, your vehicle
is equipped with a system which keeps
it immobilised for a short time (about
2 seconds), the approximate time it takes
to move your foot from the brake pedal to
the accelerator pedal.
This system is only active when:
- The vehicle is completely stationary,
with your foot on the brake pedal.
- In certain conditions on a gradient.
- With the driver’s door closed.
Before leaving the
vehicle, check that
warning lamp
A (!)
(red) in the instrument
panel is on fi xed (not fl ashing) and that
warning lamp P (red) in control B is on.
Automatic operation
The electric parking brake releases
automatically and progressively when
you press the accelerator. With the
vehicle stationary, the parking brake

is automatically applied when the
engine is switched off.
D R I V I N G

 127  133

19
F A M I L I A R I S A T I O N
This system allows you to maintain a
constant vehicle speed programmed by
the driver.
Cruise control
Speed limiter This system allows you to choose a maximum
speed that you do not wish to exceed.
The chosen speed must be
higher
than 20 mph (30 km/h) . Cruise control is active on the
higher
gears of the gearbox. The chosen
speed must be higher than 25 mph
(40 km/h).
Instrument panel display
The speed limiter or cruise control
mode is displayed on the instrument
panel when selected.
Cruise control
Speed limiter

Selection of
" LIMIT": Activation
of speed limiter mode.

"SET +" : Increase of the maxi-
mum speed.

"SET -": Reduction of the max-
imum speed.
Suspension or resumption of
mode.
Deactivation.
The chosen speed is memo-
rised.
"SET": Memorisation
of the speed (system
paused).
Selection of " CRUISE: " Activation
of cruise control mode.

"SET +" : Increase of the mem-
orised speed (system ON).

"SET -" : Reduction of the mem-
orised speed (system ON).
Suspension or resumption of
mode.
Deactivation.
D R I V I N G

 149
 151
