22
F A M I L I A R I S A T I O N
I N T E R I O R
Folding the seats
From the boot - whilst loading,
for example (CITROËN Grand
C4 Picasso)
SECOND ROW SEATS
From outside

 Pull fi rmly upwards on strap C , as
indicated by the red arrow, to unlock
the seat; keep pulling until the seat
is fully folded.

 Slide latch A of the panel down-
wards, to unlock it.

 Return the panel to the upright posi-
tion, then slide latch A upwards to
lock it.
Before deploying the rigid panels, check
that the second row seats are in their
fully rear position.

 71
Having fi rstly folded the third-row
seats.

 Pull on strap D to unlock the re-
quired seat. Repositioning the seats
Return the rigid panels of the second-
row seats to their initial (upright) position
and lock them in position (CITROËN
Grand C4 Picasso).
Raise the backrest and push it back-
wards until it locks in position.
Rigid panel (CITROËN Grand
C4 Picasso)
A rigid panel is attached to each sec-
ond-row seat backrest.
Unlocking/Locking the rigid panel

III
70
C O M F O R T
SECOND ROW SEATS (C4 PICASSO)
Folding a seat
Each seat can be folded onto the
fl oor to enable you to modify your
vehicle’s interior space.

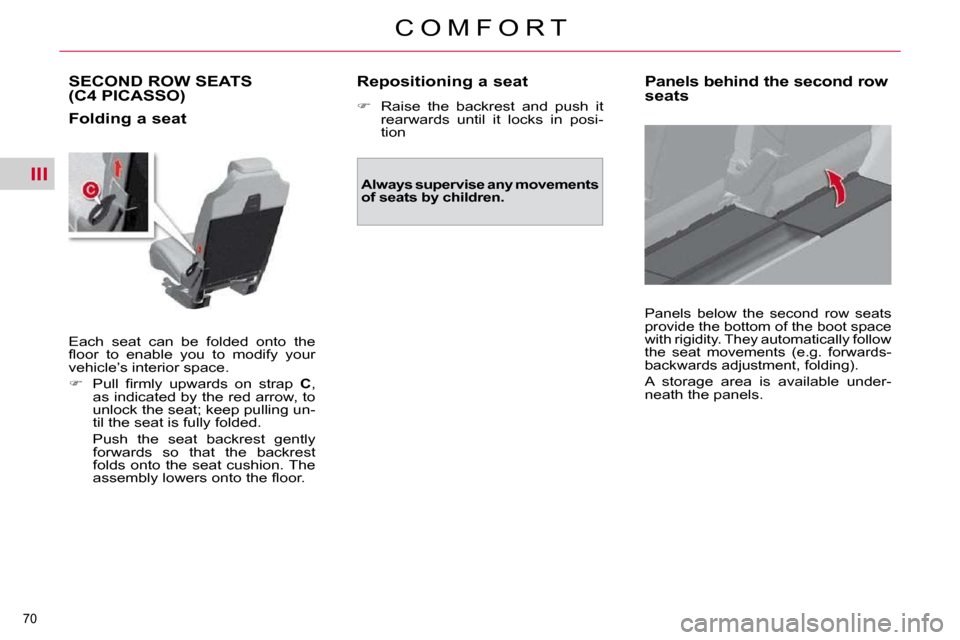

 Pull fi rmly upwards on strap C ,
as indicated by the red arrow, to
unlock the seat; keep pulling un-
til the seat is fully folded.
Push the seat backrest gently forwards so that the backrest
folds onto the seat cushion. The
assembly lowers onto the fl oor. Repositioning a seat

 Raise the backrest and push it
rearwards until it locks in posi-
tion

Always supervise any movements
of seats by children. Panels behind the second row
seats
Panels below the second row seats
provide the bottom of the boot space
with rigidity. They automatically follow
the seat movements (e.g. forwards-
backwards adjustment, folding).
A storage area is available under-
neath the panels.

III
71
C O M F O R T
SECOND ROW REAR SEATS (GRAND C4 PICASSO)
Each seat can be folded onto the
fl oor to form a fl at surface, thus en-
abling you to adapt your vehicle’s
interior space.
Folding a seat
From the outside

 Pull fi rmly upwards on strap C ,
as indicated by the red arrow, to
unlock the seat; keep pulling un-
til the seat is fully folded.
Push the seat backrest gently forwards so that the backrest
folds onto the seat cushion. The
assembly lowers onto the fl oor. From the boot (when loading, for
example)
You can fold the second-row seat(s)
from the boot, having fi rst folded the
third-row seats.

 Pull on the strap D to unlock the
chosen seat, push the backrest
gently forwards.
To prevent any damage to the mechanism, the strap D unclips
under excessive force. Simply
clip it back in place to render the
system operational.
Repositioning a seat

 Return the second-row seat rigid
panels to their initial position and
lock them in position.

 Raise the backrest and push it
rearwards until it locks in posi-
tion.
Before moving the third-row seats,
return the second-row rigid panels
to their initial position and lock them
in place.
Never allow children to operate the
seats without supervision. Rigid panel
Each second-row seat backrest has
a rigid panel attached.
This panel enables you:
- to have a continuous load sur-
face in the boot, whatever the
positions of the seats,
- to avoid having objects sliding under the second-row seats.
Unlocking/Locking the rigid
panel

 Slide the latch 1 on the panel
downwards, to unlock.


Return the panel to the upright
position, then slide the latch 1
upwards, to lock.
Before positioning the rigid panels,
check that the second-row seats are
in the fully back position.
5-seater confi gurations do not have
these rigid panels.

III
72
C O M F O R T
"Cinema seat" position
This position allows you to free up
space between the fi rst row and the
second row.

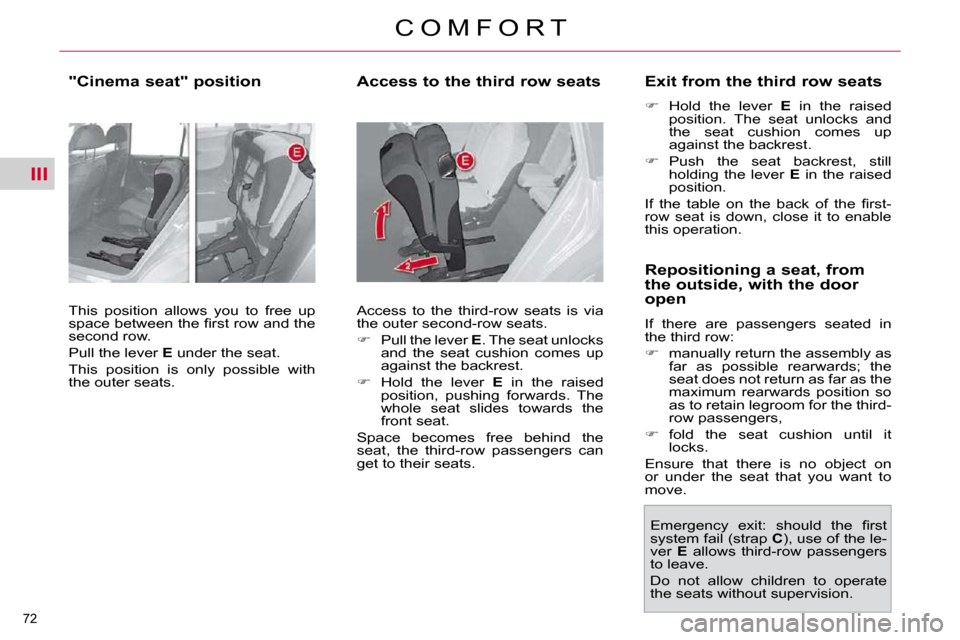

Pull the lever E under the seat.
This position is only possible with
the outer seats. Access to the third row seats
Access to the third-row seats is via
the outer second-row seats.

 Pull the lever E . The seat unlocks
and the seat cushion comes up
against the backrest.

 Hold the lever E in the raised
position, pushing forwards. The
whole seat slides towards the
front seat.
Space becomes free behind the
seat, the third-row passengers can
get to their seats. Exit from the third row seats

 Hold the lever E in the raised
position. The seat unlocks and
the seat cushion comes up
against the backrest.

 Push the seat backrest, still
holding the lever E in the raised
position.
If the table on the back of the fi rst-
row seat is down, close it to enable
this operation.
Repositioning a seat, from
the outside, with the door
open
If there are passengers seated in
the third row:

 manually return the assembly as
far as possible rearwards; the
seat does not return as far as the
maximum rearwards position so
as to retain legroom for the third-
row passengers,

 fold the seat cushion until it
locks.
Ensure that there is no object on
or under the seat that you want to
move.
Emergency exit: should the fi rst
system fail (strap C ), use of the le-
ver E allows third-row passengers
to leave.
Do not allow children to operate
the seats without supervision.

III
73
C O M F O R T
THIRD ROW SEATS (GRAND C4 PICASSO)
Concertina boards
Two rigid concertina boards, which
cannot be separated from the vehi-
cle, cover the 2 third-row seats, when
these are in the folded position.
Folding the concertina boards
Pull on the control, the 3 sections of
the board will fold like a concertina.
When the third-row seats are up-
right, these concertina boards can
be left either:
- fl at behind the seats,
- in the vertical position,
thereby leaving a storage area avail-
able. Unfolding the seat

 Return the second-row rigid
panels to their initial position and
lock them.

 Having folded your concertina
board, pull on the control F lo-
cated behind the seat backrest.
The backrest pivots rearwards,
pulling the seat base with it. The
seat locks in the open position.
Repositioning the seat

 Return the second-row rigid
panels to their initial position and
lock them.

 Lower the head restraints.

 Correctly position the concertina
board vertically behind the seat.
 Pull on the control G , located at
the bottom of the seat backrest.
The seat unlocks.

 Next push the backrest gently
forwards. The backrest pivots,
folding onto the seat base. The
seat base then folds into the
stowage area provided for that
purpose.

 Reposition the concertina boards
over the folded seats.
Before moving the third-row seats,
return the rigid plates of the second-
row seats to the upright position and
lock them.
Do not try to fold a third-row seat
that has not fi rst had the backrest
fully locked in place.
Do not leave objects either on or
underneath the seat bases of the
third-row seats when you are fold-
ing them.
Do not leave your hand on the
control G as you fold the seats, as
you risk trapping your fi ngers.
Do not allow children to operate
the seats without supervision.
