The Stop & Start system puts the en-
gine temporarily on standby - STOP
m o d e - d u r i n g s t o p s i n t h e t r a f fi c
( r e d l i g h t s , t r a f fi c j a m s , o r o t h e r . . . ) .
The engine restarts automatically -
START mode - as soon as you want
to move off. The restart takes place
instantly, quickly and silently.
Perfect for urban use, the Stop &
Start system reduces fuel consump-
tion and exhaust emissions as well
as the noise level when stationary.
Operation
Going into engine STOP mode The "ECO" warning lamp
comes on in the instrument
panel and the engine goes
into standby:
- with the 6-speed electronic
gearbox system , at speeds be-
l o w 4 m p h ( 6 k m / h ) , p r e s s t h e
brake pedal or put the selector
lever in position N . I f y o u r v e h i c l e i s fi t t e d w i t h t h e s y s -
tem, a time counter calculates the
sum of the periods in STOP mode
d u r i n g a j o u r n e y . I t r e s t s i t s e l f t o z e r o
every time the ignition is switched on
with the key.
Special cases: STOP mode
unavailable
Never refuel with the en-
gine in STOP mode; you
must switch off the ignition
with the key.
For your comfort, during parking
maoeuvres, STOP mode is not avail-
able for a few seconds after coming
out of reverse gear.
STOP mode does not affect the func-
tionality of the vehicle, such as for
example, braking, power steering...
STOP mode is not invoked
when:
- the driver's door is open,
- the driver's seat belt is not fas- tened,
- the vehicle has not exceeded 6 m p h ( 1 0 k m / h ) s i n c e t h e l a s t
engine start using the key,
- the electric parking brake is ap- plied or being applied,
- the engine is needed to maintain a comfortable temperature in the
passenger compartment,
- demisting is active,
- some special conditions (battery charge, engine temperature,
braking assistance, ambient
t e m p e r a t u r e . . . ) w h e r e t h e e n g i n e
is needed to assure control of a
system.
In this case, the "ECO" warning
l a m p fl a s h e s f o r a f e w s e c o n d s t h e n
goes off.
This operation is perfectly normal.
Page 177 of 355
IX
151
D R I V I N G
Going into engine START mode Special cases: START invoked
automatically

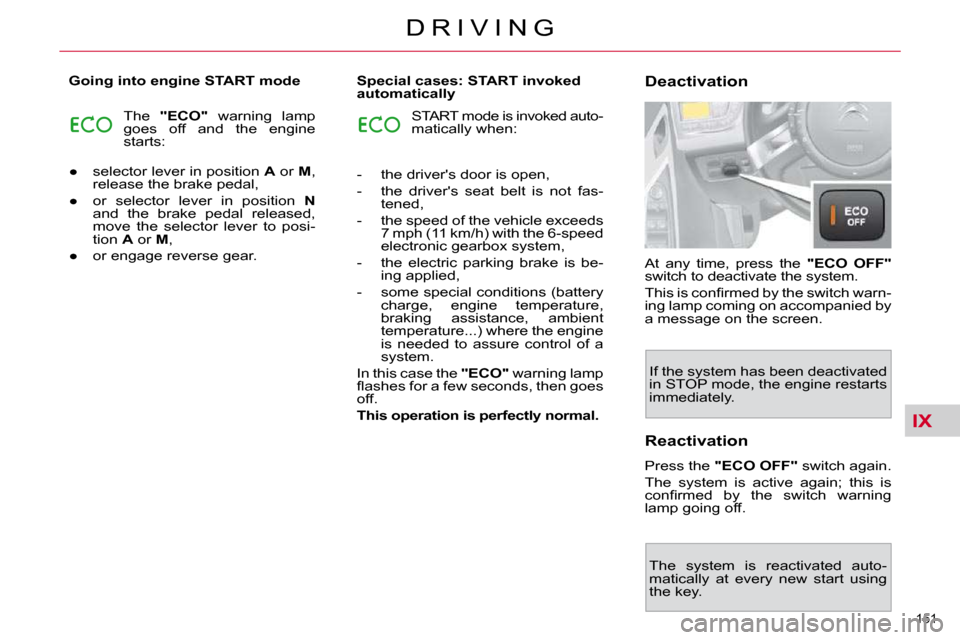

At any time, press the "ECO OFF"
switch to deactivate the system.
T h i s i s c o n fi r m e d b y t h e s w i t c h w a r n -
ing lamp coming on accompanied by
a message on the screen.
Deactivation
Reactivation
Press the
"ECO OFF" switch again.
The system is active again; this is
c o n fi r m e d b y t h e s w i t c h w a r n i n g
lamp going off.
The
"ECO" warning lamp
goes off and the engine
starts:
Page 178 of 355
IX
152
D R I V I N G
In the event of a malfunction with
the system, the "ECO OFF" switch
w a r n i n g l a m p fl a s h e s t h e n c o m e s
on continuously.
Have it checked by a CITROËN
dealer.
In the event of a fault in STOP mode,
the vehicle may stall. It is then nec-
essary to switch off the ignition and
start the engine again using the key. Maintenance
Operating fault
Before working under the
bonnet, deactivate the Stop
& Start system to avoid any
r i s k o f i n j u r y r e s u l t i n g f r o m a u t o -
matic operation of START mode.
This system requires a battery with
a s p e c i a l s p e c i fi c a t i o n a n d t e c h n o l o g y
(reference numbers available from
C I T R O Ë N d e a l e r s ) .
Fitting a battery not listed by
CITROËN introduces the risk of
malfunction of the system.
The Stop & Start system makes use of advanced technology.
Specialist knowledge is needed
for any work on the system, which can
only be assured by CITROËN dealers.
Page 187 of 355
IX
161
D R I V I N G
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must
be at least 25 mph (approximately
4 0 k m / h ) a n d y o u m u s t e n g a g e :
- fourth gear on a manual gear-box,
- second gear, in sequential mode, on an electronic gearbox or au-
tomatic gearbox,
- position A on an electronic gear-
box or D on an automatic gearbox.
Steering mounted controls
The cruise control switches are lo-
cated on the left-hand side of the
steering wheel. The programmed information is
g r o u p e d t o g e t h e r i n z o n e
A of the
instrument panel screen.
Displays on the instrument
panel
Activation You can then release the accelerator
pedal. The vehicle will automatically
keep to the speed chosen.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
Y o u c a n a d j u s t t h e m e m o r i s e d s p e e d
on the instrument panel screen by
pressing on:
button 4 to increase the speed,
button 2 to decrease the speed.
Successive presses modify the cruise
s p e e d i n s t e p s o f 1 m p h ( 1 k m / h ) a n d
a sustained press in steps of 3 mph
( 5 k m / h ) .
Deactivation
Either by pressing on the brake
pedal or on the clutch pedal.
Or by pressing button 3 .
Or if either the ESP or the ASR
system is active.
The cruise control is not active if the
gear lever is in neutral.
On selection of the
function via control
1,
no cruise speed has
yet been memorised .
Programming
Rotate the control
1 to the "REG"
position.
Once the desired speed has been
reached using the accelerator, press
button 2 or button 4 . The cruise
speed is then memorised. It is dis-
p l a y e d i n z o n e A of the instrument
panel. These actions cause
the information
"OFF"
to appear on the instru-
ment panel screen.
These actions do not
cancel the cruise speed
which remains displayed
in the instrument panel.
The cruise control cannot, in any circum-
stances, take the place of the obser-
vance of speed limits or of the vigilance
and responsibility of the driver.
Page 194 of 355
IX
168
D R I V I N G
PNEUMATIC SUSPENSION
Grand
C4 Picasso
C4 Picasso
The rear pneumatic suspension en-
hances driving comfort by maintain-
ing a constant body height whatever
the vehicle load. Operation
- If there is an increase in vehicle
load, a sinking of the rear of
the vehicle is detected and the
p n e u m a t i c s p r i n g s i n fl a t e i n o r -
der to compensate for the extra
weight.
- If there is a decrease in load, a rising of the rear of the vehicle is
detected and so the pneumatic
s p r i n g s d e fl a t e t o r e t u r n t h e v e -
hicle to its nominal height.
- If the vehicle has been unused for a long period, the pneumatic
s p r i n g s m a y i n fl a t e i f n e c e s s a r y
when you unlock or open a door,
so as to return the vehicle to its
nominal height.
If you do not reactivate the system
manually, automatic height correc-
tion will be activated as soon as the
vehicle starts to move. During height
correction, the service warning lamp
comes on and a message on the
screen reminds you not to exceed
1 0 k m / h ( 6 m p h ) .
The automatic correction does not
function if the doors or the boot are
open.
The automatic correction operates
even if your vehicle is in power
economy mode. Activation/Deactivation
The automatic height correction can
be deactivated:
press button B located on the
left hand boot interior trim for ap-
proximately two seconds,
release the button when you
hear a beep. Deactivation is con-
fi r m e d b y t h e l i g h t i n g o f t h e i n d i -
cator lamp in the button B .
In the event of a system fault,
alert messages, always in asso-
ciation with the service warning
lamp, will appear in the instru-
ment panel . Consult a CITROËN
dealer.
You must deactivate the system in
the following circumstances:
- when working under the vehicle,
- when changing a wheel,
- when transporting the vehicle on
a lorry or ferry
To reactivate automatic height cor-
rection:
press again on the button B for
approximately two seconds,
release the button when you hear
a b e e p . A c t i v a t i o n i s c o n fi r m e d
by the extinction of the indicator
lamp in the button B .
Page 195 of 355
IX
169
D R I V I N G
Loading/unloading
assistance
Grand
C4 Picasso
C4 Picasso
The pneumatic suspension has an
additional function: the possibility to
raise or lower the height of the rear
of the vehicle when stationary, in or-
der to facilitate loading/unloading of
the boot. Increasing the height of the boot
fl o o r
Press continuously the top con-
trol A , which is located in the
boot, on the left-hand side.
This action will be accompanied by
an audible signal. You can stop the
movement at any time by releasing
the control.
3 b e e p s w i l l c o n fi r m t h a t t h e m o v e -
ment has gone as far as it can.
Returning to the normal height
P r e s s b r i e fl y t h e b o t t o m o f c o n -
trol A twice.
Decreasing the height of the boot
fl o o r
Press continuously the bottom of
control A .
This action will be accompanied by
an audible signal. You can stop the
movement at any time by releasing
the control.
3 b e e p s w i l l c o n fi r m t h a t t h e m o v e -
ment has gone as far as it can.
Returning to the normal height
P r e s s b r i e fl y t h e t o p o f c o n t r o l A
twice.
Driving with the boot in a
low position may damage
underbody components.
Particular points
- If you start the vehicle without having returned it to the normal
height, automatic correction will
activate as soon as the vehicle
starts to move. During the cor-
rection, the service warning
lamp comes on and a message
on the screen reminds you not to
e x c e e d 6 m p h ( 1 0 k m / h ) .
- Loading assistance does not function in the following circum-
stances:
- If button B is illuminated,
- in power economy mode,
- w h e n y o u fi r s t u s e t h e f u n c t i o n , press control A for two seconds
to initialise the system. The sys-
tem will respond normally to sub-
sequent operation of the control.
Page 230 of 355
XI
2 0 2
P R A C T I C A L I N F O R M A T I O N
ENERGY ECONOMY MODE
S y s t e m w h i c h m a n a g e s t h e d u r a t i o n
of use of certain functions to conserve
a s u f fi c i e n t l e v e l o f c h a r g e i n t h e
b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio
a n d t e l e m a t i c s s y s t e m , w i n d s c r e e n
w i p e r s , d i p p e d b e a m h e a d l a m p s ,
c o u r t e s y l a m p s , e t c . f o r a m a x i m u m
c o m b i n e d d u r a t i o n o f t h i r t y m i n u t e s .
Switching to economy mode
O n c e t h i s p e r i o d h a s e l a p s e d , a
m e s s a g e a p p e a r s o n t h e m u l t i - f u n c -
t i o n s c r e e n i n d i c a t i n g t h a t t h e v e h i -
c l e h a s s w i t c h e d t o e c o n o m y m o d e
a n d t h e a c t i v e f u n c t i o n s a r e p u t o n
s t a n d b y .
I f a t e l e p h o n e c a l l i s b e i n g m a d e a t
t h i s t i m e :
- i t w i l l b e m a i n t a i n e d f o r 1 0 m i n u - t e s w i t h y o u r A u d i o s y s t e m o r
M y W a y h a n d s - f r e e s y s t e m
- i t w i l l b e m a i n t a i n e d f o r 1 0 m i n u - t e s w i t h t h e N a v i D r i v e , t h e n i t w i l l
t r a n s f e r t o y o u r t e l e p h o n e d e -
p e n d i n g o n i t s m o d e l . Exiting economy mode
T h e s e f u n c t i o n s a r e r e a c t i v a t e d a u -
t o m a t i c a l l y n e x t t i m e t h e v e h i c l e i s
started.
T o r e s u m e t h e u s e o f t h e s e f u n c t i o n s
i m m e d i a t e l y , s t a r t t h e e n g i n e a n d l e t
i t r u n f o r a t l e a s t 5 m i n u t e s .
A fl a t b a t t e r y p r e v e n t s t h e
e n g i n e f r o m s t a r t i n g ( r e f e r
t o t h e c o r r e s p o n d i n g p a r a -
g r a p h ) .
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t -
t e r y , s w i t c h o n t h e i g n i t i o n a n d w a i t
1 m i n u t e b e f o r e s t a r t i n g t o p e r m i t
i n i t i a l i s a t i o n o f t h e e l e c t r o n i c s y s -
t e m s . H o w e v e r , i f s l i g h t d i f fi c u l t i e s
a r e e n c o u n t e r e d f o l l o w i n g t h i s o p e r -
a t i o n , c o n t a c t a C I T R O Ë N d e a l e r .
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c -
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e o n e - t o u c h e l e c t r i c w i n d o w s ,
- t h e p a n o r a m i c s u n r o o f b l i n d ,
- t h e s e t t i n g s o f t h e m u l t i f u n c t i o n
s c r e e n ,
- t h e r a d i o p r e - s e t s t a t i o n s ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m . T h i s p e r i o d m a y b e r e d u c e d c o n -
s i d e r a b l y i f t h e b a t t e r y i s n o t f u l l y
c h a r g e d .
Page 231 of 355
XI
2 0 2
P R A C T I C A L I N F O R M A T I O N
ENERGY ECONOMY MODE
S y s t e m w h i c h m a n a g e s t h e d u r a t i o n
of use of certain functions to conserve
a s u f fi c i e n t l e v e l o f c h a r g e i n t h e
b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio
a n d t e l e m a t i c s s y s t e m , w i n d s c r e e n
w i p e r s , d i p p e d b e a m h e a d l a m p s ,
c o u r t e s y l a m p s , e t c . f o r a m a x i m u m
c o m b i n e d d u r a t i o n o f t h i r t y m i n u t e s .
Switching to economy mode
O n c e t h i s p e r i o d h a s e l a p s e d , a
m e s s a g e a p p e a r s o n t h e m u l t i - f u n c -
t i o n s c r e e n i n d i c a t i n g t h a t t h e v e h i -
c l e h a s s w i t c h e d t o e c o n o m y m o d e
a n d t h e a c t i v e f u n c t i o n s a r e p u t o n
s t a n d b y .
I f a t e l e p h o n e c a l l i s b e i n g m a d e a t
t h i s t i m e :
- i t w i l l b e m a i n t a i n e d f o r 1 0 m i n u - t e s w i t h y o u r A u d i o s y s t e m o r
M y W a y h a n d s - f r e e s y s t e m
- i t w i l l b e m a i n t a i n e d f o r 1 0 m i n u - t e s w i t h t h e N a v i D r i v e , t h e n i t w i l l
t r a n s f e r t o y o u r t e l e p h o n e d e -
p e n d i n g o n i t s m o d e l . Exiting economy mode
T h e s e f u n c t i o n s a r e r e a c t i v a t e d a u -
t o m a t i c a l l y n e x t t i m e t h e v e h i c l e i s
started.
T o r e s u m e t h e u s e o f t h e s e f u n c t i o n s
i m m e d i a t e l y , s t a r t t h e e n g i n e a n d l e t
i t r u n f o r a t l e a s t 5 m i n u t e s .
A fl a t b a t t e r y p r e v e n t s t h e
e n g i n e f r o m s t a r t i n g ( r e f e r
t o t h e c o r r e s p o n d i n g p a r a -
g r a p h ) .
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t -
t e r y , s w i t c h o n t h e i g n i t i o n a n d w a i t
1 m i n u t e b e f o r e s t a r t i n g t o p e r m i t
i n i t i a l i s a t i o n o f t h e e l e c t r o n i c s y s -
t e m s . H o w e v e r , i f s l i g h t d i f fi c u l t i e s
a r e e n c o u n t e r e d f o l l o w i n g t h i s o p e r -
a t i o n , c o n t a c t a C I T R O Ë N d e a l e r .
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c -
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e o n e - t o u c h e l e c t r i c w i n d o w s ,
- t h e p a n o r a m i c s u n r o o f b l i n d ,
- t h e s e t t i n g s o f t h e m u l t i f u n c t i o n
s c r e e n ,
- t h e r a d i o p r e - s e t s t a t i o n s ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m . T h i s p e r i o d m a y b e r e d u c e d c o n -
s i d e r a b l y i f t h e b a t t e r y i s n o t f u l l y
c h a r g e d .
