V
100
V I S I B I L I T Y
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activated
or deactivated via the
multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activated
by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wip-
e r s o p e r a t e f o r a fi x e d p e r i o d .
The headlamp washers only operate
when the dipped beam headlamps
are on . Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing the stalk down-
wards to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. The automatic rain sensitive wi-
pers must be reactivated if the ig-
nition has been off for more than
one minute, by pushing the stalk
downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer. Do not cover the rain sensor, linked
with the sunshine sensor and located
in the centre of the windscreen be-
hind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
Activation
Switching off
This is controlled manually by the
driver by moving the stalk upwards
then returning it to position
"0" .
It is accompanied by a message on
the multifunction screen.
Page 111 of 355
V
100
V I S I B I L I T Y
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activated
or deactivated via the
multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activated
by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wip-
e r s o p e r a t e f o r a fi x e d p e r i o d .
The headlamp washers only operate
when the dipped beam headlamps
are on . Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing the stalk down-
wards to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. The automatic rain sensitive wi-
pers must be reactivated if the ig-
nition has been off for more than
one minute, by pushing the stalk
downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer. Do not cover the rain sensor, linked
with the sunshine sensor and located
in the centre of the windscreen be-
hind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
Activation
Switching off
This is controlled manually by the
driver by moving the stalk upwards
then returning it to position
"0" .
It is accompanied by a message on
the multifunction screen.
Page 118 of 355
VI
107
F I T T I N G S
AIRCRAFT-STYLE REAR TABLES
Rear table stowed
Rear table opened
The backrests of the front seats are
fi t t e d w i t h a i r c r a f t - s t y l e t a b l e s . T h e s e
incorporate a cup-holder A and a
retaining strap B , for the placing of
objects.
Pull the table downwards to
open.
To stow the table, raise it until
the latch locks.
For safety reasons, these tables col-
lapse downwards if excessive pres-
sure is exerted on them.
Reading lamps C m a y b e fi t t e d i n
the front seat backrests, behind the
tables. They illuminate the surface
of the tables without disturbing the
other passengers.
They can be used only while the ta-
ble is down.
P r e s s t h e " o n / o f f " b u t t o n t o t u r n
the lamp on or off.
SECOND ROW FOOTWELL
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has one or two storage com-
partments under the footwell, locat-
e d b e t w e e n t h e s e a t s o f t h e fi r s t a n d
second rows. They can be accessed
v i a c l i p p e d fl a p s w i t h a h a n d l e A .
The compartment on the left-hand
side may contain the temporary
puncture repair kit and the tool kit
may be stored in the compartment
on the right-hand side. In this case
t h e fl a p i s s e c u r e d b y m e a n s o f a
screw B . To gain access to the com-
partment, turn the screw a quarter
turn anticlockwise using a coin.
O n v e h i c l e s fi t t e d w i t h p n e u m a t i c
s u s p e n s i o n , t h e l e f t - h a n d fl a p i s
locked.
Individual reading lamps
Page 124 of 355
VI
107
F I T T I N G S
AIRCRAFT-STYLE REAR TABLES
Rear table stowed
Rear table opened
The backrests of the front seats are
fi t t e d w i t h a i r c r a f t - s t y l e t a b l e s . T h e s e
incorporate a cup-holder A and a
retaining strap B , for the placing of
objects.
Pull the table downwards to
open.
To stow the table, raise it until
the latch locks.
For safety reasons, these tables col-
lapse downwards if excessive pres-
sure is exerted on them.
Reading lamps C m a y b e fi t t e d i n
the front seat backrests, behind the
tables. They illuminate the surface
of the tables without disturbing the
other passengers.
They can be used only while the ta-
ble is down.
P r e s s t h e " o n / o f f " b u t t o n t o t u r n
the lamp on or off.
SECOND ROW FOOTWELL
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has one or two storage com-
partments under the footwell, locat-
e d b e t w e e n t h e s e a t s o f t h e fi r s t a n d
second rows. They can be accessed
v i a c l i p p e d fl a p s w i t h a h a n d l e A .
The compartment on the left-hand
side may contain the temporary
puncture repair kit and the tool kit
may be stored in the compartment
on the right-hand side. In this case
t h e fl a p i s s e c u r e d b y m e a n s o f a
screw B . To gain access to the com-
partment, turn the screw a quarter
turn anticlockwise using a coin.
O n v e h i c l e s fi t t e d w i t h p n e u m a t i c
s u s p e n s i o n , t h e l e f t - h a n d fl a p i s
locked.
Individual reading lamps
Page 127 of 355
VI
110
F I T T I N G S

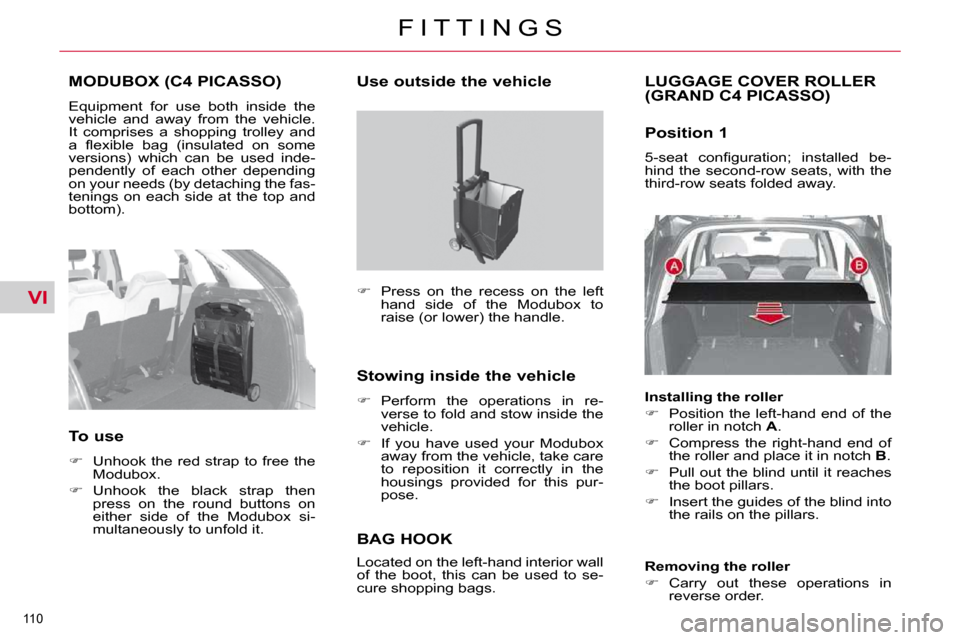

MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It comprises a shopping trolley and
a fl e x i b l e b a g ( i n s u l a t e d o n s o m e
versions) which can be used inde-
pendently of each other depending
on your needs (by detaching the fas-
tenings on each side at the top and
bottom).
To use
Unhook the red strap to free the
Modubox.
Unhook the black strap then
press on the round buttons on
either side of the Modubox si-
multaneously to unfold it. Use outside the vehicle
Stowing inside the vehicle
Perform the operations in re-
verse to fold and stow inside the
vehicle.
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE COVER ROLLER (GRAND C4 PICASSO)
Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e -
hind the second-row seats, with the
third-row seats folded away.
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this can be used to se-
cure shopping bags.
Installing the roller
Position the left-hand end of the
roller in notch A .
Compress the right-hand end of
the roller and place it in notch B .
Pull out the blind until it reaches
the boot pillars.
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
Carry out these operations in
reverse order.
Page 128 of 355
VI
111
F I T T I N G S
T h e r o l l e r h a s a m o v i n g fl a p t o
avoid interference with the second-
row passengers when the seats
are in the "reclined" position.
Engage the lug on the left of the
roller in notch C .
Pass the right-hand end above
the third-row armrest.
Engage the lug in notch D .
Pull the seat belt(s) so that they
reel out without locking.
Pull out the blind and engage
the guides into the rails on the
pillars.
Lock the seat(s) in position.
Installing the roller
Reel in the blind, then remove
the roller from its initial position.
Position the roller, with the blind
p u l l b a r u p p e r m o s t , fl a p d o w n -
ward.
Fold the concertina boards.
Removing the roller
P u s h t h e fl a p t o w a r d s t h e s e a t
backrest.
Lift the concertina board by tak-
ing it at the side, then position it
vertically.
Release the seat by pulling the
strap E .
Push the backrest towards the front.
Proceed in reverse order to in-
stalling. Position 3
7 - s e a t c o n fi g u r a t i o n ; s t o w e d b e h i n d
the third row seats when these are
folded away.
Installing the roller
Fold the concertina boards.
Position the roller, with the blind
p u l l b a r u p p e r m o s t , fl a p d o w n -
ward.
Engage the lug on the left of the
roller in notch C .
Pass the right-hand end above
the third-row armrest.
Engage the lug in notch D .
Removing the roller
Proceed in reverse order to in-
stalling.
Position 2
7 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e -
hind the third-row seats when these
are folded away. This position con-
ceals objects stowed in the boot
from outside view.
The roller can only be stored when
the seats are folded away.
You can position the concertina
board vertically to lodge a bulky ob-
ject in the boot well.
Page 129 of 355
VI
112
F I T T I N G S
CARGO NET(GRAND C4 PICASSO)
This enables you to maximise the
vehicle’s loadspace.
It retains objects, preventing them
from sliding towards the front of the
passenger compartment.
You insert it under the luggage-
cover roller securing it on the
third-row side mouldings. Position 1
5 - s e a t c o n fi g u r a t i o n : i n s t a l l e d b e -
hind the second row.
Installing the roller
Remove the protective covers
located under the blind roller
notches.
Position the roller under that of
the luggage-cover blind.
R a i s e t h e fl a p o n t h e b l i n d , p o s i -
tioning it on top of the blind.
Deploy the net, passing it be-
tween the rollers and the seats.
Pull the net upwards.
Anchor it to the roof by means of
t h e fi x i n g p o i n t s ( a f t e r y o u h a v e
removed their covers).
Removing the roller
Carry out these operations in re-
verse order. Position 2
2 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e -
h i n d t h e fi r s t r o w .
Removing the roller
Carry out these operations in re-
verse order.
Installing the roller
With the second-row seats fold-
ed away, remove the covers of
t h e I s o fi x m o u n t i n g p o i n t s l o c a t -
ed on the seat backrests.
S e c u r e t h e r o l l e r o n t h e I s o fi x
mounting points.
Deploy the net and pull it up-
wards.
Anchor it to the roof by means of
t h e fi x i n g p o i n t s ( a f t e r y o u h a v e
removed their covers).
Page 131 of 355
VI
114
F I T T I N G S

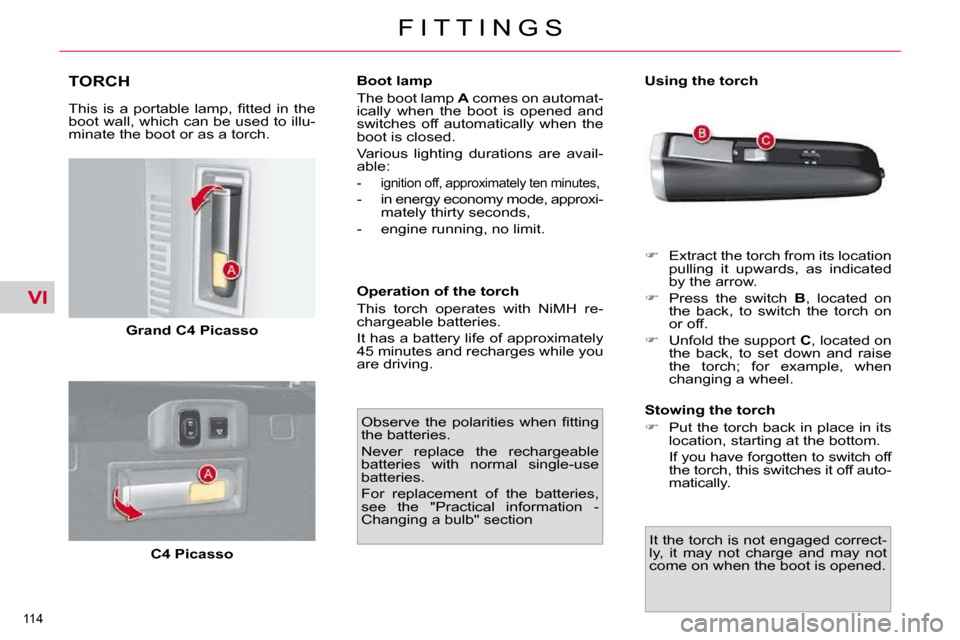

TORCH
T h i s i s a p o r t a b l e l a m p , fi t t e d i n t h e
boot wall, which can be used to illu-
minate the boot or as a torch.
Grand C4 Picasso
C4 Picasso Boot lamp
The boot lamp
A comes on automat-
ically when the boot is opened and
switches off automatically when the
boot is closed.
Various lighting durations are avail-
able:
- ignition off, approximately ten minutes,
- in energy economy mode, approxi- mately thirty seconds,
- engine running, no limit.
Operation of the torch
This torch operates with NiMH re-
chargeable batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.
Extract the torch from its location
pulling it upwards, as indicated
by the arrow.
Press the switch B , located on
the back, to switch the torch on
or off.
Unfold the support C , located on
the back, to set down and raise
the torch; for example, when
changing a wheel.
Stowing the torch
Put the torch back in place in its
location, starting at the bottom.
If you have forgotten to switch off the torch, this switches it off auto-
matically.
O b s e r v e t h e p o l a r i t i e s w h e n fi t t i n g
the batteries.
Never replace the rechargeable
batteries with normal single-use
batteries.
For replacement of the batteries,
see the "Practical information -
Changing a bulb" section
It the torch is not engaged correct-
ly, it may not charge and may not
come on when the boot is opened.
Using the torch
