Page 46 of 224
i
i
!
48

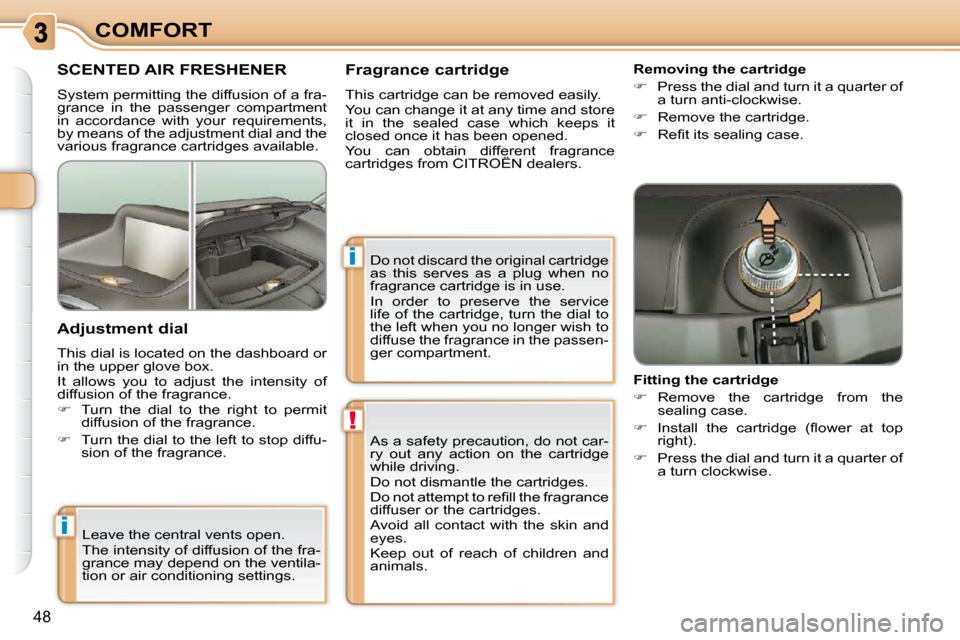

COMFORT As a safety precaution, do not car-
ry out any action on the cartridge
while driving.
Do not dismantle the cartridges.
D o n o t a t t e m p t t o r e fi l l t h e f r a g r a n c e
diffuser or the cartridges.
Avoid all contact with the skin and
eyes.
Keep out of reach of children and
animals.
Leave the central vents open.
The intensity of diffusion of the fra-
grance may depend on the ventila-
tion or air conditioning settings.
SCENTED AIR FRESHENER
System permitting the diffusion of a fra-
grance in the passenger compartment
in accordance with your requirements,
by means of the adjustment dial and the
various fragrance cartridges available.
Fitting the cartridge
Remove the cartridge from the
sealing case.
I n s t a l l t h e c a r t r i d g e ( fl o w e r a t t o p
right).
Press the dial and turn it a quarter of
a turn clockwise.
A d j u s t m e n t d i a l
This dial is located on the dashboard or
in the upper glove box.
It allows you to adjust the intensity of
diffusion of the fragrance.
Turn the dial to the right to permit
diffusion of the fragrance.
Turn the dial to the left to stop diffu-
sion of the fragrance. Fragrance cartridge
This cartridge can be removed easily.
You can change it at any time and store
it in the sealed case which keeps it
closed once it has been opened.
You can obtain different fragrance
cartridges from CITROËN dealers.
R e m o v i n g t h e c a r t r i d g e
Press the dial and turn it a quarter of
a turn anti-clockwise.
Remove the cartridge.
R e fi t i t s s e a l i n g c a s e .
Do not discard the original cartridge
as this serves as a plug when no
fragrance cartridge is in use.
In order to preserve the service
life of the cartridge, turn the dial to
the left when you no longer wish to
diffuse the fragrance in the passen-
ger compartment.
Page 129 of 224
10
115
CHECKS
PETROL ENGINES
1. S c r e e n w a s h fl u i d r e s e r v o i r .
2. Coolant header tank.
3. A i r fi l t e r .
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fusebox.
7. Engine oil dipstick.
8. E n g i n e o i l fi l l e r c a p .
Page 130 of 224
116
CHECKS
DIESEL ENGINES
1. S c r e e n w a s h fl u i d r e s e r v o i r .
2. Coolant header tank.
3. A i r fi l t e r .
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fusebox.
7. Engine oil dipstick.
8. E n g i n e o i l fi l l e r c a p .
9. P r i m i n g p u m p ( o n f u e l fi l t e r ) .
