3
41
COMFORT

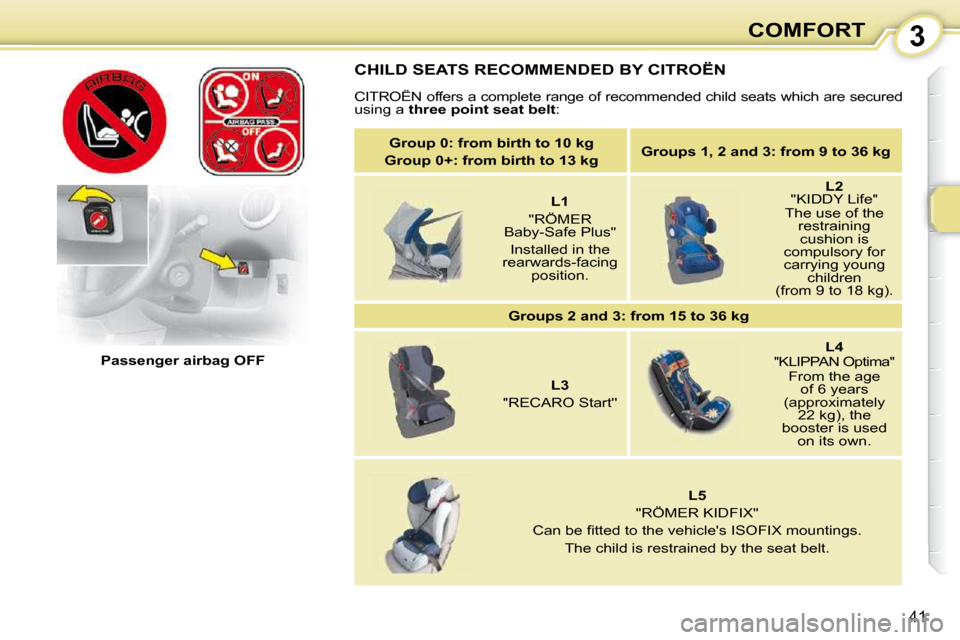

CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are secured
using a t h r e e p o i n t s e a t b e l t :
Passenger airbag OFF
G r o u p 0 : f r o m b i r t h t o 1 0 k g
G r o u p 0 + : f r o m b i r t h t o 1 3 k g
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the restraining cushion is
compulsory for
carrying young children
(from 9 to 18 kg).
G r o u p s 2 a n d 3 : f r o m 1 5 t o 3 6 k g
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X m o u n t i n g s . The child is restrained by the seat belt.
Page 41 of 97
3
41
COMFORT
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are secured
using a t h r e e p o i n t s e a t b e l t :
Passenger airbag OFF
G r o u p 0 : f r o m b i r t h t o 1 0 k g
G r o u p 0 + : f r o m b i r t h t o 1 3 k g
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the restraining cushion is
compulsory for
carrying young children
(from 9 to 18 kg).
G r o u p s 2 a n d 3 : f r o m 1 5 t o 3 6 k g
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.
L5
" R Ö M E R K I D F I X "
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X m o u n t i n g s . The child is restrained by the seat belt.
Page 42 of 97
3
42
COMFORT
LOCATIONS FOR CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved in accordance with the weight of the child and the seat in the vehicle.
a: Group 0: from birth to 10 kg. Infant car seats and "car cots" can not be installed on the front passenger seat.
b: consult the legislation in force in your country before insta lling your child on this seat.
U: seat suitable for the installation of a universally appro ved child seat secured using a seat belt, "rear facing" and/or "fo rward
facing".
L1 to L4: only the child seats indicated and recommended by CITROËN ca n be installed on the seat concerned (according
to country).
W e i g h t o f t h e c h i l d a n d i n d i c a t i v e a g e
Seat
U n d e r 1 3 k g
(groups 0 ( a ) and
0+)
Up to 1 year approx
F r o m 9 t o 1 8 k g
(group 1)
1 to 3 years approx
F r o m 1 5 t o 2 5 k g
(group 2)
3 to 6 years approx
F r o m 2 2 t o 3 6 k g
(group 3)
6 to 10 years approx
Front passenger
seat ( b )
L1 L2 L 2 , L 3 , L 4 L 2 , L 3 , L 4
Rear seats U U U U
Page 44 of 97
3
44
COMFORT
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the n e w I S O F I X
r e g u l a t i o n .
T h e s e a t s * , r e p r e s e n t e d b e l o w , a r e fi t -
t e d w i t h r e g u l a t i o n I S O F I X m o u n t i n g s : These are three rings for each seat:
T h i s I S O F I X m o u n t i n g s y s t e m p r o -
v i d e s f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The I S O F I X c h i l d s e a t s a r e fi t t e d
with two latches which are secured
easily on these lower rings A .
Some also have an upper strap
which is attached to the upper ring B .
- two lower rings A , located
between the vehicle seat back
and cushion, indicated by a
label,
* According to version.
- an upper ring
B for securing the
upper strap, referred to as the
TOP TETHER , indicated by a
marking on the rear seat back
panel. To attach this strap, raise the
vehicle seat's head restraint
then pass the hook between
i t s r o d s . T h e n fi x t h e h o o k o n
the upper ring B and tighten the up-
per strap.
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
F o r i n f o r m a t i o n r e g a r d i n g t h e I S O F I X child seats which can be installed in
your vehicle, refer to the table of lo-
c a t i o n s f o r I S O F I X c h i l d s e a t s .
Page 45 of 97
3
45
COMFORT
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t m u s t b e a t t a c h e d
to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .
ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHIC LE
R Ö M E R D u o P l u s I S O F I X (size category B1 )
G r o u p 1 : f r o m 9 t o 1 8 k g
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B ,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Page 65 of 97
6
61
SAFETY
The driver must ensure that
the passengers use the seat
belts correctly and that they
are all properly restrained
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
If the seats have armrests * , the lap
part of the seat belt must always
pass under the armrest.
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic adjust-ment of the length of the strap to your
size. The seat belt is stored automat-
ically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, on emergency braking or if the
vehicle rolls over. You can release
the device by pulling rapidly on the
strap and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be transformed or m o d i fi e d t o a v o i d a l t e r i n g i t s
performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who can guarantee that the
work is carried out correctly, or quali-
fi e d w o r k s h o p .
Have your seat belts checked regu-
larly by a CITROËN dealer or a quali-
fi e d w o r k s h o p a n d p a r t i c u l a r l y i f t h e
straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children:
- use a suitable child seat if the
passenger is less than 12 years
old or shorter than one metre
fi f t y ,
- do not use the strap-guide * when a child seat is installed.
- never use the same seat belt to secure more than one person,
- never allow a child to travel on your lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tension-
ers is accompanied by a slight emis-
sion of harmless smoke and a noise,
due to the activation of the pyrotech-
nic cartridge incorporated in the sys-
tem.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer
o r a q u a l i fi e d w o r k s h o p .
* According to model.
Page 72 of 97
8
68
CHECKS
OPENING THE BONNET
On the outside : lift the safety catch B and raise the bonnet.
Bonnet stay
Secure the stay to hold the bonnet
open.
To close
Before closing the bonnet, return the
stay to its housing.
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is fully closed.
On the inside : pull the release lever A , located under the dashboard.
Page 91 of 97
9
83
PRACTICAL INFORMATION
Your vehicle is equipped with certain
f a c t o r y - fi t t e d a u d i o e q u i p m e n t :
- roof aerial,
- coaxial aerial cable,
- basic interference suppression,
- wiring for front speakers,
- two 8-way connectors.
FITTING SPEAKERS
T h e f a c t o r y - fi t t e d e q u i p m e n t a l l o w s
t h e fi t t i n g o f 1 0 0 m m d i a m e t e r s p e a k -
ers on the dashboard.
A s a c c e s s o r i e s , y o u c a n fi t 1 6 5 m m
diameter speakers on the rear shelf. Making the connections
A1: -
A2: -
A3: -
A4: (+) Accessories
A5: -
A6: (+ve) Sidelamps
A7: (+ve) Permanent
A8: Earth
Consult a CITROËN dealer
o r a q u a l i fi e d w o r k s h o p b e -
fore installing audio equip-
ment or speakers in your
vehicle.
MAT *
When removing the mat on the driv-
er's side, push the seat as far back as
p o s s i b l e a n d r e m o v e t h e t w o fi x i n g s .
W h e n r e fi t t i n g , p o s i t i o n t h e m a t c o r -
r e c t l y o n t h e p i n s a n d c l i p t h e fi x i n g s .
Check that the mat is secured cor-
rectly.
To prevent the mat from becoming
caught under the pedals:
- o n l y u s e m a t s s u i t e d t o t h e fi x i n g s already present in the vehicle. It
i s i m p e r a t i v e t h a t t h e s e fi x i n g s b e
used.
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
* According to version.
B1: (+) Rear right speaker
B2: (-) Rear right speaker
B3: (+) Front right speaker
B4: (-) Front right speaker
B5: (+) Front left speaker
B6: (-) Front left speaker
B7: (+) Rear left speaker
B8: (-) Rear left speaker
