2010.5 Citroen C CROSSER Owner's Manual

II
!
C O M F O R T
53
Folding the second row *

1. Raise the rear seat lever A , or
Pull the button in the boot B for at least one second, or
Pull the rear seat releasing strap C towards you.

2. The seat backs fold forwards then the cushion rises and folds forwards.

3. After carrying out these operations, press on the seat lightly to check that it is secured correctly.
Before folding the seats, lower the head restraints fully.
Before folding the seat backs forwards, insert the seat belt b
uckles in the slots provided for this purpose in the rear seat
cushion.

Before
folding
the

seats
,
ensure that no object
or person is hindering
the execution of the operations.
Do not place luggage on the folded seats.
* According to version.

II
C O M F O R T
54
Returning the second row to the normal position

1. Lower the seat pulling simulta-
neously on the releasing strap A
located at the rear of the cushion
and supporting the seat with your
hand.
Force may be necessary to carry out these operations.
On vehicles fi tted with a third row, the rear of the cushio n of the second row is fi tted with a low level lamp B .
When the releasing strap is pulled, the lamp comes on for ap proximately 10 seconds to illuminate the fl oor at the base of
the third row.
2. Press on the cushion to put it in
place until it engages.
3. Pull the seat back upright pulling si-
multaneously on the releasing strap
located at the rear of the seat back.

4. After putting the seat back back in
place, push the seat and the seat
back lightly to ensure that they are
secured correctly.

II
C O M F O R T
55

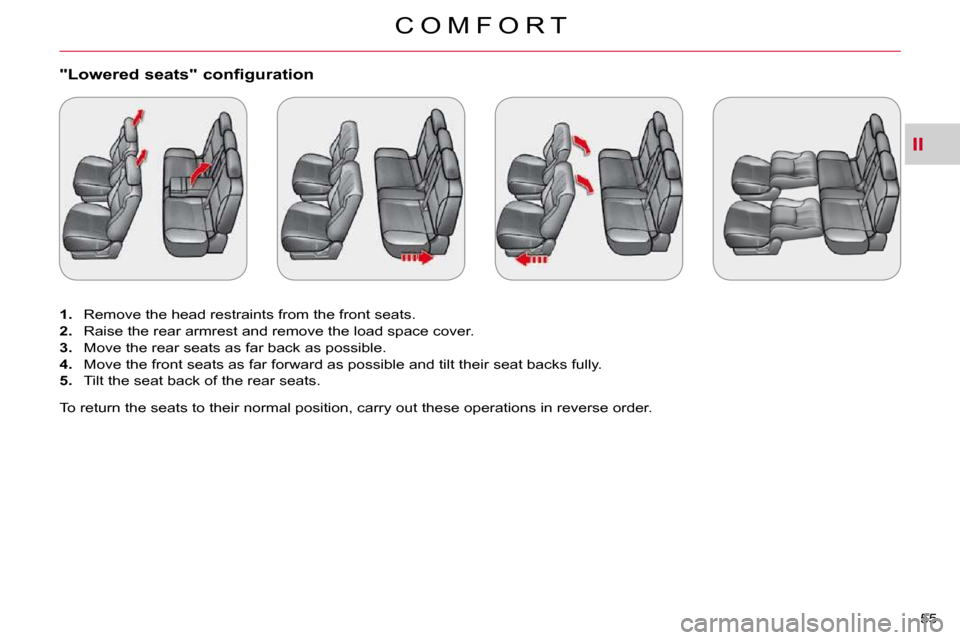

"Lowered seats" configuration

1. Remove the head restraints from the front seats.

2. Raise the rear armrest and remove the load space cover.

3. Move the rear seats as far back as possible.

4. Move the front seats as far forward as possible and tilt thei r seat backs fully.

5. Tilt the seat back of the rear seats.
To return the seats to their normal position, carry out these o perations in reverse order.

II
C O M F O R T
56
REAR BENCH SEAT (ROW 3)
The rear bench seat can be folded. It is
stowed in a location in the fl oor of the
vehicle. The label on the bench seat back illus-
trates the various steps to the followed
when unfolding and folding the rear
bench seat.
1. Open the tailgate and the lower tail-
gate (refer to the "Access" section).

2. Pull the cover A from the rear and
fi x it to the seat back using the press
stud of the band B .
Unfolding the bench seat
For comfort, it is advisable to stow
the bench seat when its is not is use.

II
C O M F O R T
57

3. Pull the black strap C located at the centre
of the seat back to raise the seat back.
4. Pull the black strap D to release the
bench seat cushion.
5. Tilt the bench seat rearwards.

6. Raise the head restraints.
7. Lift and push the bench seat as-
sembly forwards until it locks.
Undo the press stud of band B to re-
lease the cover.

II
C O M F O R T
58

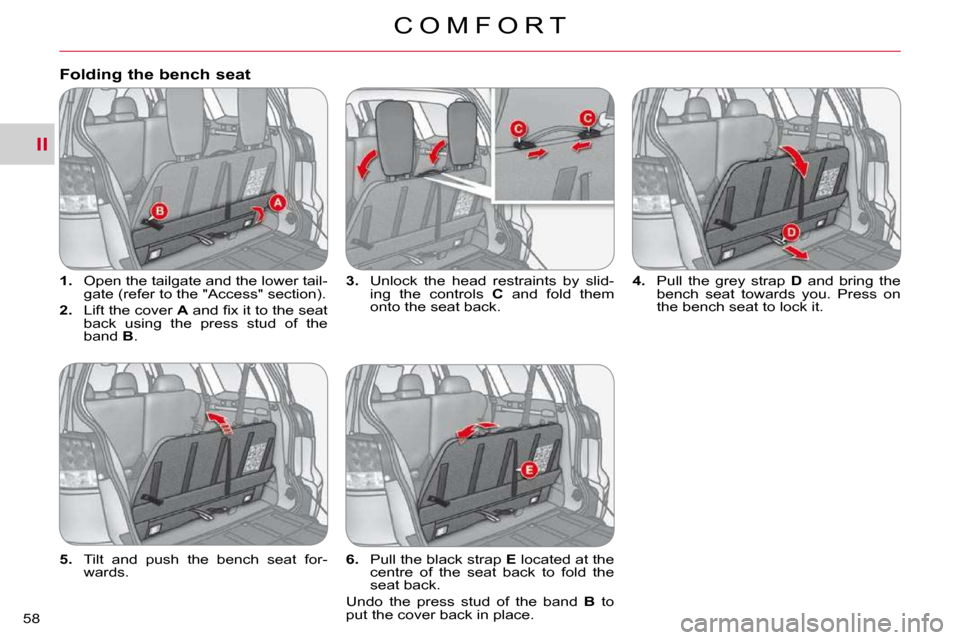

1. Open the tailgate and the lower tail-
gate (refer to the "Access" section).

2. Lift the cover A and fi x it to the seat
back using the press stud of the
band B .
3. Unlock the head restraints by slid-
ing the controls C and fold them
onto the seat back.
4. Pull the grey strap D and bring the
bench seat towards you. Press on
the bench seat to lock it.

5. Tilt and push the bench seat for-
wards.
6. Pull the black strap E located at the
centre of the seat back to fold the
seat back.
Undo the press stud of the band B to
put the cover back in place.
Folding the bench seat

II
!
C O M F O R T
59
DOOR MIRRORS
Adjustment
The mirrors can be adjusted when the
ignition switch is in the "ON" or "ACC"
position.

 Move control A to the right or to the left
to select the corresponding mirror.

 Direct control B in all four directions
to adjust the mirror.
When adjustment is complete, return
control A to the central position. Electric folding/unfolding
- from inside, with the ignition switch
in the "ON" or "ACC" position:

 by pressing the control C .
- from inside, with the ignition switch in the "LOCK" position:

 by pressing the control C, within
30 seconds.
- from outside using the remote control:
 by pressing the "closed pad-
lock button briefl y 3 times to fold
them,

 by pressing the "open padlock"
button briefl y 3 times to unfold
them.
The folding and unfolding of the door
mirrors can be confi gured via the col-
our screen "Equipment" menu or de-
activated by a CITROËN dealer. The mirrors can also be folded
manually.
If you have folded the mirrors us-
ing the control C , you must use this
control to unfold them, otherwise the
mirrors will not be lock in place cor-
rectly.
If you switch the engine off then
re-start it with the mirrors folded, they
will unfold automatically when the
vehicle reaches 20 mph (30 km/h).
If the mirrors have been folded manu-
ally or electrically after starting the
engine, they are not unfolded auto-
matically.
In this case:

 Press the control C to unfold them.

II
!
C O M F O R T
60
REAR VIEW MIRROR
Adjust the mirror by moving it up or
down and/or to the left or right.
The rear view mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
STEERING WHEEL MANUAL
HEIGHT ADJUSTMENT

 Pull the locking lever downwards
(position B ) while supporting the
steering wheel.

 Adjust the steering wheel to the re-
quired height.

 Lock the steering wheel adjustment
by pushing the lever upwards (posi-
tion A ). The sun visors fold forwards, and to the
side when they are unhooked.
They are fi tted with a courtesy mirror
and a ticket holder.
As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
