Storage
Short-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover.
NOTICE

ECB00720

Storing the ATV in a poorly ventilated room
or covering it with a tarp while it is still wet,
will allow water and humidity to seep in and
cause rust.

To prevent corrosion, avoid damp cellars,
stables (because of the presence of ammo-
nia) and areas where strong chemicals are
stored.
Long-term
Before storing your ATV for several months:
1. Follow all the instructions in the “Cleaning”
section of this chapter.
2. Turn the fuel cock lever to “OFF”.
3. Drain the carburetor float chamber by loosen-ing the drain bolt; this will prevent fuel deposits
from building up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel stabilizer (if
available) to prevent the fuel from deteriorat-
ing.
5. Perform the following steps to protect the cyl-
inder, piston rings, etc. from corrosion.
a. Remove the spark plug cap and spark
plug.
b. Pour a teaspoonful of engine oil into the
spark plug bore.
c. Install the spark plug cap onto the spark
plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with
the starter. (This will coat the cylinder wall
with oil.)
e. Remove the spark plug cap from the spark
plug, and then install the spark plug and Specified amount:
7.5 ml of stabilizer to each liter of fuel (or 1 oz
of stabilizer to each gallon of fuel)

9-3
1
2
3
4
5
6
7
89
10
11

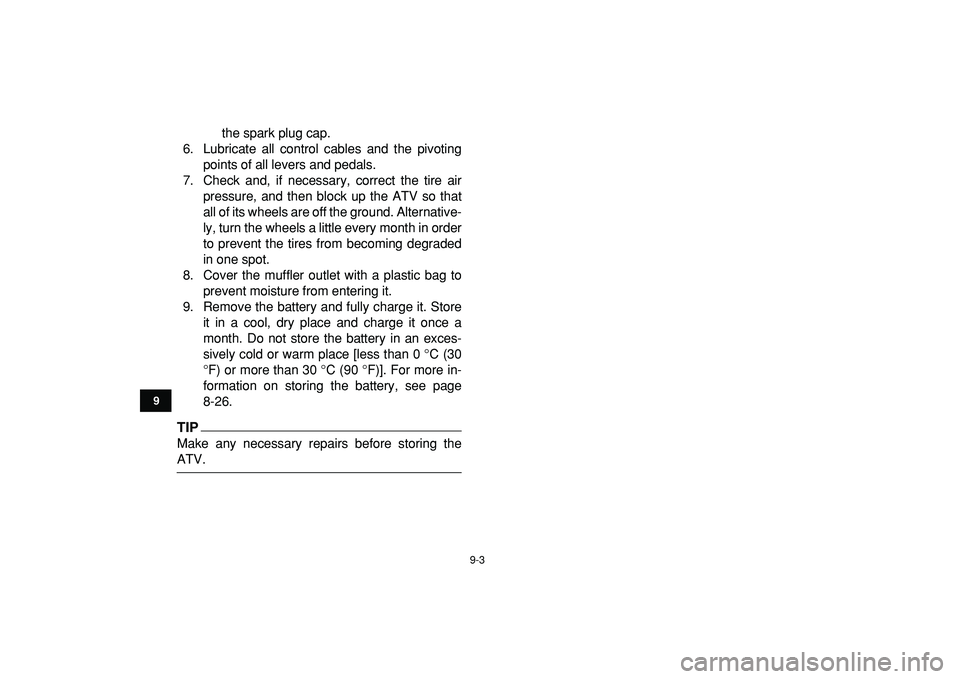

the spark plug cap.
6. Lubricate all control cables and the pivoting
points of all levers and pedals.
7. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative-
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to
prevent moisture from entering it.
9. Remove the battery and fully charge it. Store
it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30
°F) or more than 30 °C (90 °F)]. For more in-
formation on storing the battery, see page
8-26.
TIP

Make any necessary repairs before storing the
ATV.

10-1
1
2
3
4
5
6
7
8
910
11

EBU25960
SPECIFICATIONS
EBU2597B
Dimensions:
Overall length:
1537 mm (60.5 in)
Overall width:
825 mm (32.5 in)
Overall height:
915 mm (36.0 in)
Seat height:
618 mm (24.3 in)
Wheelbase:
1030 mm (40.6 in)
Ground clearance:
75 mm (3.0 in)
Minimum turning radius:
2300 mm (91 in)
Weight:
With oil and fuel:
115.0 kg (254 lb)
Noise and vibration level:
Noise level (77/311/EEC):
76.7 dB(A) (EUR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s
2

(EUR)
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s
2

(EUR)
Engine:
Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
49.0 cm
3

Bore
×
stroke:
39.0
×
41.4 mm (1.54
×
1.63 in)
Compression ratio:
10.30 :1
Starting system:
Electric starter
Lubrication system:
Wet sump

Engine oil:
Type:
SAE 5W-30 or SAE 10W-30 or SAE 10W-40 or SAE
15W-40 or SAE 20W-40 or SAE 20W-50

10-2
1
2
3
4
5
6
7
8
910
11

Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Periodic oil change:
0.80 L (0.85 US qt, 0.70 Imp.qt)
Final gear oil:
Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.12 L (0.13 US qt, 0.11 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Regular unleaded gasoline only (EUR)
Unleaded gasoline only (AUS)(NZL)
Fuel tank capacity:
6.8 L (1.80 US gal, 1.50 Imp.gal)
Fuel reserve amount:
0.9 L (0.24 US gal, 0.20 Imp.gal)
Carburetor:
Manufacturer:
MIKUNI
Type
×
quantity:
VM16SH x 1
Spark plug (s):
Manufacturer/model:
NGK/CR7HSA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:
Clutch type:
Wet, multiple-disc automatic
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
65/20 (3.250)
Secondary reduction system:
Shaft drive
-20 -10 0
1020 304050 ˚C
SAE 15W-40
SAE 20W-40SAE 20W-50
SAE 10W-40
SAE 5W-30
SAE 10W-30

10-3
1
2
3
4
5
6
7
8
910
11

Secondary reduction ratio:
19/18
×
34/10 (3.588)
Transmission type:
Constant mesh 1-speed
Operation:
Left hand operation
1st:
38/14 (2.714)
Chassis:
Frame type:
Steel tube frame
Caster angle:
1.0 °
Trail:
3.4 mm (0.13 in)
Front tire:
Type:
Tubeless
Size:
AT16 x 7-7
Manufacturer/model:
DUNLOP/KT145
Rear tire:
Type:
Tubeless
Size:
AT16 x 8-7
Manufacturer/model:
DUNLOP/KT145
Loading:
Maximum loading limit:
40.0 kg (88 lb)
(Total weight of rider, cargo, accessories, and tongue)
Tire air pressure (measured on cold tires):
Recommended:
Front:
20 kPa (0.200 kgf/cm
2

, 2.9 psi)
Rear:
20 kPa (0.200 kgf/cm
2

, 2.9 psi)
Minimum:
Front:
17 kPa (0.170 kgf/cm
2

, 2.5 psi)
Rear:
17 kPa (0.170 kgf/cm
2

, 2.5 psi)
Front wheel:
Wheel type:
Panel wheel
Rim size:
7 x 5.5AT
Rear wheel:
Wheel type:
Panel wheel
Rim size:
7 x 6.5AT
Front brake:
Type:
Drum brake
Operation:
Right hand operation

10-4
1
2
3
4
5
6
7
8
910
11
Rear brake:

Type:
Drum brake
Operation:
Left hand operation
Front suspension:
Type:
Leading arm
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
57 mm (2.3 in)
Rear suspension:
Type:
Swingarm
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
56 mm (2.2 in)
Electrical system:
Ignition system:
CDI
Charging system:
AC magneto
Battery:
Model:
12N7D-3B
Voltage, capacity:
12 V, 7.0 Ah
Bulb voltage, wattage
×× × ×
quantity:
Neutral indicator light:
12 V, 1.7 W
×
1
Fuses:
Main fuse:
5.0 A

11-1
1
2
3
4
5
6
7
8
9
1011

EBU26000
CONSUMER INFORMATION
EBU26011
Identification numbers
Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.

KEY IDENTIFICATION NUMBER:

VEHICLE IDENTIFICATION NUMBER:

MODEL LABEL INFORMATION:
EBU26020
Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.
EBU26040
Vehicle identification number
The vehicle identification number is stamped into
the frame.
1. Key identification number
1

11-2
1
2
3
4
5
6
7
8
9
1011

The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
TIP
The vehicle identification number is used to identi-
fy your ATV.
EBU26050
Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.
1. Vehicle identification number
1

1. Vehicle identification number
2. Year of manufacture
