8-31

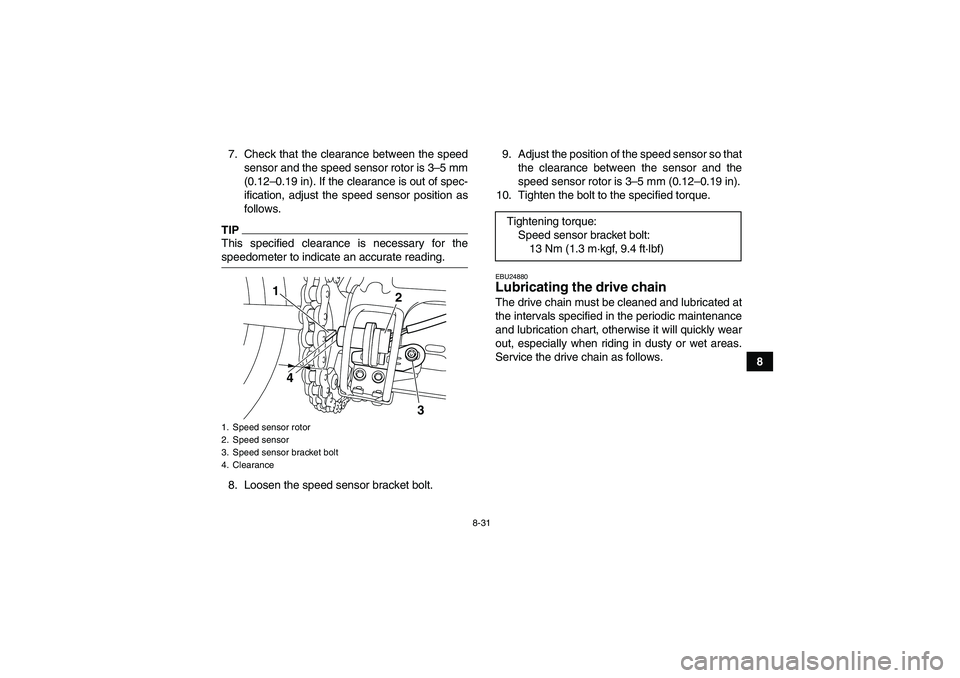

8 7. Check that the clearance between the speed
sensor and the speed sensor rotor is 3–5 mm
(0.12–0.19 in). If the clearance is out of spec-
ification, adjust the speed sensor position as
follows.
TIPThis specified clearance is necessary for thespeedometer to indicate an accurate reading.
8. Loosen the speed sensor bracket bolt.9. Adjust the position of the speed sensor so that
the clearance between the sensor and the
speed sensor rotor is 3–5 mm (0.12–0.19 in).
10. Tighten the bolt to the specified torque.
EBU24880Lubricating the drive chain The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.
1. Speed sensor rotor
2. Speed sensor
3. Speed sensor bracket bolt
4. Clearance
3 2
4
1
Tightening torque:
Speed sensor bracket bolt:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
