2009 YAMAHA XMAX 250 engine coolant

SAFETY INFORMATION .....................1-1
Further safe-riding points .................1-1
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS ........................................3-1
Immobilizer system ...........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Turn signal indicator lights ...............3-3
High beam indicator light ................3-3
Fuel level warning light ....................3-4
Engine trouble warning light ............3-4
Immobilizer system indicator light ....3-4
Speedometer ....................................3-5
Fuel gauge ........................................3-5
Coolant temperature gauge..............3-5
Multi-function display .......................3-6
Anti-theft alarm (optional) .................3-9
Handlebar switches ..........................3-9
Dimmer switch .................................3-9
Turn signal switch ............................3-9
Horn switch .....................................3-9
Start switch ......................................3-9
Hazard switch , ..............................3-10
Front brake lever.............................3-10
Rear brake lever..............................3-10Fuel tank cap ..................................3-11
Fuel .................................................3-12
Catalytic converter..........................3-13
Securing bracket ............................3-14
Seat.................................................3-14
Storage compartments ...................3-15
Storage compartment.....................3-16
Rear storage compartment.............3-17
Adjusting the shock absorber
assemblies...................................3-18
Sidestand ........................................3-18
Ignition circuit cut-off system .........3-19
FOR YOUR SAFETY –
PRE-OPERATION CHECKS ...............4-1
OPERATION AND IMPORTANT
RIDING POINTS ..................................5-1
Starting the engine ...........................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-3
Tips for reducing fuel
consumption..................................5-3
Engine break-in.................................5-4
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT ....................................6-1
Owner’s tool kit .................................6-1Periodic maintenance and
lubrication chart ............................6-2
Removing and installing the
cowlings and panel .......................6-6
Checking the spark plug ..................6-8
Engine oil ..........................................6-9
Final transmission oil ......................6-11
Coolant ...........................................6-12
Air filter and V-belt case air filter
elements ......................................6-13
Adjusting the throttle cable free
play ..............................................6-15
Valve clearance ...............................6-15
Tires ................................................6-16
Cast wheels ....................................6-18
Front and rear brake lever free
play ..............................................6-18
Checking the front and rear brake
pads.............................................6-19
Checking the brake fluid level ........6-19
Changing the brake fluid ................6-20
Checking and lubricating the
cables ..........................................6-21
Checking and lubricating the
throttle grip and cable .................6-21
Lubricating the front and rear
brake levers .................................6-21
Checking and lubricating the
centerstand and sidestand .........6-22
Checking the front fork ...................6-22
Checking the steering.....................6-23
TABLE OF CONTENTS
1C0-F8199-E5.QXD 3/10/08 05:56 Página 6

EAU10420
Right view
DESCRIPTION
2-2
2
1. Grab bar (page 5-2)
2. Seat (page 3-14)
3. Battery (page 6-24)
4. Fuses (page 6-26)
5. Front brake pads (page 6-19)
6. Coolant level check window (page 6-12)
7. Passenger footrest
8. Centerstand (page 6-22)9. Engine oil filler cap (page 6-9)
10. Rear brake pads (page 6-19)
1C0-F8199-E5.QXD 3/10/08 05:56 Página 14

EAU11591

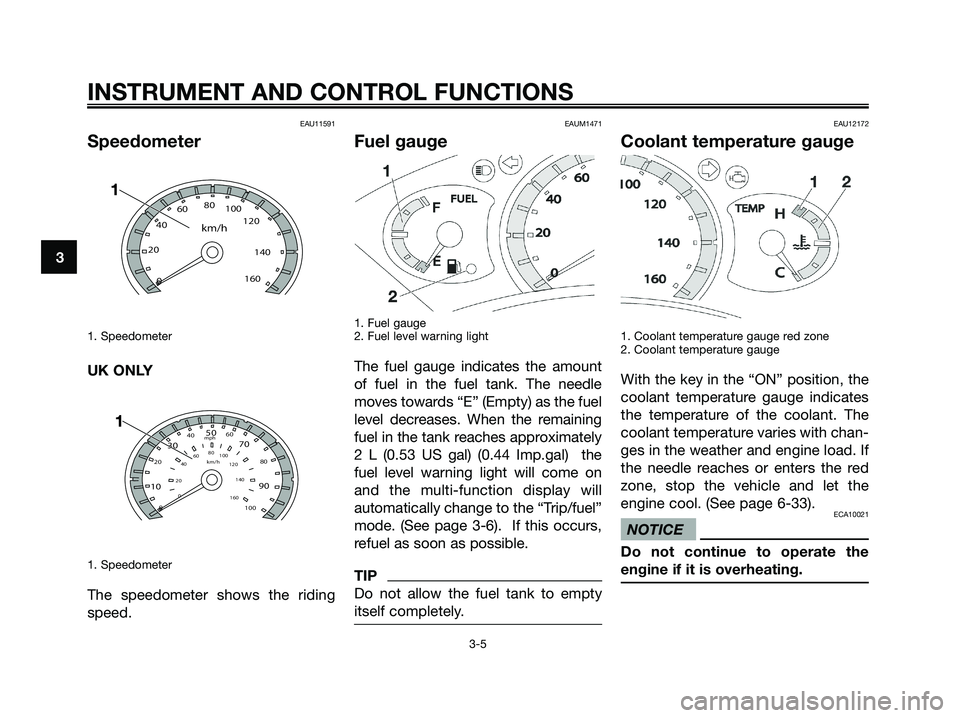

Speedometer
1. Speedometer
UK ONLY
1. Speedometer
The speedometer shows the riding
speed.
EAUM1471
Fuel gauge
1. Fuel gauge
2. Fuel level warning light
The fuel gauge indicates the amount
of fuel in the fuel tank. The needle
moves towards “E” (Empty) as the fuel
level decreases. When the remaining
fuel in the tank reaches approximately
2 L (0.53 US gal) (0.44 Imp.gal) the
fuel level warning light will come on
and the multi-function display will
automatically change to the “Trip/fuel”
mode. (See page 3-6). If this occurs,
refuel as soon as possible.
TIP
Do not allow the fuel tank to empty
itself completely.
EAU12172
Coolant temperature gauge
1. Coolant temperature gauge red zone
2. Coolant temperature gauge
With the key in the “ON” position, the
coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chan-
ges in the weather and engine load. If
the needle reaches or enters the red
zone, stop the vehicle and let the
engine cool. (See page 6-33).
ECA10021
NOTICE
Do not continue to operate the
engine if it is overheating.
103050
70
90
204060
80
100 0
20406080
100
120
140
160 0km/h mph
20406080
100
120
140
160
km/h
0
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
1C0-F8199-E5.QXD 3/10/08 05:56 Página 20

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-12
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-9
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-11
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-12
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check lever free play.
• Adjust if necessary.
Front brake• Check brake pads for wear. 6-19
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Rear brake• Replace if necessary. 6-18, 6-19
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
• If necessary, have Yamaha dealer adjust cable free play and lubricate cable 6-15, 6-21
and grip housing.
1C0-F8199-E5.QXD 3/10/08 05:56 Página 37

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
17 *Front fork• Check operation and for oil
leakage.√√√ √
18 *Shock absorber • Check operation and shock
assembliesabsorbers for oil leakage.√√√ √
19 *Fuel injection• Check engine idle speed.√√ √√ √ √
20Engine oil• Change. (See page 6-9). √When the oil change indicator light comes
on [every 3000 km (1800 mi)]
• Check oil level and vehicle
for oil leakage.Every 3000 km (1800 mi)√
21 *Engine oil strainer• Clean.√
• Check coolant level and vehicle
22 *Cooling systemfor coolant leakage.√√√ √√
• Change. Every 3 years
23Final transmission • Check vehicle for oil leakage.√√ √oil
• Change.√√√
24 *V-belt• Replace. Every 20000 km (12000 mi)
25 *Front and rear brake
switches• Check operation.√√ √√ √ √
26Moving parts
and cables• Lubricate.√√√ √√
• Check operation and free play.
Throttle grip • Adjust the throttle cable free
27 *housingplay if necessary.√√√ √√
and cable• Lubricate the throttle grip
housing and cable.
1C0-F8199-E5.QXD 3/10/08 05:56 Página 46

6. Refill with the specified amount
of the recommended final trans-
mission oil, and then install and
tighten the oil filler cap. WAR-
NING! Make sure that no
foreign material enters the final
transmission case. Make sure
that no oil gets on the tire or
wheel.
[EWA11311]
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUS1274
To check the coolant level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
TIP
●The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
●Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
2. Check the coolant level through
the check window.
TIP
The coolant should be between the
minimum and maximum level marks.
1. Maximum level mark
2. Minimum level mark
3. Coolant level check window
3. If the coolant is at or below the
minimum level mark, remove the
right floorboard mat by pulling it
up.
4. Open the reservoir cap, and then
add coolant to the maximum
level mark. WARNING! Remove
only the coolant reservoir cap.
Never attempt to remove the
radiator cap when the engine is
hot.
[EWA15161]. NOTICE: If coolant
is not available, use distilled
water or soft tap water instead.
FULL
LOW
Recommended final transmission
oil:
See page 8-1
Oil quantity:
0.25 L (0.26 US qt, 0.22 Imp.qt)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
1C0-F8199-E5.QXD 3/10/08 05:56 Página 54

Do not use hard water or salt
water since it is harmful to the
engine. If water has been used
instead of coolant, replace it
with coolant as soon as possi-
ble, otherwise the cooling sys-
tem will not be protected
against frost and corrosion. If
water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possi-
ble, otherwise the effective-
ness of the coolant will be
reduced.
[ECA10472]
1. Coolant reservoir cap
5. Close the reservoir cap
6. Place the floorboard mat in the
original position and push it
downward to secure it.
EAU33031
Changing the coolant
The coolant must be changed at the
intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer change the
coolant. WARNING! Never attempt
to remove the radiator cap when
the engine is hot.
[EWA10381]EAUS1334
Air filter and V-belt case air
filter elements
The air filter element should be repla-
ced and the V-belt case air filter ele-
ment should be cleaned at the inter-
vals specified in the periodic
maintenance and lubrication chart.
Service the air filter elements more
frequently if you are riding in unu-
sually wet or dusty areas.
Replacing the air filter element
1. Place the scooter on the centers-
tand.
1. Air filter case cover
2. Screw
3. Air filter element
2. Remove the air filter case cover
by removing the screws.
1
2 2
ZAUM06623
Coolant reservoir capacity:
0.26 L (0.27 US qt, 0.23 Imp.qt)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
1C0-F8199-E5.QXD 3/10/08 05:56 Página 55

Engine overheatingEWA10400
s s
WARNING
●Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
●After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his-
sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
TIP
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
Wait until the
engine has cooled.Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.
The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.
Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6
1C0-F8199-E5.QXD 3/10/08 05:56 Página 76
