2009 YAMAHA XMAX 125 headlight bulb

Checking the front fork ...................6-23
Checking the steering.....................6-24
Checking the wheel bearings .........6-24
Battery ............................................6-24
Replacing the fuses ........................6-26
Replacing a headlight bulb .............6-28
Replacing a front turn signal light
bulb .............................................6-29
Replacing a tail/brake light bulb
or a rear turn signal light bulb .....6-29
Replacing the license plate light
bulb .............................................6-31
Replacing an auxiliary light bulb.....6-31
Troubleshooting ..............................6-32
Troubleshooting charts ...................6-33
SCOOTER CARE AND STORAGE .....7-1
Matte color caution...........................7-1
Care ..................................................7-1
Storage .............................................7-3
SPECIFICATIONS ...............................8-1
CONSUMER INFORMATION .............9-1
Identification numbers ......................9-1
Key identification number .................9-1
Vehicle identification number............9-1
Model label .......................................9-2
TABLE OF CONTENTS
1B9-F8199-E3.QXD 21/10/08 13:42 Página 7

EAU23911

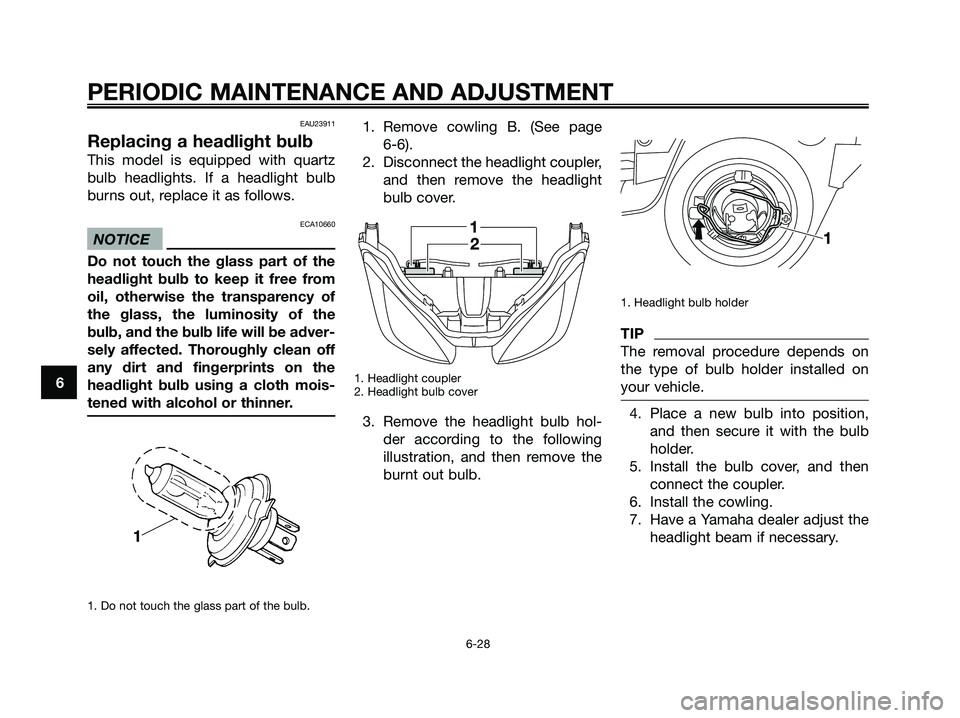

Replacing a headlight bulb
This model is equipped with quartz
bulb headlights. If a headlight bulb
burns out, replace it as follows.
ECA10660
NOTICE
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the
bulb, and the bulb life will be adver-
sely affected. Thoroughly clean off
any dirt and fingerprints on the
headlight bulb using a cloth mois-
tened with alcohol or thinner.
1. Do not touch the glass part of the bulb.
1. Remove cowling B. (See page
6-6).
2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
1. Headlight coupler
2. Headlight bulb cover
3. Remove the headlight bulb hol-
der according to the following
illustration, and then remove the
burnt out bulb.
1. Headlight bulb holder
TIP
The removal procedure depends on
the type of bulb holder installed on
your vehicle.
4. Place a new bulb into position,
and then secure it with the bulb
holder.
5. Install the bulb cover, and then
connect the coupler.
6. Install the cowling.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 70

Voltage, capacity:
12 V, 8.0 Ah
Headlight:Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:Headlight:
12 V, 35 W/35.0 W x 2
Tail/brake light:
12 V, 21.0 W/5.0 W x 2
Front turn signal light:
12 V, 10.0 W x 2
Rear turn signal light:
12 V, 10.0 W x 2
Auxiliary light:
12 V, 5.0 W x 2
License plate light:
12 V, 5.0 W x 1
Meter lighting:
LED
High beam indicator light:
LED x 1
Turn signal indicator light:
LED x 2
Engine trouble warning light:
LED x 1
Immobilizer system indicator light:
LED x 1
Fuses:Main fuse:
30.0 A
Headlight fuse:
15.0 ASignaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
10.0 A
ECU (Electronic Control Unit) fuse:
5.0 A
Backup fuse:
5.0 A
SPECIFICATIONS
8-3
8
1B9-F8199-E3.QXD 21/10/08 13:43 Página 83

AAcceleration and deceleration ...................5-3
Air filter and V-belt case air filter
elements ................................................6-14
Anti-theft alarm (optional) ..........................3-9
Auxiliary light bulb, replacing ...................6-31
BBattery......................................................6-24
Brake fluid level, checking .......................6-20
Brake fluid, changing ...............................6-21
Brake lever, front ......................................3-10
Brake lever, rear .......................................3-10
Brake levers, lubricating ..........................6-22
Braking .......................................................5-3
CCables, checking and lubricating ............6-21
Care............................................................7-1
Catalytic converters .................................3-13
Centerstand and sidestand, checking
and lubricating .......................................6-22
Coolant.....................................................6-13
Coolant temperature gauge .......................3-5
Cowlings and panel, removing and
installing ...................................................6-6
DDimmer switch ...........................................3-9
Display, multi-function ...............................3-6
EEngine break-in ..........................................5-4
Engine oil ...................................................6-9
Engine trouble warning light ......................3-4
FFinal transmission oil ...............................6-12
Front and rear brake lever free play.........6-19Front and rear brake pads, checking ......6-19
Front fork, checking .................................6-23
Front storage compartment .....................3-16
Fuel ..........................................................3-12
Fuel consumption, tips for reducing ..........5-4
Fuel gauge .................................................3-5
Fuel level warning light ..............................3-4
Fuel tank cap ...........................................3-11
Fuses, replacing .......................................6-26
HHandlebar switches ...................................3-9
Hazard switch ..........................................3-10
Headlight bulb, replacing .........................6-28
High beam indicator light...........................3-3
Horn switch ................................................3-9
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-19
Immobilizer system ....................................3-1
Immobilizer system indicator light .............3-4
Indicator and warning lights ......................3-3
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-31
MMain switch/steering lock ..........................3-2
Maintenance and lubrication, periodic ......6-3
Maintenance, emission control system .....6-2
Matte color, caution ...................................7-1
Model label ................................................9-2
PParking .......................................................5-5
Part locations .............................................2-1Periodic maintenance and lubrication
chart .........................................................6-2
RRear storage compartment ......................3-17
SSafe-riding points.......................................1-5
Safety information ......................................1-1
Seat ..........................................................3-14
Securing bracket ......................................3-14
Shock absorber assemblies, adjusting....3-18
Sidestand .................................................3-18
Spark plug, checking .................................6-8
Specifications.............................................8-1
Speedometer .............................................3-5
Start switch ................................................3-9
Starting off .................................................5-2
Starting the engine.....................................5-1
Steering, checking ...................................6-24
Storage.......................................................7-3
Storage compartments ............................3-15
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-29
Throttle cable free play, adjusting ............6-15
Throttle grip and cable, checking and
lubricating ..............................................6-22
Tires .........................................................6-16
Tool kit ........................................................6-1
Troubleshooting .......................................6-32
Troubleshooting charts ............................6-33
Turn signal indicator lights .........................3-3
Turn signal light bulb (front), replacing ....6-29
Turn signal switch ......................................3-9
INDEX
1B9-F8199-E3.QXD 21/10/08 13:43 Página 86
