SAFETY INFORMATION .....................1-1
Further safe-riding points .................1-5
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS ........................................3-1
Immobilizer system ...........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Turn signal indicator lights ...............3-3
High beam indicator light ................3-3
Fuel level warning light ....................3-4
Engine trouble warning light ............3-4
Immobilizer system indicator light ...3-4
Speedometer ....................................3-5
Fuel gauge ........................................3-5
Coolant temperature gauge..............3-5
Multi-function display .......................3-6
Anti-theft alarm (optional) .................3-9
Handlebar switches ..........................3-9
Dimmer switch .................................3-9
Turn signal switch ............................3-9
Horn switch .....................................3-9
Start switch ......................................3-9
Hazard switch ................................3-10
Front brake lever.............................3-10
Rear brake lever..............................3-10Fuel tank cap ..................................3-11
Fuel .................................................3-12
Catalytic converters ........................3-13
Securing bracket ............................3-14
Seat.................................................3-14
Storage compartments ...................3-15
Front storage compartment............3-16
Rear storage compartment.............3-17
Adjusting the shock absorber
assemblies...................................3-18
Sidestand ........................................3-18
Ignition circuit cut-off system .........3-19
FOR YOUR SAFETY – PRE-
OPERATION CHECKS ........................4-1
OPERATION AND IMPORTANT
RIDING POINTS ..................................5-1
Starting the engine ...........................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-3
Braking..............................................5-3
Tips for reducing fuel consumption..5-4
Engine break-in.................................5-4
Parking ..............................................5-5
PERIODIC MAINTENANCE AND
ADJUSTMENT ....................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-2Periodic maintenance chart for the
emission control system ...............6-2
General maintenance and
lubrication chart ............................6-3
Removing and installing the
cowlings and panel .......................6-6
Checking the spark plug ..................6-8
Engine oil ..........................................6-9
Final transmission oil ......................6-12
Coolant ...........................................6-13
Air filter and V-belt case air filter
elements ......................................6-14
Adjusting the throttle cable free
play ..............................................6-15
Valve clearance ...............................6-16
Tires ................................................6-16
Cast wheels ....................................6-18
Front and rear brake lever free
play ..............................................6-19
Checking the front and rear brake
pads.............................................6-19
Checking the brake fluid level ........6-20
Changing the brake fluid ................6-21
Checking and lubricating the
cables ..........................................6-21
Checking and lubricating the throttle
grip and cable .............................6-22
Lubricating the front and rear
brake levers .................................6-22
Checking and lubricating the
centerstand and sidestand .........6-22
TABLE OF CONTENTS
1B9-F8199-E3.QXD 21/10/08 13:42 Página 6

dows and doors, carbon monoxi-
de can rapidly reach dangerous
levels.
●Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.
●Do not run engine outdoors whe-
re engine exhaust can be drawn
into a building through openings
such as windows and doors.
Loading
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution
of the scooter is changed. To avoid
the possibility of an accident, use
extreme caution when adding cargo
or accessories to your scooter. Use
extra care when riding a scooter that
has added cargo or accessories.
Here, along with the information
about accessories below, are some
general guidelines to follow if loading
cargo to your scooter:
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.Operation of an overloaded vehicle
could cause an accident.
When loading within this weight limit,
keep the following in mind:●Cargo and accessory weight
should be kept as low and close
to the scooter as possible. Secu-
rely pack your heaviest items as
close to the center of the vehicle
as possible and make sure to dis-
tribute the weight as evenly as
possible on both sides of the
scooter to minimize imbalance or
instability.
●Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the scooter
before riding. Check accessory
mounts and cargo restraints fre-
quently.
• Properly adjust the suspension
for your load (suspension-
adjustable models only), and
check the condition and pres-
sure of your tires.• Never attach any large or
heavy items to the handlebar,
front fork, or front fender. Such
items can create unstable
handling or a slow steering res-
ponse.
●This vehicle is not designed to
pull a trailer or to be attached
to a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avai-
lable only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and
accessories or offer other modifica-
tions for Yamaha vehicles. Yamaha is
not in a position to test the products
that these aftermarket companies
produce. Therefore, Yamaha can neit-
her endorse nor recommend the use
of accessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Maximum load:
189 kg (417 lb)1
SAFETY INFORMATION
1-3
1B9-F8199-E3.QXD 21/10/08 13:42 Página 10

EAU10420

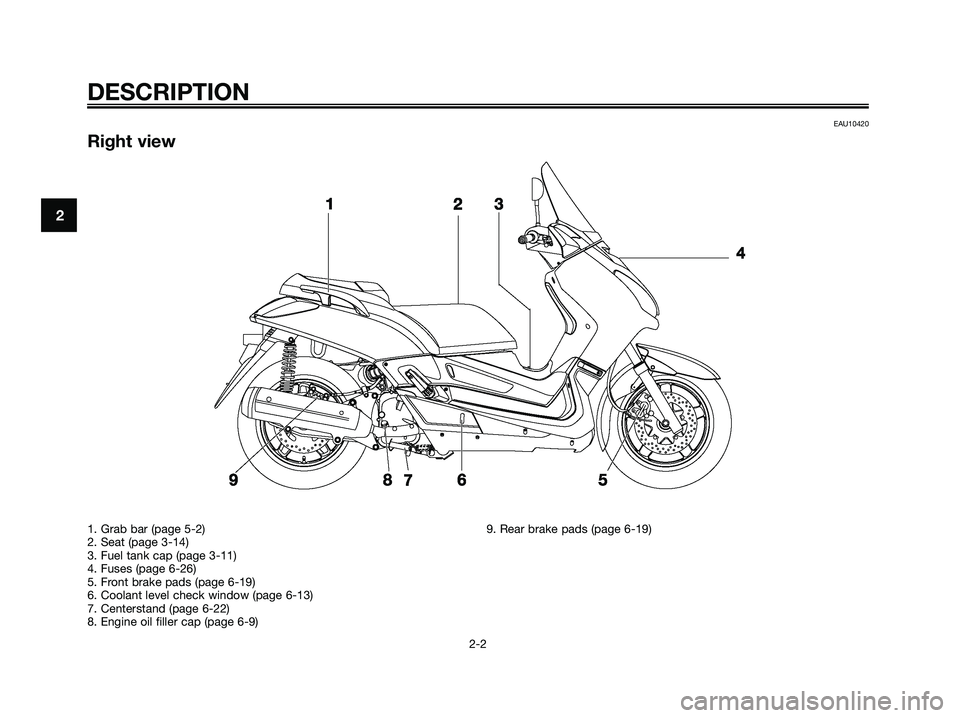

Right view
DESCRIPTION
2-2
2
1. Grab bar (page 5-2)
2. Seat (page 3-14)
3. Fuel tank cap (page 3-11)
4. Fuses (page 6-26)
5. Front brake pads (page 6-19)
6. Coolant level check window (page 6-13)
7. Centerstand (page 6-22)
8. Engine oil filler cap (page 6-9)9. Rear brake pads (page 6-19)
1B9-F8199-E3.QXD 21/10/08 13:42 Página 14

EAU11350
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
2 L (0.53 US gal) (0.44 Imp.gal). When
this occurs, refuel as soon as possi-
ble.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
EAUT1932
Engine trouble warning light “ ”
This warning light flashes or stays on
if an electrical circuit monitoring the
engine is not working correctly. If this
occurs, have a Yamaha dealer check
the self-diagnosis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. If the warning light does
not come on for a few seconds, then
go off, have a Yamaha dealer check
the electrical circuit.
EAU27021
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the
key to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and
30 seconds have passed, the indica-
tor light will start flashing indicating
the immobilizer system is enabled.
After 24 hours have passed, the indi-
cator light will stop flashing, however
the immobilizer system is still ena-
bled.
TIP
This model is also equipped with a
self-diagnosis device for the immobi-
lizer system. If the immobilizer system
is not working correctly, the indicator
light will start flashing a pattern when
the key is turned to “ON”. When this
occurs, have a Yamaha dealer check
the self-diagnosis system. However, if
the indicator light slowly flashes fivetimes, and then quickly flashes two
times repeatedly, this error could be
caused by signal interference. If this
occurs, try the following.
1. Use the code re-registering key
to start the engine.
TIP
Make sure there are no other immobi-
lizer keys close to the main switch,
and do not keep more than one
immobilizer key on the same key ring!
Immobilizer system keys may cause
signal interference, which may pre-
vent the engine from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard
keys do not start the engine, take
the vehicle, the code re-registe-
ring key and both standard keys
to a Yamaha dealer and have the
standard keys re-registered.
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
1B9-F8199-E3.QXD 21/10/08 13:42 Página 19

EWA10240
s s
WARNING
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU45051
Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
●It prevents starting when the
sidestand is up, but neither brake
is applied.
●It prevents starting when either
brake is applied, but the sides-
tand is still down.
●It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
1B9-F8199-E3.QXD 21/10/08 13:42 Página 34

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.
This check is most reliable if performed with
a warmed-up engine.
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YESNOTE:
INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
1B9-F8199-E3.QXD 21/10/08 13:42 Página 35

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-12
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-9
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-12
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-13
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check lever free play.
• Adjust if necessary.
Front brake• Check brake pads for wear. 6-19, 6-20
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the ins-
pection and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
s s
WARNING
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment dama-
ge. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures pro-
vided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
1B9-F8199-E3.QXD 21/10/08 13:42 Página 36

EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do
not understand, ask your Yamaha
dealer.
EWA10271
s s
WARNING
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an acci-
dent or injury.
EAU45310
TIP
This model is equipped with a lean
angle sensor to stop the engine in
case of a turnover. To start the engine
after a turnover, be sure to turn the
main switch to “OFF” and then to
“ON”. Failing to do so will prevent the
engine from starting even though the
engine will crank when pushing the
start switch.
EAUM2231
Starting the engineECA10250
NOTICE
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the sides-
tand must be up.
See page 3-19 for more information.
1. Turn the key to “ON”.
The following warning lights and
indicator light should come on for
a few seconds, then go off.
●Fuel level warning light
●Engine trouble warning light
●Immobilizer system indicator
light
ECA11831
NOTICE
If a warning or indicator light does
not go off, see page 3-3 for the
corresponding warning and indica-
tor light circuit check.
2. Close the throttle completely.
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
1B9-F8199-E3.QXD 21/10/08 13:42 Página 38
