2009 YAMAHA XJ6-S brake pads

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Multi-function meter unit .................3-8
Anti-theft alarm (optional) .............3-11
Handlebar switches ......................3-12
Clutch lever ...................................3-13
Shift pedal .....................................3-13
Brake lever ...................................3-14
Brake pedal ..................................3-14
ABS (for ABS models) ..................3-14
Fuel tank cap ................................3-15
Fuel ...............................................3-16
Fuel tank breather/overflow
hose ..........................................3-17
Catalytic converter ........................3-18
Seat ..............................................3-18
Helmet holder ...............................3-19
Storage compartment ...................3-20
Handlebar position ........................3-20
Rear view mirrors .........................3-21Adjusting the shock absorber
assembly ................................... 3-21
Sidestand ..................................... 3-22
Ignition circuit cut-off system ........ 3-23
FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance chart for the
emission control system ............. 6-2
General maintenance and
lubrication chart .......................... 6-3
Removing and installing cowlings
and panels .................................. 6-7
Checking the spark plugs ............... 6-9
Engine oil and oil filter cartridge ... 6-10
Coolant ......................................... 6-13
Replacing the air filter element ..... 6-17Adjusting the engine idling
speed ........................................ 6-18
Checking the throttle cable
free play .................................... 6-19
Valve clearance ........................... 6-19
Tires ............................................. 6-20
Cast wheels ................................. 6-22
Adjusting the clutch lever
free play .................................... 6-22
Adjusting the rear brake
light switch ................................ 6-23
Checking the front and rear
brake pads ................................ 6-24
Checking the brake fluid level ...... 6-24
Changing the brake fluid .............. 6-25
Drive chain slack .......................... 6-26
Cleaning and lubricating the
drive chain ................................ 6-27
Checking and lubricating the
cables ....................................... 6-28
Checking and lubricating the
throttle grip and cable ............... 6-28
Checking and lubricating the
brake and shift pedals .............. 6-28
Checking and lubricating the
brake and clutch levers ............ 6-29
Checking and lubricating the
centerstand and sidestand ....... 6-30
Lubricating the swingarm
pivots ........................................ 6-30
Checking the front fork ................. 6-31U36CE0E0.book Page 1 Friday, December 5, 2008 2:33 PM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided inthis manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-16
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-10
CoolantCheck coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-13
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-24, 6-24
U36CE0E0.book Page 1 Friday, December 5, 2008 2:33 PM

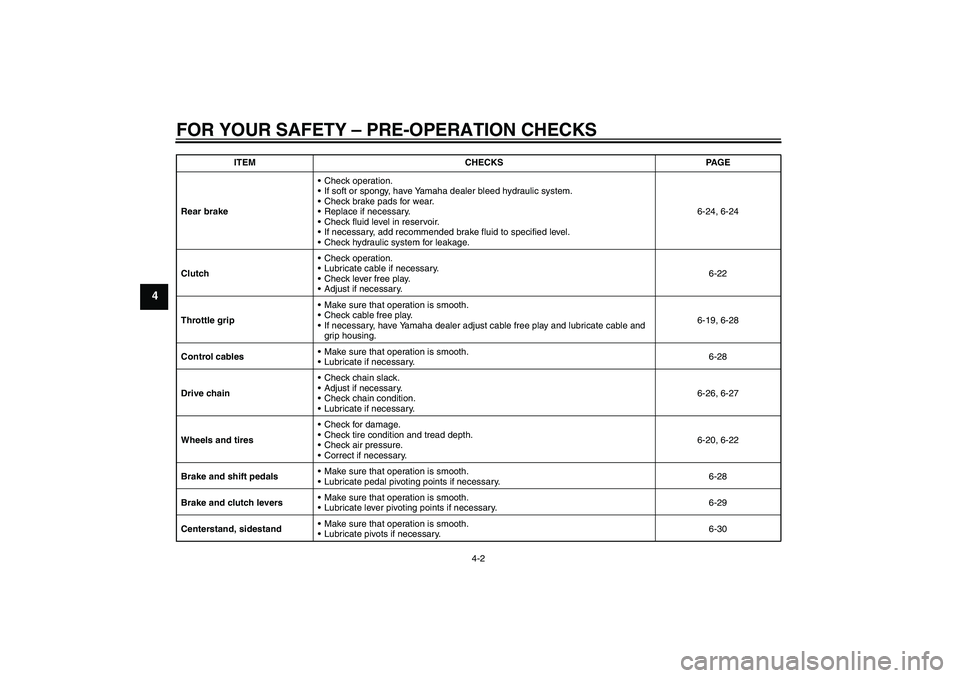

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-24, 6-24
ClutchCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-22
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-19, 6-28
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-28
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-26, 6-27
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-20, 6-22
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-28
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-29
Centerstand, sidestandMake sure that operation is smooth.
Lubricate pivots if necessary.6-30 ITEM CHECKS PAGE
U36CE0E0.book Page 2 Friday, December 5, 2008 2:33 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU1770B

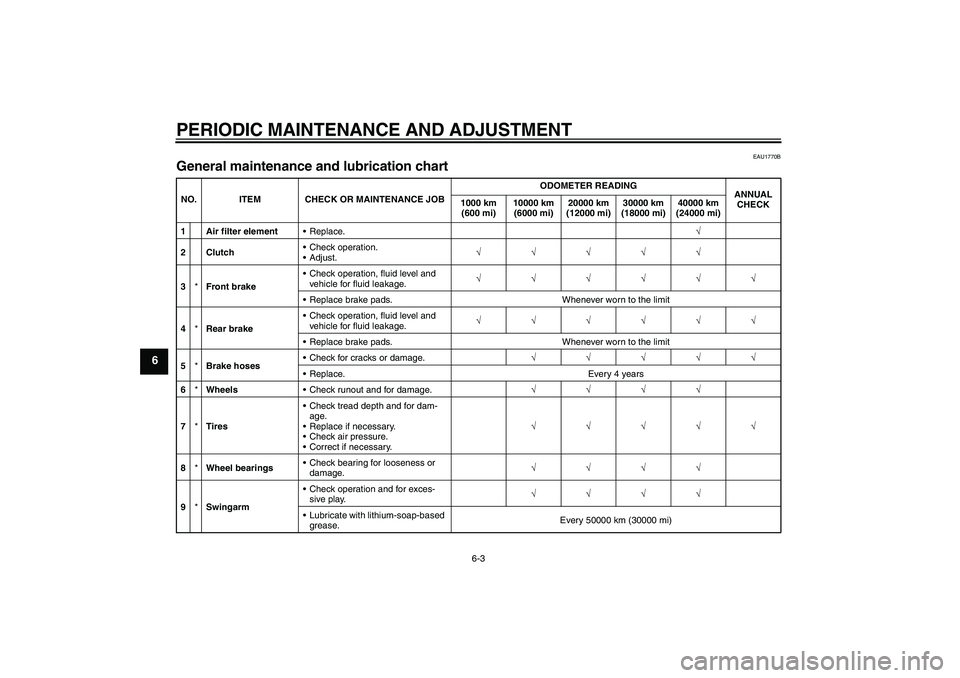

General maintenance and lubrication chart NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1 Air filter elementReplace.√
2ClutchCheck operation.
Adjust.√√√√√
3*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
4*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
5*Brake hosesCheck for cracks or damage.√√√√√
Replace. Every 4 years
6*WheelsCheck runout and for damage.√√√√
7*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
8*Wheel bearingsCheck bearing for looseness or
damage.√√√√
9*SwingarmCheck operation and for exces-
sive play.√√√√
Lubricate with lithium-soap-based
grease.Every 50000 km (30000 mi)
U36CE0E0.book Page 3 Friday, December 5, 2008 2:33 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
6
EAU22390
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22420
Front brake pads
Each front brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wearindicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 1.5 mm (0.06 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU39371
Checking the brake fluid level Front brake
Rear brake
Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
1. Brake pad wear indicator groove
1 1
1. Lining thickness
1 1
1. Minimum level mark
1. Minimum level mark
1
U36CE0E0.book Page 24 Friday, December 5, 2008 2:33 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-25

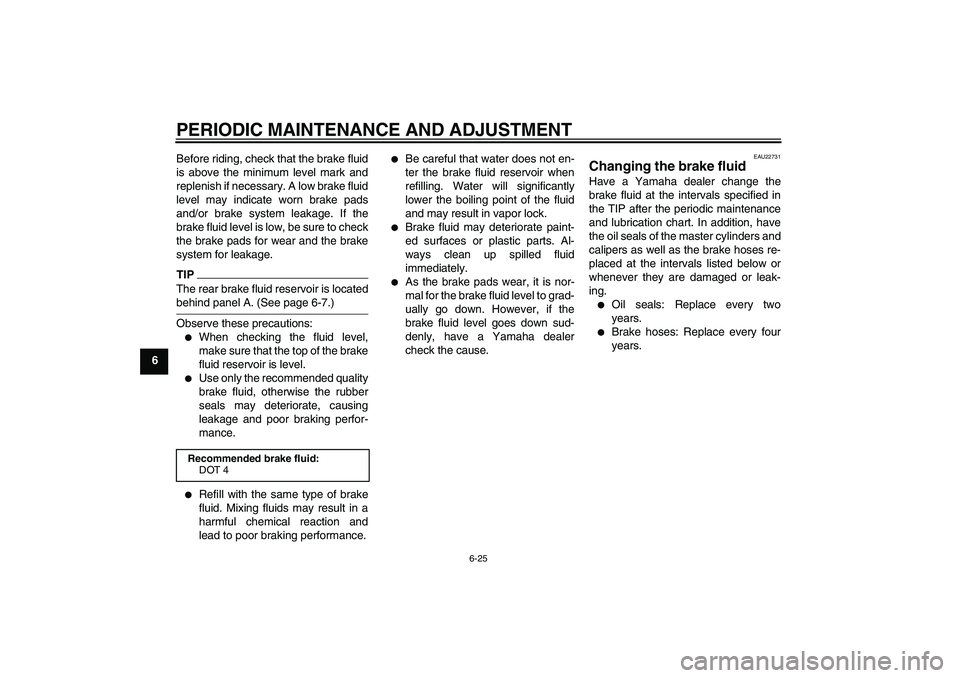

6Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
TIPThe rear brake fluid reservoir is locatedbehind panel A. (See page 6-7.)
Observe these precautions:

When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.


Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.


Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.


Be careful that water does not en-
ter the brake fluid reservoir when
refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.


Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.


As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU22731
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenance
and lubrication chart. In addition, have
the oil seals of the master cylinders and
calipers as well as the brake hoses re-
placed at the intervals listed below or
whenever they are damaged or leak-
ing.

Oil seals: Replace every two
years.


Brake hoses: Replace every four
years.
Recommended brake fluid:
DOT 4
U36CE0E0.book Page 25 Friday, December 5, 2008 2:33 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-39

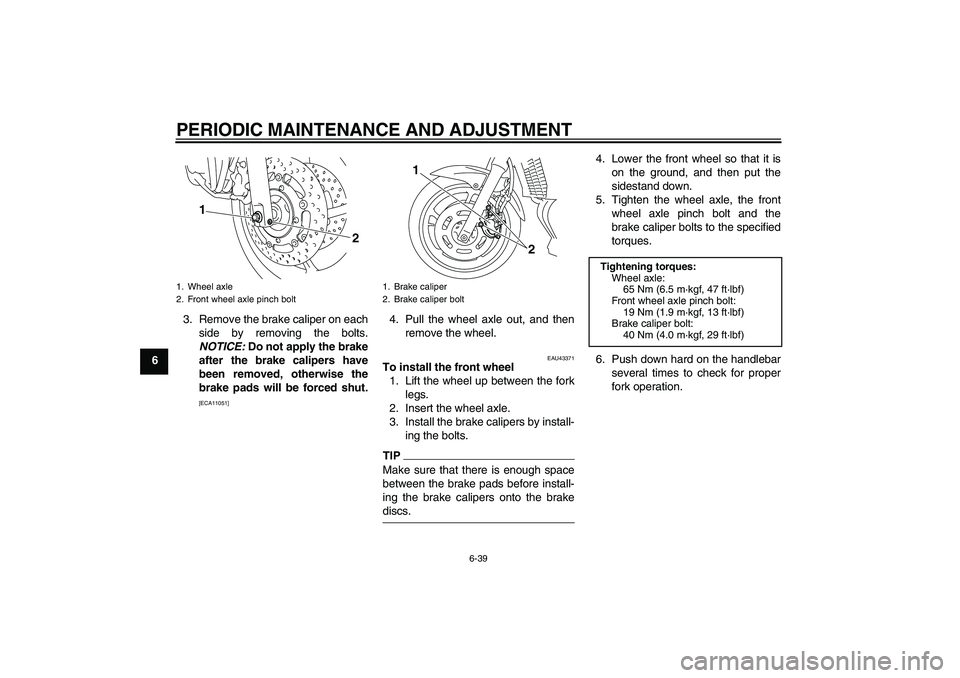

63. Remove the brake caliper on each
side by removing the bolts.
NOTICE: Do not apply the brake
after the brake calipers have
been removed, otherwise the
brake pads will be forced shut.
[ECA11051]
4. Pull the wheel axle out, and then
remove the wheel.
EAU43371
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Install the brake calipers by install-
ing the bolts.TIPMake sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brakediscs.4. Lower the front wheel so that it is
on the ground, and then put the
sidestand down.
5. Tighten the wheel axle, the front
wheel axle pinch bolt and the
brake caliper bolts to the specified
torques.
6. Push down hard on the handlebar
several times to check for proper
fork operation.
1. Wheel axle
2. Front wheel axle pinch bolt
1
2
1. Brake caliper
2. Brake caliper bolt
1
2
Tightening torques:
Wheel axle:
65 Nm (6.5 m·kgf, 47 ft·lbf)
Front wheel axle pinch bolt:
19 Nm (1.9 m·kgf, 13 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
U36CE0E0.book Page 39 Friday, December 5, 2008 2:33 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-41
67. Remove the wheel. NOTICE: Do
not apply the brake after the
wheel has been removed to-
gether with the brake disc, oth-
erwise the brake pads will be
forced shut.
[ECA11071]
EAU34432
To install the rear wheel
1. Install the wheel and the brake cal-
iper bracket by inserting the wheel
axle from the right-hand side.TIP

Make sure that the retainer on the
swingarm is inserted into the slot in
the brake caliper bracket.


Make sure that there is enough
space between the brake pads be-fore installing the wheel.2. Install the drive chain onto the rear
sprocket.
3. Install the axle nut.
4. Adjust the drive chain slack. (See
page 6-26.)
5. Lower the rear wheel so that it is
on the ground, and then put the
sidestand down.
6. Tighten the axle nut, and then
tighten the locknuts to the speci-
fied torques.
EAU25871
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from water
1. Slot
2. RetainerTightening torques:
Axle nut:
90 Nm (9.0 m·kgf, 65 ft·lbf)
Locknut:
16 Nm (1.6 m·kgf, 11 ft·lbf)12
U36CE0E0.book Page 41 Friday, December 5, 2008 2:33 PM
