2009 YAMAHA XCITY 125 headlight bulb

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Further safe-riding points ................1-5
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-3
Speedometer ..................................3-4
Fuel gauge ......................................3-5
Coolant temperature gauge ............3-5
Multi-function display ......................3-5
Handlebar switches ........................3-8
Front brake lever ............................3-9
Rear brake lever .............................3-9
Fuel tank cap ................................3-10
Fuel ...............................................3-10
Catalytic converters ......................3-12
Seat ..............................................3-12
Storage compartments .................3-13
Windshield ....................................3-14
Adjusting the shock absorber
assemblies ................................3-15
Carrier ...........................................3-16
Luggage hook ...............................3-16
Sidestand ......................................3-16Ignition circuit cut-off system ........ 3-17
FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-3
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing cowlings
and panels .................................. 6-6
Checking the spark plug ................. 6-7
Engine oil ....................................... 6-8
Final transmission oil .................... 6-11
Coolant ......................................... 6-12
Air filter and V-belt case air filter
elements ................................... 6-13
Checking the throttle cable free
play ........................................... 6-14Valve clearance ........................... 6-15
Tires ............................................. 6-15
Cast wheels ................................. 6-17
Front and rear brake lever free
play ........................................... 6-17
Checking the front and rear brake
pads .......................................... 6-18
Checking the brake fluid level ...... 6-18
Changing the brake fluid .............. 6-19
Checking and lubricating the
cables ....................................... 6-20
Checking and lubricating the
throttle grip and cable ............... 6-20
Lubricating the front and rear
brake levers .............................. 6-20
Checking and lubricating the
centerstand and sidestand ....... 6-21
Checking the front fork ................. 6-21
Checking the steering .................. 6-22
Checking the wheel bearings ....... 6-22
Battery ......................................... 6-23
Replacing the fuses ..................... 6-24
Replacing a headlight bulb .......... 6-25
Replacing a front turn signal light
bulb ........................................... 6-27
Replacing a tail/brake light bulb or
a rear turn signal light bulb ....... 6-27
Replacing the license plate light
bulb ........................................... 6-28
Replacing an auxiliary light
bulb ........................................... 6-28U16PE1E0.book Page 1 Monday, July 28, 2008 9:57 AM

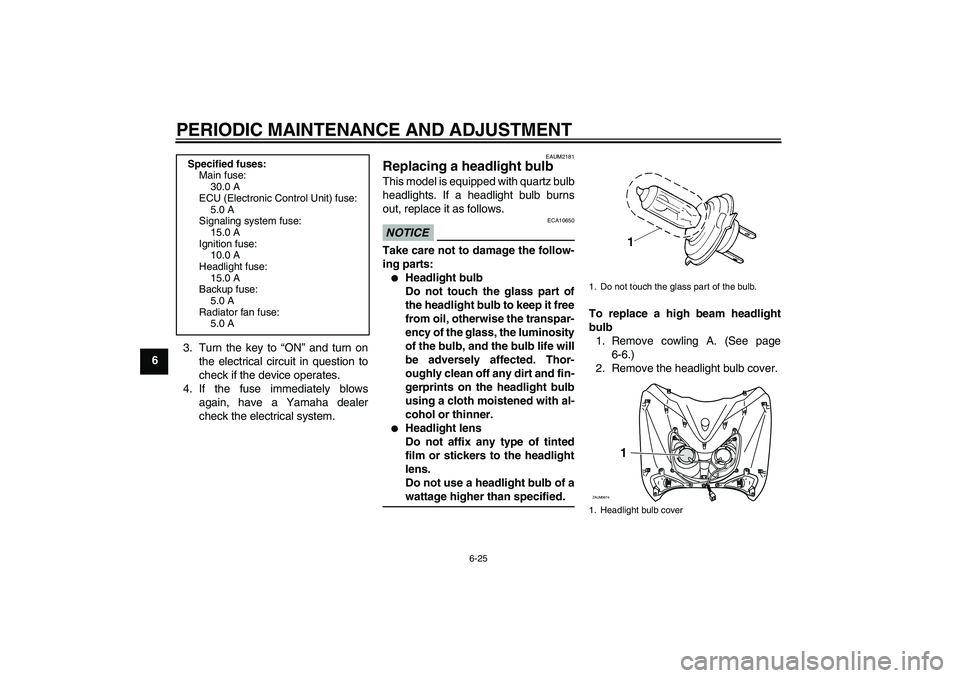

PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
63. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAUM2181
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.To replace a high beam headlight
bulb
1. Remove cowling A. (See page
6-6.)
2. Remove the headlight bulb cover.
Specified fuses:
Main fuse:
30.0 A
ECU (Electronic Control Unit) fuse:
5.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Headlight fuse:
15.0 A
Backup fuse:
5.0 A
Radiator fan fuse:
5.0 A
1. Do not touch the glass part of the bulb.
1. Headlight bulb cover
1
ZAUM0674
U16PE1E0.book Page 25 Monday, July 28, 2008 9:57 AM

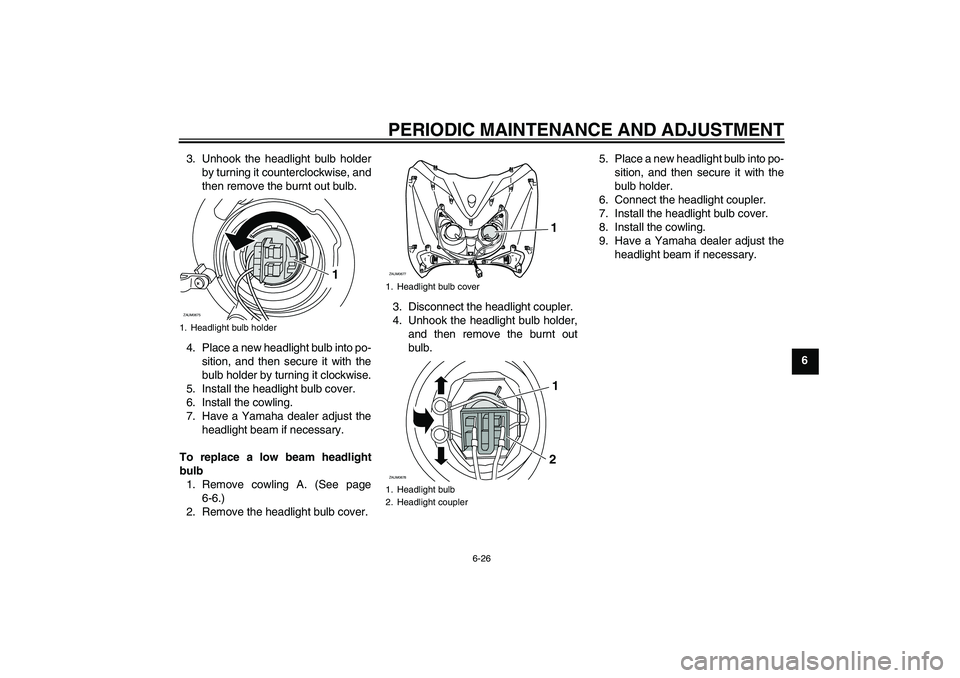

PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6 3. Unhook the headlight bulb holder
by turning it counterclockwise, and
then remove the burnt out bulb.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder by turning it clockwise.
5. Install the headlight bulb cover.
6. Install the cowling.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
To replace a low beam headlight
bulb
1. Remove cowling A. (See page
6-6.)
2. Remove the headlight bulb cover.3. Disconnect the headlight coupler.
4. Unhook the headlight bulb holder,
and then remove the burnt out
bulb.5. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
6. Connect the headlight coupler.
7. Install the headlight bulb cover.
8. Install the cowling.
9. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Headlight bulb holderZAUM0675
1
1. Headlight bulb cover
1. Headlight bulb
2. Headlight coupler
1
ZAUM0677 ZAUM0678
1
2
U16PE1E0.book Page 26 Monday, July 28, 2008 9:57 AM

SPECIFICATIONS
8-2
8
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic typeChassis:Frame type:
Steel tube underbone
Caster angle:
26.00 °
Trail:
96.0 mm (3.78 in)Front tire:Type:
Tubeless
Size:
120/70-16 M/C 57P
Manufacturer/model:
PIRELLI/SPORT DEMON FRONTRear tire:Type:
Tubeless
Size:
140/70-15 M/C 69P
Manufacturer/model:
PIRELLI/SPORT DEMONLoading:Maximum load:
185 kg (408 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)Front:
170 kPa (1.70 kgf/cm², 25 psi)
Rear:
190 kPa (1.90 kgf/cm², 28 psi)
Loading condition:
90–185 kg (198–408 lb)
Front:
180 kPa (1.80 kgf/cm², 26 psi)
Rear:
200 kPa (2.00 kgf/cm², 29 psi)
Front wheel:Wheel type:
Cast wheel
Rim size:
16 M/C x MT3.00Rear wheel:Wheel type:
Cast wheel
Rim size:
15 M/C x MT4.00Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
100.0 mm (3.94 in)Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105.0 mm (4.13 in)Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
GTX9-BS
Voltage, capacity:
12 V, 8.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 55.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
U16PE1E0.book Page 2 Monday, July 28, 2008 9:57 AM

INDEXAAcceleration and deceleration................. 5-2
Air filter and V-belt case air filter
elements ............................................. 6-13
Auxiliary light bulb, replacing ................ 6-28BBattery................................................... 6-23
Brake fluid, changing ............................ 6-19
Brake fluid level, checking .................... 6-18
Brake lever, front..................................... 3-9
Brake lever, rear ..................................... 3-9
Brake levers, lubricating........................ 6-20
Braking .................................................... 5-3CCables, checking and lubricating .......... 6-20
Care ........................................................ 7-1
Carrier ................................................... 3-16
Catalytic converters .............................. 3-12
Centerstand and sidestand,
checking and lubricating ..................... 6-21
Coolant.................................................. 6-12
Coolant temperature gauge .................... 3-5
Cowlings and panels,
removing and installing ......................... 6-6DDimmer switch ........................................ 3-9
Display, multi-function ............................. 3-5EEngine break-in ....................................... 5-4
Engine oil ................................................ 6-8
Engine trouble warning light.................... 3-3FFinal transmission oil ............................ 6-11
Front and rear brake lever free play...... 6-17Front and rear brake pads, checking .... 6-18
Front fork, checking .............................. 6-21
Fuel....................................................... 3-10
Fuel consumption, tips for reducing........ 5-3
Fuel gauge.............................................. 3-5
Fuel tank cap ........................................ 3-10
Fuses, replacing ................................... 6-24
HHandlebar switches ................................ 3-8
Headlight bulb, replacing ...................... 6-25
High beam indicator light ........................ 3-3
Horn switch ............................................. 3-9IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-17
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-3
Indicator and warning lights .................... 3-3KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-28
Luggage hook ....................................... 3-16MMain switch/steering lock........................ 3-2
Model label ............................................. 9-2PParking ................................................... 5-4
Part locations .......................................... 2-1
Periodic maintenance and lubrication
chart ..................................................... 6-2SSafe-riding points.................................... 1-5
Safety information................................... 1-1Seat ....................................................... 3-12
Shock absorber assemblies,
adjusting ............................................. 3-15
Sidestand .............................................. 3-16
Spark plug, checking ............................... 6-7
Specifications .......................................... 8-1
Speedometer........................................... 3-4
Starting off ............................................... 5-2
Starting the engine .................................. 5-1
Start switch.............................................. 3-9
Steering, checking................................. 6-22
Storage.................................................... 7-3
Storage compartments .......................... 3-13
TTail/brake light bulb or rear turn signal
light bulb, replacing ............................. 6-27
Throttle cable free play, checking ......... 6-14
Throttle grip and cable,
checking and lubricating ..................... 6-20
Tires ...................................................... 6-15
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-29
Troubleshooting charts.......................... 6-30
Turn signal indicator lights ...................... 3-3
Turn signal light bulb (front),
replacing ............................................. 6-27
Turn signal switch ................................... 3-9VValve clearance..................................... 6-15
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-22
Wheels .................................................. 6-17
Windshield............................................. 3-14
U16PE1E0.book Page 1 Monday, July 28, 2008 9:57 AM
