PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
2
3
4
5
67
8
9

EAU24204

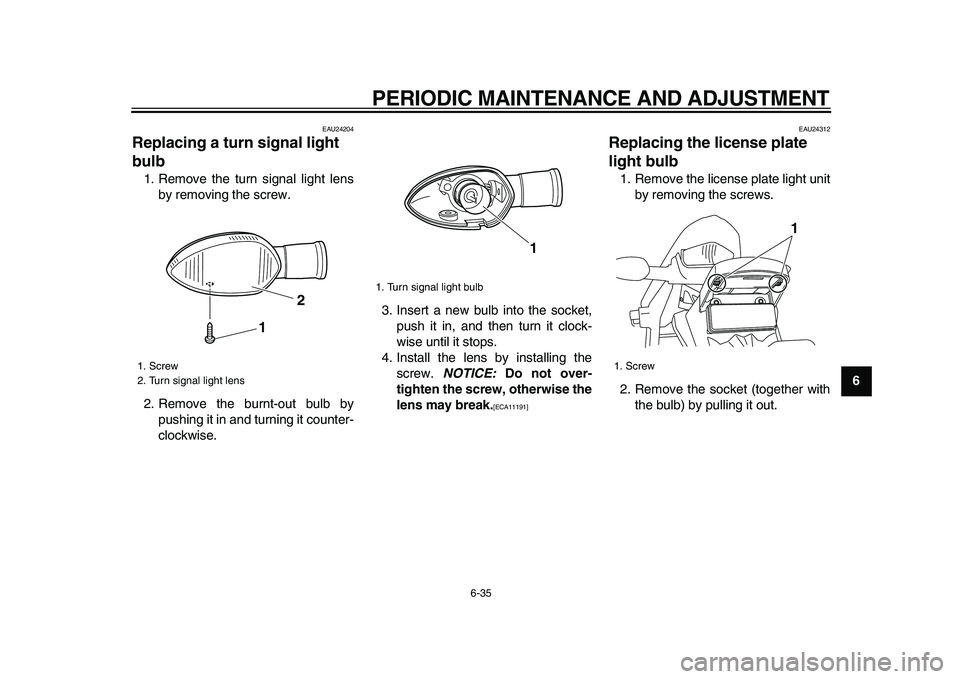

Replacing a turn signal light
bulb
1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
NOTICE:
Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]

EAU24312
Replacing the license plate
light bulb
1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.
1. Screw
2. Turn signal light lens
1
2

1. Turn signal light bulb
1

1. Screw
1

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
1
2
3
4
5
6
7
8
9
3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.

EAU45222
Replacing an auxiliary light
bulb
If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See
page 6-33.)
2. Remove the auxiliary light socket
(together with the bulb) by pulling it
out.
3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the headlight unit.
EAU24350
Supporting the motorcycle
Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
a jack either under each side of the

1. License plate light unit
2. License plate light bulb socket
12

1. Auxiliary light bulb socket
1

PERIODIC MAINTENANCE AND ADJUSTMENT
6-39
2
3
4
5
67
8
9
6. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
TIP

The drive chain does not need to be
disassembled in order to remove and
install the rear wheel.
7. Remove the wheel.
NOTICE:
Do
not apply the brake after the
wheel has been removed to-
gether with the brake disc, oth-
erwise the brake pads will be
forced shut.
[ECA11071]

EAU45190
To install the rear wheel
1. Install the wheel and the brake cal-
iper bracket by inserting the wheel
axle from the left-hand side.
TIP


Make sure that the retainer on the
brake caliper bracket is inserted
into the slot in the swingarm.

Make sure that there is enough
space between the brake pads be-
fore installing the wheel.2. Install the drive chain onto the rear
sprocket.
3. Install the washer and the axle nut,
and then lower the rear wheel so
that it is on the ground.
4. Adjust the drive chain slack. (See
page 6-25.)
5. Tighten the axle nut to the speci-
fied torque.
EAU25871
Troubleshooting
Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING

EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from water
1. Brake caliper bracket
2. Retainer
3. Slot
Tightening torque:
Axle nut:
125 Nm (12.5 m·kgf, 90.4 ft·lbf)
1
2
3

7-1
2
3
4
5
6
78
9

MOTORCYCLE CARE AND STORAGE
EAU37833
Matte color caution
NOTICE

ECA15192
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-
ished parts.

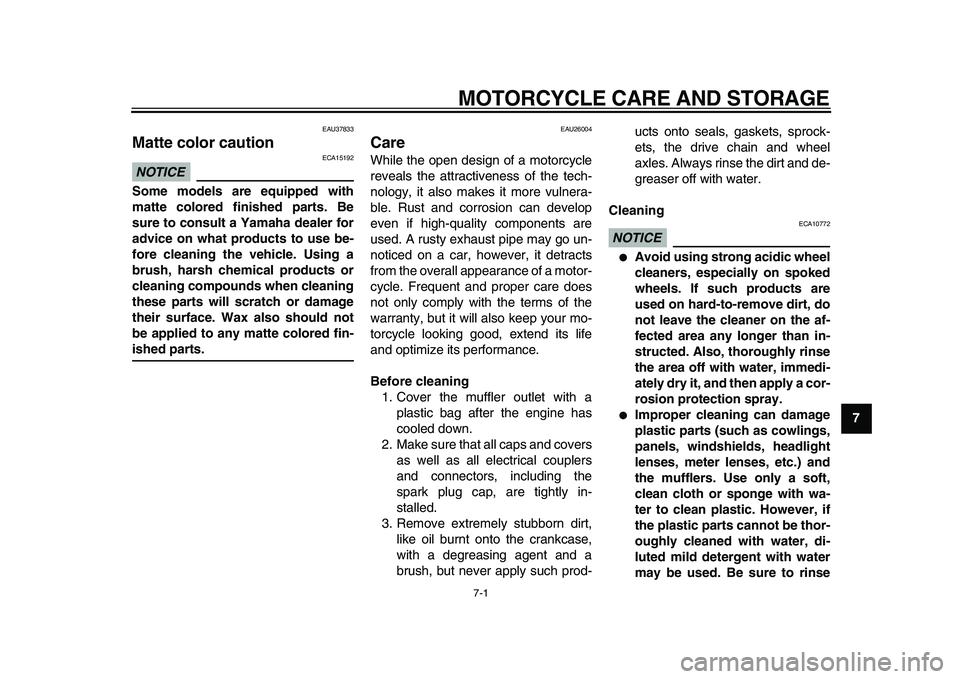

EAU26004
Care
While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your mo-
torcycle looking good, extend its life
and optimize its performance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE

ECA10772

Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.

Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
oughly cleaned with water, di-
luted mild detergent with water
may be used. Be sure to rinse

MOTORCYCLE CARE AND STORAGE
7-2
1
2
3
4
5
6
7
8
9off any detergent residue using
plenty of water, as it is harmful
to plastic parts.


Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.

Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.

For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leavescratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.

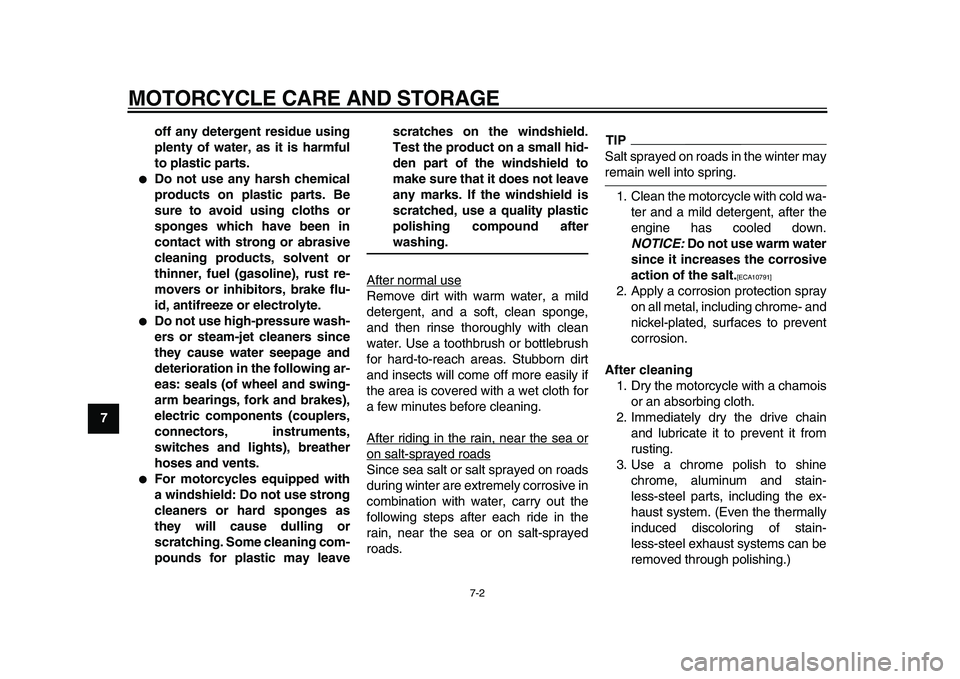

After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.
TIP

Salt sprayed on roads in the winter may
remain well into spring.
1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
NOTICE:
Do not use warm water
since it increases the corrosive
action of the salt.
[ECA10791]

2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stain-
less-steel parts, including the ex-
haust system. (Even the thermally
induced discoloring of stain-
less-steel exhaust systems can be
removed through polishing.)

MOTORCYCLE CARE AND STORAGE
7-3
2
3
4
5
6
78
9

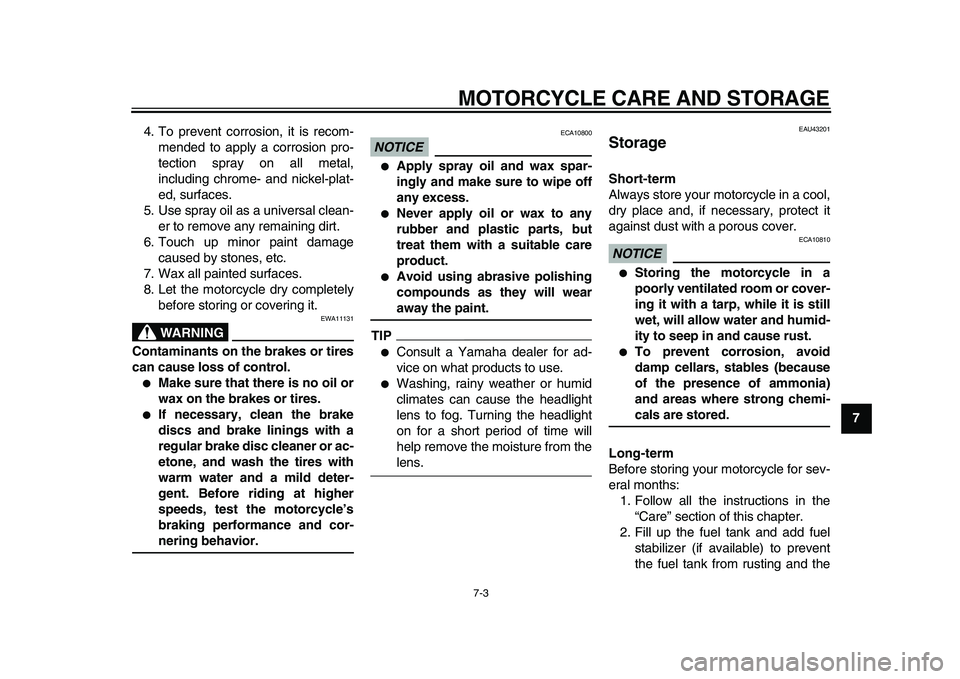

4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING

EWA11131
Contaminants on the brakes or tires
can cause loss of control.

Make sure that there is no oil or
wax on the brakes or tires.

If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-
nering behavior.
NOTICE

ECA10800

Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.

Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.

Avoid using abrasive polishing
compounds as they will wear
away the paint.
TIP


Consult a Yamaha dealer for ad-
vice on what products to use.

Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
EAU43201
Storage

Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
NOTICE

ECA10810

Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.

To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the

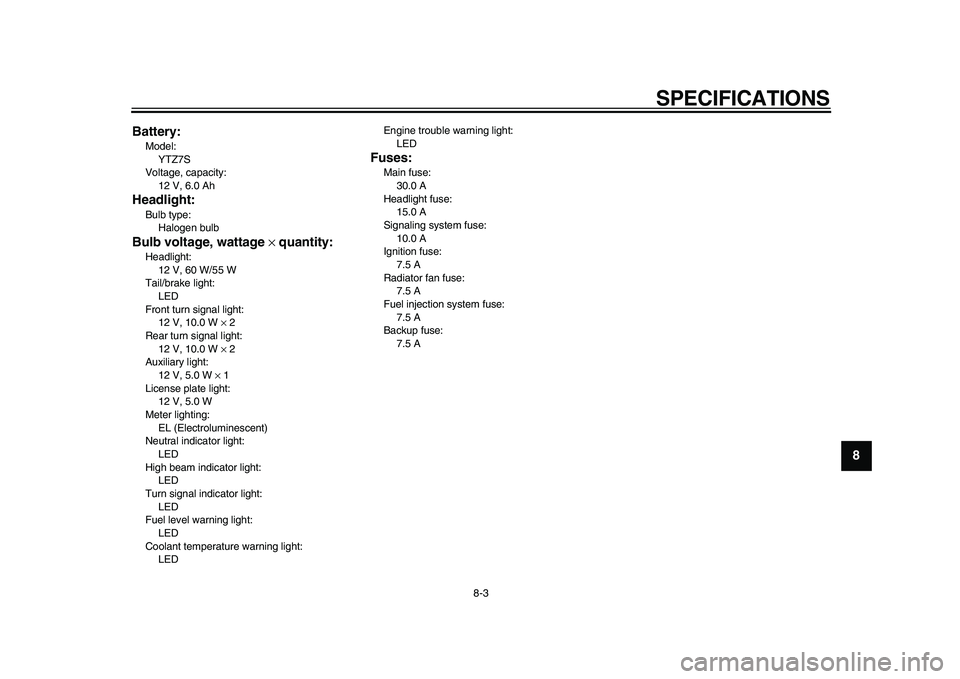

SPECIFICATIONS
8-3
2
3
4
5
6
7
89 Battery:

Model:
YTZ7S
Voltage, capacity:
12 V, 6.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 60 W/55 W
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W
×
2
Rear turn signal light:
12 V, 10.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
1
License plate light:
12 V, 5.0 W
Meter lighting:
EL (Electroluminescent)
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LEDEngine trouble warning light:
LED

Fuses:
Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
7.5 A
Radiator fan fuse:
7.5 A
Fuel injection system fuse:
7.5 A
Backup fuse:
7.5 A

INDEX
A
Air filter element and check hose,
cleaning ................................................ 6-16
Auxiliary light bulb, replacing .................. 6-36
B
Battery..................................................... 6-31
Brake and clutch levers, checking and
lubricating ............................................. 6-28
Brake fluid, changing .............................. 6-25
Brake fluid level, checking ...................... 6-24
Brake lever .............................................. 3-10
Brake lever free play, adjusting............... 6-22
Brake pedal ............................................. 3-11
Brake pedal, checking and lubricating .... 6-28
C
Cables, checking and lubricating ............ 6-27
Care .......................................................... 7-1
Catalytic converter .................................. 3-13
Clutch lever ............................................. 3-10
Clutch lever free play, adjusting .............. 6-21
Coolant.................................................... 6-13
Coolant temperature warning light ............ 3-2
D
Dimmer switch .......................................... 3-9
Drive chain, cleaning and lubricating ...... 6-26
Drive chain slack ..................................... 6-25
E
Engine break-in ......................................... 5-3
Engine idling speed................................. 6-18
Engine oil and oil filter element ............... 6-10
Engine stop switch .................................... 3-9
Engine trouble warning light...................... 3-3
EXUP system .......................................... 3-19
F
Front and rear brake pads, checking ....... 6-23
Front fork, adjusting ................................. 3-15
Front fork, bleeding.................................. 3-16
Front fork, checking ................................. 6-29
Fuel.......................................................... 3-12
Fuel consumption, tips for reducing........... 5-3
Fuel level warning light .............................. 3-2
Fuel tank cap ........................................... 3-11
Fuses, replacing ...................................... 6-32
H
Handlebar switches ................................... 3-9
Headlight bulb, replacing ......................... 6-33
Helmet holder .......................................... 3-14
High beam indicator light ........................... 3-2
Horn switch ................................................ 3-9
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-20
Indicator and warning lights ....................... 3-2
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-35
M
Main switch/steering lock........................... 3-1
Maintenance and lubrication, periodic ....... 6-3
Maintenance, emission control system...... 6-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-3
N
Neutral indicator light ................................. 3-2
P
Panels, removing and installing ................ 6-7
Parking ...................................................... 5-4
Part locations ............................................ 2-1
R
Rear brake light switch, adjusting ........... 6-23
Rear suspension, lubricating ................... 6-29
S
Safety information ..................................... 1-1
Seat ......................................................... 3-14
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-10
Shock absorber assembly, adjusting ...... 3-17
Sidestand ................................................ 3-19
Sidestand, checking and lubricating........ 6-29
Spark plug, checking ................................. 6-9
Specifications ............................................ 8-1
Starting the engine .................................... 5-1
Start switch ................................................ 3-9
Steering, checking................................... 6-30
Storage...................................................... 7-3
Supporting the motorcycle ...................... 6-36
T
Tail/brake light ......................................... 6-34
Throttle cable free play, checking ........... 6-18
Throttle grip and cable, checking and
lubricating.............................................. 6-27
Tires ........................................................ 6-19
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-39
Troubleshooting charts............................ 6-41
Turn signal indicator light .......................... 3-2
Turn signal light bulb, replacing .............. 6-35
Turn signal switch ..................................... 3-9
