2009 YAMAHA WR 250X light

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
2
3
4
5
67
8
9

21

Engine oil

Change.

Check oil level and vehicle for oil
leakage.
√
Every 5000 km (3000 mi)
√
22

Engine oil filter ele-
ment

Replace.
√√√√√
23

*
Cooling system

Check coolant level and vehicle
for coolant leakage.
√√√√√

Change. Every 3 years
24

*
EXUP system

Check operation, cable free play
and pulley position.
√√√
25

*
Front and rear brake
switches

Check operation.
√√√√√√
26

Moving parts and
cables

Lubricate.
√√√√√
27

*
Throttle grip hous-
ing and cable

Check operation and free play.

Adjust the throttle cable free play
if necessary.

Lubricate the throttle grip housing
and cable.
√√√√√
28

*
Lights, signals and
switches

Check operation.

Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)

PERIODIC MAINTENANCE AND ADJUSTMENT

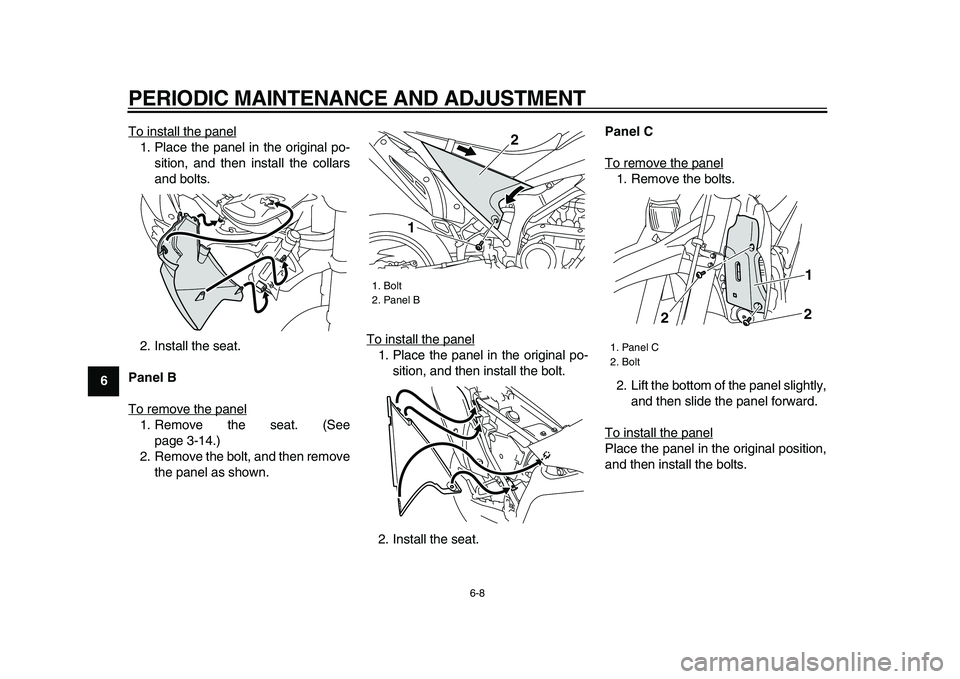

6-8
1
2
3
4
5
6
7
8
9
To install the panel
1. Place the panel in the original po-
sition, and then install the collars
and bolts.
2. Install the seat.
Panel B
To remove the panel1. Remove the seat. (See
page 3-14.)
2. Remove the bolt, and then remove
the panel as shown.To install the panel
1. Place the panel in the original po-
sition, and then install the bolt.
2. Install the seat.
Panel C
To remove the panel
1. Remove the bolts.
2. Lift the bottom of the panel slightly,
and then slide the panel forward.
To install the panelPlace the panel in the original position,
and then install the bolts.

1. Bolt
2. Panel B
12

1. Panel C
2. Bolt
12
2

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
2
3
4
5
67
8
9 Panel D
To remove the panel
1. Remove the seat. (See
page 3-14.)
2. Remove the bolt and washer, and
then remove the panel as shown.To install the panel
1. Place the panel in the original po-
sition, and then install the washer
and bolt.
2. Install the seat.

EAU19622
Checking the spark plug
The spark plug is an important engine
component, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode, it
should be removed and checked in ac-
cordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of the spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally). If
the spark plug shows a distinctly differ-
ent color, the engine could be operating
improperly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If the spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced.
1. Bolt
2. Washer
3. Panel D
3
2
1

Specified spark plug:
NGK/CR9EK

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
1
2
3
4
5
6
7
8
9
Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIP

If a torque wrench is not available wheninstalling a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
EAU45141
Engine oil and oil filter
element
The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.
TIP

The engine oil should be between the
minimum and maximum level marks.
1. Spark plug gap
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
11

PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
2
3
4
5
67
8
9

rial enters the crankcase.
10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
11. Turn the engine off, and then
check the oil level and correct it if
necessary.
NOTICE

ECA11230
After changing the engine oil, make
sure to check the oil pressure as de-
scribed below.

Remove the bleed bolt.

Start the engine and keep itidling until oil flows out. If no oil
comes out after one minute,
turn the engine off immediately
so it will not seize. If this occurs,
have a Yamaha dealer repair the
vehicle.

After checking the oil pressure,
tighten the bleed bolt to the
specified torque.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20253
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
TIP


The coolant level must be checked
on a cold engine since the level
varies with engine temperature.

Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
TIP

The coolant should be between the
minimum and maximum level marks.
1. “CD” specification
2. “ENERGY CONSERVING II”
1
2

1. Bleed bolt
Tightening torque:
Bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)1

PERIODIC MAINTENANCE AND ADJUSTMENT

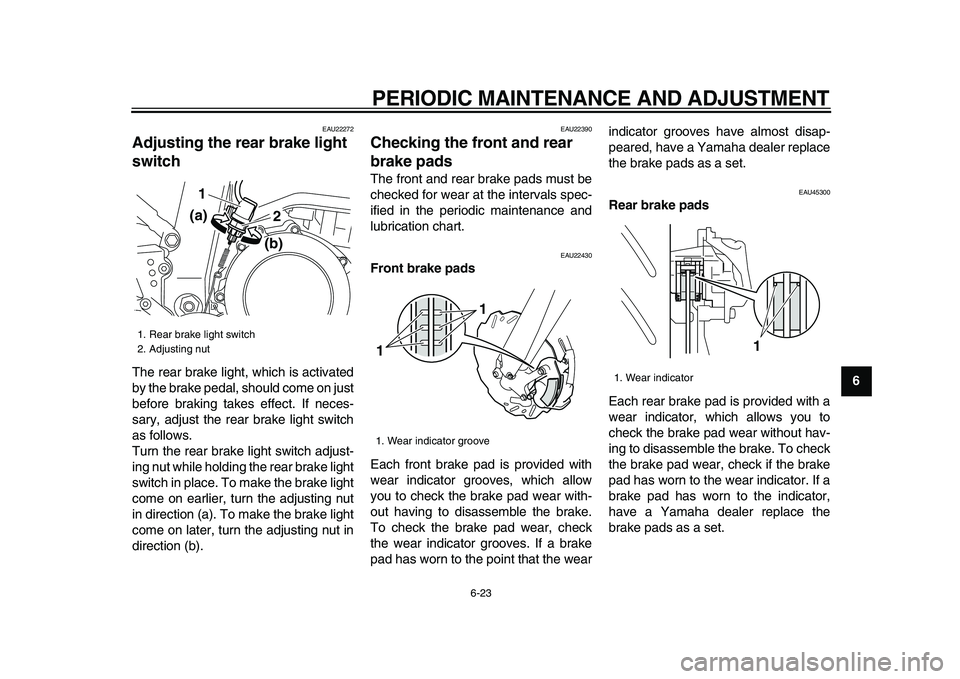

6-23
2
3
4
5
67
8
9

EAU22272
Adjusting the rear brake light
switch
The rear brake light, which is activated
by the brake pedal, should come on just
before braking takes effect. If neces-
sary, adjust the rear brake light switch
as follows.
Turn the rear brake light switch adjust-
ing nut while holding the rear brake light
switch in place. To make the brake light
come on earlier, turn the adjusting nut
in direction (a). To make the brake light
come on later, turn the adjusting nut in
direction (b).
EAU22390
Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22430
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wearindicator grooves have almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU45300
Rear brake pads
Each rear brake pad is provided with a
wear indicator, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check if the brake
pad has worn to the wear indicator. If a
brake pad has worn to the indicator,
have a Yamaha dealer replace the
brake pads as a set.
1. Rear brake light switch
2. Adjusting nut
1
2(b) (a)

1. Wear indicator groove
11

1. Wear indicator
1

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
2
3
4
5
67
8
9
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.

[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If a fuse immediately blows again,
have a Yamaha dealer check the
electrical system.
EAU45212
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
NOTICE

ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-
cohol or thinner.
1. Remove the headlight cowling to-
1. Fuel injection system fuse
2. Radiator fan fuse
3. Backup fuse
4. Ignition fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
7
123456

Specified fuses:
Main fuse:
30.0 A
Ignition fuse:
7.5 A
Signaling system fuse:
10.0 A
Headlight fuse:
15.0 A
Radiator fan fuse:
7.5 A
Backup fuse:
7.5 A
Fuel injection system fuse:
7.5 A
1. Do not touch the glass part of the bulb.

PERIODIC MAINTENANCE AND ADJUSTMENT

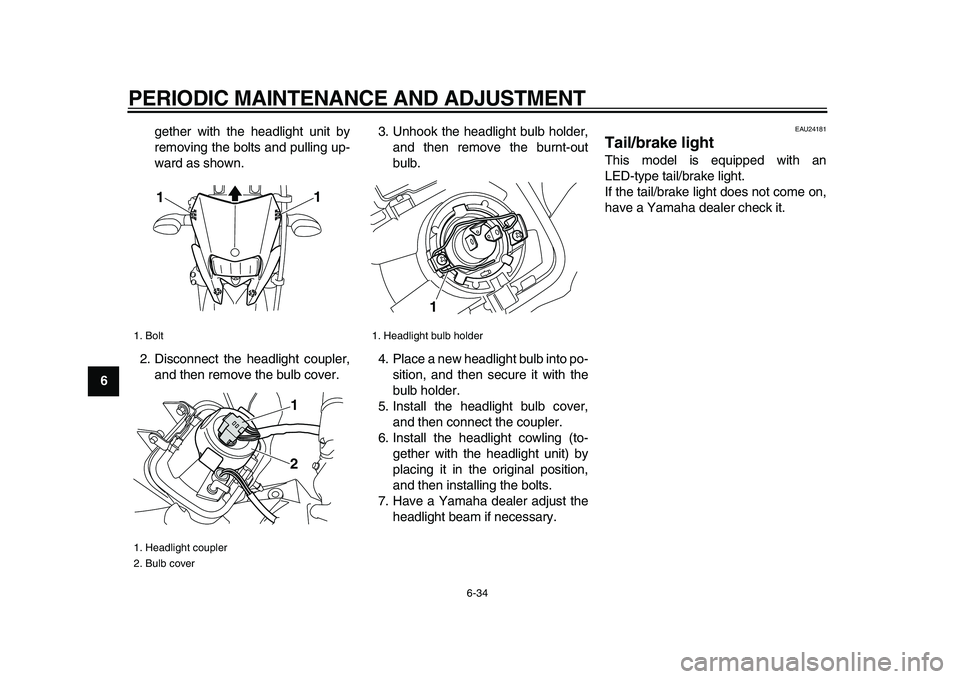

6-34
1
2
3
4
5
6
7
8
9
gether with the headlight unit by
removing the bolts and pulling up-
ward as shown.
2. Disconnect the headlight coupler,
and then remove the bulb cover.3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the headlight cowling (to-
gether with the headlight unit) by
placing it in the original position,
and then installing the bolts.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.

EAU24181
Tail/brake light
This model is equipped with an
LED-type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
1. Bolt
1. Headlight coupler
2. Bulb cover
1
1
1
2

1. Headlight bulb holder
1
