INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.
TIP
For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.
If the engine overheats, see page
6-41 for further instructions.
EAU43021
Engine trouble warning light “ ”
This warning light comes on if an elec-
trical circuit monitoring the engine is not
working correctly. If this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the key to“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
TIP
This warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU45276
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
1. “RESET” button
2. “SELECT 1” button
3. “SELECT 2” button
4. Clock/stopwatch
5. Speedometer
6. Odometer/tripmeter/fuel reserve tripmeter
1
23
4
5
6
INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9
TIP
The multi-function display can be
set to the basic mode or the mea-
surement mode.
Tripmeter A will automatically re-
set to zero when changing from
the basic mode to the measure-
ment mode or vice versa.
Basic mode:
a speedometer
an odometer
two tripmeters (which show thedistance traveled since they were
last set to zero)
a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
a clock
a self-diagnosis device
Measurement mode:
a speedometer
a distance-compensation tripme-
ter (which shows the accumulated
distance traveled since set to zero
and which can be calibrated to pro-
vide a more accurate tripmeter
reading)
a stopwatch (which shows the time
that has been accumulated since
the start of stopwatch measure-
ment)
a self-diagnosis device
TIP
Be sure to turn the key to “ON” be-
fore using the “SELECT 1”,
“SELECT 2” and “RESET” but-
tons.
When the key is turned to “ON”, allof the display segments of the
multi-function display will appear
and then disappear, in order to test
the electrical circuit.
For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT 2”
button until the display changes af-
ter the key is turned to “ON”.
Basic mode
Odometer and tripmeter modes
Push the “SELECT 2” button to switch
the display between the odometer
mode and the tripmeter modes A and B
in the following order:
odometer
→
tripmeter A
→
tripmeter B
→
odometer
1. Stopwatch indicator “ ”
2. Tripmeter A indicator “ ”/
Distance-compensation tripmeter “ ”
3. Tripmeter B indicator “ ”
1
3
2
INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9
TIP
Indicator “ ” comes on when tripmeter
A is selected, and indicator “ ” comes
on when tripmeter B is selected.If the fuel level warning light comes on
(see page 3-2), the display will auto-
matically change to the fuel reserve
tripmeter mode “F” and start counting
the distance traveled from that point. In
this case, push the “SELECT 2” button
to switch the display between the vari-
ous tripmeter and odometer modes in
the following order:
fuel reserve tripmeter “F”
→
odometer
→
tripmeter A
→
tripmeter B
→
fuel re-
serve tripmeter “F”
TIP
The fuel level warning light may not
function accurately while riding off road
as the fuel level reading changes due to
the movement and inclination of the ve-
hicle.
If the fuel level warning light comes on
while riding in the measurement mode,
change to the basic mode and push the
“SELECT 2” button to display the fuel
reserve tripmeter.
TIP
To change from the measurement
mode to the basic mode, the stopwatch
and the distance-compensation tripme-
ter must be stopped.
To reset a tripmeter, select it by push-
ing the “SELECT 2” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
Clock
The clock displays when the key is
turned to “ON”.
To set the clock1. Push the “SELECT 1” button for at
least two seconds.
1. Tripmeter A indicator “ ”
1. Tripmeter B indicator “ ”
11
1. Fuel reserve tripmeter “F”
1
INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
2. When the hour digits start flashing,
push either select button to set the
hours.
3. Push the “RESET” button, and the
minute digits will start flashing.
4. Push either select button to set the
minutes.
5. Push the “RESET” button, and the
second digits will start flashing.
6. Push either select button to set the
second digits to zero.
7. Push the “RESET” button for at
least two seconds, and then re-
lease it to start the clock.
TIP
When setting the clock, push the
“SELECT 1” button to increase the
digits or “SELECT 2” button to de-
crease the digits. Pushing and
holding either button will increase
or decrease the digits continuously
until the button is released.
If the “RESET” button is not
pushed within 30 seconds, the
clock will not be set and will return
to the prior time.
Changing from the basic mode to
the measurement mode
With the odometer selected, push the
“SELECT 1” button and “SELECT 2”
button together for at least two seconds
to change to the measurement mode.
Changing from the measurement
mode to the basic mode
TIP
The stopwatch must be stopped before
changing to the basic mode.
1. Check that the stopwatch is not in
operation. If the stopwatch is in op-
eration, stop it by pushing the
“SELECT 1” button and “SELECT
2” button together.
2. Push the “SELECT 1” button and
“SELECT 2” button together for at
least two seconds to change to the
basic mode.
Measurement mode (for the stop-
watch)
When the measurement mode is se-
lected, the stopwatch is displayed and it
can be started manually or automatical-
ly.Manual start
The manual start is the default setting
for the stopwatch. The stopwatch indi-
cator “ ” and the distance-compensa-
tion tripmeter indicator “ ” will start
flashing.
1. Push the “RESET” button to start
the stopwatch.
2. Push the “SELECT 1” button and
“SELECT 2” button together to
stop the stopwatch.
3. To resume stopwatch counting,
push the “SELECT 1” button and
“SELECT 2” button together.
To reset the stopwatch to zero,
push the “RESET” button for at
least two seconds.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
2
3
4
5
67
8
9
EAU46860
TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.
From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
EAU46910
Periodic maintenance chart for the emission control system
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*
Fuel line
Check fuel hoses for cracks or
damage.
√√√√√
2*
Spark plug
Check condition.
Clean and regap.
√√
Replace.
√√
3*
Valves
Check valve clearance.
Adjust.Every 40000 km (24000 mi)
4*
Air induction system
Check the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if
necessary.
√√√√√
PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
1
2
3
4
5
6
7
8
9
EAU1770B

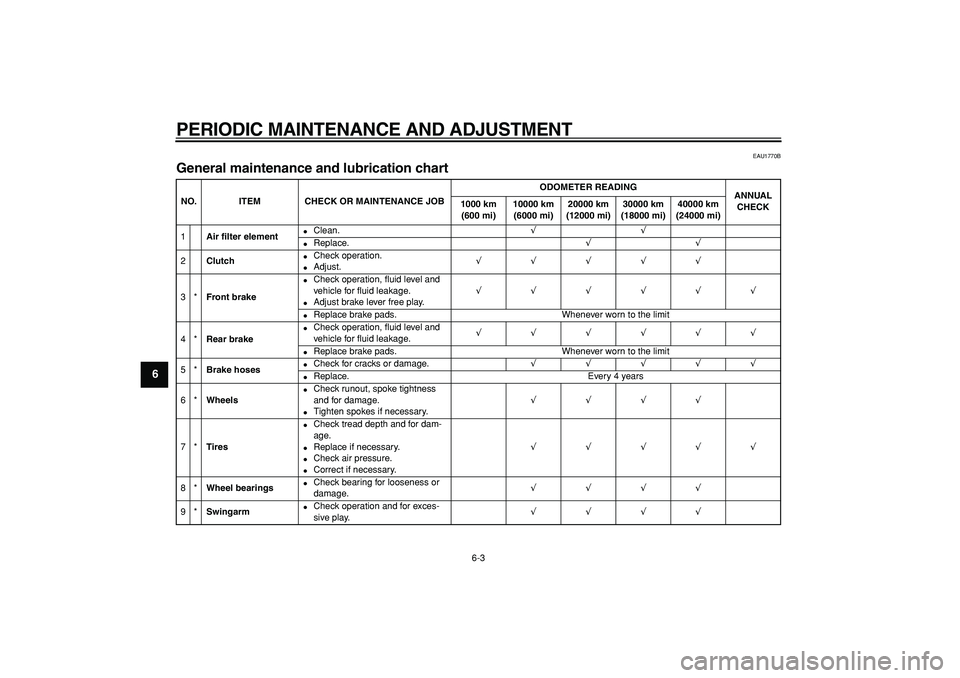

General maintenance and lubrication chart
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1
Air filter element
Clean.
√√
Replace.
√√
2
Clutch
Check operation.
Adjust.
√√√√√
3*
Front brake
Check operation, fluid level and
vehicle for fluid leakage.
Adjust brake lever free play.
√√√√√√
Replace brake pads. Whenever worn to the limit
4*
Rear brake
Check operation, fluid level and
vehicle for fluid leakage.
√√√√√√
Replace brake pads. Whenever worn to the limit
5*
Brake hoses
Check for cracks or damage.
√√√√√
Replace. Every 4 years
6*
Wheels
Check runout, spoke tightness
and for damage.
Tighten spokes if necessary.
√√√√
7*
Tires
Check tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.
√√√√√
8*
Wheel bearings
Check bearing for looseness or
damage.
√√√√
9*
Swingarm
Check operation and for exces-
sive play.
√√√√
PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
2
3
4
5
67
8
9
10
Drive chain
Check chain slack, alignment and
condition.
Adjust and lubricate chain with a
special O-ring chain lubricant
thoroughly.Every 500 km (300 mi) and after washing the motorcycle or riding in the rain
11
*
Steering bearings
Check bearing play and steering
for roughness.
√√√√√
Lubricate with lithium-soap-based
grease.Every 50000 km (30000 mi)
12
*
Chassis fasteners
Make sure that all nuts, bolts and
screws are properly tightened.
√√√√√
13
Brake lever pivot
shaft
Lubricate with silicone grease.
√√√√√
14
Brake pedal pivot
shaft
Lubricate with lithium-soap-based
grease.
√√√√√
15
Clutch lever pivot
shaft
Lubricate with lithium-soap-based
grease.
√√√√√
16
Sidestand
Check operation.
Lubricate.
√√√√√
17
*
Sidestand switch
Check operation.
√√√√√√
18
*
Front fork
Check operation and for oil leak-
age.
√√√√
19
*
Shock absorber
assembly
Check operation and shock
absorber for oil leakage.
√√√√
20
*
Rear suspension
relay arm and con-
necting arm pivoting
points
Check operation.
√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
1
2
3
4
5
6
7
8
9
21
Engine oil
Change.
Check oil level and vehicle for oil
leakage.
√
Every 5000 km (3000 mi)
√
22
Engine oil filter ele-
ment
Replace.
√√√√√
23
*
Cooling system
Check coolant level and vehicle
for coolant leakage.
√√√√√
Change. Every 3 years
24
*
EXUP system
Check operation, cable free play
and pulley position.
√√√
25
*
Front and rear brake
switches
Check operation.
√√√√√√
26
Moving parts and
cables
Lubricate.
√√√√√
27
*
Throttle grip hous-
ing and cable
Check operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.
√√√√√
28
*
Lights, signals and
switches
Check operation.
Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
