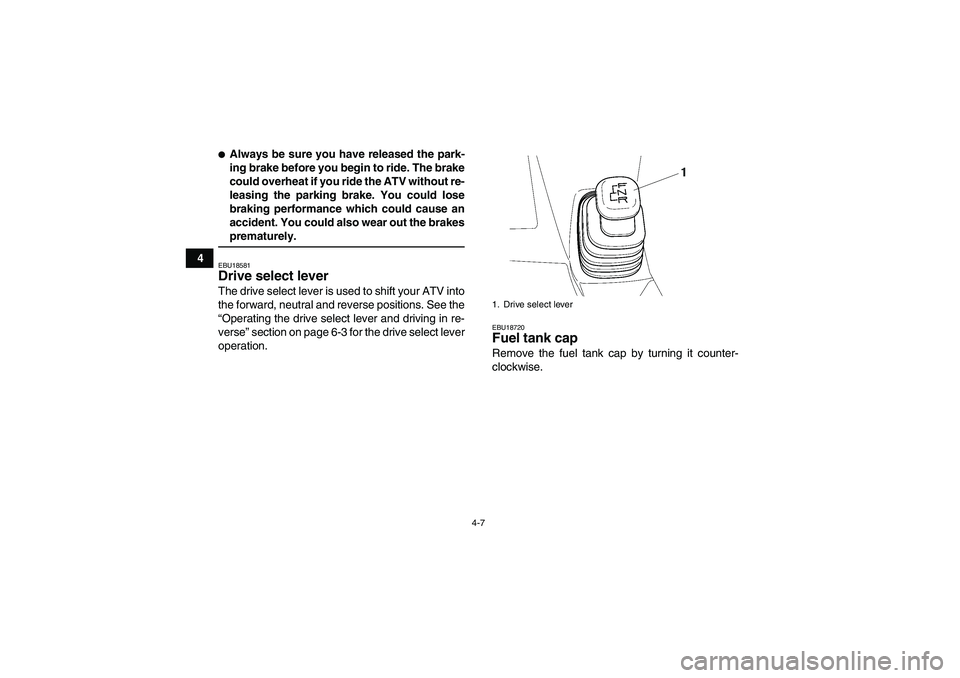

4-7
4

Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakesprematurely.EBU18581Drive select lever The drive select lever is used to shift your ATV into
the forward, neutral and reverse positions. See the
“Operating the drive select lever and driving in re-
verse” section on page 6-3 for the drive select lever
operation.
EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.1. Drive select lever
U3D563E0.book Page 7 Monday, May 12, 2008 11:12 AM

8-38
8 2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING
EWB02171Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-tem, which could lead to a fire.
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.
EBU25541Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the headlight bulb holder cover at the
rear of the headlight by pulling it off.
2. Remove the headlight bulb holder by pushing
it inward and turning it counterclockwise. Specified fuses:
Main fuse:
20.0 A
Headlight fuse:
15.0 A
Ignition fuse:
15.0 A
Signaling system fuse:
10.0 A1. Headlight bulb holder cover
U3D563E0.book Page 38 Monday, May 12, 2008 11:12 AM

8-39
83. Remove the defective bulb from the headlight
unit by pulling it out.
WARNING
EWB02220A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-es something flammable.
4. Install a new headlight bulb into the headlight
unit by aligning the projection on the bulb with
the groove in the headlight unit.
NOTICEECB00650Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a clothmoistened with alcohol or thinner.
5. Install the headlight bulb holder by aligning the
projections with the holes in the headlight unit,
pushing it inward, and turning it clockwise until
it stops.
1. Headlight bulb holder
1. Do not touch the glass part of the bulb.
U3D563E0.book Page 39 Monday, May 12, 2008 11:12 AM

8-41
82. Remove the defective bulb by pushing it in
and turning it counterclockwise.3. Insert a new bulb into the socket, push it in,
and then turn it clockwise until it stops.
4. Install the lens by installing the screws.
NOTICEECB00700Do not overtighten the screws, otherwise thelens may break.EBU25651Removing a wheel 1. Place the ATV on a level surface.
2. Loosen the wheel nuts.
3. Elevate the ATV and place a suitable stand
under the frame.
1. Screw
1. Tail/brake light bulb
1. Wheel nut
