2009 YAMAHA VMAX display

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Speedometer unit ............................3-5
Multi-function display .......................3-6
Anti-theft alarm (optional) ..............3-14
Handlebar switches .......................3-15
Clutch lever ....................................3-16
Shift pedal ......................................3-17
Brake lever ....................................3-17
Brake pedal ...................................3-18
ABS ...............................................3-18
Fuel tank cap .................................3-19
Fuel ................................................3-20
Catalytic converters .......................3-22
Seats .............................................3-22
Adjusting the front fork ...................3-24
Adjusting the shock absorber
assembly ....................................3-26
Luggage strap holders ...................3-28
EXUP system ................................3-28
Sidestand .......................................3-29Ignition circuit cut-off system ......... 3-29
FOR YOUR SAFETY –
PRE-OPERATION CHECKS
.............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS
.................................. 5-1
Starting the engine .......................... 5-1
Shifting ............................................ 5-2
Engine break-in ............................... 5-3
Parking ............................................ 5-3
PERIODIC MAINTENANCE AND
ADJUSTMENT
.................................... 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and
lubrication chart ........................... 6-2
Removing and installing the
cowling and panels ...................... 6-6
Checking the spark plugs ................ 6-8
Engine oil and oil filter cartridge ...... 6-9
Final gear oil .................................. 6-12
Coolant .......................................... 6-14
Air filter element ............................ 6-17
Checking the engine idling
speed ......................................... 6-17
Checking the throttle cable free
play ............................................ 6-17
Valve clearance ............................. 6-18
Tires .............................................. 6-18
Cast wheels ................................... 6-20Clutch lever ................................... 6-21
Checking the front brake lever
free play ..................................... 6-21
Adjusting the rear brake light
switch ......................................... 6-22
Checking the front and rear brake
pads ........................................... 6-22
Checking the brake fluid level ....... 6-23
Changing the brake and clutch
fluids .......................................... 6-24
Checking and lubricating the
cables ........................................ 6-24
Checking and lubricating the
throttle grip and cable ................ 6-24
Checking and lubricating the
brake and clutch levers .............. 6-25
Checking and lubricating the
brake pedal ................................ 6-25
Checking and lubricating the
shift pedal .................................. 6-26
Checking and lubricating the
sidestand ................................... 6-26
Checking the front fork .................. 6-26
Checking the steering ................... 6-27
Checking the wheel bearings ........ 6-28
Battery ........................................... 6-28
Replacing the fuses ...................... 6-31
Replacing the headlight bulb ........ 6-32
Tail/brake light ............................... 6-34
Replacing a turn signal light
bulb ............................................ 6-34

DESCRIPTION
2-3
1
2
3
4
5
6
7
8
9

EAU10430
Controls and instruments
123 4 67 8
9 10 11
5

1. Clutch lever (page 3-16)
2. Left handlebar switches (page 3-15)
3. Clutch fluid reservoir (page 6-23)
4. Speedometer unit (page 3-5)
5. Shift timing indicator light
6. Front brake fluid reservoir (page 6-23)
7. Right handlebar switches (page 3-15)
8. Brake lever (page 3-17)9. Throttle grip (page 6-17)
10. Multi-function display (page 3-6)
11. Main switch/steering lock (page 3-2)

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9

EAU39501
ABS warning light “”
If this warning light comes on or flashes
while riding, the ABS may not work cor-
rectly. If this occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-18.)
WARNING

EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU38621
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the keyto “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a
self-diagnosis device for the immobiliz-
er system. (See page 3-13 for an expla-
nation of the self-diagnosis device.)
EAU46622
Speedometer unit
Speedometer
The speedometer shows the riding speed.
TIP

For the U.K.
The speedometer display can be
switched between kilometers and
miles. (See page 3-6 for details.)
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
ABS

1. Tachometer
2. Shift timing indicator light
3. Tachometer red zone
4. Speedometer
12
4
3

INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
within the ideal power range. When the
key is turned to “ON”, the tachometer
needle will sweep once across the r/
min range and then return to zero r/min
in order to test the electrical circuit.
NOTICE

ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 9500 r/min and above
Shift timing indicator light
See page 3-7 for an explanation and
settings for this indicator light.
EAU46583
Multi-function display
WARNING

EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
A “SELECT” button and a “RESET”
button are located on the handlebar
holder. These buttons allow you to con-
trol or change the settings in the
multi-function display.The multi-function display is set to the
Normal mode every time the key is
turned to “ON”.
Normal mode
The following functions are available in
the Normal mode:


an odometer (which shows the to-
tal distance traveled)

a clock

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning indicator
1. Multi-function display1

1. “SELECT” button
2. “RESET” button
12

INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9
started flashing)


a fuel meter

a transmission gear indicator

a coolant temperature display

a self-diagnosis device
TIP

For the U.K. only:
The speedometer and odometer/trip-
meter displays can be switched be-
tween miles and kilometers. To switch
the speedometer and odometer/tripme-
ter displays, press “SELECT” for at
least two seconds.
Tripmeters
Turn the key to “ON”. Push “SELECT”
to switch the display between the trip-
meters “TRIP-1” and “TRIP-2” in the fol-
lowing order.
TRIP-1
→
TRIP-2
→
TRIP-1
When the fuel amount in the fuel tank
decreases to 3.9 L (1.03 US gal, 0.86
Imp.gal), the fuel warning indicator
starts flashing, and the tripmeter auto-
matically changes to the fuel reserve
tripmeter “TRIP-F” and starts counting
the distance traveled from that point. In
that case, push “SELECT” to switch the
display between the various tripmeters
in the following order:
TRIP-F
→
TRIP-1
→
TRIP-2
→
TRIP-F
To reset a tripmeter, select it by push-
ing “SELECT”, and then push “RESET”
for at least one second. If you do not re-
set the fuel reserve tripmeter manually,
it resets itself automatically and the dis-
play returns to the prior meter after re-
fueling and traveling 5 km (3 mi).
Select mode
The various functions of this multi-func-
tion display are adjusted in the Select
mode.
TIP


The transmission must be in neu-
tral to change settings in this
mode.

Shifting the transmission into gear
saves all settings made, then can-
cels the Select mode and displays
the Normal mode in all screens.

Depending on the screen, pushing
“RESET” saves settings or can-
cels the Select mode to display the
Normal mode.
Push and hold “SELECT” and “RESET”
for at least three seconds to enter the
Select mode.
The following items can be set/adjusted
in this mode:

brightness

shift timing indicator light
1. Odometer
2. Clock
3. Tripmeters/fuel reserve tripmeter
4. Fuel meter
5. Transmission gear indicator
6. Coolant temperature display
1
23
4
56

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9


clock

stopwatch

countdown clock

system status

maintenance counters
TIP

To return to the Normal mode, push
“SELECT” to scroll to “”, then push
“RESET”.
Adjusting the brightness
This function allows you to adjust the
brightness of the tachometer unit panel
(“Meter panel”), the tachometer needle
(“Needle”), and the speedometer and
multi-function displays (“Display”) to
suit the outside lighting conditions.
1. Push “SELECT” to highlight
“Brightness”.
2. Push “RESET”, then push “SE-
LECT” to scroll through the func-
tions and to highlight an item.3. Push “RESET”; the brightness lev-
el segments for the selected item
starts flashing.
4. Push “SELECT” to highlight the
desired brightness level.
5. Push “RESET” to set the bright-
ness level.
6. Push “SELECT” to scroll to “”,
then push “RESET” to return to the
previous menu.
Selecting the shift timing indicator light
settings
This function allows you to choose
whether or not the shift timing indicator
light is activated and whether it flashes
or stays on when activated.
1. Push “SELECT” to highlight “Shift
light”.
2. Push “RESET”.
3. Push “SELECT” to highlight “Oper-
ation selection”.
4. Push “RESET”.
Push “SELECT” and highlight “On”
to activate the indicator light; the
indicator light comes on and stays
on when activated.
Push “SELECT” and highlight

1. Shift timing indicator light
1

INSTRUMENT AND CONTROL FUNCTIONS
3-9
2
34
5
6
7
8
9
“Flash” to activate the indicator
light; the indicator light flashes
when activated.
Push “SELECT” and highlight “Off”
to deactivate the indicator light; the
indicator light neither comes on
nor flashes.
TIP

The indicator light flashes once every
two seconds to show that it has been
deactivated. The indicator light goes off
after this menu is exited.
5. Push “SELECT” to scroll to “”,
then push “RESET” to return to the
previous menu.
Setting the r/min in relation to the shift
timing indicator lightThis function allows you to select theengine speed at which the indicator
light is activated and deactivated. All
gears can be set to the same activation/
deactivation r/min or the gears can be
set individually.
Push “SELECT” to highlight “r/min set-
ting”, then push “RESET”.
TIP

The shift timing indicator light can be
set to activate and deactivate between
3000 r/min and 11000 r/min in incre-
ments of 500 r/min.
To set all gears to the same r/min:
1. Push “SELECT” to highlight “All”.
2. Push “RESET”; “On” is displayed.3. Push “RESET” and the r/min digits
start flashing.
4. Push “SELECT” to highlight the
engine speed at which the shift
timing indicator light is activated.
5. Push “RESET” to set the selected
engine speed. “Off” is highlighted
and the r/min digits start flashing.
6. Push “SELECT” to highlight the
engine speed at which the shift
timing indicator light is deactivat-
ed.
7. Push “RESET” to set the selected
engine speed.
8. Push “RESET” again to return to
the previous menu.
To set individual gear r/min:
1. Push “SELECT” to highlight gears
from “1st” through “5th”, then push
“RESET”.

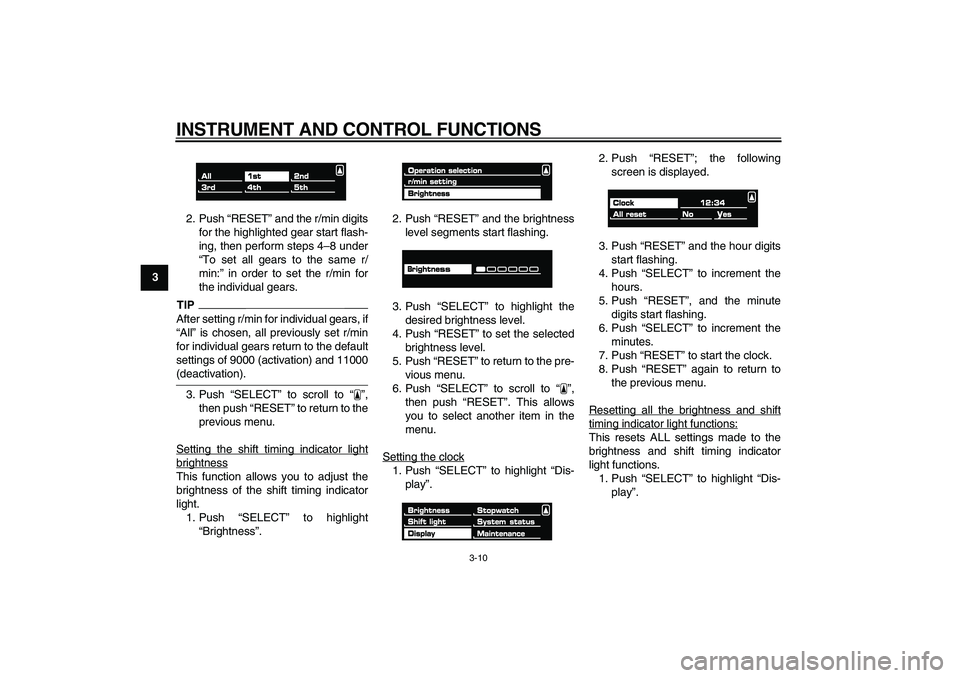

INSTRUMENT AND CONTROL FUNCTIONS
3-10
1
2
3
4
5
6
7
8
9
2. Push “RESET” and the r/min digits
for the highlighted gear start flash-
ing, then perform steps 4–8 under
“To set all gears to the same r/
min:” in order to set the r/min for
the individual gears.
TIP

After setting r/min for individual gears, if
“All” is chosen, all previously set r/min
for individual gears return to the default
settings of 9000 (activation) and 11000
(deactivation).
3. Push “SELECT” to scroll to “”,
then push “RESET” to return to the
previous menu.
Setting the shift timing indicator light
brightnessThis function allows you to adjust the
brightness of the shift timing indicator
light.
1. Push “SELECT” to highlight
“Brightness”.2. Push “RESET” and the brightness
level segments start flashing.
3. Push “SELECT” to highlight the
desired brightness level.
4. Push “RESET” to set the selected
brightness level.
5. Push “RESET” to return to the pre-
vious menu.
6. Push “SELECT” to scroll to “”,
then push “RESET”. This allows
you to select another item in the
menu.
Setting the clock
1. Push “SELECT” to highlight “Dis-
play”.2. Push “RESET”; the following
screen is displayed.
3. Push “RESET” and the hour digits
start flashing.
4. Push “SELECT” to increment the
hours.
5. Push “RESET”, and the minute
digits start flashing.
6. Push “SELECT” to increment the
minutes.
7. Push “RESET” to start the clock.
8. Push “RESET” again to return to
the previous menu.
Resetting all the brightness and shift
timing indicator light functions:This resets ALL settings made to the
brightness and shift timing indicator
light functions.
1. Push “SELECT” to highlight “Dis-
play”.
