2009 YAMAHA SUPERJET tow

Table of contents
Adjusting the steering friction .......... 52
Adjusting the jet thrust nozzle
angle ............................................ 53
Checking and adjusting the throttle
cable ............................................ 54
Cleaning and adjusting the spark
plugs ............................................ 55
Lubrication points ............................ 56
Adjusting the choke cable ............... 57
Checking the battery ....................... 57
Adjusting the carburetor .................. 58
Specifications .................................. 60
Specifications ................................ 60
Trouble recovery ............................. 61
Troubleshooting ........................... 61
Troubleshooting chart ...................... 61
Emergency procedures ................ 63
Cleaning the jet intake and
impeller ........................................ 63
Jumping the battery ......................... 64
Replacing the fuse ........................... 64
Towing the watercraft ...................... 65
Submerged watercraft ..................... 65
UF2F71E0.book Page 2 Thursday, April 10, 2008 11:47 AM

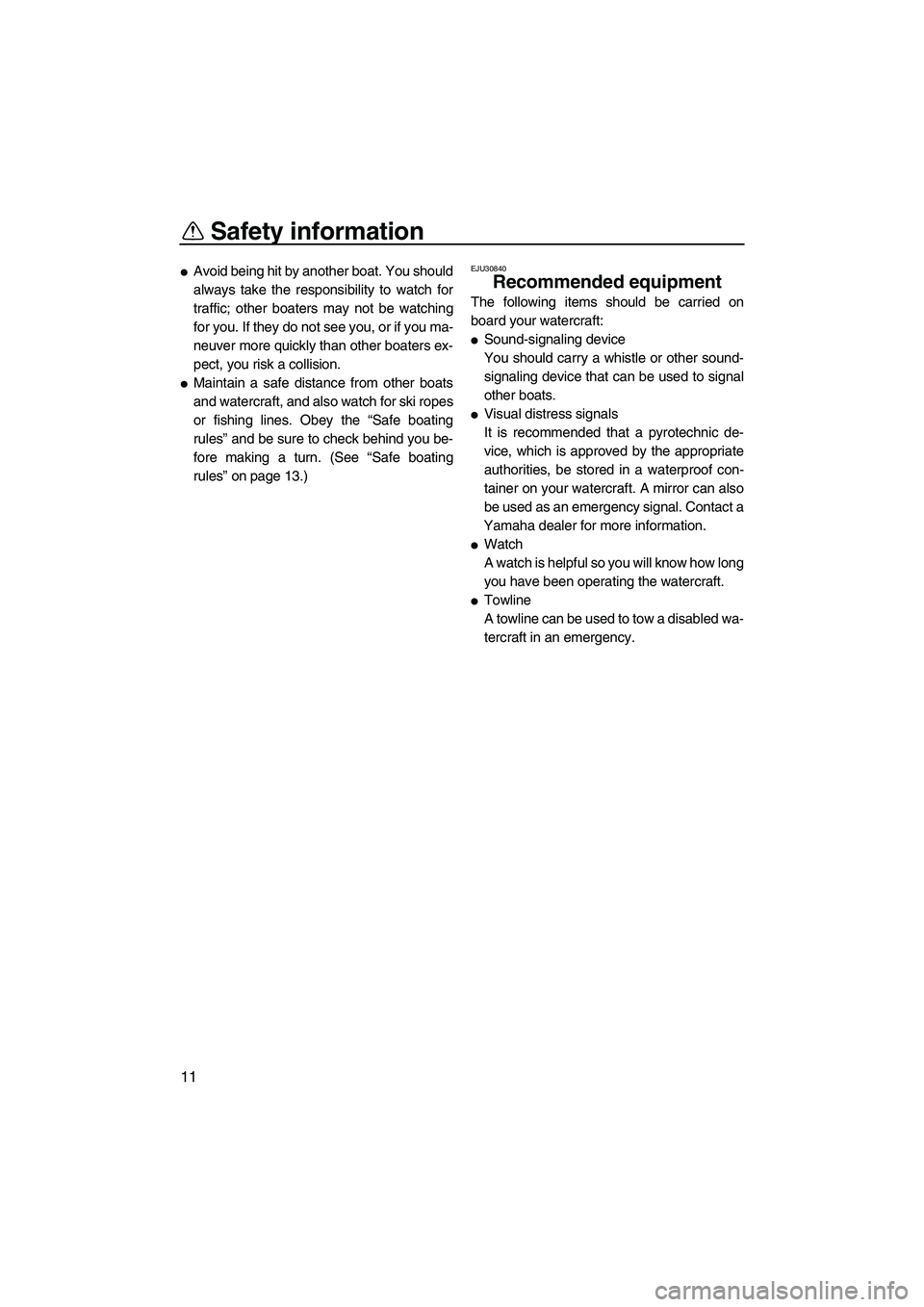

Safety information
11

Avoid being hit by another boat. You should
always take the responsibility to watch for
traffic; other boaters may not be watching
for you. If they do not see you, or if you ma-
neuver more quickly than other boaters ex-
pect, you risk a collision.

Maintain a safe distance from other boats
and watercraft, and also watch for ski ropes
or fishing lines. Obey the “Safe boating
rules” and be sure to check behind you be-
fore making a turn. (See “Safe boating
rules” on page 13.)
EJU30840
Recommended equipment
The following items should be carried on
board your watercraft:

Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to signal
other boats.

Visual distress signals
It is recommended that a pyrotechnic de-
vice, which is approved by the appropriate
authorities, be stored in a waterproof con-
tainer on your watercraft. A mirror can also
be used as an emergency signal. Contact a
Yamaha dealer for more information.

Watch
A watch is helpful so you will know how long
you have been operating the watercraft.

Towline
A towline can be used to tow a disabled wa-
tercraft in an emergency.
UF2F71E0.book Page 11 Thursday, April 10, 2008 11:47 AM

Features and functions
22
EJU31270Steering pole
The steering pole varies in height with the op-
erator’s posture, enabling the operator to as-
sume various riding positions.
When removing the hood for pre-operation
checks, maintenance, etc., lift the steering
pole and use the lock pin to support it. Move
the lock pin into the detent. Make sure that the
lock pin is returned to the stowed position af-
ter installing the hood.
EJU36000Bow rope hole
The bow rope hole is located at the bow of the
watercraft.The bow rope hole is used to attach a rope to
the watercraft when transporting, mooring, or
towing it in an emergency.
EJU36010Stern rope hole
The stern rope hole is located at the stern of
the watercraft.
The stern rope hole is used to attach a rope to
the watercraft when mooring it.
EJU31661Engine overheat warning system
This model is equipped with an engine over-
heat warning system.
If the engine starts to overheat, the engine
speed will be limited to about 3400 r/min.
If this occurs, immediately reduce the engine
speed, return to shore, and then check for wa-
ter discharge at the cooling water pilot outlet
while the engine is running. If there is no dis-
charge of water, check the intake grate and
1Steering pole
2Lock pin
1Bow rope hole
1Stern rope hole
UF2F71E0.book Page 22 Thursday, April 10, 2008 11:47 AM

Operation
39
EJU33201Capsized watercraft
WARNING
EWJ00671
Improper uprighting can cause injury.

Be sure to shut the engine off by pulling
on the engine shut-off cord (lanyard) to
remove the clip from the engine shut-off
switch.

Do not put your hands in the intake
grate.
If the watercraft capsizes, turn it over immedi-
ately.
Be sure to carefully follow the procedures be-
low to prevent injury, or damage to the water-
craft.
(1) Remove the clip from the engine shut-off
switch.
(2) Swim to the rear of the watercraft and up-
right it by turning it clockwise only.
If the port (left) side of the capsized wa-
tercraft is tilting up, push down on the
gunwale so that the port (left) side is
down before turning the watercraft clock-
wise. NOTICE: Do not turn the water-
craft over counterclockwise,
otherwise water can enter the engine,which can result in severe damage.
[ECJ00541]
(3) Start the engine and operate the water-
craft as straight as possible and above
planing speed for at least 2 minutes to
discharge any water remaining in the en-
gine compartment. (If the engine does
not start, see “Towing the watercraft” on
page 65 or “Submerged watercraft” on
page 65.) NOTICE: Do not operate the
engine at full throttle for at least 1
minute after the engine has been re-
started. Excessive water in the engine
compartment can splash into the en-
gine, which can result in severe dam-
age.
[ECJ00551]
To stabilize the watercraft when acceler-
ating to planing speed, maintain a low
center of gravity by operating it in the
kneeling position.
UF2F71E0.book Page 39 Thursday, April 10, 2008 11:47 AM

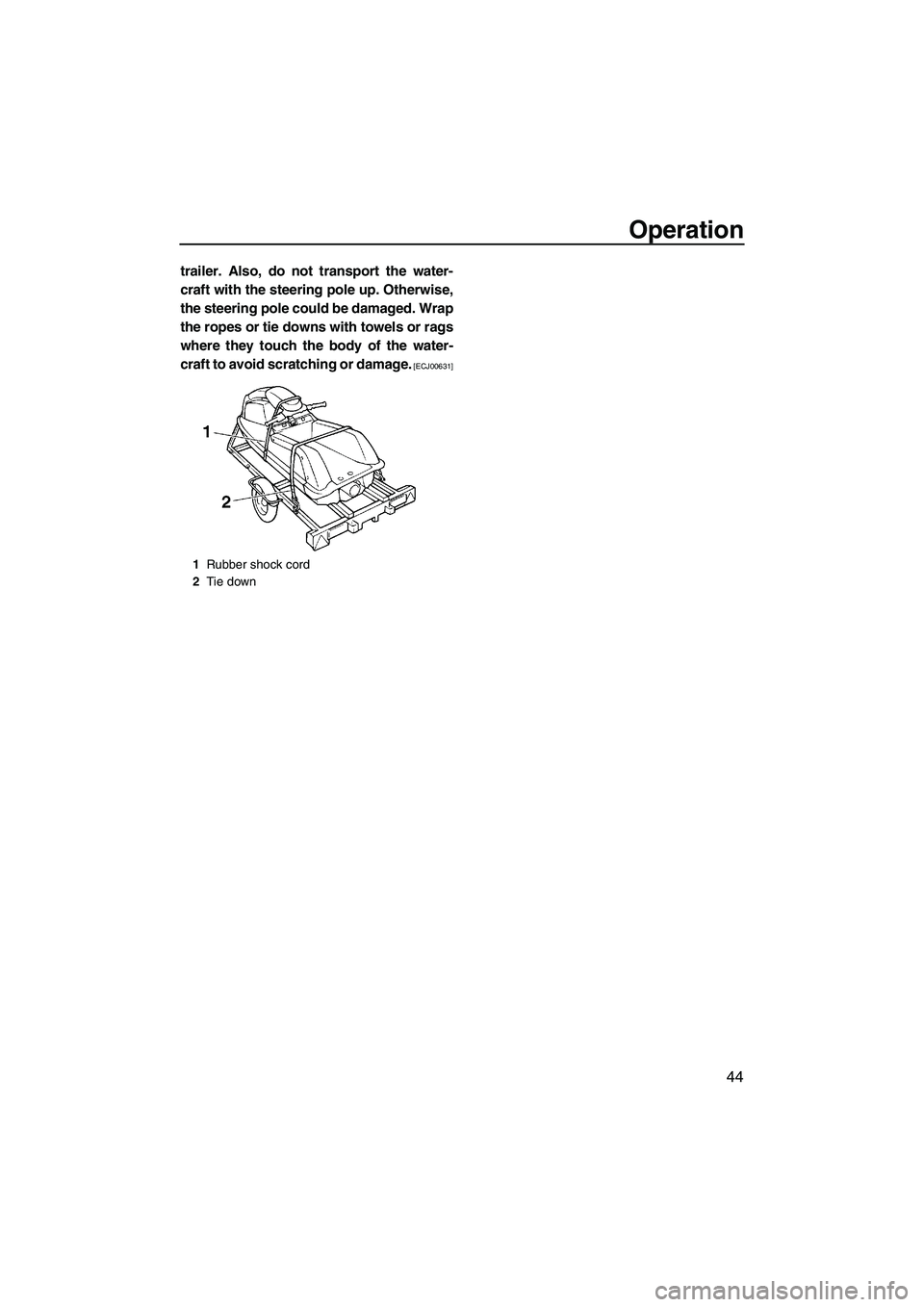

Operation
44
trailer. Also, do not transport the water-
craft with the steering pole up. Otherwise,
the steering pole could be damaged. Wrap
the ropes or tie downs with towels or rags
where they touch the body of the water-
craft to avoid scratching or damage.
[ECJ00631]
1Rubber shock cord
2Tie down
UF2F71E0.book Page 44 Thursday, April 10, 2008 11:47 AM

Trouble recovery
65
system damage and possible fire.
[EWJ00801]
EJU34702
Towing the watercraft
WARNING
EWJ00811

The operator of the towing boat must
keep speed to a minimum and avoid traf-
fic or obstacles which could be a hazard
to the operator on the watercraft.

The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
When the watercraft is towed using a towline,
the operator should ride the watercraft, hold-
ing onto the handlebars and supporting his or
her body weight on the riding tray. This will
help keep the bow of the watercraft out of the
water.
Use a towline that is three times the combined
length of the towing boat and the watercraft.Tow the watercraft using the bow rope hole
only.
Tow the watercraft at 5 mph (8 km/h) or less.
The bow must be kept up out of the water dur-
ing towing to prevent water from entering the
engine compartment.
EJU34731Submerged watercraft
If the watercraft is submerged or flooded with
water, follow the procedure below and consult
a Yamaha dealer as soon as possible. Failure
to do so could result in serious engine dam-
age.
(1) Beach the watercraft and remove the
hood.
(2) Turn the fuel cock knob to “OFF”.
(3) Turn the watercraft over far enough to
drain the water from the engine compart-
ment. NOTICE: Turning the watercraft
on its side with the hood removed
could cause damage to the steering
pole. Use two people to provide
enough support to make sure that the
steering pole is not damaged.
[ECJ00701]
(4) Turn the watercraft upright again.
(5) Have the watercraft inspected by a
Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could re-
sult.
[ECJ00791]
1Electrical box
2Fuse holder
3Cap
4Fuse
Fuse amperage:
Battery fuse:
10 A
1Bow rope hole
UF2F71E0.book Page 65 Thursday, April 10, 2008 11:47 AM

Index
Primary Identification (PRI-ID) number ...... 1
R
Recommended equipment ....................... 11
S
Safe boating rules .................................... 13
Spark plugs, cleaning and adjusting ........ 55
Standing ................................................... 36
Start switch............................................... 20
Starting the engine ................................... 32
Starting the watercraft .............................. 36
Steering friction, adjusting ........................ 52
Steering pole ...................................... 22, 30
Steering system ................................. 21, 29
Stern rope hole......................................... 22
Stopping the engine ................................. 34
Stopping the watercraft ............................ 41
Storage..................................................... 45
Storage pouch .......................................... 23
Submerged watercraft .............................. 65
Switches ................................................... 30
T
Throttle cable, checking and adjusting ..... 54
Throttle lever ...................................... 20, 29
Towing the watercraft ............................... 65
Transporting ............................................. 43
Trolling speed, adjusting .......................... 58
Troubleshooting ....................................... 61
Troubleshooting chart .............................. 61
Turning the watercraft .............................. 40
W
Water separator ....................................... 27
Watercraft characteristics......................... 12
