2009 YAMAHA PW50 engine

OPERATION AND IMPORTANT RIDING POINTS
5-4
1
2
3
4
5
6
7
8
9

EAU40722
Parking
When parking, stop the engine, and
then turn the fuel cock lever to “S”
(stop).
WARNING

EWA10311

Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.

Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.

Do not park near grass or other
flammable materials which
might catch fire.

6-1
2
3
4
5
67
8
9

PERIODIC MAINTENANCE AND ADJUSTMENT
EAU41951
Periodic inspection, adjustment, and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. Safety is an obligation of the vehi-
cle owner/operator. The most important
points of vehicle inspection, adjust-
ment, and lubrication are explained on
the following pages.
WARNING

EWA10321
Failure to properly maintain the ve-
hicle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer perform
service.
WARNING

EWA15121
Turn off the engine when performing
maintenance unless otherwise
specified.

A running engine has moving
parts that can catch on body
parts or clothing and electricalparts that can cause shocks or
fires.

Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more in-
formation about carbon monox-
ide.
EAU17311
Owner’s tool kit
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
TIP

If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.

PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
1
2
3
4
5
6
7
8
9

EAU41741
Periodic maintenance chart for the emission control system
TIP


From 18 months, repeat the maintenance intervals starting from 6 months.

Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
NO. ITEM CHECK OR MAINTENANCE JOBINITIALTHEREAFTER
EVERY
1
month3
months6
months6
months12
months
1*Fuel line
Check fuel hoses for cracks or damage.Replace if necessary.
2Spark plugCheck condition.Adjust gap and clean.Replace if necessary.
3Air filter elementClean with solvent.Replace if necessary.
4*CarburetorCheck engine idling speed and starter operation.Adjust if necessary.Clean.
5*Cylinder head and
exhaust systemCheck for leakage.Tighten if necessary.Decarbonize if necessary.
6*Spark arresterClean.

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
1
2
3
4
5
6
7
8
9
TIP

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
10
*Transmission oil
Check for oil leakage .Correct if necessary.Change.
11
*Front and rear brake
lever pivot
Apply lithium-soap-based grease lightly.
12
*Centerstand pivot
Check operation.Apply lithium-soap-based grease lightly.
13
*Shock absorber
assemblies
Check operation and for oil leakage.Replace if necessary.
14
*Control cable
Apply Yamaha chain and cable lube or engine oil
10W-30 lightly.
15
*Throttle grip housing
and cable
Check operation and free play.Apply Yamaha chain and cable lube or engine oil
10W-30 lightly. NO. ITEM CHECK OR MAINTENANCE JOBINITIALTHEREAFTER
EVERY
1
month3
months6
months6
months12
months

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
2
3
4
5
67
8
9

EAU19603
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.
To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
TIP

If the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electrode
erosion and excessive carbon orother deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
1. Spark plug cap
1

1. Spark plug wrench
1

Specified spark plug:
NGK/BP4HS (AUS)(NZL)
NGK/BPR4HS
(AUT)(BEL)(CAN)(CHE)(DEU)
(DNK)(ESP)(FIN)(FRA)(GBR)(GRC)
(IRL)(NLD)(NOR)(PRT)(SWE)(ZAF)
DENSO/W14FPL (AUS)(NZL)
1. Spark plug gap
1

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
1
2
3
4
5
6
7
8
9
2. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
TIP

If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
4. Install the spark plug cap.
EAU41102
Removing the power
reduction plate
To obtain full engine performance ca-
pability, removing the power reduction
plate is required.
1. Remove the exhaust manifold by
removing the bolts.
WARNING!
Always let the exhaust system
cool prior to touching exhaust
components.
[EWA14581]

2. Remove the gasket.
3. Remove the power reduction
plate.
TIP

Store the power reduction plate with the
Owner’s Manual so that it is readily
available whenever you want to reduce
the engine power.
4. Install the exhaust manifold by in-
stalling the bolts.
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
20 Nm (2.0 m·kgf, 14.5 ft·lbf)
1. Exhaust manifold bolt
1

1. Exhaust manifold
2. Gasket
3. Power reduction plate
Tightening torque:
Exhaust manifold bolt:
8.5 Nm (0.9 m·kgf, 6.1 ft·lbf)
1
23

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
2
3
4
5
67
8
9

EAU40892

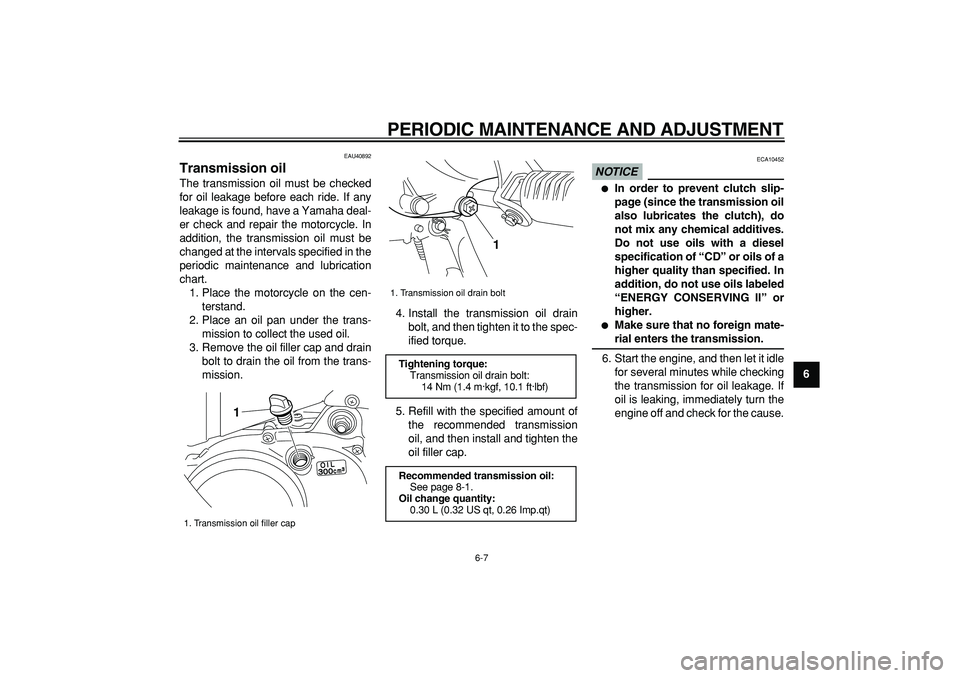

Transmission oil
The transmission oil must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the transmission oil must be
changed at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Place the motorcycle on the cen-
terstand.
2. Place an oil pan under the trans-
mission to collect the used oil.
3. Remove the oil filler cap and drain
bolt to drain the oil from the trans-
mission.4. Install the transmission oil drain
bolt, and then tighten it to the spec-
ified torque.
5. Refill with the specified amount of
the recommended transmission
oil, and then install and tighten the
oil filler cap.
NOTICE

ECA10452

In order to prevent clutch slip-
page (since the transmission oil
also lubricates the clutch), do
not mix any chemical additives.
Do not use oils with a diesel
specification of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

Make sure that no foreign mate-
rial enters the transmission.
6. Start the engine, and then let it idle
for several minutes while checking
the transmission for oil leakage. If
oil is leaking, immediately turn the
engine off and check for the cause.
1. Transmission oil filler cap
1

1. Transmission oil drain bolt
Tightening torque:
Transmission oil drain bolt:
14 Nm (1.4 m·kgf, 10.1 ft·lbf)
Recommended transmission oil:
See page 8-1.
Oil change quantity:
0.30 L (0.32 US qt, 0.26 Imp.qt)
1

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
2
3
4
5
67
8
9

not dripping.
5. Insert the sponge material into the
air filter case.
NOTICE:
Make sure
that the sponge material is prop-
erly seated in the air filter case.
The engine should never be op-
erated without the sponge mate-
rial installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA15621]

6. Install the air filter case cover by in-
stalling the screw.
7. Install the seat.
EAU41220
Cleaning the spark arrester
The spark arrester should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
WARNING

EWA10980

Always let the exhaust system
cool prior to touching exhaust
components.

Do not start the engine when
cleaning the exhaust system.
TIP

Make sure to select a well-ventilated
area free of combustible materials to
clean the spark arrester.
1. Remove the tailpipe by removing
the screw, and then pulling it out of
the muffler.2. Tap the tailpipe lightly, and then
use a wire brush to remove any
carbon deposits from the spark ar-
rester portion of the tailpipe and in-
side of the tailpipe housing.
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
1. Tailpipe
2. Screw
3. Muffler
1
2
3
