PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
EAU36809

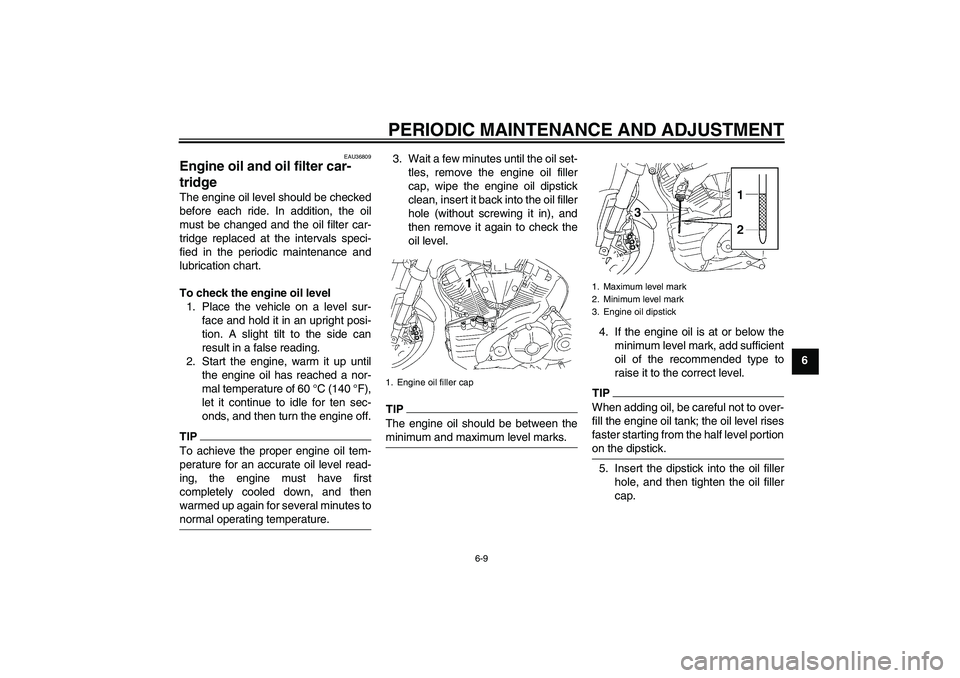

Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up until
the engine oil has reached a nor-
mal temperature of 60 °C (140 °F),
let it continue to idle for ten sec-
onds, and then turn the engine off.TIPTo achieve the proper engine oil tem-
perature for an accurate oil level read-
ing, the engine must have first
completely cooled down, and then
warmed up again for several minutes to
normal operating temperature.
3. Wait a few minutes until the oil set-
tles, remove the engine oil filler
cap, wipe the engine oil dipstick
clean, insert it back into the oil filler
hole (without screwing it in), and
then remove it again to check the
oil level.TIPThe engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.TIPWhen adding oil, be careful not to over-
fill the engine oil tank; the oil level rises
faster starting from the half level portion
on the dipstick.5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
1. Engine oil filler cap
1. Maximum level mark
2. Minimum level mark
3. Engine oil dipstick
U5YUE5E0.book Page 9 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
65. Insert a new bulb into the socket.
6. Install the socket (together with the
bulb) by turning it clockwise.
7. Install the headlight unit side cover
and the headlight unit side cover
bracket by installing the screws.
8. Install the headlight unit by install-
ing the bolts.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placinga jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. Auxiliary light bulbU5YUE5E0.book Page 32 Tuesday, March 17, 2009 9:02 AM

INDEXAAir filter element .................................... 6-13
Anti-theft alarm (optional)........................ 3-9
Auxiliary light bulb, replacing ................ 6-31BBattery................................................... 6-25
Brake and clutch fluids, changing ......... 6-19
Brake and clutch levers, checking and
lubricating ........................................... 6-22
Brake and shift pedals, checking and
lubricating ........................................... 6-22
Brake fluid level, checking .................... 6-18
Brake lever ............................................ 3-12
Brake pedal ........................................... 3-12CCables, checking and lubricating .......... 6-21
Care ........................................................ 7-1
Catalytic converters .............................. 3-15
Clutch lever .................................. 3-11, 6-16
Cowling, removing and installing ............ 6-7DDimmer switch ...................................... 3-10
Drive chain, cleaning and lubricating .... 6-20
Drive chain slack ................................... 6-19EEngine break-in ....................................... 5-3
Engine oil and oil filter cartridge .............. 6-9
Engine stop switch ................................ 3-10
Engine trouble warning light.................... 3-4
EXUP system ........................................ 3-22FFront and rear brake pads, checking .... 6-17
Front fork, adjusting .............................. 3-16
Front fork, checking .............................. 6-23Fuel....................................................... 3-13
Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather/overflow hose ......... 3-15
Fuel tank cap ........................................ 3-13
Fuses, replacing ................................... 6-26
HHandlebar switches ................................ 3-9
Hazard switch ....................................... 3-10
Headlight bulb, replacing ...................... 6-27
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-23
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-30
Luggage strap holders .......................... 3-21MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function display .............................. 3-5NNeutral indicator light .............................. 3-4PParking ................................................... 5-4Part locations .......................................... 2-1
Pass switch ........................................... 3-10
RRear brake light switch, adjusting ......... 6-17SSafety information ................................... 1-1
Seat ....................................................... 3-16
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assembly, adjusting .... 3-19
Sidestand .............................................. 3-22
Sidestand, checking and lubricating...... 6-23
Spark plugs, checking ............................. 6-8
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-10
Steering, checking................................. 6-24
Storage.................................................... 7-4
Supporting the motorcycle .................... 6-32TTail/brake light ....................................... 6-29
Throttle cable free play, checking ......... 6-13
Throttle grip and cable, checking and
lubricating ........................................... 6-21
Tires ...................................................... 6-14
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-33
Troubleshooting chart ........................... 6-34
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-29
Turn signal switch ................................. 3-10VValve clearance..................................... 6-13
Vehicle identification number .................. 9-1
