2009 YAMAHA MAJESTY 125 charging

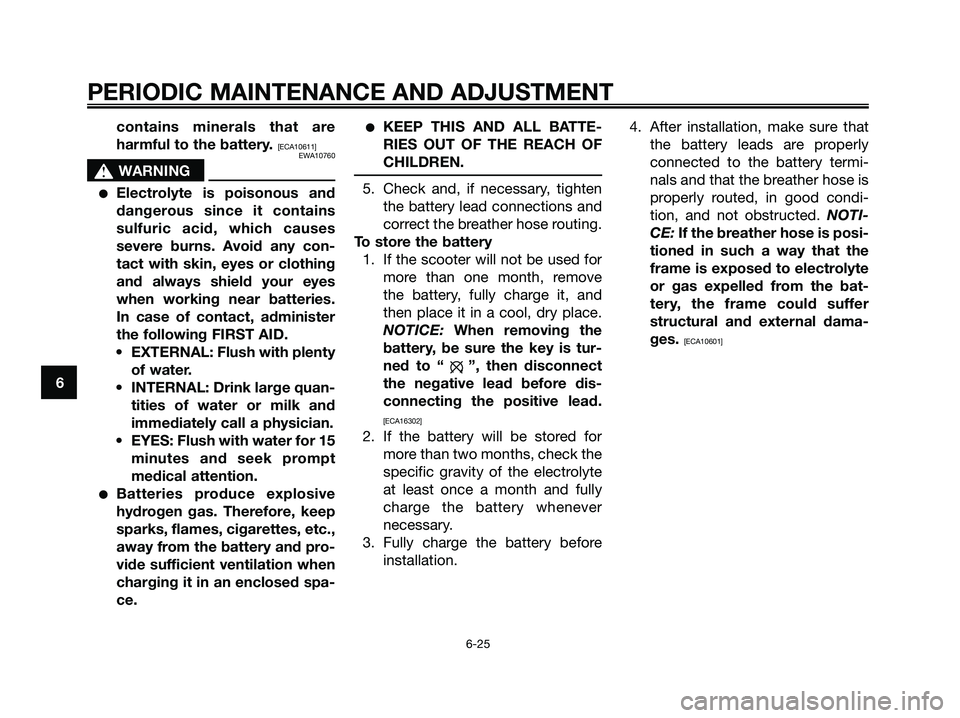

contains minerals that are
harmful to the battery.
[ECA10611]
EWA10760
s s
WARNING
●Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes
severe burns. Avoid any con-
tact with skin, eyes or clothing
and always shield your eyes
when working near batteries.
In case of contact, administer
the following FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quan-
tities of water or milk and
immediately call a physician.
• EYES: Flush with water for 15
minutes and seek prompt
medical attention.
●Batteries produce explosive
hydrogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed spa-
ce.
●KEEP THIS AND ALL BATTE-
RIES OUT OF THE REACH OF
CHILDREN.
5. Check and, if necessary, tighten
the battery lead connections and
correct the breather hose routing.
To store the battery
1. If the scooter will not be used for
more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is tur-
ned to “ ”, then disconnect
the negative lead before dis-
connecting the positive lead.
[ECA16302]
2. If the battery will be stored for
more than two months, check the
specific gravity of the electrolyte
at least once a month and fully
charge the battery whenever
necessary.
3. Fully charge the battery before
installation.4. After installation, make sure that
the battery leads are properly
connected to the battery termi-
nals and that the breather hose is
properly routed, in good condi-
tion, and not obstructed. NOTI-
CE: If the breather hose is posi-
tioned in such a way that the
frame is exposed to electrolyte
or gas expelled from the bat-
tery, the frame could suffer
structural and external dama-
ges.
[ECA10601]
PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 62

Size:
120 / 70 - 12 51L
Manufacturer/model:
PIRELLI / SL66
Manufacturer/model:
MICHELIN / BOOPER
Manufacturer/model:
CONTINENTAL / ZIPPY 1
Rear tire:Type:
Tubeless
Size:
130 / 70 - 12 56L
Manufacturer/model:
PIRELLI / SL66
Manufacturer/model:
MICHELIN / BOOPER
Manufacturer/model:
CONTINENTAL /ZIPPY 1
Loading:Maximum load:
177 kg (390 lb)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
190 kPa (1.90 kgf/cm
2, 28 psi, 1.90 bar)
Rear:
220 kPa (2.20 kgf/cm
2, 32 psi, 2.20 bar)
Loading condition:
90 kg - maximum load
Front:
190 kPa (1.90 kgf/cm
2, 28 psi, 1.90 bar)Rear:
240 kPa (2.40 kgf/cm
2, 35 psi, 2.40 bar)
High-speed riding:Front:
190 kPa (1.90 kgf/cm2, 28 psi, 1.90 bar)
Rear:
220 kPa (2.20 kgf/cm
2, 32 psi, 2.20 bar)
Front wheel:Wheel type:
Cast wheel
Rim size:
12 x MT3.5
Rear wheel:Wheel type:
Cast wheel
Rim size:
12 x MT3.75
Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic forkSpring/shock absorber type:
Coil spring/oil damper
Wheel travel:
90.0 mm (3.54 in)
Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
90.0 mm (3.54 in)
Electrical system:Ignition system:
DC. CDI
Charging system:
AC magneto
Battery:Model:
CB7L-B2
Voltage, capacity:
12 V, 8.0 Ah
Headlight:Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:Headlight:
12 V, 55.0 W x 2
Tail/brake light:
12 V, 21.0 W/5.0 W x 2
Front turn signal light:
12 V, 21.0 W x 2
Rear turn signal light:
12 V, 10.0 W x 2
SPECIFICATIONS
8-2
8
