2009 YAMAHA MAJESTY 125 change time

4. Press the reset button to switch
the mode.
5. Press the reset button for two
seconds to confirm the setting.
TIP
●The odometer/tripmeter reading
mode can be changed any num-
ber of times while the odometer
reading is below 10 (kilometers or
miles), but it cannot be changed
anymore after the reading has
reached 10 (kilometers or miles).
●Switching between the kilometer
mode and the mile mode does
not change or convert the current
odometer/tripmeter reading.
EAUS1460
Fuel and battery voltage
gauge
1. Fuel gauge
2. Battery voltage
When the key is turned to “ ”, the
battery voltage is indicated
for two seconds, and then the amount
of fuel in the fuel tank is indicated.
NOTICE: If the needle drops to the
“10V” (low) mark, have a Yamaha
dealer check the battery.
[ECAS0030]
TIP
●The needle moves towards “E”
(empty) as the fuel level decrea-
ses.
●When the needle reaches “E”,
refuel as soon as possible.Fuel
Battery
1
2
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 19

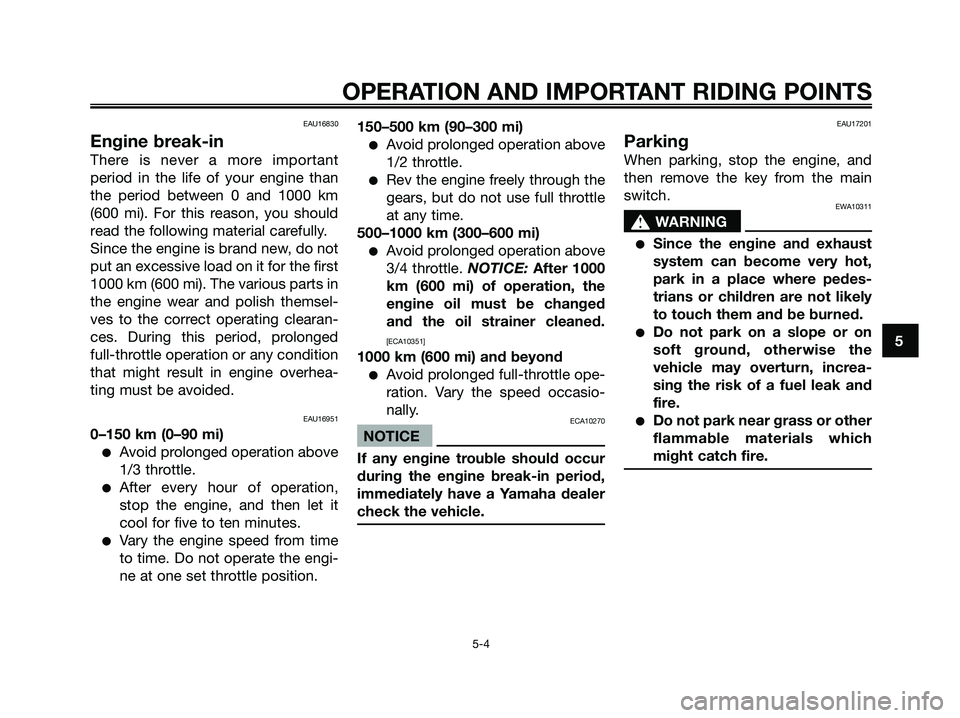

EAU16830
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1000 km
(600 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1000 km (600 mi). The various parts in
the engine wear and polish themsel-
ves to the correct operating clearan-
ces. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAU16951
0–150 km (0–90 mi)
●Avoid prolonged operation above
1/3 throttle.
●After every hour of operation,
stop the engine, and then let it
cool for five to ten minutes.
●Vary the engine speed from time
to time. Do not operate the engi-
ne at one set throttle position.150–500 km (90–300 mi)
●Avoid prolonged operation above
1/2 throttle.
●Rev the engine freely through the
gears, but do not use full throttle
at any time.
500–1000 km (300–600 mi)
●Avoid prolonged operation above
3/4 throttle. NOTICE: After 1000
km (600 mi) of operation, the
engine oil must be changed
and the oil strainer cleaned.
[ECA10351]
1000 km (600 mi) and beyond
●Avoid prolonged full-throttle ope-
ration. Vary the speed occasio-
nally.
ECA10270
NOTICE
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
EAU17201
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10311
s s
WARNING
●Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them and be burned.
●Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn, increa-
sing the risk of a fuel leak and
fire.
●Do not park near grass or other
flammable materials which
might catch fire.
OPERATION AND IMPORTANT RIDING POINTS
5-4
5
5D8-F8199-E1.QXD 10/7/08 07:39 Página 37

6. Refill with the specified amount
of the recommended engine oil,
and then install and tighten the oil
filler cap.
ECA11670
NOTICE
●Do not use oils with a diesel
specification of “CD” or oils of
a higher quality than specified.
In addition, do not use oils
labeled “ENERGY CONSER-
VING II” or higher.
●Be sure no foreign material
enters the crankcase.
7. Start the engine, and then let it
idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the
engine off and check for the cau-
se.
8. Reset the oil change indicator
display according to the follo-
wing procedure.To reset the oil change indicator
display
1. Push the reset button while tur-
ning the key to “ ”.
2. Release the reset button, and the
oil change indicator display will
go off.
TIP
If the engine oil is changed before the
oil change indicator light comes on
(i.e. before the periodic oil change
interval has been reached), the indi-
cator light must be reset after the oil
change for the next periodic oil chan-
ge to be indicated at the correct time.
To reset the oil change indicator light
before the periodic oil change interval
has been reached, follow the above
procedure.
EAU20064
Final transmission oil
The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final trans-
mission oil must be changed as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Start the engine, warm up the
final transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the centers-
tand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the final transmission oil
filler cap and final transmission
drain bolt to drain the oil from the
final transmission case.
Recommended engine oil:
See page 8-1
Oil change quantity:
1.20 L (1.27 US qt, 1.06 Imp.qt)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 48
