2009 YAMAHA GRIZZLY 350 Owners Manual

7-18
7 When this ATV is in 4WD or 4WD-LOCK, all
wheels (front and rear) are interconnected by the
drive train. This means that applying either the
front brake or the rear brake will brake all wheels.
When descending hills, using either brake lever or
the brake pedal will brake the wheels on the down-
hill side. Avoid sudden application of either the
front or rear brake because the wheels on the up-
hill side could come off the ground. Apply both the
front and rear brakes gradually.
Whenever possible, ride your ATV straight down-
hill. Avoid sharp angles which could allow the ATV
to tip or roll over. Carefully choose your path and
ride no faster than you will be able to react to ob-
stacles which may appear.
WARNING
EWB01620Always follow proper procedures for going
down hills as described in this Owner’s Manu-
al.
Note: a special technique is required when
braking as you go down a hill.
Always check the terrain carefully before
you start down any hill.
Shift your weight backward.
Never go down a hill at high speed.

Avoid going down a hill at an angle that
would cause the ATV to lean sharply to one
side. Go straight down the hill where possi-ble.
CROSSING A SLOPE
Traversing a sloping surface on your ATV requires
you to properly position your weight to maintain
proper balance. Be sure that you have learned the
basic riding skills on flat ground before attempting
U4S262E0.book Page 18 Tuesday, June 10, 2008 11:40 AM

7-19
7to cross a sloping surface. Avoid slopes with slip-
pery surfaces or rough terrain that may upset your
balance.
As you travel across a slope, lean your body in the
uphill direction. It may be necessary to correct the
steering when riding on loose surfaces by pointing
the front wheels slightly uphill. When riding on
slopes, be sure not to make sharp turns either up
or down hill.
If your ATV does begin to tip over, gradually steer
in the downhill direction if there are no obstacles in
your path. As you regain proper balance, gradually
steer again in the direction you wish to travel.
WARNING
EWB01631Never attempt to turn the ATV around on any
hill until you have mastered the turning tech-
nique as described in the Owner’s Manual on
level ground. Be very careful when turning on
any hill. Avoid crossing the side of a steep hill
if possible.
When crossing the side of a hill:
Always follow proper procedures as de-
scribed in the Owner’s Manual.
Avoid hills with excessively slippery or loose
surfaces.

Shift your weight to the uphill side of theATV.
CROSSING THROUGH SHALLOW WATER
The ATV can be used to cross slow moving, shal-
low water of up to a maximum of 35 cm (14 in) in
depth. Before entering the water, choose your path
carefully. Enter where there is no sharp drop off,
and avoid rocks or other obstacles which may be
slippery or upset the ATV. Drive slowly and care-
fully.
U4S262E0.book Page 19 Tuesday, June 10, 2008 11:40 AM

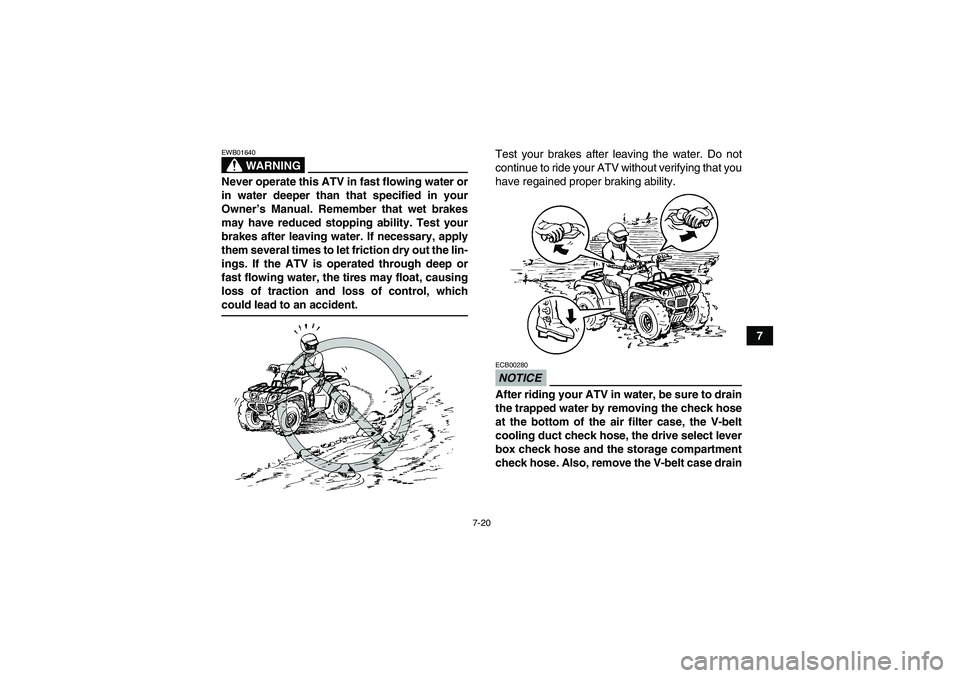

7-20
7
WARNING
EWB01640Never operate this ATV in fast flowing water or
in water deeper than that specified in your
Owner’s Manual. Remember that wet brakes
may have reduced stopping ability. Test your
brakes after leaving water. If necessary, apply
them several times to let friction dry out the lin-
ings. If the ATV is operated through deep or
fast flowing water, the tires may float, causing
loss of traction and loss of control, whichcould lead to an accident.Test your brakes after leaving the water. Do not
continue to ride your ATV without verifying that you
have regained proper braking ability.
NOTICEECB00280After riding your ATV in water, be sure to drain
the trapped water by removing the check hose
at the bottom of the air filter case, the V-belt
cooling duct check hose, the drive select lever
box check hose and the storage compartment
check hose. Also, remove the V-belt case drain
U4S262E0.book Page 20 Tuesday, June 10, 2008 11:40 AM

7-21
7plug to drain any water that may have accumu-
lated. Wash the ATV in fresh water if it has been
operated in salt water or muddy conditions.1. Air filter case check hose
1. V-belt cooling duct check hose (left front side of ATV)
1. Drive select lever box check hose
U4S262E0.book Page 21 Tuesday, June 10, 2008 11:40 AM

7-22
7 RIDING OVER ROUGH TERRAIN
Riding over rough terrain should be done with cau-
tion. Look out for obstacles which could cause
damage to the ATV or could lead to an upset or ac-
cident. Be sure to keep your feet firmly mounted on
the footboards at all times. Avoid jumping the ATV
as loss of control and damage to the ATV may re-
sult.
WARNING
EWB01650Before operating in a new area, check for ob-
stacles. Never attempt to ride over large obsta-
cles, such as large rocks or fallen trees. When
you go over obstacles, always follow proper
procedures as described in the Owner’s Manu-al.
SLIDING AND SKIDDING
Care should be used when riding on loose or slip-
pery surfaces since the ATV may slide. If unex-
pected and uncorrected, sliding could lead to an
accident.
To reduce the tendency for the front wheels to slide
in loose or slippery conditions, positioning your
weight over the front wheels will sometimes help.
1. Storage compartment check hose
1. V-belt case drain plugU4S262E0.book Page 22 Tuesday, June 10, 2008 11:40 AM

7-23
7If the rear wheels of your ATV start to slide side-
ways, control can usually be regained (if there is
room to do so) by steering in the direction of the
slide. Applying the brakes or accelerating is not
recommended until you have corrected the slide.With practice, over a period of time, skill at con-
trolled sliding can be developed. The terrain
should be chosen carefully before attempting such
maneuvers, since both stability and control are re-
duced. Bear in mind that sliding maneuvers should
always be avoided on extremely slippery surfaces
such as ice, since all control may be lost.
WARNING
EWB01661Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain.
U4S262E0.book Page 23 Tuesday, June 10, 2008 11:40 AM

7-24
7 On extremely slippery surfaces, such as ice,
go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of
control.
WHAT TO DO IF...
This section is designed to be a reference guide
only. Be sure to read each section on riding tech-
niques completely.
WHAT TO DO...
If your ATV doesn’t turn when you want it to:
Bring the ATV to a stop and practice the turning
maneuvers again. Be sure you are putting your
weight on the footboard to the outside of the
turn. Position your weight over the front wheels
for better control. (See page 7-13.)
If your ATV begins to tip while turning:
Lean more into the turn to regain balance. If nec-
essary, gradually let off the throttle and/or steer
to the outside of the turn. (See page 7-13.)
If your ATV starts to slide sideways:
Steer in the direction of the slide if you have the
room. Applying the brakes or accelerating is not
recommended until you have corrected the
slide. (See page 7-22.)

If your ATV can’t make it up a hill you are trying
to climb:
Turn the ATV around if you still have forward
speed. If not, stop, dismount on the uphill side of
the ATV and physically turn the ATV around. If
the ATV starts to slip backwards, DO NOT USE
THE REAR BRAKE IF THE ATV IS IN 2WD –
the ATV may tip over on top of you. Dismount
the ATV on the uphill side. (See page 7-14.)
If your ATV is traversing a sloping surface:
Be sure to ride with your weight positioned to-
wards the uphill side of the ATV to maintain
proper balance. If the ATV starts to tip, steer
down the hill (if there are no obstacles in your
way) to regain balance. If you discover that the
ATV is going to tip over, dismount on the uphill
side. (See page 7-18.)
If your ATV encounters shallow water:
Ride slowly and carefully through slow moving
water, watching for obstacles. Be sure to let wa-
ter drain from the ATV and CHECK YOUR
BRAKES FOR PROPER OPERATION when
you come out of the water. Do not continue to
ride your ATV until you have regained adequate
braking ability. (See page 7-19.)
U4S262E0.book Page 24 Tuesday, June 10, 2008 11:40 AM

8-1
8
EBU28782
PERIODIC MAINTENANCE AND MINOR REPAIR
EBU21670Safety is an obligation of the owner. Periodic in-
spection, adjustment and lubrication will keep your
ATV in the safest and best operating condition
possible. The most important points of inspection,
adjustment, and lubrication are explained on the
following pages.
The intervals given in the periodic maintenance
and lubrication chart should be considered as a
general guide under normal riding conditions.
However, DEPENDING ON THE WEATHER,
TERRAIN, GEOGRAPHICAL LOCATION, AND
INDIVIDUAL USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORTENED.
WARNING
EWB01840Never service an engine while it is running.
Moving parts can catch clothing or parts of the
body, causing injury. Electrical components
can cause shocks or start fires. Turn off the en-
gine when performing maintenance unlessotherwise specified. Have a Yamaha dealer
perform the service if you are not familiar with
maintenance work.EBU21730Owner’s manual and tool kit Be sure to put this owner’s manual in the plastic
bag and always carry it on the bottom of the seat
as shown. Put the owner’s tool kit and low-pres-
sure tire gauge under the seat.1. Owner’s manual
2. Owner’s tool kit
3. Low-pressure tire gauge
