2009 YAMAHA GIGGLE50 headlight bulb

1
2
3
4
5
6
7
8
9
EAU10210
TABLE OF CONTENTSSAFETY INFORMATION .................... 1-1
Further safe-riding points ................ 1-5
DESCRIPTION ................................... 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instruments ................ 2-3
INSTRUMENT AND CONTROL FUNC-
TIONS................................................. 3-1
Main switch/steering lock ................ 3-1
Keyhole cover ................................. 3-2
Indicator and warning lights ............ 3-3
Speedometer unit............................ 3-4
Fuel gauge ...................................... 3-5
Handlebar switches........................ 3-5
Front brake lever ............................. 3-6
Rear brake lever ............................. 3-7
Fuel tank cap ................................... 3-7
Fuel................................................. 3-8
Catalytic converters ......................... 3-9
Kickstarter......................................3-10
Seat...............................................3-10
Helmet holder................................3-10
Storage compartment ....................3-11
Luggage hook...............................3-12
FOR YOUR SAFETY - PRE-OPERATION
CHECKS............................................ 4-1
Pre-operation check list .................. 4-2OPERATION AND IMPORTANT RIDING
POINTS............................................... 5-1
Starting the engine .......................... 5-1
Starting off ....................................... 5-2
Acceleration and deceleration........ 5-2
Braking............................................ 5-2
Tips for reducing fuel consumption . 5-3
Engine break-in............................... 5-3
Parking............................................ 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Periodic maintenance and lubrication
chart............................................. 6-2
Removing and installing panels ..... 6-5
Checking the spark plug ................. 6-6
Engine oil........................................ 6-7
Final transmission oil ...................... 6-9
Coolant..........................................6-10
Replacing the air filter element .....6-11
Checking the throttle cable free
play............................................6-12
Valve clearance.............................6-12
Tires...............................................6-12
Cast wheels ...................................6-14
Adjusting the front and rear brake lever
free play .....................................6-14
Checking the front and rear brake
shoes.........................................6-15Checking and lubricating the throttle
grip and cable ............................6-16
Lubricating the front and rear brake
levers.........................................6-16
Checking and lubricating the
centerstand................................6-17
Checking the front fork ..................6-17
Checking the steering ...................6-18
Checking the wheel bearings .......6-18
Battery ...........................................6-19
Replacing the fuse ........................6-20
Replacing the headlight bulb ........6-21
Replacing the tail/brake light
bulb............................................6-22
Replacing a turn signal light
bulb............................................6-22
Troubleshooting............................6-23
Troubleshooting charts.................6-24
SCOOTER CARE AND STORAGE .... 7-1
Matte color caution .......................... 7-1
Care................................................. 7-1
Storage............................................ 7-4
SPECIFICATIONS.............................. 8-1
CONSUMER INFORMATION ............. 9-1
Identification numbers..................... 9-1

6-56
1
2
3
4
5
6
7
8
9
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
1. Remove the headlight unit by re-
moving the screws.ZAUM00**1
2(✕2)
1. Headlight unit
2. Screw2. Disconnect the headlight coupler,
and then remove the bulb cover.ZAUM00**
2
1
1. Headlight coupler
2. Bulb cover
3. Remove the headlight bulb holder
by turning it counterclockwise, and
then remove the burnt-out bulb.ZAUM00**
1
1. Headlight bulb holder4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
5. Install the headlight bulb cover, and
then connect the coupler.
6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the
headlight beam if necessary. Headlight bulb, replacing
EAU23782
Replacing the headlight bulbThis model is equipped with a quartz
bulb headlight. If the headlight bulb burns
out, replace it as follows.
ECA10660
NOTICEDo not touch the glass part of the
headlight bulb to keep it free from oil,
otherwise the transparency of the
glass, the luminosity of the bulb, and
the bulb life will be adversely affected.
Thoroughly clean off any dirt and fin-
gerprints on the headlight bulb us-
ing a cloth moistened with alcohol
or thinner.

8-67
1
2
3
4
5
6
7
8
9
EAU26320

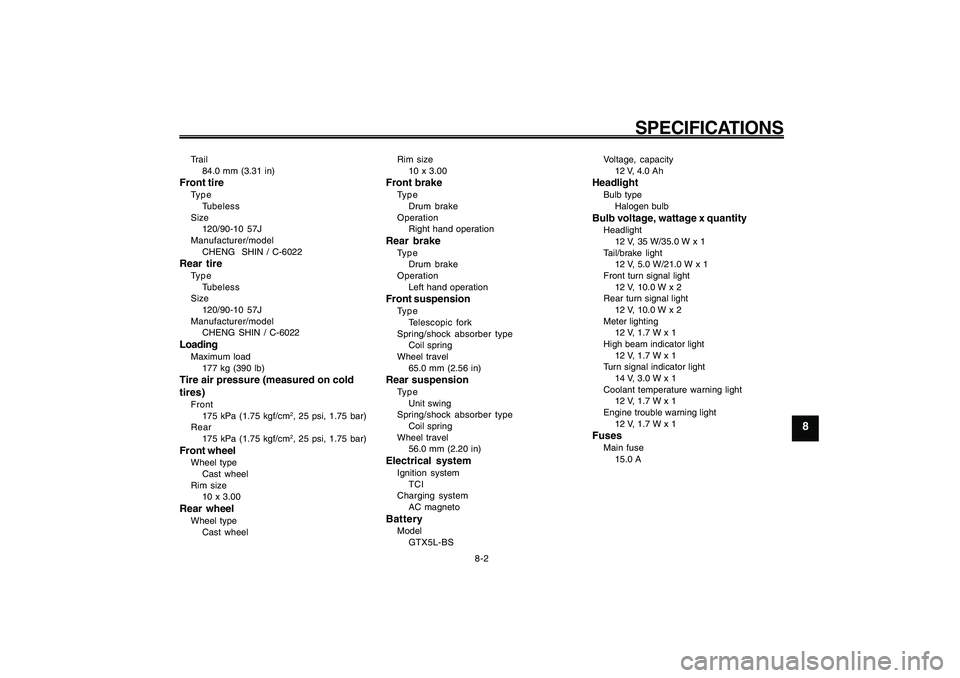

SPECIFICATIONS
8-2 Trail
84.0 mm (3.31 in)
Front tireType
Tubeless
Size
120/90-10 57J
Manufacturer/model
CHENG SHIN / C-6022Rear tireType
Tubeless
Size
120/90-10 57J
Manufacturer/model
CHENG SHIN / C-6022LoadingMaximum load
177 kg (390 lb)Tire air pressure (measured on cold
tires)Front
175 kPa (1.75 kgf/cm
2, 25 psi, 1.75 bar)
Rear
175 kPa (1.75 kgf/cm2, 25 psi, 1.75 bar)
Front wheelWheel type
Cast wheel
Rim size
10 x 3.00Rear wheelWheel type
Cast wheelRim size
10 x 3.00
Front brakeType
Drum brake
Operation
Right hand operationRear brakeType
Drum brake
Operation
Left hand operationFront suspensionType
Telescopic fork
Spring/shock absorber type
Coil spring
Wheel travel
65.0 mm (2.56 in)Rear suspensionType
Unit swing
Spring/shock absorber type
Coil spring
Wheel travel
56.0 mm (2.20 in)Electrical systemIgnition system
TCI
Charging system
AC magnetoBatteryModel
GTX5L-BSVoltage, capacity
12 V, 4.0 Ah
HeadlightBulb type
Halogen bulbBulb voltage, wattage x quantityHeadlight
12 V, 35 W/35.0 W x 1
Tail/brake light
12 V, 5.0 W/21.0 W x 1
Front turn signal light
12 V, 10.0 W x 2
Rear turn signal light
12 V, 10.0 W x 2
Meter lighting
12 V, 1.7 W x 1
High beam indicator light
12 V, 1.7 W x 1
Turn signal indicator light
14 V, 3.0 W x 1
Coolant temperature warning light
12 V, 1.7 W x 1
Engine trouble warning light
12 V, 1.7 W x 1FusesMain fuse
15.0 A

1
2
3
4
5
6
7
8
9
INDEXAAcceleration and deceleration.................. 5-2
Air filter element, replacing .....................6-11BBattery.....................................................6-19
Brake lever, front ...................................... 3-6
Brake lever, rear....................................... 3-7
Brake levers, lubricating.........................6-16
Brake shoes, checking ..........................6-15
Braking...................................................... 5-2CCare.......................................................... 7-1
Catalytic converters................................. 3-9
Centerstand, checking and lubricating ..6-17
Coolant....................................................6-10
Coolant temperature warning light ........... 3-3DDimmer switch.......................................... 3-6EEngine break-in ......................................... 5-3
Engine oil ................................................... 6-7
Engine trouble warning light ..................... 3-4FFinal transmission oil................................ 6-9
Front and rear brake lever free play,
adjusting...............................................6-14
Front fork, checking...............................6-17
Fuel........................................................... 3-8
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge ................................................ 3-5
Fuel tank cap ............................................ 3-7
Fuse, replacing.......................................6-20
HHandlebar switches.................................. 3-5
Headlight bulb, replacing........................6-21
Helmet holder..........................................3-10
High beam indicator light .......................... 3-3
Horn switch............................................... 3-6IIdentification numbers.............................. 9-1
Indicator and warning lights ..................... 3-3KKey identification number......................... 9-1
Keyhole cover........................................... 3-2
Kickstarter..............................................3-10LLuggage hook .........................................3-12MMain switch/steering lock......................... 3-1
Matte color, caution .................................. 7-1
Model label................................................ 9-2PPanels, removing and installing................ 6-5
Parking...................................................... 5-4
Part locations............................................ 2-1
Periodic maintenance and lubrication
chart ....................................................... 6-2
Pre-operation check list........................... 4-2SSafe-riding points...................................... 1-5
Safety information..................................... 1-1
Seat .........................................................3-10
Spark plug, checking................................ 6-6
Specifications............................................ 8-1Speedometer unit..................................... 3-4
Start switch............................................... 3-6
Starting off ................................................. 5-2
Starting the engine.................................... 5-1
Steering, checking..................................6-18
Storage..................................................... 7-4
Storage compartment.............................3-11
TTail/brake light bulb, replacing ................6-22
Throttle cable free play, checking ..........6-12
Throttle grip and cable, checking and
lubricating.............................................6-16
Tires........................................................6-12
Troubleshooting......................................6-23
Troubleshooting charts...........................6-24
Turn signal indicator light.......................... 3-3
Turn signal light bulb, replacing ..............6-22
Turn signal switch ..................................... 3-6VValve clearance......................................6-12
Vehicle identification number .................... 9-1WWheel bearings, checking ......................6-18
Wheels....................................................6-14
