EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
torque. WARNING! Make sure that
no foreign material enters the fi-
nal transmission case. Make sure
that no oil gets on the tire or
wheel.
[EWA11311]
Tightening torque:
Final transmission oil filler bolt:

Recommended final transmission oil:
See page 8-1.
Oil quantity:
0.10 L (0.11 US qt, 0.09 Imp.qt)7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart. Coolant
EAUT1523
To check the coolant level
The coolant level should be checked as
follows before each ride. In addition, the
coolant must be changed at the inter-
vals specified in the periodic mainte-
nance and lubrication chart.
1. Place the vehicle on the
centerstand.TIP
8The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
8Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.TIP
The coolant should be between the mini-
mum and maximum level marks.ZAUM00**
12
1. Maximum level mark
2. Minimum level mark

6-49
1
2
3
4
5
6
7
8
9
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT

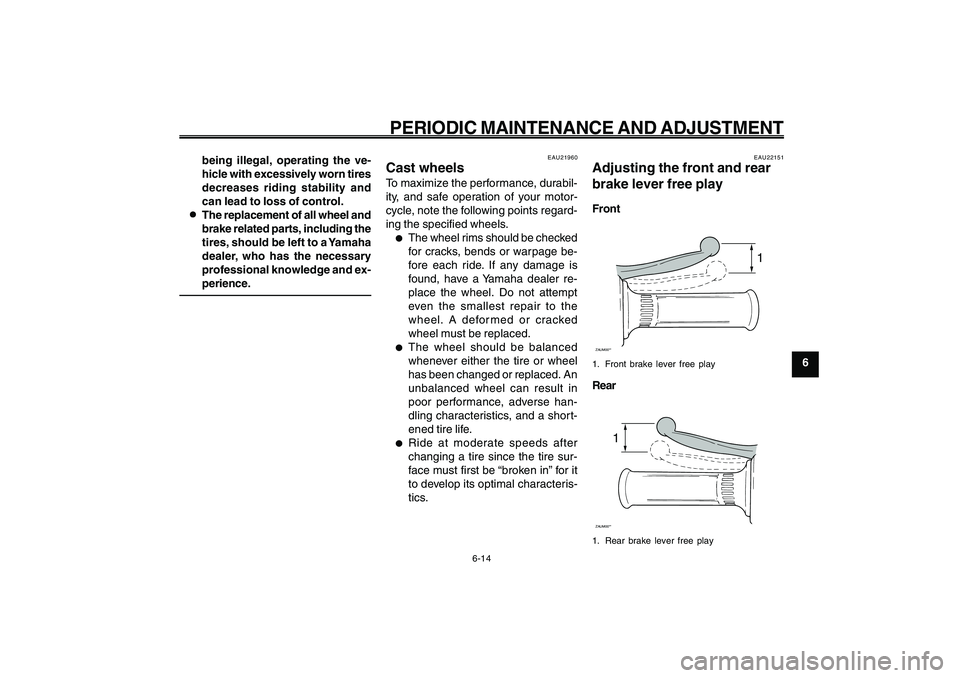

6-14
being illegal, operating the ve-
hicle with excessively worn tires
decreases riding stability and
can lead to loss of control.
8 88 8
8The replacement of all wheel and
brake related parts, including the
tires, should be left to a Yamaha
dealer, who has the necessary
professional knowledge and ex-
perience.
EAU21960
Cast wheelsTo maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points regard-
ing the specified wheels.●
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
●
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
●
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics. Wheels
Front and rear brake lever free play, adjusting
EAU22151
Adjusting the front and rear
brake lever free playFront
1
ZAUM00**1. Front brake lever free playRear
1
ZAUM00**1. Rear brake lever free play

8-66
1
2
3
4
5
6
7
8
9
EAU26320
SPECIFICATIONS
8-1
EAU26320
SPECIFICATIONSSpecificationsDimensionsOverall length
1915 mm (75.4 in)
Overall width
695 mm (27.4 in)
Overall height
1040 mm (40.9 in)
Seat height
750 mm (29.5 in)
Wheelbase
1280 mm (50.4 in)
Ground clearance
115 mm (4.53 in)
Minimum turning radius
2000 mm (78.7 in)WeightWith oil and fuel
93.0 kg (205 lb)EngineEngine type
Liquid cooled 4-stroke, SOHC
Cylinder arrangement
Forward-inclined single cylinder
Displacement
49.0 cm
3
Bore x stroke
38.0 x 43.6 mm (1.50 x 1.72 in)
Compression ratio
12.00 :1
Starting system
Electric starter and kickstarter
Lubrication system
Wet sump
Engine oilType
SAE 10W-40
-10 0 10 20 30
40 -20
50
C
SAE 10W-30
SAE 10W-40
SAE 15W-40SAE 20W-40SAE 20W-50
Recommended engine oil grade
API service SG type or higher, JASO
standard MA
Periodic oil change
0.78 L (0.82 US qt, 0.69 Imp.qt)Final transmission oilType
SAE 10W-30 type SE motor oil
Quantity
0.10 L (0.11 US qt, 0.09 Imp.qt)Cooling systemCoolant reservoir capacity (up to the
maximum level mark)
0.26 L (0.27 US qt, 0.23 Imp.qt)
Radiator capacity (including all routes)
0.50 L (0.53 US qt, 0.44 Imp.qt)Air filterAir filter element
Wet elementFuelRecommended fuel
Regular unleaded gasoline onlyFuel tank capacity
4.5 L (1.19 US gal, 0.99 Imp.gal)
Throttle bodyType/quantity
3B31 00(SE AC19-1) / 1
Manufacturer
MIKUNISpark plug (s)Manufacturer/mode
NGK/CR7E
Spark plug gap
0.7-0.8 mm (0.028-0.031 in)ClutchClutch type
Dry, centrifugal automaticTransmissionPrimary reduction system
Helical gear
Primary reduction ratio
50/13 (3.846)
Secondary reduction system
Helical gear
Secondary reduction ratio
43/12 (3.583)
Transmission type
V-belt automatic
Operation
Centrifugal automatic typeChassisFrame type
Steel tube backbone
Caster angle
26.00 degree
