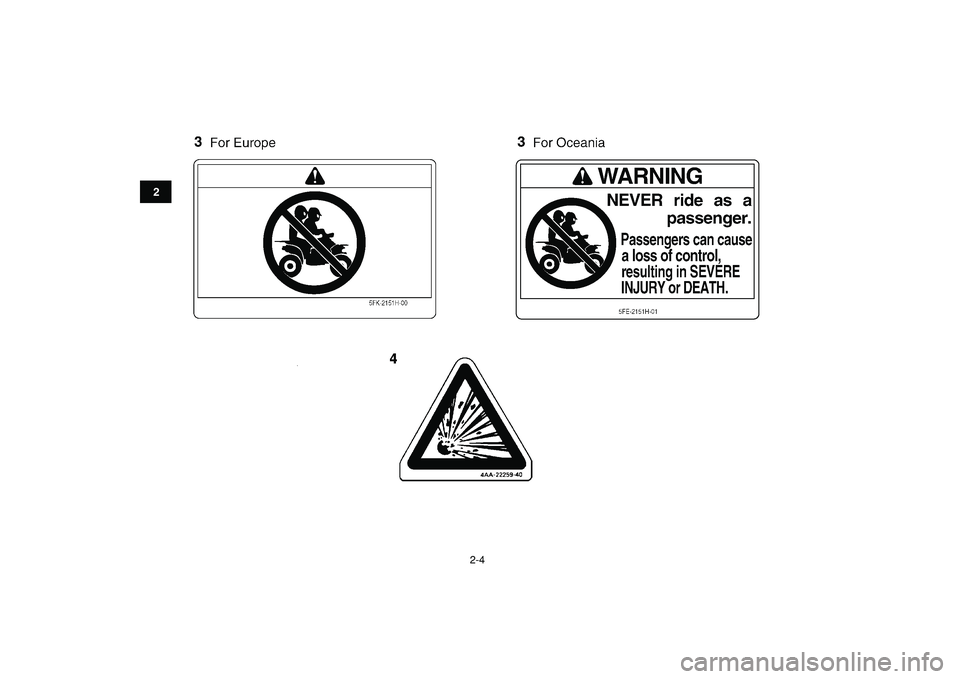

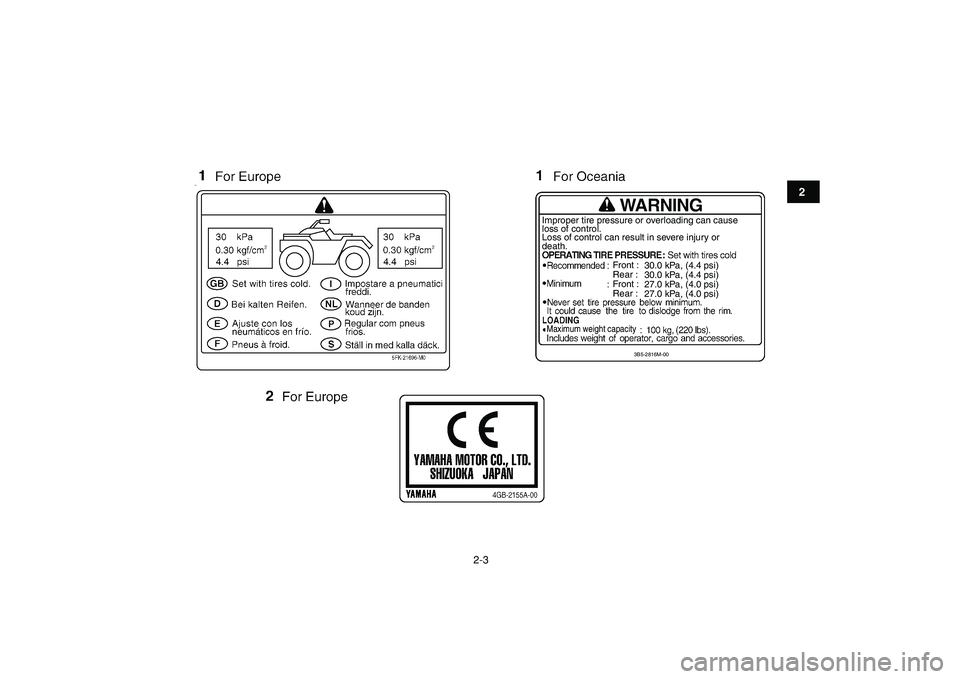

Improper tire pressure or overloading can cause
loss of control.
Loss of control can result in severe injury or
death.
3B5-2816M-0030.0 kPa, (4.4 psi)
30.0 kPa, (4.4 psi)
27.0 kPa, (4.0 psi)
27.0 kPa, (4.0 psi) Front :
Rear :
Front :
Rear :
Maximum weight capacity

2-4
12
3
4
5
6
7
8
9
10
11

2-5
12
3
4
5
6
7
8
9
10
11
4D3-2816L-00

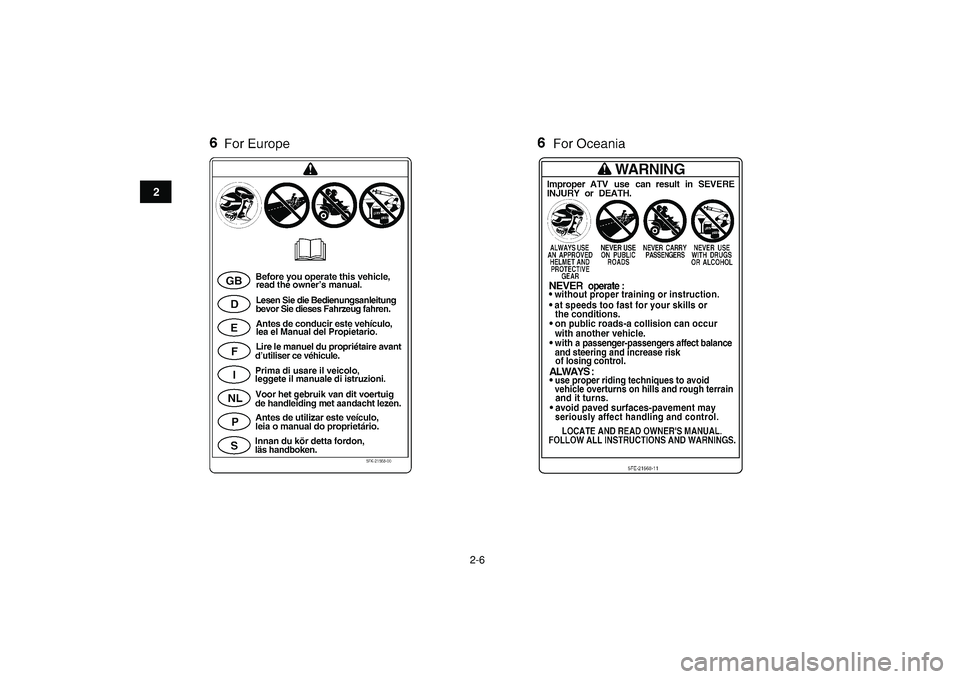

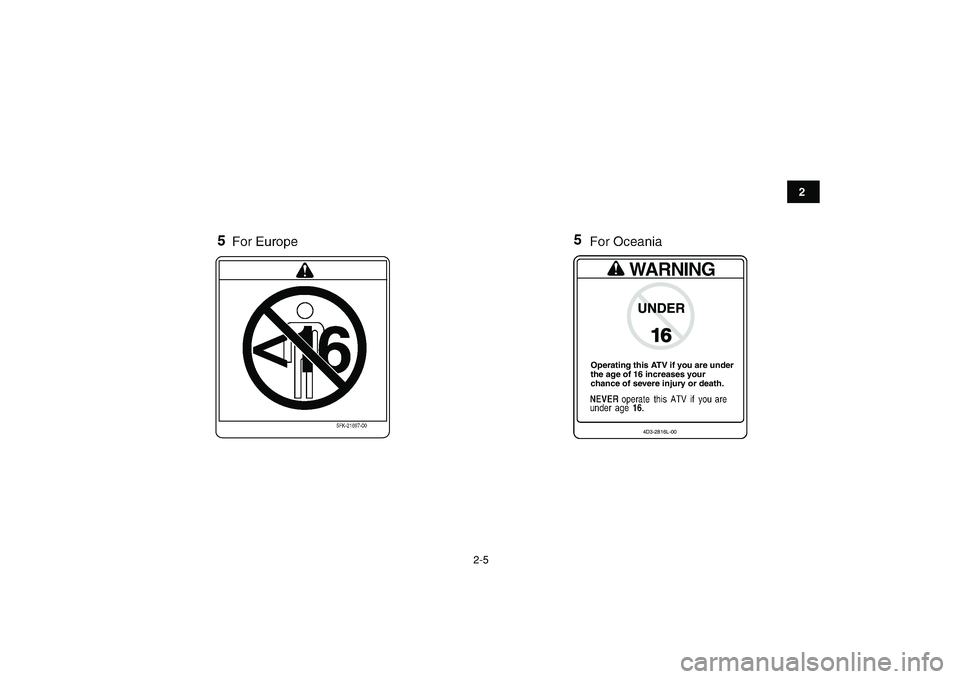

Operating this ATV if you are under
the age of 16 increases your
chance of severe injury or death.

2-6
12
3
4
5
6
7
8
9
10
11

3-1
1
23
4
5
6
7
8
9
10
11

EBU17680

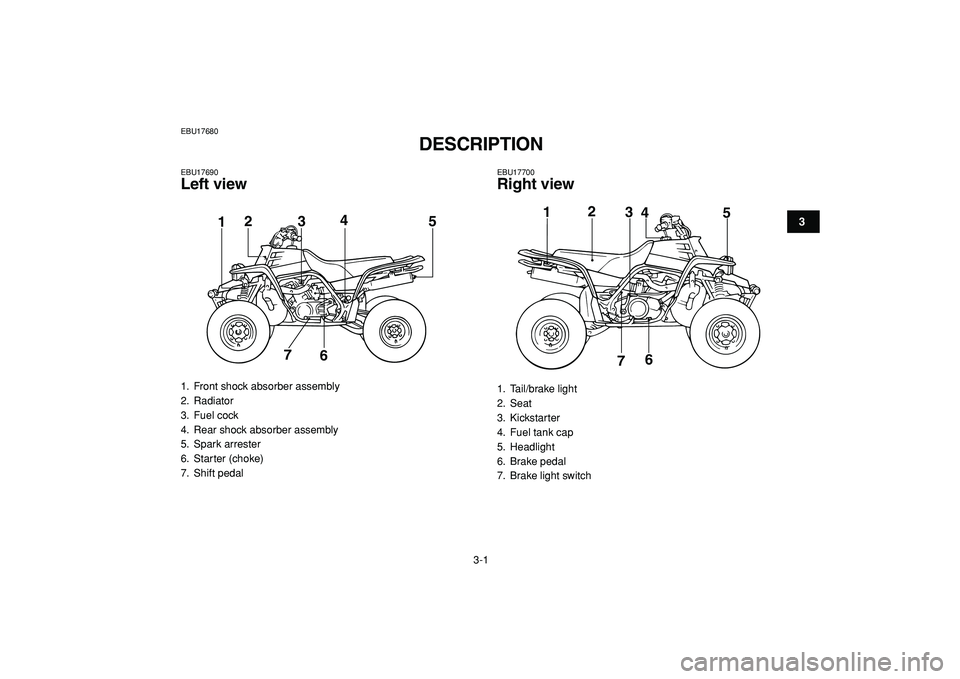

DESCRIPTION
EBU17690
Left view
EBU17700
Right view
1. Front shock absorber assembly
2. Radiator
3. Fuel cock
4. Rear shock absorber assembly
5. Spark arrester
6. Starter (choke)
7. Shift pedal
12
34
5
7
6

1. Tail/brake light
2. Seat
3. Kickstarter
4. Fuel tank cap
5. Headlight
6. Brake pedal
7. Brake light switch
12
3
45
6
7

3-2
1
23
4
5
6
7
8
9
10
11

EBU17712

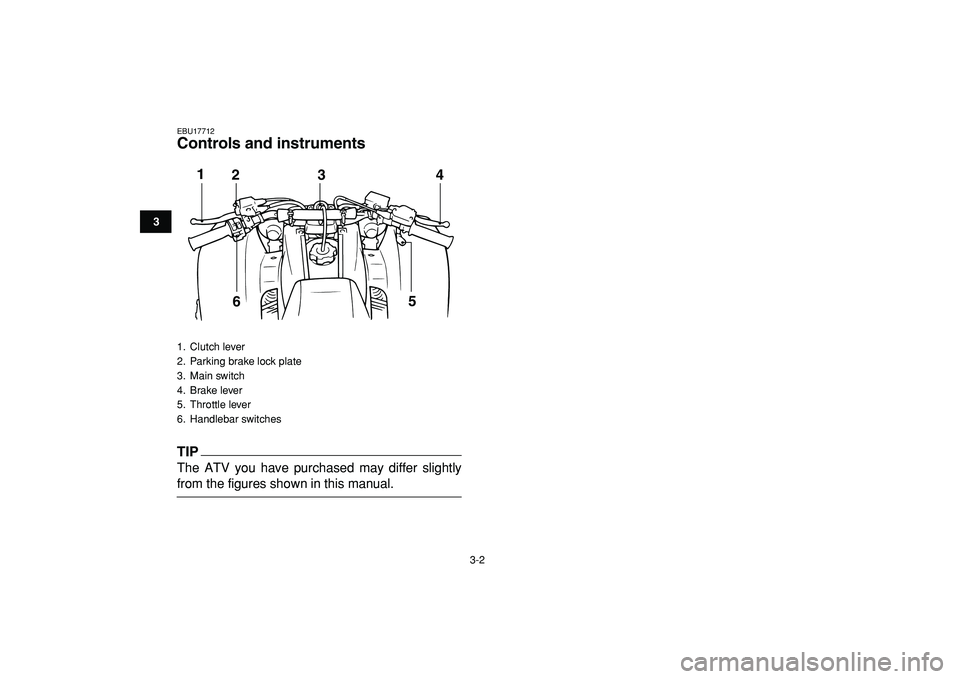

Controls and instruments
TIP

The ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Clutch lever
2. Parking brake lock plate
3. Main switch
4. Brake lever
5. Throttle lever
6. Handlebar switches
1
23 4
65

4-1
1
2
34
5
6
7
8
9
10
11

EBU17732
INSTRUMENT AND CONTROL FUNCTIONS
EBU17760
Main switch
The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.

1. Main switch
OFF ON
1

4-2
1
2
34
5
6
7
8
9
10
11

EBU18061
Handlebar switches
EBU18080
Engine stop switch “/”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “ ”.
EBU18151
Light switch “/ /OFF”
Set this switch to “ ” to turn on the low beams
and the taillight. Set the switch to “ ” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.
NOTICE

ECB00040
Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it.
EBU18280
Throttle lever
Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
1. Light switch “ / /OFF”
2. Engine stop switch “ / ”
1
2
