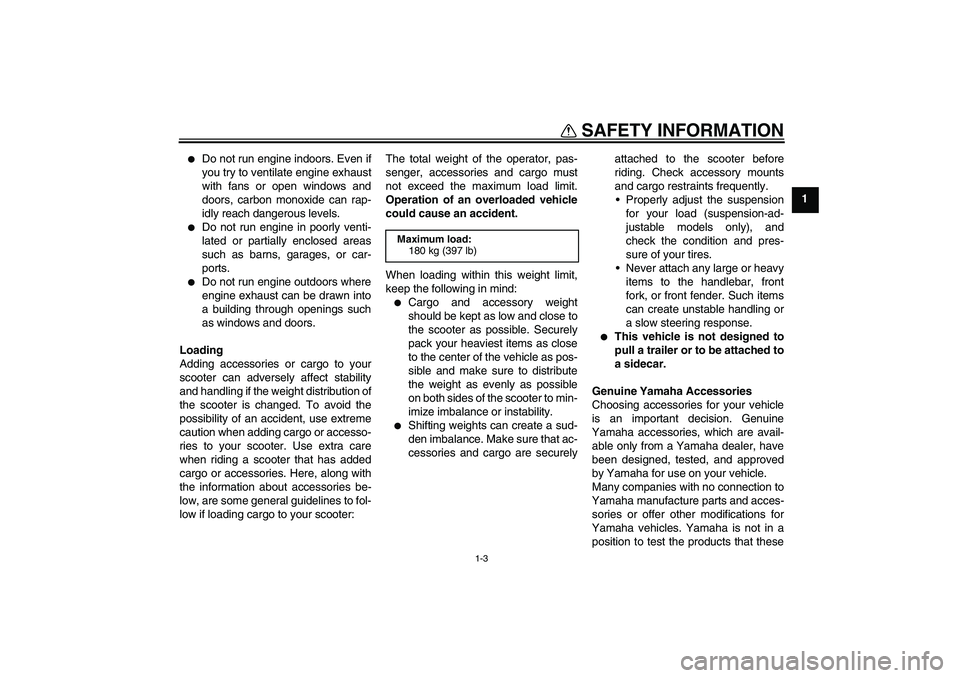

SAFETY INFORMATION
1-3
1


Do not run engine indoors. Even if
you try to ventilate engine exhaust
with fans or open windows and
doors, carbon monoxide can rap-
idly reach dangerous levels.


Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.


Do not run engine outdoors where
engine exhaust can be drawn into
a building through openings such
as windows and doors.
Loading
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution of
the scooter is changed. To avoid the
possibility of an accident, use extreme
caution when adding cargo or accesso-
ries to your scooter. Use extra care
when riding a scooter that has added
cargo or accessories. Here, along with
the information about accessories be-
low, are some general guidelines to fol-
low if loading cargo to your scooter:The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accident.
When loading within this weight limit,
keep the following in mind:


Cargo and accessory weight
should be kept as low and close to
the scooter as possible. Securely
pack your heaviest items as close
to the center of the vehicle as pos-
sible and make sure to distribute
the weight as evenly as possible
on both sides of the scooter to min-
imize imbalance or instability.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securelyattached to the scooter before
riding. Check accessory mounts
and cargo restraints frequently.
Properly adjust the suspension
for your load (suspension-ad-
justable models only), and
check the condition and pres-
sure of your tires.
Never attach any large or heavy
items to the handlebar, front
fork, or front fender. Such items
can create unstable handling or
a slow steering response.


This vehicle is not designed to
pull a trailer or to be attached to
a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail-
able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and acces-
sories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
Maximum load:
180 kg (397 lb)
U3C6E1E0.book Page 3 Friday, August 8, 2008 10:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3To close the storage compartment
1. Fold the storage compartment
cover down.
2. Turn the key counterclockwise,
and then remove it.
EAU14832
Adjusting the shock absorber
assembly (if equipped) This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.NOTICE
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond themaximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To de-crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring in direction (b).
Align the appropriate notch in the ad-
justing ring with the position indicator
on the shock absorber.
WARNING
EWA10221
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.

Do not tamper with or attempt to
open the cylinder assembly.


Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
1. Spring preload adjusting ring
2. Position indicator
(b) (a)1
2ZAUM0294
Spring preload setting:
Minimum (soft):
(b)
Standard:
middle
Maximum (hard):
(a)
U3C6E1E0.book Page 11 Friday, August 8, 2008 10:09 AM

SPECIFICATIONS
8-2
8
Rear tire:Type:
Tubeless
Size:
140/60-13 57L (MICHELIN), 53P (PIRELLI)
Manufacturer/model:
MICHELIN / PILOT SPORT
Manufacturer/model:
PIRELLI / EVO22Loading:Maximum load:
180 kg (397 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
150 kPa (1.50 kgf/cm², 22 psi)
Rear:
150 kPa (1.50 kgf/cm², 22 psi)
Loading condition:
90–180 kg (198–397 lb)
Front:
160 kPa (1.60 kgf/cm², 23 psi)
Rear:
170 kPa (1.70 kgf/cm², 25 psi)Front wheel:Wheel type:
Cast wheel
Rim size:
13xMT3.00
Rear wheel:Wheel type:
Cast wheel
Rim size:
13xMT3.50Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 3 or 4Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 3 or 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
80.0 mm (3.15 in)Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
70.0 mm (2.76 in)
Electrical system:Ignition system:
DC. CDI
Charging system:
AC magnetoBattery:Model:
CB4-LB(GS), YB4L-B(YUASA)
Voltage, capacity:
12 V, 4.0 AhHeadlight:Bulb type:
IncandescenceBulb voltage, wattage × quantity:Headlight:
12 V, 35 W/35.0 W × 1
Tail/brake light:
12 V, 21.0 W/5.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Meter lighting:
12 V, 1.7 W × 2
High beam indicator light:
12 V, 1.7 W × 1
Oil level warning light:
12 V, 1.7 W × 1
Turn signal indicator light:
12 V, 1.7 W × 1
Coolant temperature warning light:
12 V, 1.7 W × 1
