2009 YAMAHA AEROX50 coolant reservoir

DESCRIPTION
2-2
2
EAU10420
Right view
23
1
4
56
1. Fuel tank cap (page 3-5)
2. Throttle grip (page 6-11)
3. Front brake lever (page 3-5)
4. Coolant reservoir cap (page 6-9)
5. Battery/fuse (page 6-19/6-20)
6. Oil tank cap (page 3-8)
U3C6E1E0.book Page 2 Friday, August 8, 2008 10:09 AM

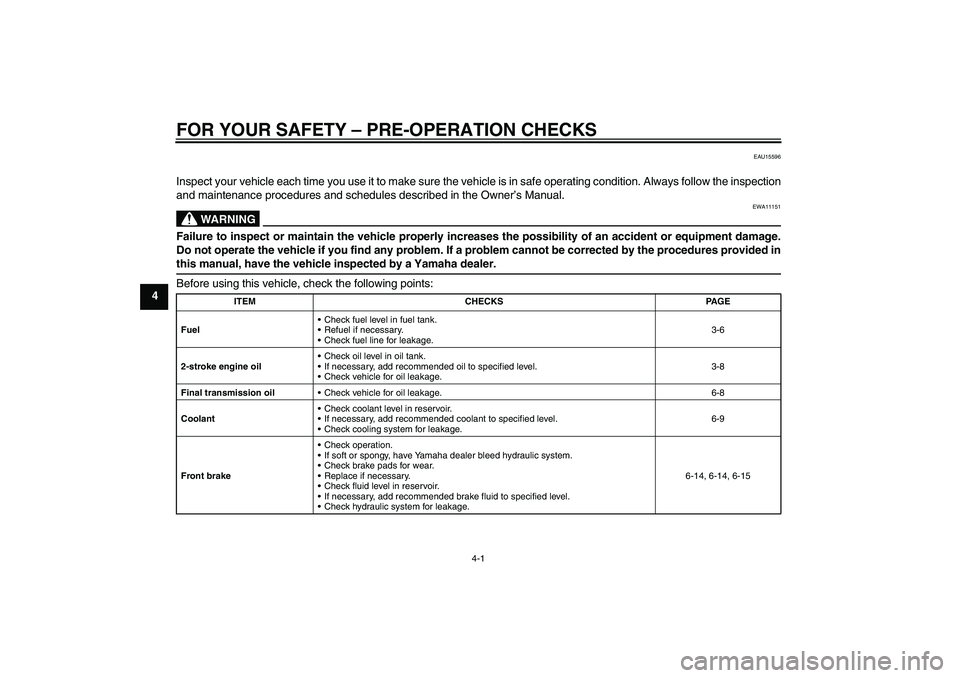

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided inthis manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-6
2-stroke engine oilCheck oil level in oil tank.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.3-8
Final transmission oilCheck vehicle for oil leakage. 6-8
CoolantCheck coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-9
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-14, 6-14, 6-15
U3C6E1E0.book Page 1 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUM2102
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.TIP

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level through
the check window.
TIPThe coolant should be between theminimum and maximum level marks.3. If the coolant is at or below the
minimum level mark, remove the
cowling A. (See page 6-6.)
4. Open the reservoir cap, and then
add coolant to the maximum level
mark. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is hot.
[EWA15161]
NOTICE: If coolant is not
available, use distilled water or
soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10472]
5. Close the reservoir cap, and then
install the cowling.
1. Maximum level mark
2. Minimum level mark
1
2
ZAUM0591
1. Coolant reservoir capCoolant reservoir capacity:
0.25 L (0.26 US qt, 0.22 Imp.qt)1ZAUM0274
U3C6E1E0.book Page 9 Friday, August 8, 2008 10:09 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6Engine overheating
WARNING
EWA10400


Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissingsound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U3C6E1E0.book Page 25 Friday, August 8, 2008 10:09 AM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
1818 mm (71.6 in)
Overall width:
719 mm (28.3 in)
Overall height:
1170 mm (46.1 in)
Seat height:
828 mm (32.6 in)
Wheelbase:
1256 mm (49.4 in)
Ground clearance:
148 mm (5.83 in)
Minimum turning radius:
1800 mm (70.9 in)Weight:With oil and fuel:
97.0 kg (214 lb)Engine:Engine type:
Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
49.0 cm³
Bore × stroke:
40.0 × 39.2 mm (1.57 × 1.54 in)
Compression ratio:
7.90 :1
Starting system:
Electric starter and kickstarter
Lubrication system:
Separate lubrication (Yamaha autolube)
Engine oil:Type:
YAMALUBE 2 or 2-stroke engine oil (JASO
FC grade) or (ISO EG-C or EG-D grade)
Engine oil quantity:
Quantity:
1.40 L (1.48 US qt, 1.23 Imp.qt)Final transmission oil:Type:
SAE 10W-30 type SE motor oil
Quantity:
0.11 L (0.12 US qt, 0.10 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
1.20 L (1.27 US qt, 1.06 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
7.0 L (1.85 US gal, 1.54 Imp.gal)Carburetor:Manufacturer:
GURTNER
Type × quantity:
PY 12 x 1Spark plug (s):Manufacturer/model:
NGK/BR8HSSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:Clutch type:
Dry, centrifugal automaticTransmission:Primary reduction system:
Helical gear
Primary reduction ratio:
52 × 13 (4.000)
Secondary reduction system:
Spur gear
Secondary reduction ratio:
43 × 14 (3.070)
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic typeChassis:Frame type:
Steel tube underbone
Caster angle:
27.00 °
Trail:
90.0 mm (3.54 in)Front tire:Type:
Tubeless
Size:
130/60-13 53L (MICHELIN), 53P (PIRELLI)
Manufacturer/model:
MICHELIN / PILOT SPORT
Manufacturer/model:
PIRELLI / EVO21
