2009 VOLVO XC90 child lock

Contents
4
00
00 IntroductionGeneral information.................................. 10
Volvo and the environment....................... 11
Important warnings................................... 13
01
01 SafetyOccupant safety........................................ 16
Seat belts.................................................. 18
Supplemental Restraint System............... 20
Front airbags............................................. 21
Occupant Weight Sensor.......................... 25
Side impact protection airbags................. 28
Volvo Inflatable Curtain............................. 29
Whiplash Protection System..................... 31
Child safety............................................... 33
Child restraint systems............................. 35
Infant seats............................................... 37
Convertible seats...................................... 39
Booster cushions...................................... 42
ISOFIX lower anchors............................... 43
Top tether anchors.................................... 45
Child restraint registration and recalls...... 46
Integrated booster cushion....................... 47
02
02 Instruments and controlsInstrument overview.................................. 52
Instrument panel....................................... 54
Information display................................... 58
Center console controls............................ 60
Steering wheel adjustment....................... 62
Lighting panel........................................... 63
Manually unlocking the fuel filler door...... 65
Left-side steering wheel lever................... 66
Right-side steering wheel lever................. 68
Hazard warning flashers........................... 70
Trip computer........................................... 71
Cruise control............................................ 73
12-volt sockets......................................... 75
Parking brake............................................ 76
Hood/tailgate............................................ 77
Power windows......................................... 78
Mirrors....................................................... 80
Power moonroof....................................... 83
HomeLink® Wireless Control System
(option)...................................................... 85

Contents
5
03
03 ClimateClimate control system – general informa-
tion............................................................ 90
Air distribution........................................... 92
Electronic climate control (ECC)............... 93
04
04 InteriorFront seats.............................................. 100
Rear seats............................................... 103
Interior lighting........................................ 106
Storage compartments........................... 108
Securing cargo........................................ 112
05
05 Locks and alarmKeys and remote controls....................... 118
Locking and unlocking............................ 122
Child safety locks.................................... 124
Alarm....................................................... 125

01 SafetySeat belts
0118
Using seat belts
G020104
Adjusting the seat beltVolvo, the inventor of the three-point seat belt,
urges you and all occupants of your vehicle to
wear seat belts and ensure that children are
properly restrained, using an infant, car, or
booster seat determined by age, weight and
height.
Volvo also believes no child should sit in the
front seat of a vehicle.
Most states and provinces make it mandatory
for occupants of a vehicle to use seat belts.Seat belt pretensionersThe seat belts are equipped with pretensioners
that reduce slack in the belts. These preten-sioners are triggered in situations where the
airbags deploy. The front seat belts also
include a tension reducing device which, in the
event of a collision, limits the peak forces exer-
ted by the seat belt on the occupant.
Buckling a seat beltPull the belt out far enough to insert the latch
plate into the receptacle until a distinct click is
heard. The seat belt retractor is normally
"unlocked" and you can move freely, provided
that the shoulder belt is not pulled out too far.
The retractor will lock up as follows:•
if the belt is pulled out rapidly
•
during braking and acceleration
•
if the vehicle is leaning excessively
•
when driving in turns
When wearing the seat belt remember:•
The belt should not be twisted or turned.
•
The lap section of the belt must be posi-
tioned low on the hips (not pressing against
the abdomen).
•
Make sure that the shoulder belt is rolled
up into its retractor and that the shoulder
and lap belts are taut.
Unbuckling the seat beltTo remove the seat belt, press the red section
on the seat belt receptacle. Before exiting the
vehicle, check that the seat belt retracts fullyafter being unbuckled. If necessary, guide the
belt back into the retractor slot.
Seat belt reminderThe seat belt reminder consists of an audible
signal, an indicator light above the rearview
mirror, and a symbol in the instrument panel
that alert the driver and front seat passenger if
their seat belts are not fastened.

01 Safety
Occupant Weight Sensor
0127
4.
If the PASSENGER AIRBAG OFF indicator
lamp remains on even after this, the person
should be advised to ride in the rear seat.
This condition reflects limitations of the OWS
classification capability. It does not indicate
OWS malfunction.ModificationsIf you are considering modifying your vehicle in
any way to accommodate a disability, for
example by altering or adapting the driver's or
front passenger's seat(s) and/or airbag sys-
tems, please contact Volvo at:
In the USA
Volvo Cars of North America, LLC
Customer Care Center
P.O. Box 914 Rockleigh,
New Jersey 07647-0914
1-800-458-1552
In Canada
Volvo Cars of Canada Corp.
National Customer Service
175 Gordon Baker Road
North York, Ontario M2H 2N7
1-800-663-8255
WARNING
•
No objects that add to the total weight
on the seat should be placed on the
front passenger's seat. If a child is
seated in the front passenger's seat
with any additional weight, this extra
weight could cause the OWS system to
enable the airbag, which might cause it
to deploy in the event of a collision,
thereby injuring the child.
•
The seat belt should never be wrapped
around an object on the front passeng-
er's seat. This could interfere with the
OWS system's function.
•
The front passenger's seat belt should
never be used in a way that exerts more
pressure on the passenger than normal.
This could increase the pressure exer-
ted on the weight sensor by a child, and
could result in the airbag being enabled,
which might cause it to deploy in the
event of a collision, thereby injuring the
child.
WARNING
Keep the following points in mind with
respect to the OWS system. Failure to follow
these instructions could adversely affect the
system's function and result in serious injury
to the occupant of the front passenger's
seat:•
The full weight of the front seat passen-
ger should always be on the seat cush-
ion. The passenger should never lift
him/herself off the seat cushion using
the armrest in the door or the center
console, by pressing the feet on the
floor, by sitting on the edge of the seat
cushion, or by pressing against the
backrest in a way that reduces pressure
on the seat cushion. This could cause
OWS to disable the front passenger's
side airbag.
•
Do not place any type of object on the
front passenger's seat in such a way
that jamming, pressing, or squeezing
occurs between the object and the front
seat, other than as a direct result of the
correct use of the Automatic Locking
Retractor/Emergency Locking Retrac-
tor (ALR/ELR) seat belt (see page 34).
•
No objects should be placed under the
front passenger's seat. This could inter-
fere with the OWS system's function.

01 SafetyChild safety
0134
Automatic Locking Retractor/
Emergency Locking Retractor (ALR/
ELR)To make child seat installation easier, each
seat belt (except for the driver's belt) is equip-
ped with a locking mechanism to help keep the
seat belt taut.
When attaching the seat belt to a child seat:
1. Attach the seat belt to the child seat
according to the child seat manufacturer's
instructions.
2. Pull the seat belt out as far as possible.
3. Insert the seat belt latch plate into the
buckle (lock) in the usual way.
4. Release the seat belt and pull it taut around
the child seat. A sound from the seat belt
retractor will be audible at this time and
is normal.
The belt will now be locked in place.
This function is automatically disabled
when the seat belt is unlocked and the belt
is fully retracted.
WARNING
Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend that
children who have outgrown these devices
sit in the rear seat with the seat belt properly
fastened.Volvo's recommendationsWhy does Volvo believe that no child should sit
in the front seat of a vehicle? It's quite simple
really. A front airbag is a very powerful device
designed, by law, to help protect an adult.
Because of the size of the airbag and its speed
of inflation, a child should never be placed in
the front seat, even if he or she is properly bel-
ted or strapped into a child safety seat. Volvo
has been an innovator in safety for over sev-
enty-five years, and we'll continue to do our
part. But we need your help. Please remember
to put your children in the back seat, and
buckle them up.Volvo has some very specific
recommendations:•
Always wear your seat belt.
•
Airbags are a SUPPLEMENTAL safety
device which, when used with a three-
point seat belt can help reduce serious
injuries during certain types of accidents.Volvo recommends that you do not dis-
connect the airbag system in your vehicle.
•
Volvo strongly recommends that everyone
in the vehicle be properly restrained.
•
Volvo recommends that ALL occupants
(adults and children) shorter than 4 feet
7 inches (140 cm) be seated in the back
seat of any vehicle with a front passenger
side airbag.
•
Drive safely!

01 SafetyInfant seats
01``37 Securing an infant seat with a seat belt
G026417
Do not place the infant seat in the front passeng-
er's seat
NOTE
Refer to page 43 and page 45 for infor-
mation on securing a child restraint using
ISOFIX lower anchors and/or top tether
anchorages.
G026493
Positioning the seat belt through the infant seat
WARNING
•An infant seat must be in the rear-facing
position only.•The infant seat should not be positioned
behind the driver's seat unless there is
adequate space for safe installation.
1. Place the infant seat in the rear seat of the
vehicle.
2. Attach the seat belt to the infant seat
according to the manufacturer's instruc-
tions.
G026492
Fasten the seat belt
WARNING
A child seat should never be used in the
front passenger seat of any vehicle with a
front passenger airbag – not even if the
"Passenger airbag off" symbol near the
rear-view mirror is illuminated (on vehicles
equipped with Occupant Weight Sensor). If
the severity of an accident were to cause the
airbag to inflate, this could lead to serious
injury or death to a child seated in this posi-
tion.3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.

01 SafetyInfant seats
0138
G026494
Pull out the shoulder section of the seat belt4. Pull the shoulder section of the seat belt
out as far as possible to activate the belt's
automatic locking function.
G026498
Ensure that the seat is securely in place
NOTE
The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.5. Press the infant seat firmly in place, let the
seat belt retract and pull it taut. A sound
from the seat belt retractor's automatic
locking function will be audible at this time
and is normal. The seat belt should now be
locked in place.
6. Push and pull the infant seat to ensure that
it is held securely in place by the seat belt.
WARNING
It should not be possible to move the child
restraint more than 1 in. (2.5 cm) in any
direction.The infant seat can be removed by unbuckling
the seat belt and letting it retract completely.

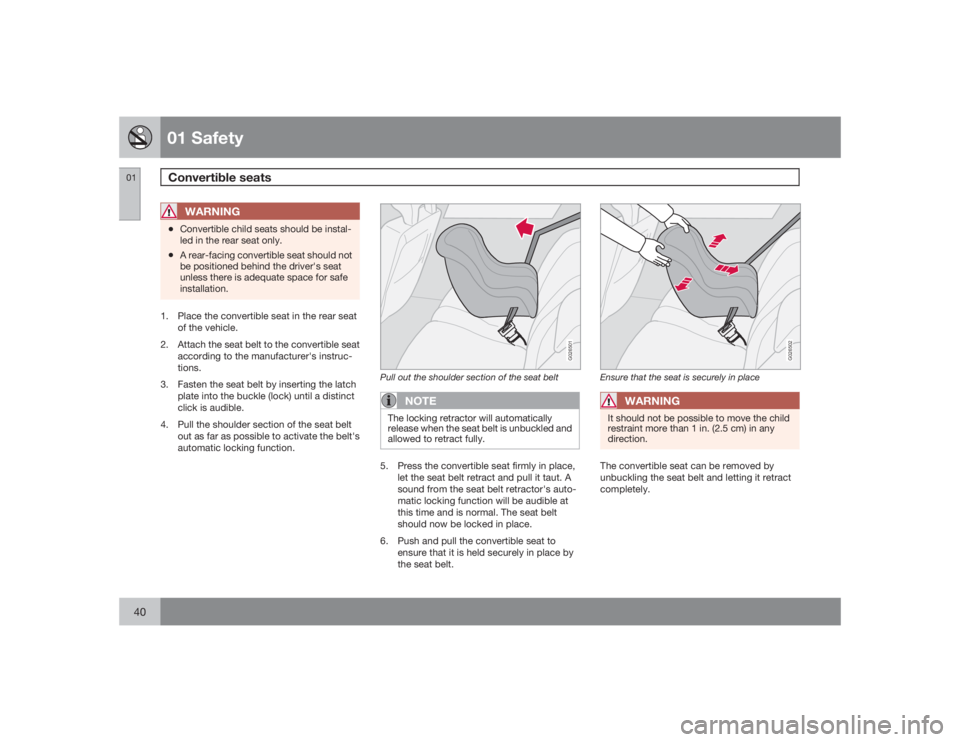

01 SafetyConvertible seats
0140
WARNING
•Convertible child seats should be instal-
led in the rear seat only.•A rear-facing convertible seat should not
be positioned behind the driver's seat
unless there is adequate space for safe
installation.
1. Place the convertible seat in the rear seat
of the vehicle.
2. Attach the seat belt to the convertible seat
according to the manufacturer's instruc-
tions.
3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
4. Pull the shoulder section of the seat belt
out as far as possible to activate the belt's
automatic locking function.
G026501
Pull out the shoulder section of the seat belt
NOTE
The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.5. Press the convertible seat firmly in place,
let the seat belt retract and pull it taut. A
sound from the seat belt retractor's auto-
matic locking function will be audible at
this time and is normal. The seat belt
should now be locked in place.
6. Push and pull the convertible seat to
ensure that it is held securely in place by
the seat belt.
G026502
Ensure that the seat is securely in place
WARNING
It should not be possible to move the child
restraint more than 1 in. (2.5 cm) in any
direction.The convertible seat can be removed by
unbuckling the seat belt and letting it retract
completely.
