07 Wheels and tiresTemporary spare
07178

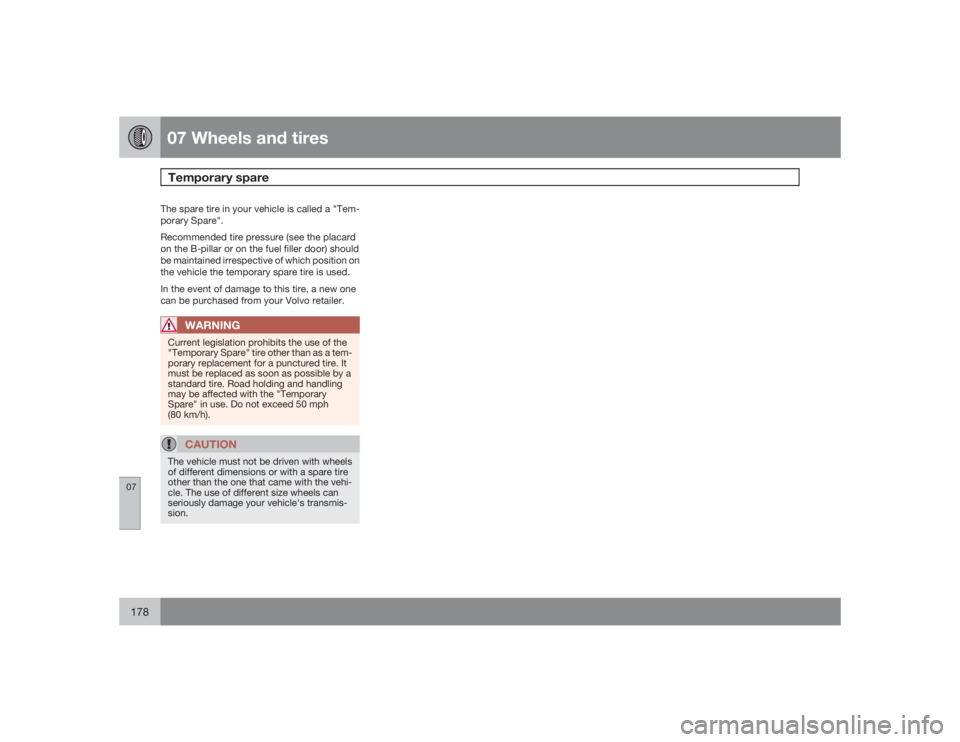

The spare tire in your vehicle is called a "Tem-
porary Spare".
Recommended tire pressure (see the placard
on the B-pillar or on the fuel filler door) should
be maintained irrespective of which position on
the vehicle the temporary spare tire is used.
In the event of damage to this tire, a new one
can be purchased from your Volvo retailer.
WARNING
Current legislation prohibits the use of the
"Temporary Spare" tire other than as a tem-
porary replacement for a punctured tire. It
must be replaced as soon as possible by a
standard tire. Road holding and handling
may be affected with the "Temporary
Spare" in use. Do not exceed 50 mph
(80 km/h).
CAUTION
The vehicle must not be driven with wheels
of different dimensions or with a spare tire
other than the one that came with the vehi-
cle. The use of different size wheels can
seriously damage your vehicle's transmis-
sion.

07 Wheels and tires
Tire rotation
07
179
G020325
The arrows shows the direction of rotation of the
tireSummer and winter tires•
When switching between summer and
winter tires, mark the tires to indicate
where they were mounted on the car, e.g.,
LF = left front, RR = right rear
•
Tires with tread designed to roll in only one
direction are marked with an arrow on the
sidewall.
•
Incorrectly mounted tires impair the car's
braking properties and ability to force
aside rain, snow and slush.
•
The tires with the most tread should always
be at the rear (to reduce the risk of skid-
ding).
•
Contact a Volvo workshop if you are
unsure about the tread depth.
Tire rotationYour vehicle has no recommended tire rota-
tion. The following information is intended to
help you understand why.Tread setAs a tire ages and the rubber cures, front and
rear tires set at different angles. Therefore, if
tires are rotated, the tread will eventually set at
an angle that is a compromise. Even if ride,
handling, and road noise may still seem
acceptable, they may not be optimal. Further,
tires that are rotated, but not on a regular basis,
may actually cause more tire noise, faster tire
wear, and unpleasant changes in steering feel
and vehicle handling.
A tire that can fully adapt to its position will
provide better steering feel, lower tire noise,
and better fuel economy.Braking stability performanceYour vehicle is driven mainly by the front tires,
which will wear faster. This can be beneficial.
Having more tread on the rear tires will help
reduce oversteer. Oversteer is when a vehicle
wants to keep turning because of momentum
and dynamic forces on its suspension.Suspension wear diagnosticsEvery suspension needs periodic inspection
and maintenance. A tire's wear pattern can bean aid in detecting a suspension problem. Each
tire, if left in place, tells a story about the sus-
pension. Tire rotation, on the other hand, could
make suspension wear harder to detect. Early
detection is very important, because suspen-
sion problems can make tire wear worse.
If you do rotate your tires...Please follow the tire manufacturer's recom-
mendations, as outlined in the tire manufactur-
ers tire warranty pamphlet.
Your Volvo retailer can also provide guidance
based on your particular driving circumstan-
ces.

07 Wheels and tiresChanging wheels
07180
G030879
Jack location in 7-seat modelsJack location in 5-seat models

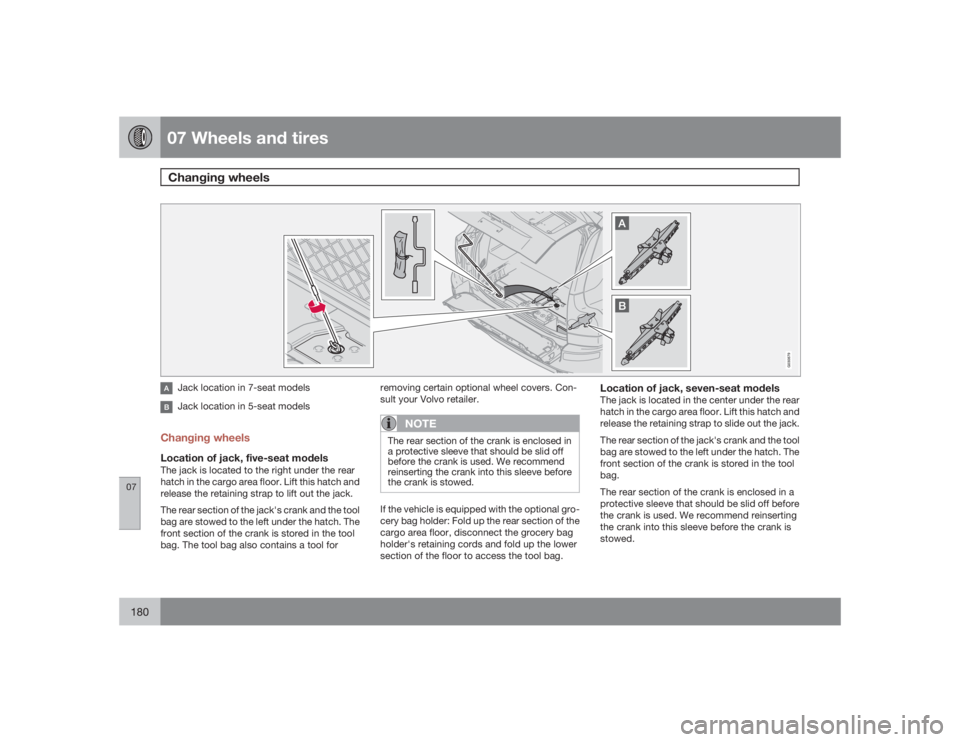

Changing wheelsLocation of jack, five-seat modelsThe jack is located to the right under the rear
hatch in the cargo area floor. Lift this hatch and
release the retaining strap to lift out the jack.
The rear section of the jack's crank and the tool
bag are stowed to the left under the hatch. The
front section of the crank is stored in the tool
bag. The tool bag also contains a tool forremoving certain optional wheel covers. Con-
sult your Volvo retailer.
NOTE
The rear section of the crank is enclosed in
a protective sleeve that should be slid off
before the crank is used. We recommend
reinserting the crank into this sleeve before
the crank is stowed.If the vehicle is equipped with the optional gro-
cery bag holder: Fold up the rear section of the
cargo area floor, disconnect the grocery bag
holder's retaining cords and fold up the lower
section of the floor to access the tool bag.
Location of jack, seven-seat modelsThe jack is located in the center under the rear
hatch in the cargo area floor. Lift this hatch and
release the retaining strap to slide out the jack.
The rear section of the jack's crank and the tool
bag are stowed to the left under the hatch. The
front section of the crank is stored in the tool
bag.
The rear section of the crank is enclosed in a
protective sleeve that should be slid off before
the crank is used. We recommend reinserting
the crank into this sleeve before the crank is
stowed.

07 Wheels and tires
Changing wheels
07``181
If the vehicle is equipped with the optional gro-
cery bag holder: Fold up the rear section of the
cargo area floor, disconnect the grocery bag
holder's retaining cords and fold up the lower
section of the floor.
CAUTION
Seven-seat models: Do not store objects
in the area for the rear seat cushions (when
the backrests are to be folded down). This
could damage the cushions.Lowering the spare wheelThe spare wheel is located under the floor of
the rear cargo compartment. It can be lowered
using the crank (see previous page for loca-
tion).
WARNING
When raising or lowering the spare wheel,
please keep in mind that components in the
exhaust system may be very hot.To lower the spare wheel:1. Fold down the lower section of the tailgate.
2. Fold up the rear section of the floor in the
cargo compartment.3. Connect the two sections of the jack's
crank.
4. Insert the hooked end of the crank in the
spare wheel retaining attachment.
5. Lower the spare wheel under the vehicle by
turning the crank counterclockwise until it
is not possible to turn it further.
6. Pivot the toggle at the end of the cable 90
degrees to release it from the spare wheel
CAUTION
When the spare wheel is mounted on the
vehicle, the retaining cable could damage
the underside of the vehicle if it is not retrac-
ted.7. Crank up the cable again by turning the
crank clockwise.
8. Place the wheel with the flat tire in the vehi-
cle's cargo compartment.
NOTE
The space under the vehicle is designed to
hold the special spare wheel only. Other full-
size wheels will not fit in this compartment.
G026996
Returning the spare wheel to the storage
compartment1. Use the crank (turn it counterclockwise) to
lower the spare wheel's retaining cable.
2. Pass the toggle at the end of the cable
through the center hole in the spare wheel.
Pivot the toggle 90 degrees so that when
raised, the wheel will rest on the toggle.
3. Retract the retaining cable slightly by
slowly turning the crank clockwise several
times.
4. Position the wheel so that it is not obstruc-
ted by components in the exhaust system.

07 Wheels and tiresChanging wheels
07182
5. Continue to raise the wheel by turning the
crank clockwise. Raise the wheel a little bit
at a time and guide it around the rear axle
until it is securely seated in the storage
area.
6. When it is no longer possible to turn the
crank any further, check that the spare
wheel is securely in position in the storage
compartment.
G026997
Jack attachment pointsJack attachmentsThere are two attachment points for the jack on
each side of the vehicle. These attachment
points are under the center of each door.
WARNING
There is an attachment point on each side
of the vehicle located under the pillars
between the front and rear doors. This point
is used during the production process only,
and is NOT intended for attaching the jack.
G020332
WARNING
The undersides of accessory running
boards are not intended for attaching the
jack.
Changing a wheel•
Park the vehicle on a firm, level, non-slip-
pery surface.
•
Engage the parking brake and put the gear
selector in the Park position.
•
Loosen the wheel bolts by exerting down-
ward pressure on the lug wrench.
•
Remove the wheel cap (where applicable)
using the lug wrench in the tool bag.
•
With the wheels still on the ground, use the
lug wrench to loosen the wheel bolts
1/2 – 1 turn. Turn the bolts counterclock-
wise to loosen the bolts.CAUTION
•
The vehicle must not be driven with
wheels of different dimensions or with a
spare tire other than the one that came
with the vehicle. The use of different size
wheels can seriously damage your vehi-
cle's transmission.
•
Correct tightening torque on wheel
bolts must be observed.
•
The wheel bolts should never be
greased or lubricated.
•
Extended, chromed wheel bolts must
not be used with steel rims, as they
make it impossible to fit the hub caps.

07 Wheels and tires
Changing wheels
07``183
G027000
Attaching the jack•
Place the jack on the ground, under one of
the attachment points (see the illustration)
and crank while simultaneously guiding the
jack's attachment bracket onto the attach-
ment point (see illustration) The base of the
jack must be flat on a level, firm, non-slip-
pery surface. Before raising the vehicle,
check that the jack is still correctly posi-
tioned in the attachment.
•
Raise the vehicle until the wheel to be
changed is lifted off the ground.
•
Unscrew the wheel bolts completely and
carefully remove the wheel so as not to
damage the threads on the studs.
NOTE
To avoid excessive wear and the necessity
of rebalancing, mark and reinstall wheels in
the same location and position as before
removal. To lessen the chance of imbal-
ance, each wheel hub is equipped with a
guide stud to ensure that a removed wheel
can be reinstalled in its original position (as
when changing over to winter tires/wheels).Installing the wheel1. Clean the contact surfaces on the wheel
and hub.
2. Lift the wheel and place it on the hub.3. Install the wheel bolts and tighten hand-
tight. Using the lug wrench, tighten cross-
wise until all bolts are snug.
4. Lower the vehicle to the ground and alter-
nately tighten the bolts crosswise to
102 ft.lbs. (140 Nm).
5. Install the wheel cap (where applicable).

07 Wheels and tiresChanging wheels
07184

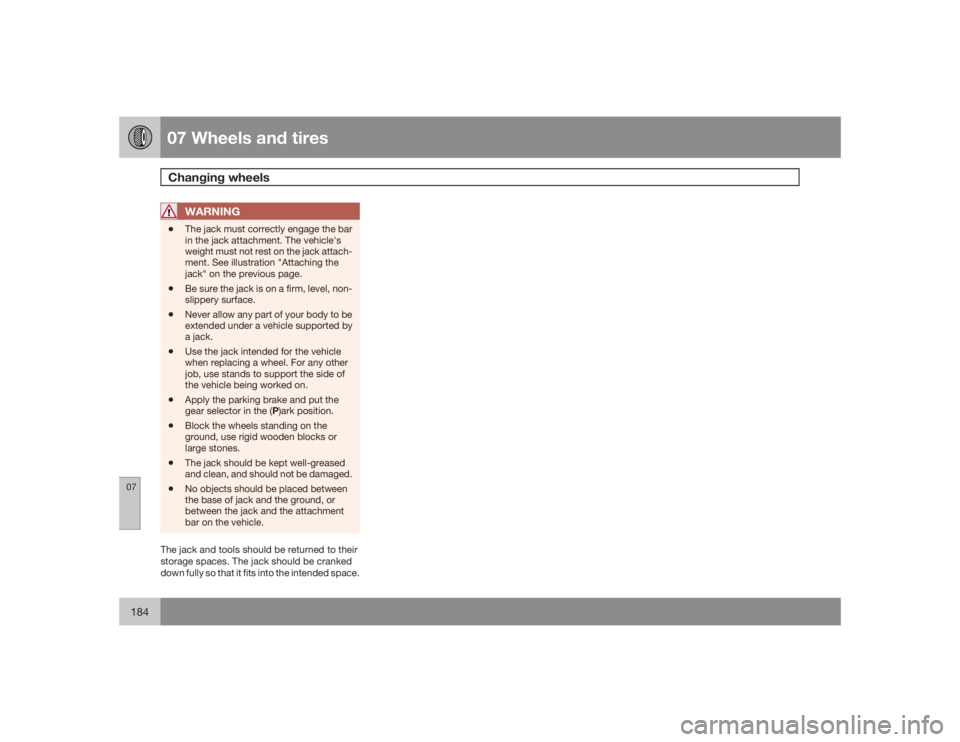

WARNING
•
The jack must correctly engage the bar
in the jack attachment. The vehicle's
weight must not rest on the jack attach-
ment. See illustration "Attaching the
jack" on the previous page.
•
Be sure the jack is on a firm, level, non-
slippery surface.
•
Never allow any part of your body to be
extended under a vehicle supported by
a jack.
•
Use the jack intended for the vehicle
when replacing a wheel. For any other
job, use stands to support the side of
the vehicle being worked on.
•
Apply the parking brake and put the
gear selector in the (P)ark position.
•
Block the wheels standing on the
ground, use rigid wooden blocks or
large stones.
•
The jack should be kept well-greased
and clean, and should not be damaged.
•
No objects should be placed between
the base of jack and the ground, or
between the jack and the attachment
bar on the vehicle.
The jack and tools should be returned to their
storage spaces. The jack should be cranked
down fully so that it fits into the intended space.

07 Wheels and tires
Tire Sealing System

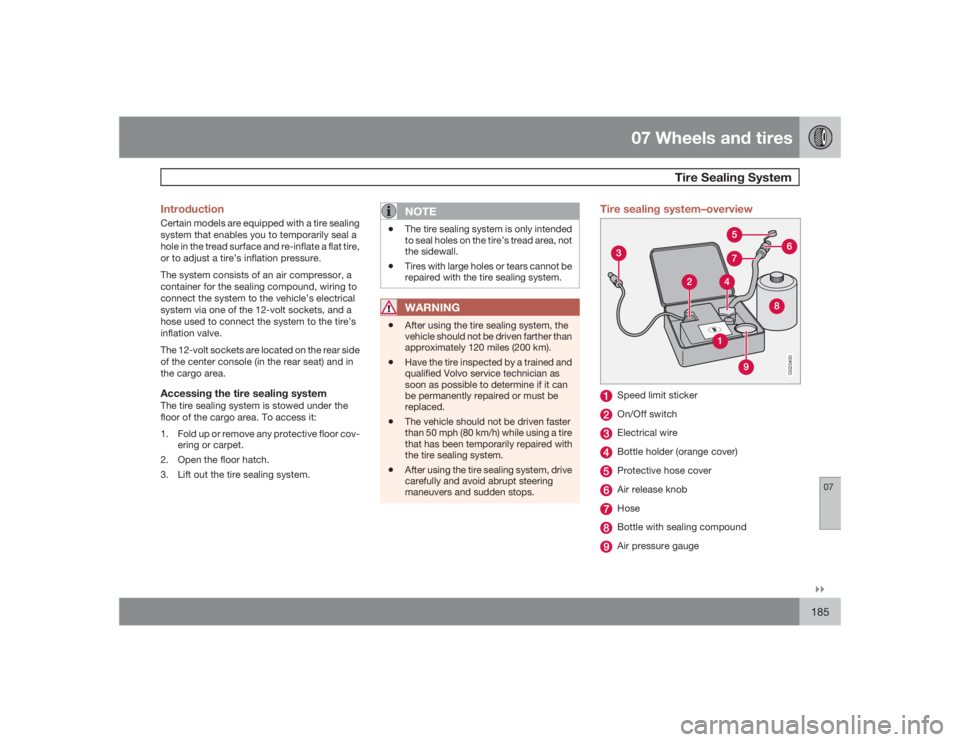

07``185 Introduction
Certain models are equipped with a tire sealing
system that enables you to temporarily seal a
hole in the tread surface and re-inflate a flat tire,
or to adjust a tire’s inflation pressure.
The system consists of an air compressor, a
container for the sealing compound, wiring to
connect the system to the vehicle’s electrical
system via one of the 12-volt sockets, and a
hose used to connect the system to the tire’s
inflation valve.
The 12-volt sockets are located on the rear side
of the center console (in the rear seat) and in
the cargo area.Accessing the tire sealing systemThe tire sealing system is stowed under the
floor of the cargo area. To access it:
1. Fold up or remove any protective floor cov-
ering or carpet.
2. Open the floor hatch.
3. Lift out the tire sealing system.
NOTE
•
The tire sealing system is only intended
to seal holes on the tire’s tread area, not
the sidewall.
•
Tires with large holes or tears cannot be
repaired with the tire sealing system.WARNING
•
After using the tire sealing system, the
vehicle should not be driven farther than
approximately 120 miles (200 km).
•
Have the tire inspected by a trained and
qualified Volvo service technician as
soon as possible to determine if it can
be permanently repaired or must be
replaced.
•
The vehicle should not be driven faster
than 50 mph (80 km/h) while using a tire
that has been temporarily repaired with
the tire sealing system.
•
After using the tire sealing system, drive
carefully and avoid abrupt steering
maneuvers and sudden stops.
Tire sealing system–overview
G020400
Speed limit stickerOn/Off switchElectrical wireBottle holder (orange cover)Protective hose coverAir release knobHoseBottle with sealing compoundAir pressure gauge
