2009 VOLVO XC90 child restraint

Contents
4
00
00 IntroductionGeneral information.................................. 10
Volvo and the environment....................... 11
Important warnings................................... 13
01
01 SafetyOccupant safety........................................ 16
Seat belts.................................................. 18
Supplemental Restraint System............... 20
Front airbags............................................. 21
Occupant Weight Sensor.......................... 25
Side impact protection airbags................. 28
Volvo Inflatable Curtain............................. 29
Whiplash Protection System..................... 31
Child safety............................................... 33
Child restraint systems............................. 35
Infant seats............................................... 37
Convertible seats...................................... 39
Booster cushions...................................... 42
ISOFIX lower anchors............................... 43
Top tether anchors.................................... 45
Child restraint registration and recalls...... 46
Integrated booster cushion....................... 47
02
02 Instruments and controlsInstrument overview.................................. 52
Instrument panel....................................... 54
Information display................................... 58
Center console controls............................ 60
Steering wheel adjustment....................... 62
Lighting panel........................................... 63
Manually unlocking the fuel filler door...... 65
Left-side steering wheel lever................... 66
Right-side steering wheel lever................. 68
Hazard warning flashers........................... 70
Trip computer........................................... 71
Cruise control............................................ 73
12-volt sockets......................................... 75
Parking brake............................................ 76
Hood/tailgate............................................ 77
Power windows......................................... 78
Mirrors....................................................... 80
Power moonroof....................................... 83
HomeLink® Wireless Control System
(option)...................................................... 85

G020871
14
Occupant safety...................................................................................... 16
Seat belts................................................................................................ 18
Supplemental Restraint System.............................................................. 20
Front airbags........................................................................................... 21
Occupant Weight Sensor........................................................................ 25
Side impact protection airbags............................................................... 28
Volvo Inflatable Curtain........................................................................... 29
Whiplash Protection System................................................................... 31
Child safety............................................................................................. 33
Child restraint systems........................................................................... 35
Infant seats.............................................................................................. 37
Convertible seats.................................................................................... 39
Booster cushions.................................................................................... 42
ISOFIX lower anchors............................................................................. 43
Top tether anchors.................................................................................. 45
Child restraint registration and recalls.................................................... 46
Integrated booster cushion..................................................................... 47

01 Safety
Occupant Weight Sensor
01``25 Disabling the passenger's side front
airbag
G027050
Occupant Weight Sensor (OWS) indicator lightVolvo recommends that ALL occupants (adults
and children) shorter than 4 feet 7 inches
(140 cm) be seated in the rear seat of any vehi-
cle with a passenger's side front airbag, and be
properly restrained. Children should always be
seated in child restraints appropriate for their
size and weight. For child safety recommen-
dations, see page 33.
The Occupant Weight Sensor (OWS) is
designed to meet the regulatory requirements
of Federal Motor Vehicle Safety Standard
(FMVSS) 208 and is designed to disable (willnot inflate) the passenger's side front airbag
under certain conditions.
The OWS works with sensors that are part of
the front passenger's seat and seat belt. The
sensors are designed to detect the presence of
a properly seated occupant and determine if
the passenger's side front airbag should be
enabled (may inflate) or disabled (will not
inflate).
The OWS will disable (will not inflate) the pas-
senger's side front airbag when:
•
the front passenger's seat is unoccupied,
or has small/medium objects in the front
seat,
•
the system determines that an infant is
present in a rear-facing infant seat that is
installed according to the manufacturer's
instructions,
•
the system determines that a small child is
present in a forward-facing child restraint
that is installed according to the manufac-
turer's instructions,
•
the system determines that a small child is
present in a booster seat,
•
a front passenger takes his/her weight off
of the seat for a period of time,
•
a child or a small person occupies the front
passenger's seat.The OWS uses a PASSENGER AIRBAG OFF
indicator lamp which will illuminate and stay on
to remind you that the passenger's side front
airbag is disabled. The PASSENGER AIRBAG
OFF indicator lamp is located in the overhead
console, near the base of the rearview mirror.
NOTE
ThePASSENGER AIRBAG OFF indicator
lamp will illuminate for a short period of time
when the ignition is turned on to confirm it
is functional. When the front passenger's
seat is not occupied (empty seat) or in the
event that the passenger's side front airbag
is enabled (may inflate), the PASSENGER
AIRBAG OFF indicator lamp will be off.However, if a fault is detected in the system:•
The OWS indicator light will stay on
•
The SRS warning light (see page 20) will
come on and stay on
•
The message PASS. AIRBAG OFF
SERVICE URGENT will be displayed in the
information display.

01 SafetyOccupant Weight Sensor
0126
WARNING
•
If a fault in the system is detected and
indicated as explained, be aware that
the passenger's side front airbag will
not deploy in the event of a collision.
•
In this case, the safety systems and
Occupant Weight Sensor should be
inspected by a trained and qualified
Volvo service technician as soon as
possible.WARNING
•
Never try to open, remove, or repair any
components in the OWS system. This
could result in system malfunction.
Maintenance or repairs should only be
carried out by a trained and qualified
Volvo service technician.
•
The front passenger's seat should not
be modified in any way. This could
reduce pressure on the seat cushion,
which might interfere with the OWS sys-
tem's function.
The OWS is designed to disable (will not inflate)
the passenger's side front airbag when a rear
facing infant seat, a forward-facing child
restraint, or a booster seat is detected. The
PASSENGER AIRBAG OFF indicator lamp willilluminate and stay on to remind you that the
passenger's side front airbag is disabled (see
the following table).
Passeng-
er's seat
occu-
pancy sta-
tus
OWS indi-
cator light
status
Passeng-
er's side
front air-
bag status
Seat unoc-
cupied
OWS indica-
tor light
is
not lit
Passenger's
side front
airbagdisa-
bled
Seat occu-
pied by low
weight
occupant/
object
A
OWS indica-
tor lightlights up
Passenger's
side front
airbagdisa-
bled
Seat occu-
pied by
heavy occu-
pant/object
OWS indica-
tor light
is
not lit
Passenger's
side front
airbagena-
bled
AVolvo recommends that children always be properly
restrained in appropriate child restraints in the rear seats.In
rare situations when the seat belt is not properly fastened,
some child restraints may not be detected by the OWS
because there is very little weight on the vehicle seat cush-
ion. In these cases the passenger's side front airbag may be
disabled, but the PASSENGER AIRBAG OFF indicator lampwill not be lit. Do not assume that the passenger's side front
airbag is disabled unless the PASSENGER AIRBAG OFF
indicator lamp is lit. Make sure the child restraint is properly
installed (turn the vehicle off, remove the child restraint from
the vehicle and reinstall the restraint following the child
restraint manufacturer's instructions) and that the
PASSENGER AIRBAG OFF indicator lamp is on, or move
the child restraint to the rear seat.
The OWS is designed to enable (may inflate)
the passenger's side front airbag anytime the
system senses that a person of adult size is
sitting properly in the front passenger's seat.
ThePASSENGER AIRBAG OFF indicator
lamp will be off and remain off.
If a person of adult size is sitting in the front
passenger's seat, but the PASSENGER
AIRBAG OFF indicator lamp is on, it is possible
that the person isn't sitting properly in the seat.
If this happens:
1. Turn the vehicle off and ask the person to
place the seat back in an upright position.
2. Have the person sit upright in the seat,
centered on the seat cushion, with the per-
son's legs comfortably extended.
3. Restart the vehicle and have the person
remain in this position for about two
minutes. This will allow the system to
detect that person and enable the pas-
senger's frontal airbag.

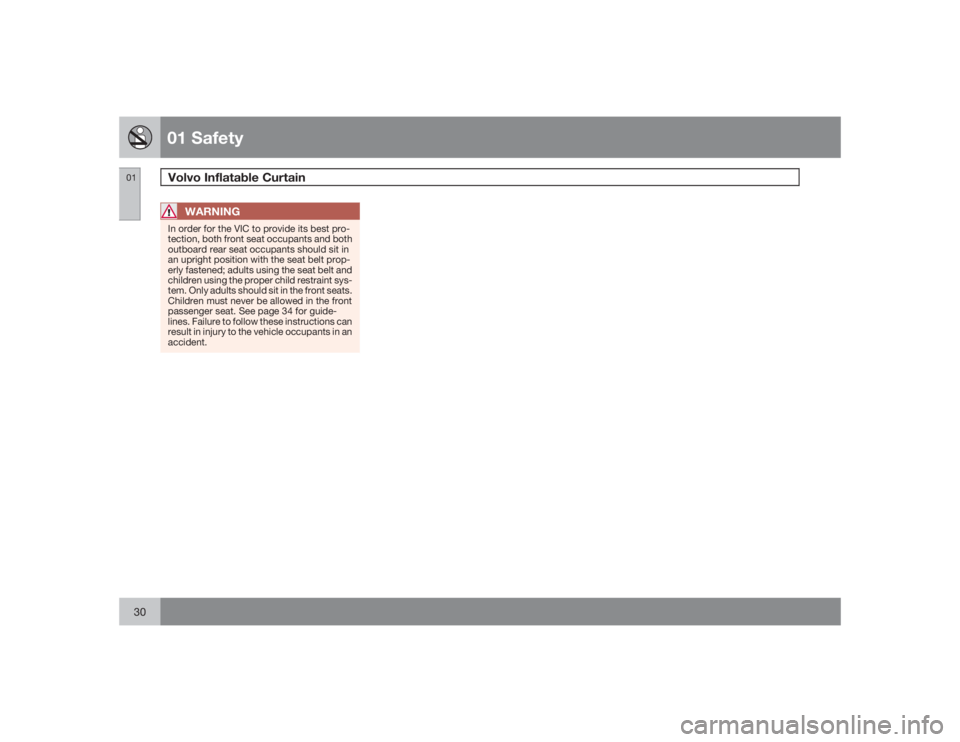

01 SafetyVolvo Inflatable Curtain
0130
WARNING
In order for the VIC to provide its best pro-
tection, both front seat occupants and both
outboard rear seat occupants should sit in
an upright position with the seat belt prop-
erly fastened; adults using the seat belt and
children using the proper child restraint sys-
tem. Only adults should sit in the front seats.
Children must never be allowed in the front
passenger seat. See page 34 for guide-
lines. Failure to follow these instructions can
result in injury to the vehicle occupants in an
accident.

01 SafetyChild safety
01``33 Children should be seated safely
Volvo recommends the proper use of restraint
systems for all occupants including children.
Remember that, regardless of age and size, a
child should always be properly restrained in a
vehicle.
Your vehicle is also equipped with ISOFIX/
LATCH attachments, which make it more con-
venient to install child seats.
Some restraint systems for children are
designed to be secured in the vehicle by lap
belts or the lap portion of a lap-shoulder belt.
Such child restraint systems can help protect
children in vehicles in the event of an accident
only if they are used properly. However, chil-
dren could be endangered in a crash if the child
restraints are not properly secured in the vehi-
cle. Failure to follow the installation instructions
for your child restraint can result in your child
striking the vehicle's interior in a sudden stop.
Holding a child in your arms is NOT a suitable
substitute for a child restraint system. In an
accident, a child held in a person's arms can
be crushed between the vehicle's interior and
an unrestrained person. The child could also be
injured by striking the interior, or by being ejec-
ted from the vehicle during a sudden maneuver
or impact. The same can also happen if the
infant or child rides unrestrained on the seat.
Other occupants should also be properlyrestrained to help reduce the chance of injuring
or increasing the injury of a child.
All states and provinces have legislation gov-
erning how and where children should be car-
ried in a vehicle. Find out the regulations
existing in your state or province. Recent acci-
dent statistics have shown that children are
safer in rear seating positions than front seating
positions when properly restrained. A child
restraint system can help protect a child in a
vehicle. Here's what to look for when selecting
a child restraint system:
•
It should have a label certifying that it
meets applicable Federal Motor Vehicle
Safety Standards (FMVSS 213) – or in Can-
ada, CMVSS 213.
•
Make sure the child restraint system is
approved for the child's height, weight and
development – the label required by the
standard or regulation, or instructions for
infant restraints, typically provide this infor-
mation.
•
In using any child restraint system, we urge
you to carefully look over the instructions
that are provided with the restraint. Be sure
you understand them and can use the
device properly and safely in this vehicle.
A misused child restraint system can result
in increased injuries for both the infant or
child and other occupants in the vehicle.When a child has outgrown the child safety
seat, you should use the rear seat with the
standard seat belt fastened. The best way to
help protect the child here is to place the child
on a cushion so that the seat belt is properly
located on the hips, see page 42. Legislation
in your state or province may mandate the use
of a child seat or cushion in combination with
the seat belt, depending on the child's age and/
or size. Please check local regulations.
A specially designed and tested booster cush-
ion (not available in Canada) can be obtained
from your Volvo retailer for children weighing
33 – 80 lb. (15 – 36 kg) and 38-54 inches
(97 – 137 cm) in height.
WARNING
•
Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend
that children under 4 feet 7 inches
(140 cm) in height who have outgrown
these devices sit in the rear seat with the
seat belt fastened.
•
On hot days, the temperature in the
vehicle interior can rise very quickly.
Exposure to these high temperatures
for even a short period of time can
cause heat-related injury or death.
Small children are particularly at risk.

01 Safety
Child restraint systems
01``35 Child restraints
G026491
Infant seatThere are three main types of child restraint
systems: infant seats, convertible seats, and
booster cushions. They are classified accord-
ing to the child's age and size.
The following section provides general infor-
mation on securing a child restraint using a
three-point seat belt. Refer to page 43 and
page 45 for information on securing a child
restraint using ISOFIX lower anchors and/or
top tether anchorages.
G026503
Convertible seat
WARNING
A child seat should never be used in the
front passenger seat of any vehicle with a
front passenger airbag – not even if the
PASSENGER AIRBAG OFF symbol near
the rear-view mirror is illuminated (on vehi-
cles equipped with Occupant Weight Sen-
sor). If the severity of an accident were to
cause the airbag to inflate, this could lead to
serious injury or death to a child seated in
this position.
G026489
Booster cushion
WARNING
Always refer to the child restraint manufac-
turer's instructions for detailed information
on securing the restraint.

01 SafetyChild restraint systems
0136
WARNING
•
When not in use, keep the child restraint
system secured or remove it from the
passenger compartment to help pre-
vent it from injuring passengers in the
event of a sudden stop or collision.
•
A small child's head represents a con-
siderable part of its total weight and its
neck is still very weak. Volvo recom-
mends that children up to age 4 travel,
properly restrained, facing rearward. In
addition, Volvo recommends that chil-
dren should ride rearward facing, prop-
erly restrained, as long as possible.
