2009 VOLVO XC90 fuse

09 Maintenance and servicing
Fuses
09``227 Fuses in the passenger compartment on the edge of the dashboard
G032316
The decal shows the positions and amperage of the fusesFuses are located inside the access panel on
the edge of the dashboard, on the driver's side.
There are also a number of spare fuses. When
replacing a blown fuse, be sure to replace it
with a new one of the same color and amper-
age (written on the fuse).No
A
1
Blower – climate system
30
2
Audio amplifier (option)
30
3
Power driver's seat (option)
25
No
A
4
Power passenger's seat
(option)
25
5
Driver's door – central lock-
ing, power windows, door
mirror
25
6
Front passenger's door – cen-
tral locking, power windows,
door mirror
25
7
–
No
A
8
Radio, CD player
15
9
Volvo Navigation System
(option), Sirius satellite radio
(option), Rear Seat Entertain-
ment (RSE) - option
10
10
On-board diagnostics, head-
light switch, steering wheel
angle sensor, steering wheel
module
5

09 Maintenance and servicingFuses
09228
No
A
11
Ignition switch, SRS, engine
control module (V8, 6-cyl.)
immobilizer, transmission
control module (V8, 6-cyl.)
7.5
12
Ceiling lighting, upper elec-
tronic control module
10
13
Moonroof (option)
15
14 –
38
–

09 Maintenance and servicing
Fuses
09``229 Fuse box in the passenger compartment, behind the plastic cover, driver's side
G028412
This fuse box is located behind the plastic
cover below the steering wheel. When replac-
ing a blown fuse, be sure to replace it with a
new one of the same color and amperage (writ-
ten on the fuse).No
A
1
Heated passenger's seat
15
2
Heated driver's seat
15
3
Horn
15
4
–
No
A
5
Audio system
10
6
–
7
–
8
Alarm siren (option)
5
9
Break light switch feed
5
10
Instrument panel, climate sys-
tem, power driver's seat,
Occupant Weight Sensor
10
No
A
11
12-volt sockets – front and rear
seats
15
12
–
13
–
14
–
15
ABS, DSTC
5
16
Power steering, Active Bi-
Xenon headlights (option)
10

09 Maintenance and servicingFuses
09230

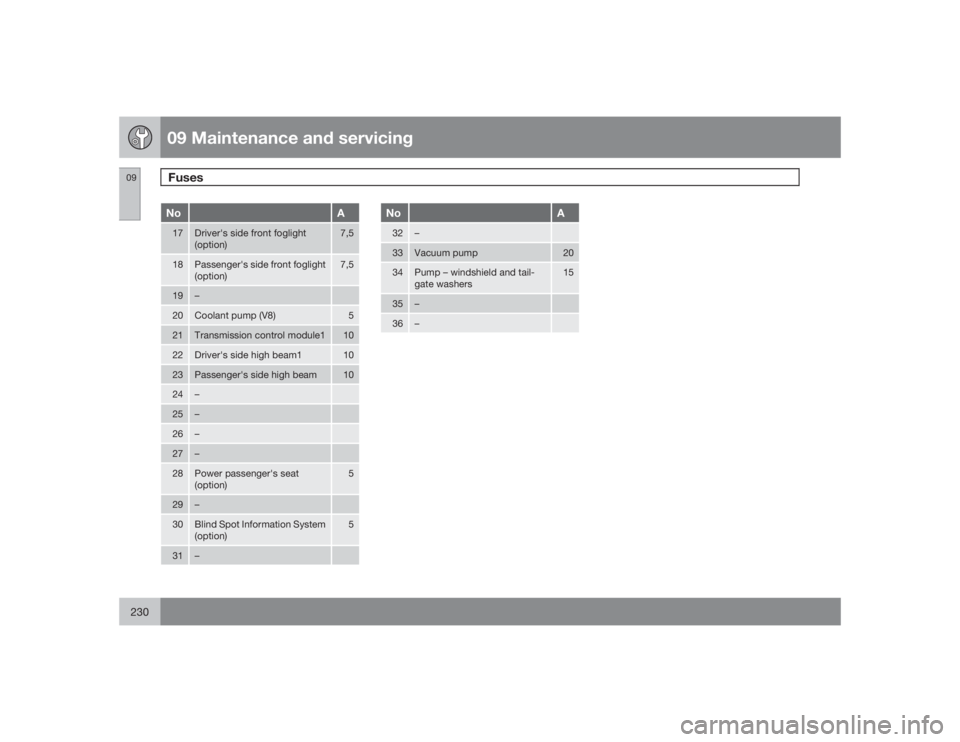

No
A
17
Driver's side front foglight
(option)
7,5
18
Passenger's side front foglight
(option)
7,5
19
–
20
Coolant pump (V8)
5
21
Transmission control module1
10
22
Driver's side high beam1
10
23
Passenger's side high beam
10
24
–
25
–
26
–
27
–
28
Power passenger's seat
(option)
5
29
–
30
Blind Spot Information System
(option)
5
31
–
No
A
32
–
33
Vacuum pump
20
34
Pump – windshield and tail-
gate washers
15
35
–
36
–

09 Maintenance and servicing
Fuses

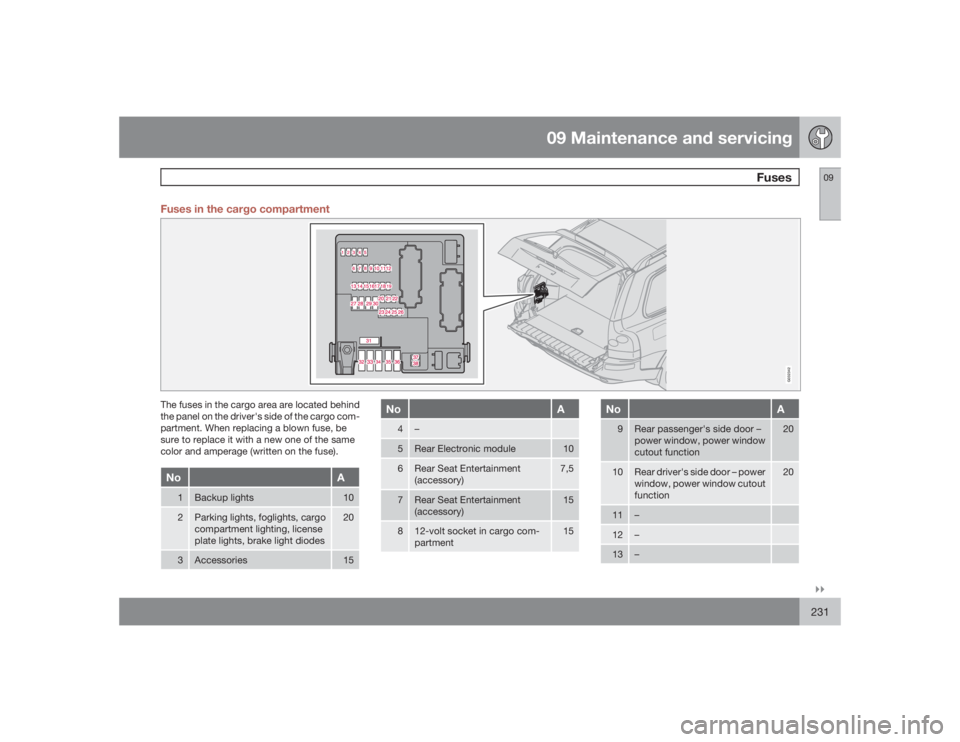

09``231 Fuses in the cargo compartment
G032342
The fuses in the cargo area are located behind
the panel on the driver's side of the cargo com-
partment. When replacing a blown fuse, be
sure to replace it with a new one of the same
color and amperage (written on the fuse).No
A
1
Backup lights
10
2
Parking lights, foglights, cargo
compartment lighting, license
plate lights, brake light diodes
20
3
Accessories
15
No
A
4
–
5
Rear Electronic module
10
6
Rear Seat Entertainment
(accessory)
7,5
7
Rear Seat Entertainment
(accessory)
15
8
12-volt socket in cargo com-
partment
15
No
A
9
Rear passenger's side door –
power window, power window
cutout function
20
10
Rear driver's side door – power
window, power window cutout
function
20
11
–
12
–
13
–

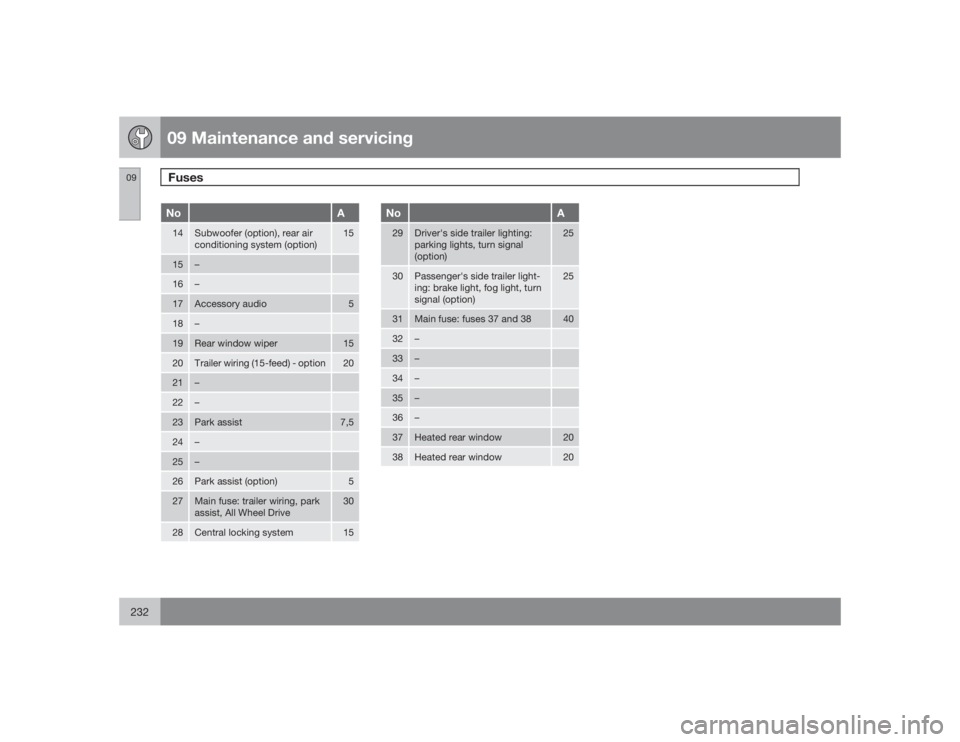

09 Maintenance and servicingFuses
09232
No
A
14
Subwoofer (option), rear air
conditioning system (option)
15
15
–
16
–
17
Accessory audio
5
18
–
19
Rear window wiper
15
20
Trailer wiring (15-feed) - option
20
21
–
22
–
23
Park assist
7,5
24
–
25
–
26
Park assist (option)
5
27
Main fuse: trailer wiring, park
assist, All Wheel Drive
30
28
Central locking system
15
No
A
29
Driver's side trailer lighting:
parking lights, turn signal
(option)
25
30
Passenger's side trailer light-
ing: brake light, fog light, turn
signal (option)
25
31
Main fuse: fuses 37 and 38
40
32
–
33
–
34
–
35
–
36
–
37
Heated rear window
20
38
Heated rear window
20
